Virnig

SBV48

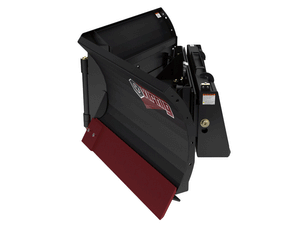

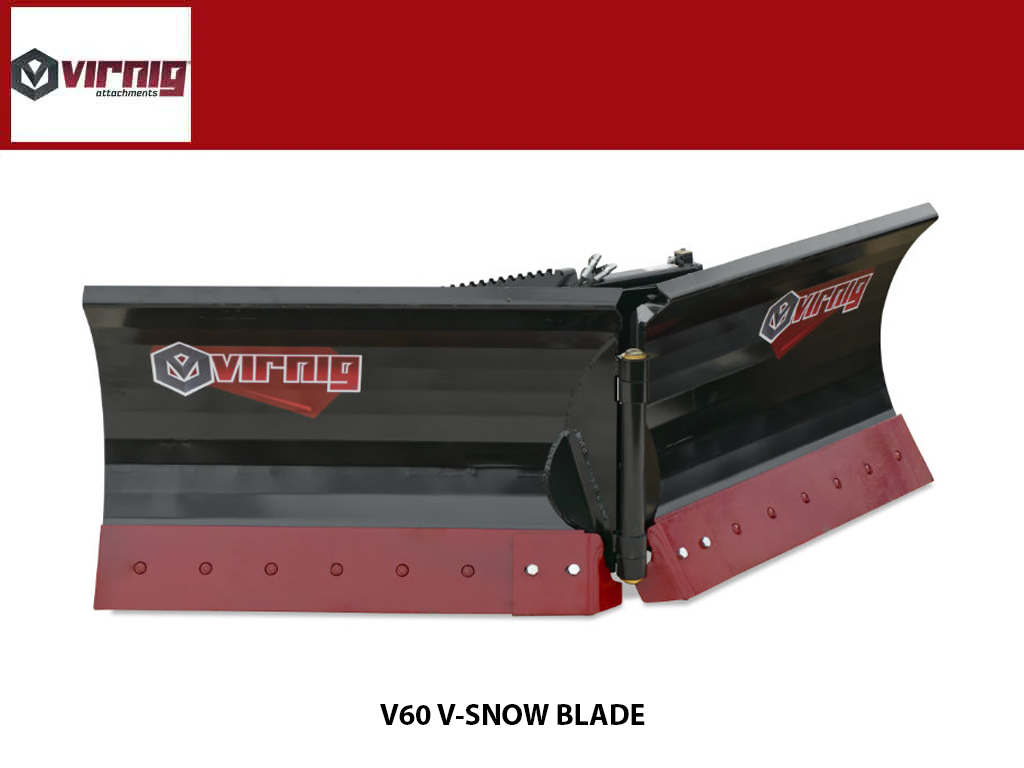

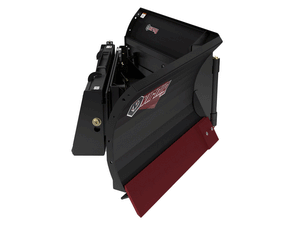

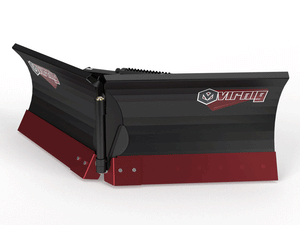

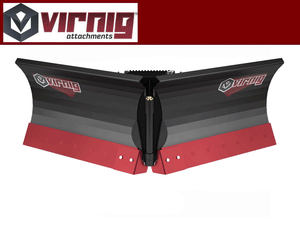

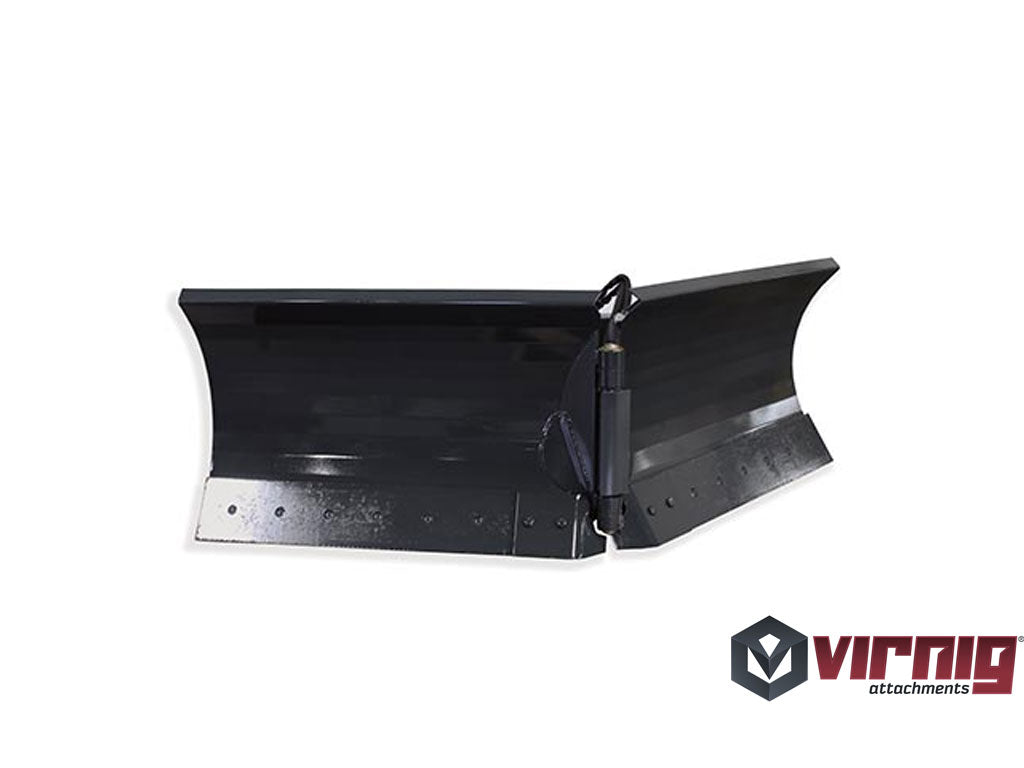

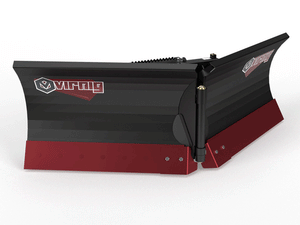

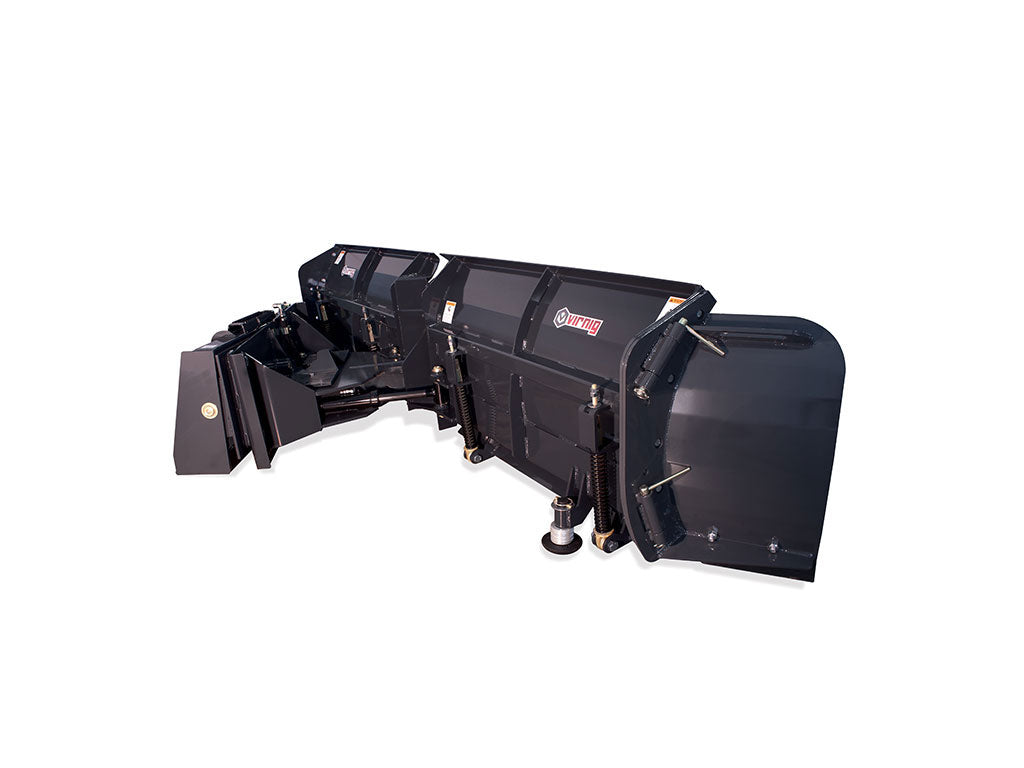

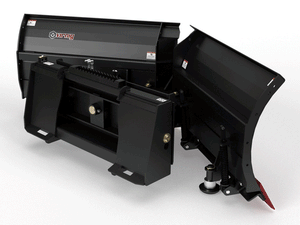

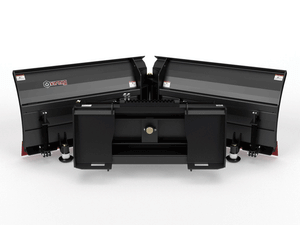

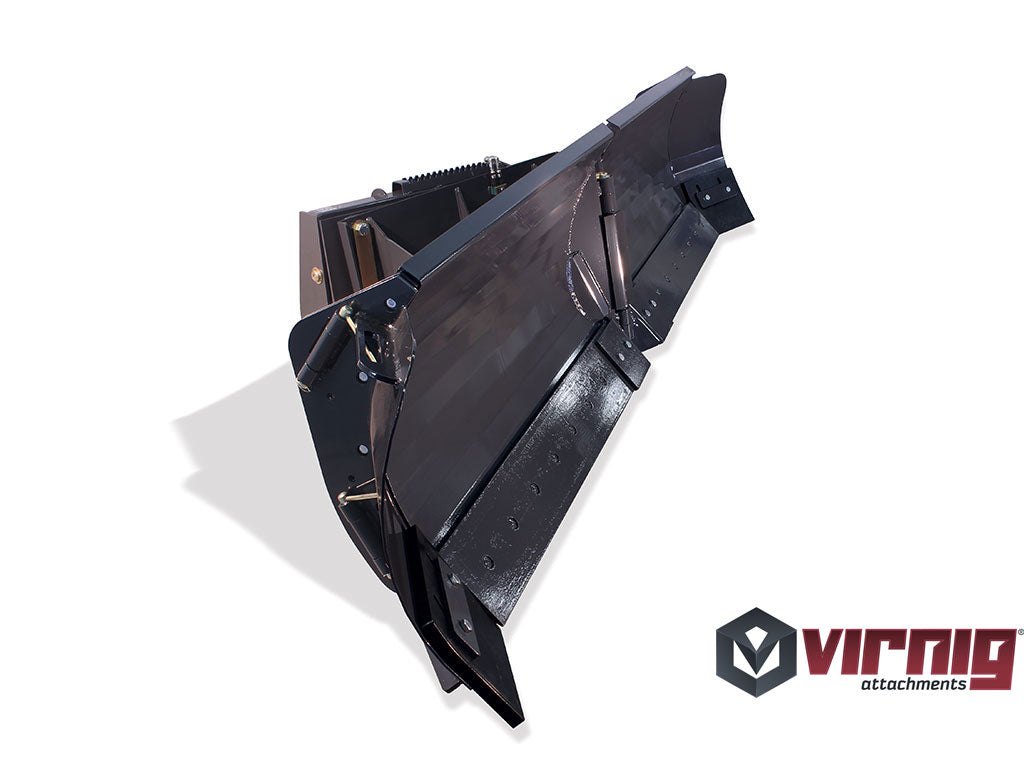

Virnig V60 V-Snow Blade (SSL)(CTL)

MODEL
EDGE
WINGS

THIS ATTACHMENT INCLUDES

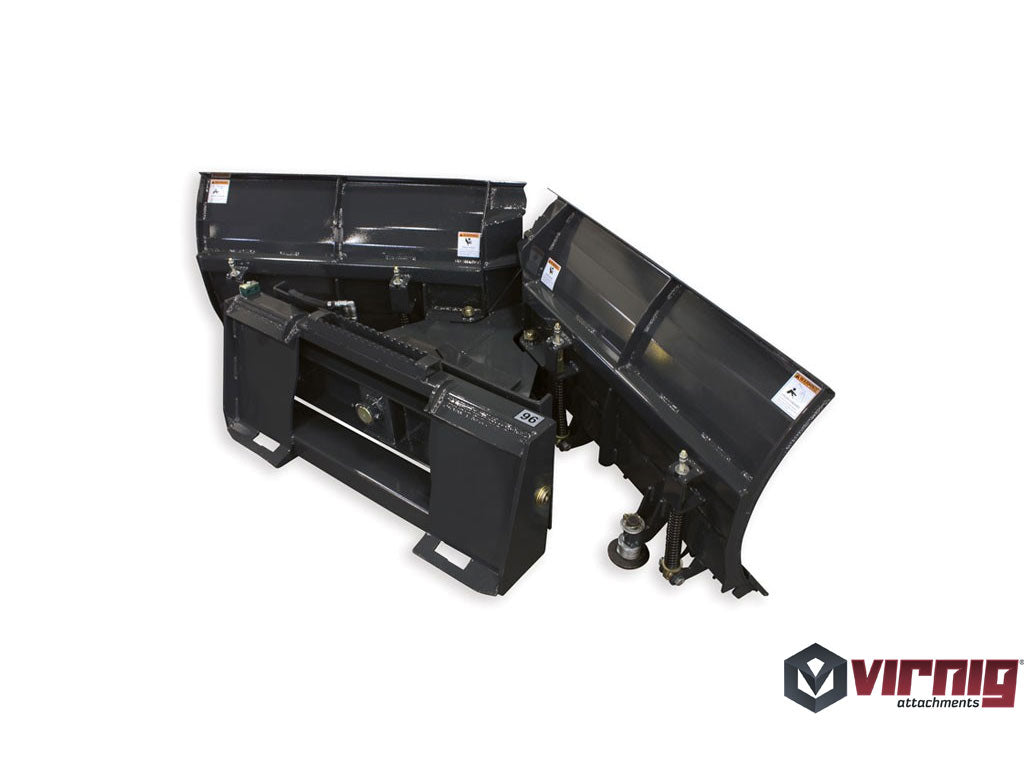

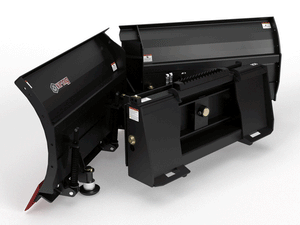

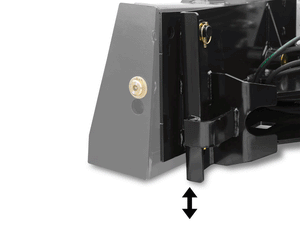

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS, CYLINDERS & FITTINGS

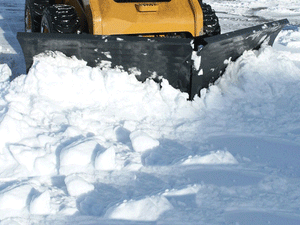

Virnig V60 V-Snow Blade is designed to hug the contours of the ground, in multiple blade positions, for effortless snow removal.

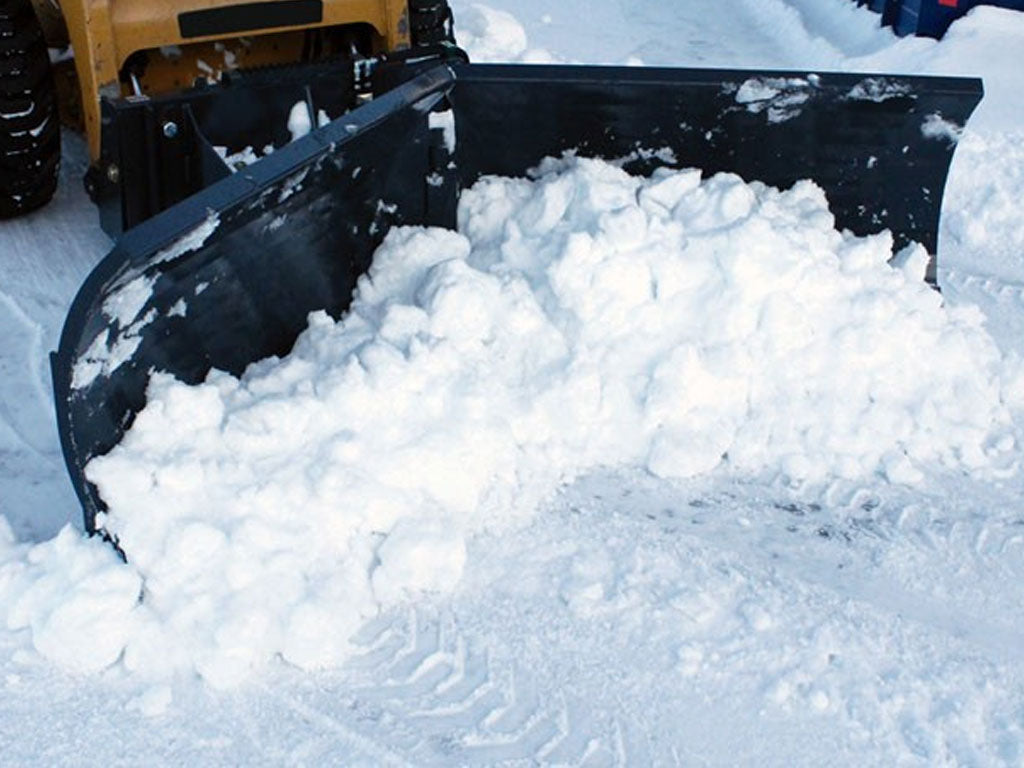

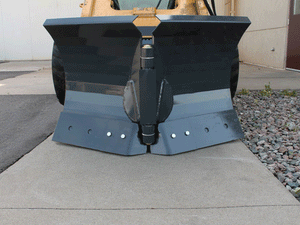

  • Variable V, scoop, straight, and angled positions allow for optimal snow removal.
  • Floating frame link maintains full blade contact in scoop and V positions while allowing full down pressure in straight and angled positions.

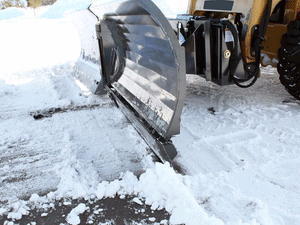

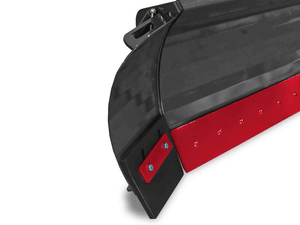

  • Oscillation and adjustable cast skid shoes allow edge to follow uneven surfaces.
  • Hydraulic sequence relief valves help protect the attachment by transferring shock from one wing to the other if a curb or other object is struck.
  • Corrosion, dent, and flake resistant NitroSteel® cylinder rods made in the USA.
  • Trip edge containing four compression springs.
  • Replaceable steel center edge sections.
  • SBV48 (48" model) is designed to plow sidewalks or other tight spaces and has two compression springs.

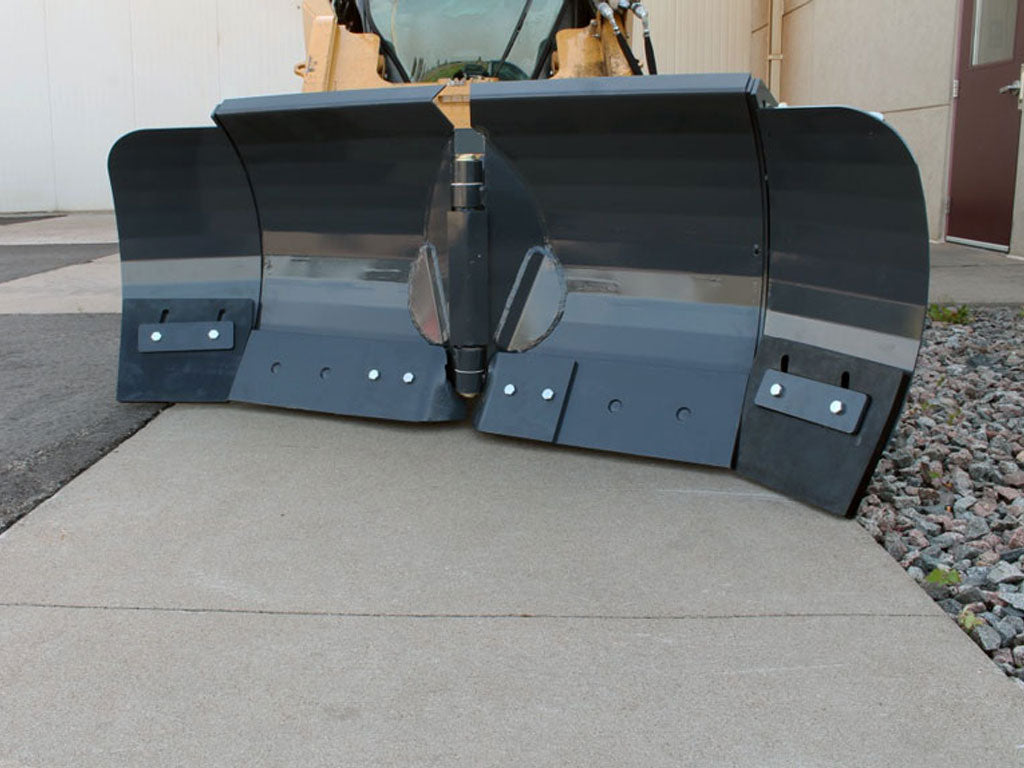

Also available: Two 12" wide pin-on wings angled 20 degrees forward from the moldboard to increase the blade's width by 21 3/4".  Call for pricing.

      EDGE OPTIONS

      • Steel Edges Installed
        • 5/8" x 8ˮ steel bolt-on edges allows 5 ½” of total wear
        • Edges are quickly reversed or replaced.

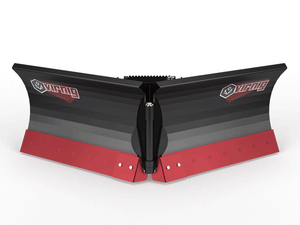

      • Poly Edges Installed
        • Replaces standard steel cutting edges.
        • 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
        • Reversible and replaceable like a steel bolt-on edges.





          Model SBV 48 SBV 60 SBV 72 SBV 84 SBV 96 SBV 108 SBV 120
          Overall Blade Width (Inches) 51.5 62.0 74.0 86.0 98.0 110.0 120.0
          Blade Height (Inches) 31.0
          Blade Angle (Degrees) +/- 30
          Width at Full Angle (Inches) 44.0 53.0 64.0 74.0 84.0 95.0 104.0
          Width at Full Scoop (Inches) 39.8 49.0 60.0 70.0 81.0 92.0 101.0
          Width at Full V (Inches) 48.0 57.0 66.0 76.0 88.0 99.0 108.0
          Moldboard Thickness (Inches) 0.19
          Cutting Edge (Inches) Steel or Poly
          Center Edge (Inches) 1/2 High Tensile Steel, Bolt-on
          Blade Oscillation (Degrees) +/- 4
          Float Link Angle (Degrees) +/- 5
          Approximate Weight (Pounds) 1060 1070 1130 1190 1250 1310 1370
          Recommended Loader(Pounds) Greater than 1500



          In stock items usually ship in 3-5 days

          Non stock items usually ship in 4-6 weeks
