WAIN ROY

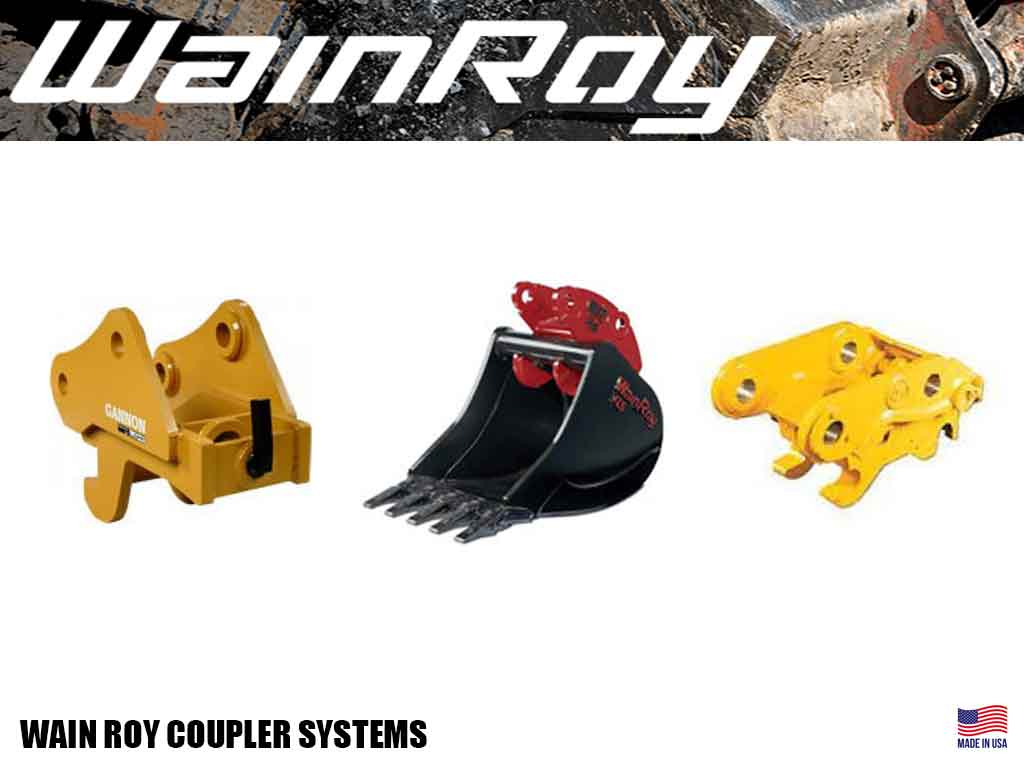

WAIN ROY 1/8 Yard Coupler Systems for excavators 4500 - 9000 lbs., including Wain Roy, CF, Gannon, and Helac

Style

CF Mechanical Quick Latch Coupler The CF mechanical coupler offers a lightweight, yet durable design for your most demanding coupler requirements. The coupler design allows a simple method to quickly switch attachments on a machine. A manual locking pin securely locks the attachment to the coupler. Couplers are custom designed to fit Woods manufactured or OEM attachments. Optional jump latches allow machines to adapt to different manufacturers attachments and provide greater flexibility between machines and attachments on the job site.

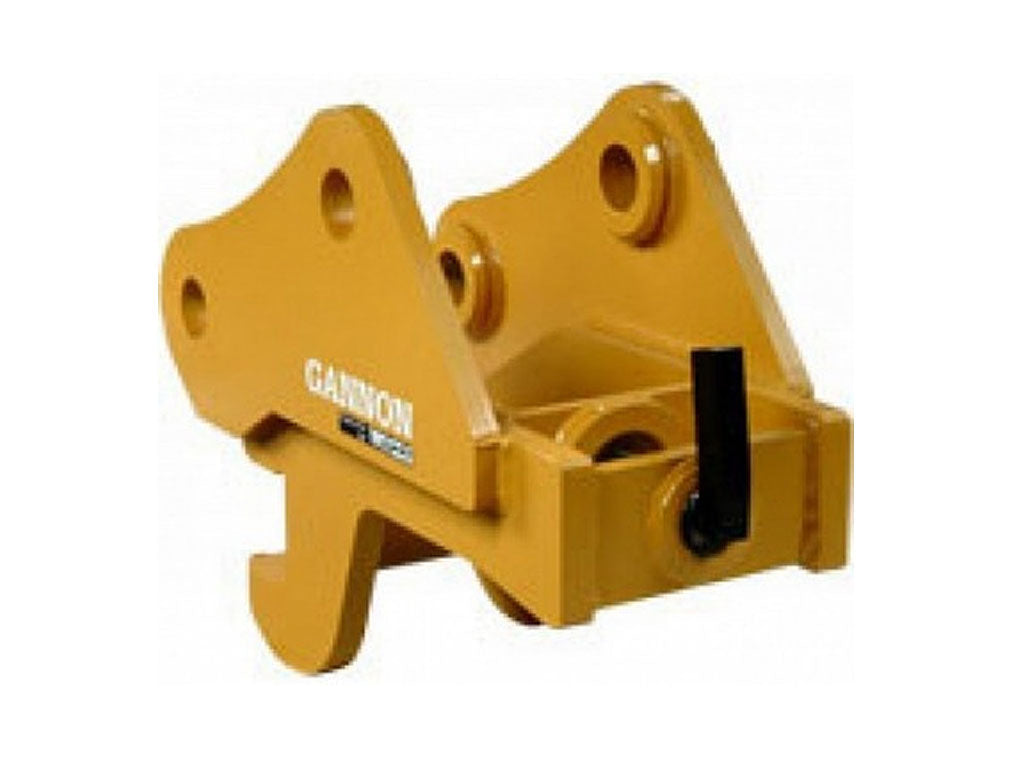

Gannon Eliminator Manual Quick Coupler The Eliminator manual quick coupler is designed for use with all Wain‑Roy Original buckets and attachments. The manual coupler provides a simple and quick method to change excavator buckets and attachments. Maintaining close to the manufacturers pin‑on performance specifications results in a near zero loss of breakout force. Eliminator coupler models are available to work with C&P, CAT, TAG and Original Wain‑Roy style buckets.

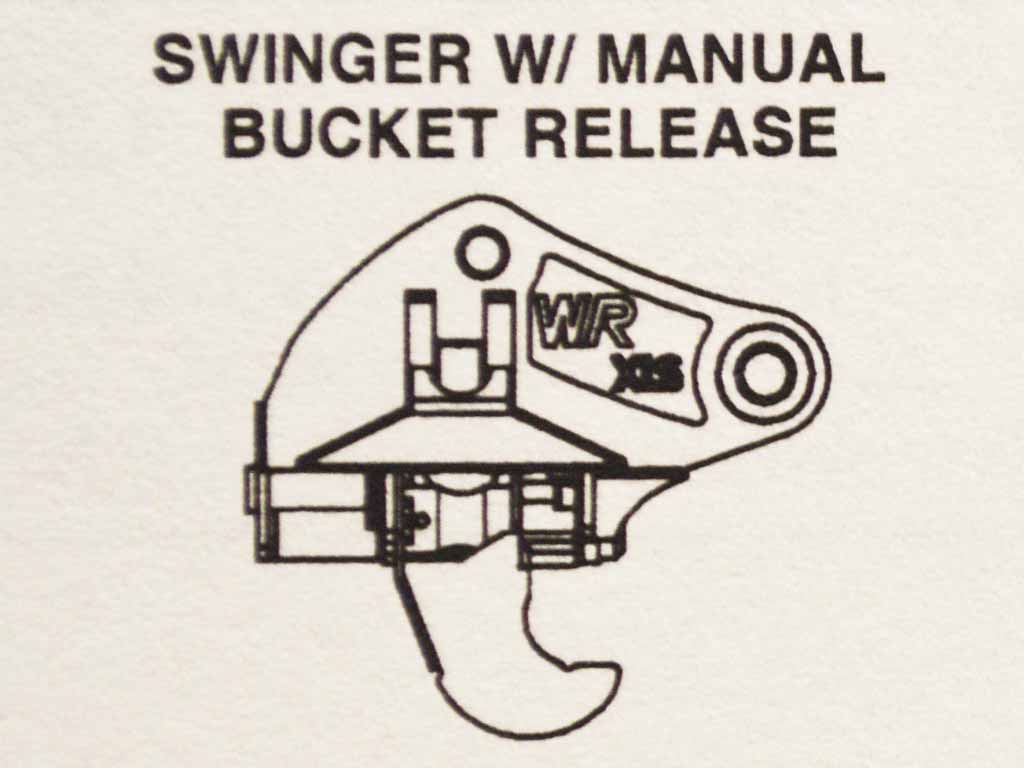

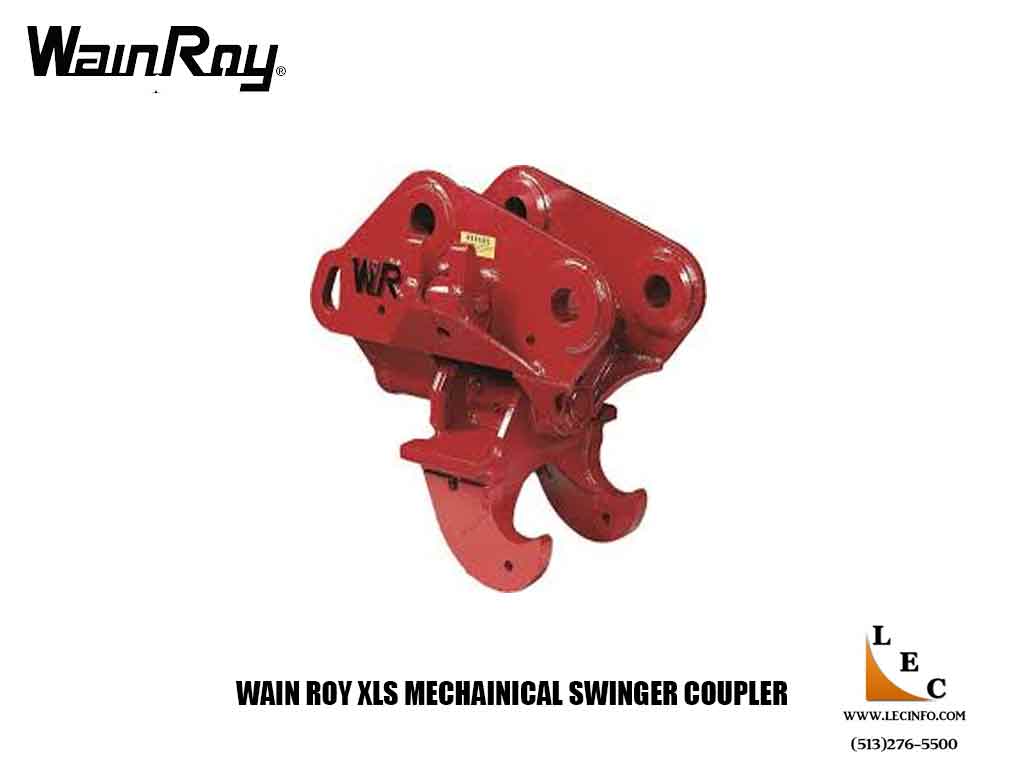

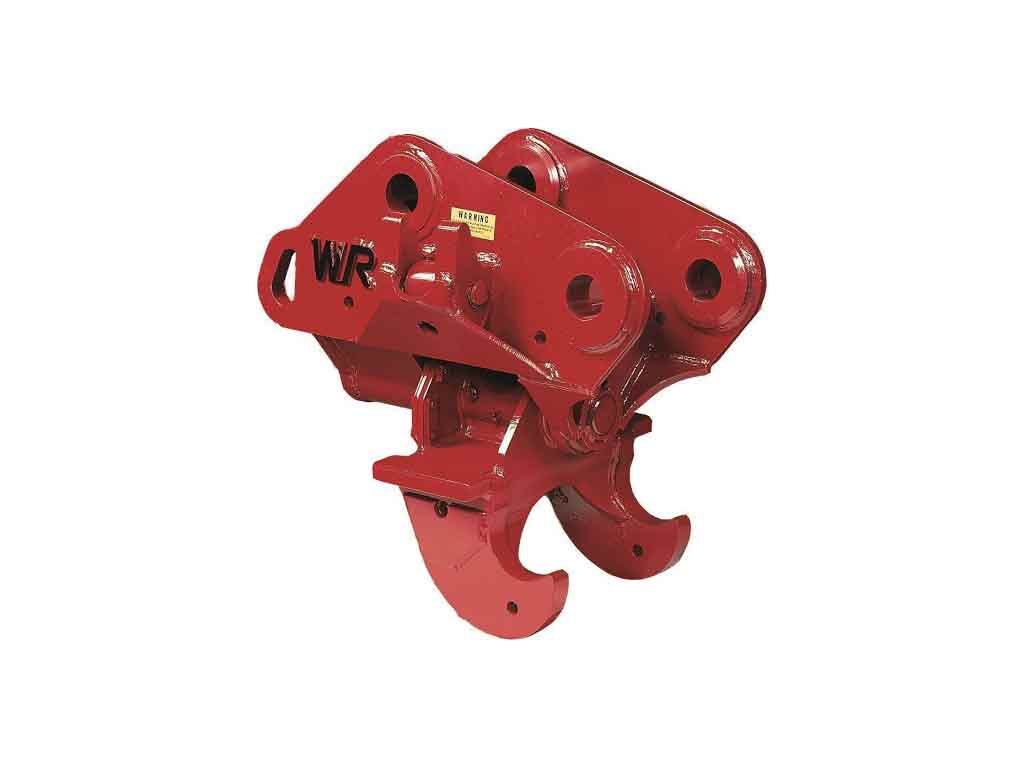

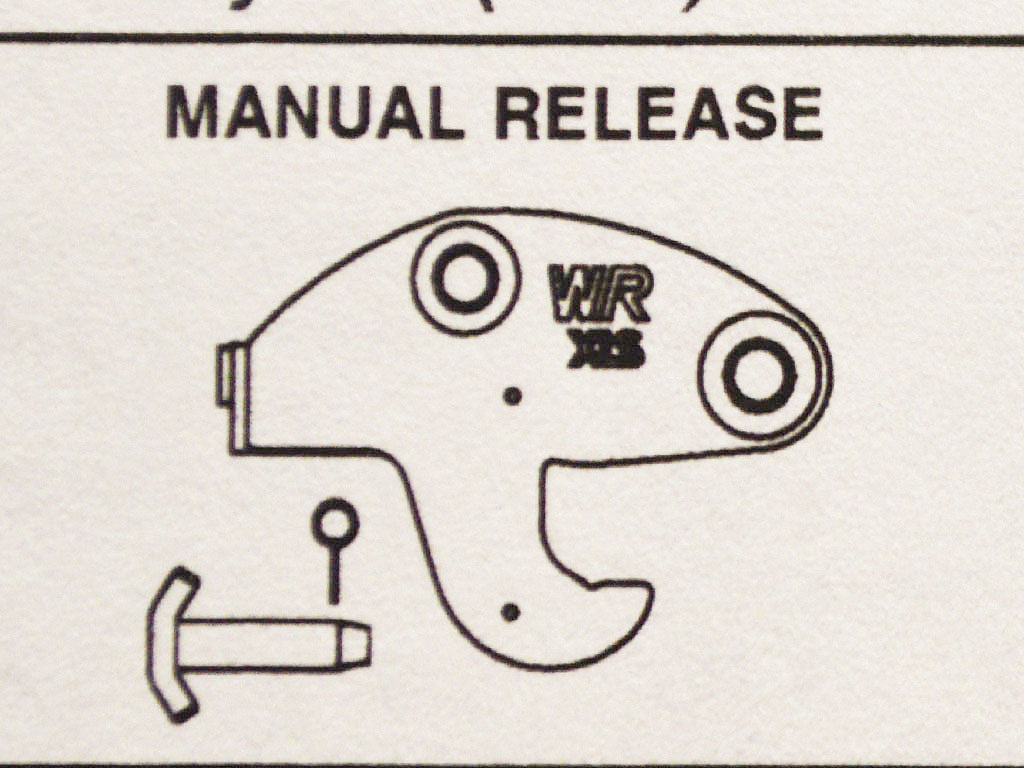

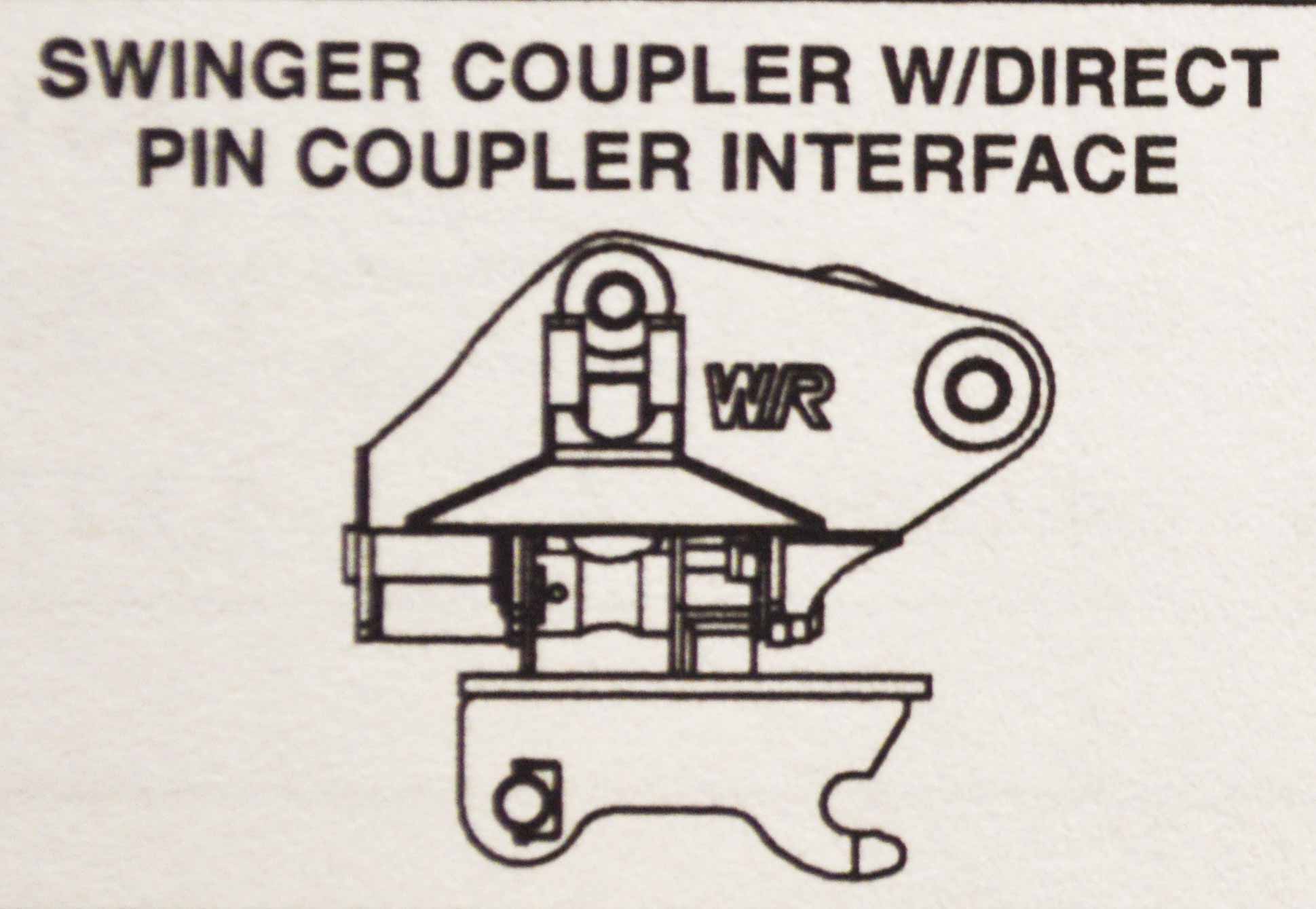

Wain‑Roy XLS Coupler System The Wain‑Roy XLS coupler system allows the benefit of fast and efficient changing of excavator buckets and attachments while maintaining close to the manufacturers pin‑on performance specifications. This results in a near zero loss of breakout force. The Wain‑Roy XLS coupler system design significantly reduces the free play between the coupler and attachments. The design provides the close fit between coupler and attachments to be maintained through simple adjustments with hand tools and periodic shimming. The XLS coupler system is designed for use with Wain‑Roy Original and XLS style buckets and attachments. The XLS coupler system is available in an easy‑to‑use manual or “operate from the seat” hydraulic release configuration.

* The WAIN ROY XLS will NOT work with CP and TAG buckets in this size class.

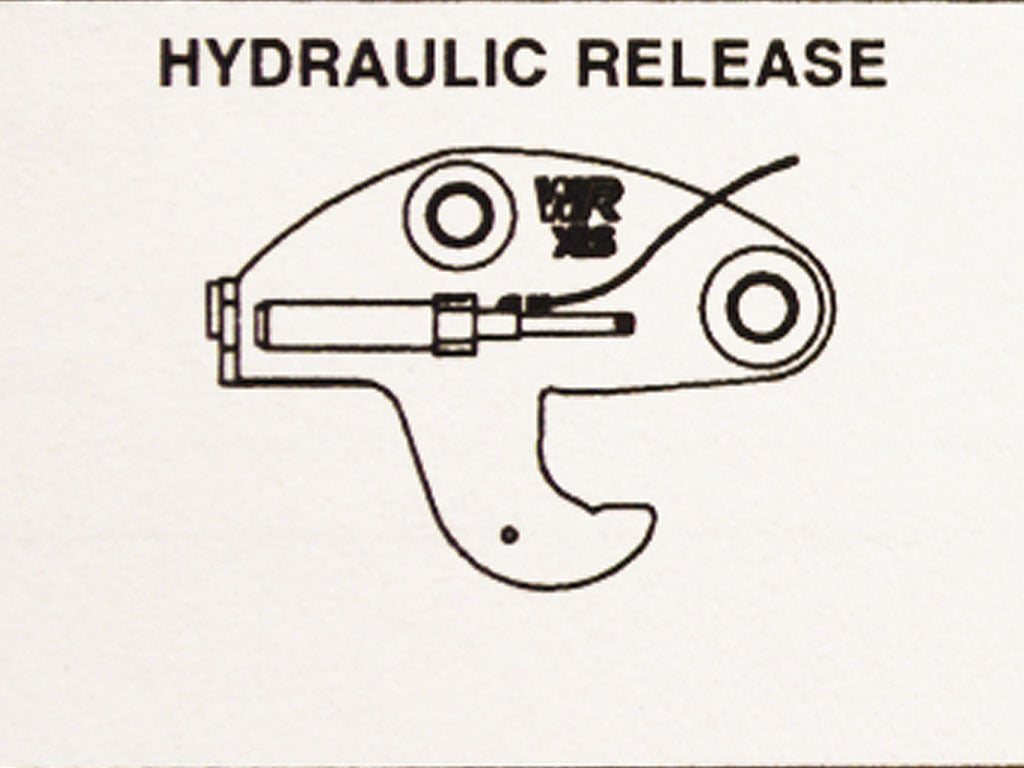

  • HYDRAULIC RELEASE - Hydraulic components include valve, switch box & wiring, and hoses & connections between our valve & cylinder. Customer is responsible for hoses from valve to drain (tank) and to the bucket cylinder for power.

    BRAND MODELS:  4500-9500 LBS
    BOBCAT

    325,425,E32,E35,328,331,334,

    335,430

    CASE

    CX25,CX26C,CX27B,CX31,CX31B,

    CB31B,CX36,CX36B,CX37C

    CAT

    302.5C,303.5D CR,302.5,303CR,

    303CR CR,303.5,303.5C CR

    302.4D

    HITACHI

    ZX27U-3,ZX35U-3,EX27,EX35,

    ZX27U,ZX27U-2,ZX35U-2

    IHI / KATO

    28N-3,30NX-2,35N-3,35VX,

    20NX,25NX-2,28N-2,35,35N-2,

    35NX-2,40N

    JCB

    8025ZTS,8030ZTS,8035ZTS,8040ZTS,

    802,802.4,802.7,803,804,8027,8032

    JOHN DEERE

    27 ZTS, 27C ZTS, 27D ZTS, 35 ZTS,

    35C ZTS,35D ZTS,110

    KOBELCO

    25SR,25SR-2,27SR-2,30SR-2,

    30SR-3,27SR-3,35SR-3

    KOMATSU

    PC27MR-2,PC27MR-3,PC27MRX-1,

    PC30MR-2,PC30MR-3,PC35MR-2

    KUBOTA

    KH91,KX61-2S,KX71-3,KX91-2,

    KX91-3S,U25,U35,KX121-3

    LIUGONG CLG904D
    MECALAC
    NEW HOLLAND

    27SR,30SR,E26C,E27B,E30B,E30C

    E33C,E35B,E37C,EC25,EC35,EH25,

    EH35

    SANY SY35U
    TAKEUCHI

    TB025,TB035,TB23R,TB28FR,

    TB125,TB135,TB138FR,TB228,

    TB230,TB235,TB235-2

    TEREX TC25,HR14,TC35,HR3.7,HR16
    THOMAS T25,T35,T45
    VERMEER CX224,CX229,CX234
    VOLVO

    EC35C,EC35D,EC270,ECR25D,

    ECR28,ECR38

    YANMAR

    VIO20-3,VIO27-5,VIO27-5,VIO35-5

    VIO27-5,VIO035-5
