CEX3T/18 PIN

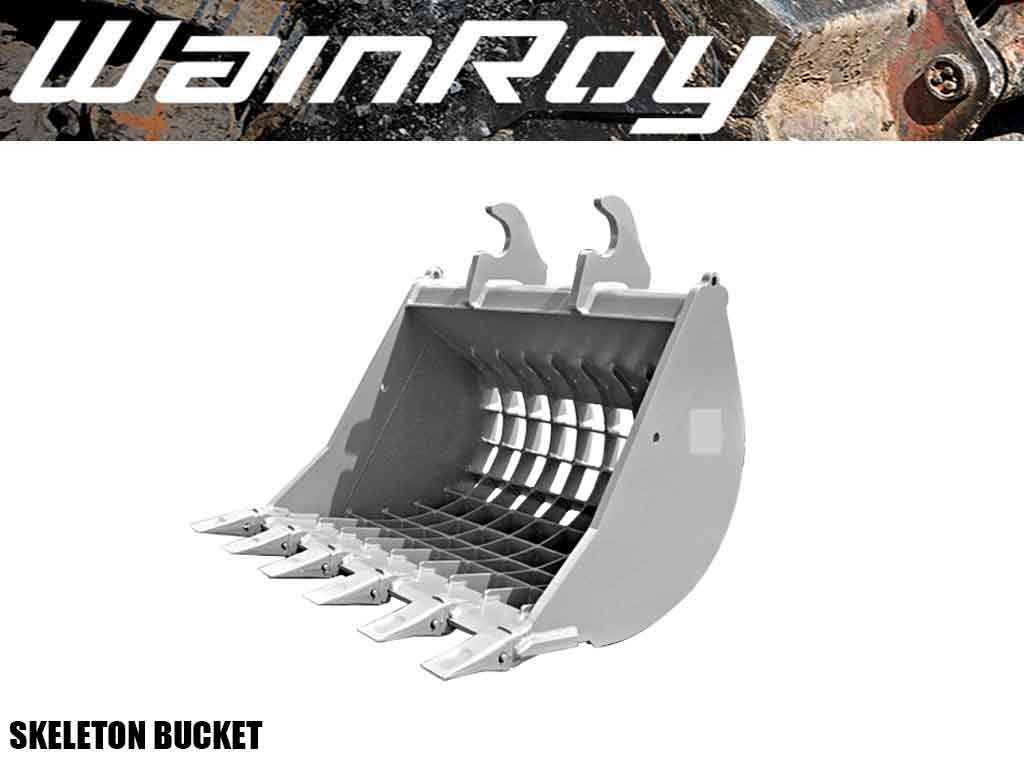

WAIN ROY compact excavator skeleton buckets
$2,351.00 - $7,676.00
COMPACT EXCAVATOR SKELETON BUCKETS
Skeleton buckets are primarily used to remove and separate rocks and larger debris from soil and sand.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
|
WEDGE LOCK (Deere / Hitachi) |
WEDGE SECURED AT REAR |  |
| BOBCAT EXCHANGE | HOOK WITH HORIZONTAL PIN |  |
| KUBOTA | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS |
HOOK WITH 1.5" VERTICAL PIN |
 |
|
GANNON ELIMINATOR / TAG / CP |
SMALL HOOK WITH 1.25" VERTICAL PIN |
 |
|
SKELETON BUCKET OEM PIN ON |
WEIGHT CLASS | WIDTH | CAPACITY (CU. YD.) | LBS. |
| CEX3T/18PO | 4,500 - 9,000 LBS | 18" | 0.10 | 160 |
| CEX3T/24PO | 4,500 - 9,000 LBS | 24" | 0.15 | 190 |
| CEXT5/18PO | 9,000 - 12,500 LBS | 18" | 0.16 | 210 |
| CEXT5/24PO | 9,000 - 12,500 LBS | 24" | 0.22 | 240 |
| CEXT5/36PO | 9,000 - 12,500 LBS | 36" | 0.37 | 290 |
| CEXT5/48PO | 9,000 - 12,500 LBS | 48" | 0.50 | 350 |
| CEX8T/18PO | 12,500 - 19,000 LBS | 18" | 0.19 | 340 |
| CEX8T/24PO | 12,500 - 19,000 LBS | 24" | 0.27 | 405 |
| CEX8T/36PO | 12,500 - 19,000 LBS | 36" | 0.44 | 575 |
| CEX8T/48PO | 12,500 - 19,000 LBS | 48" | 0.61 | 600 |
|
SKELETON BUCKETS WAIN ROY QC, ORIGINAL GANNON / CP / TAG |
WEIGHT CLASS | WIDTH | CAPACITY (CU. YD.) | LBS. |
| CEX3T/18QC | 4,500 - 9,000 LBS | 18" | 0.10 | 145 |
| CEX3T/24QC | 4,500 - 9,000 LBS | 24" | 0.15 | 175 |
| CEX5T/18QC | 9,000 - 12,500 LBS | 18" | 0.16 | 200 |
| CEX5T/24QC | 9,000 - 12,500 LBS | 24" | 0.22 | 230 |
| CEX5T/36QC | 9,000 - 12,500 LBS | 36" | 0.37 | 280 |
| CEX8T/18QC | 12,500 - 19,000 LBS | 18" | 0.19 | 320 |
| CEX8T/24QC | 12,500 - 19,000 LBS | 24" | 0.27 | 385 |
| CEX8T/36QC | 12,500 - 19,000 LBS | 36" | 0.44 | 555 |
| CEX8T/48QC | 12,500 - 19,000 LBS | 48" | 0.61 | 580 |
