CEX3T-12

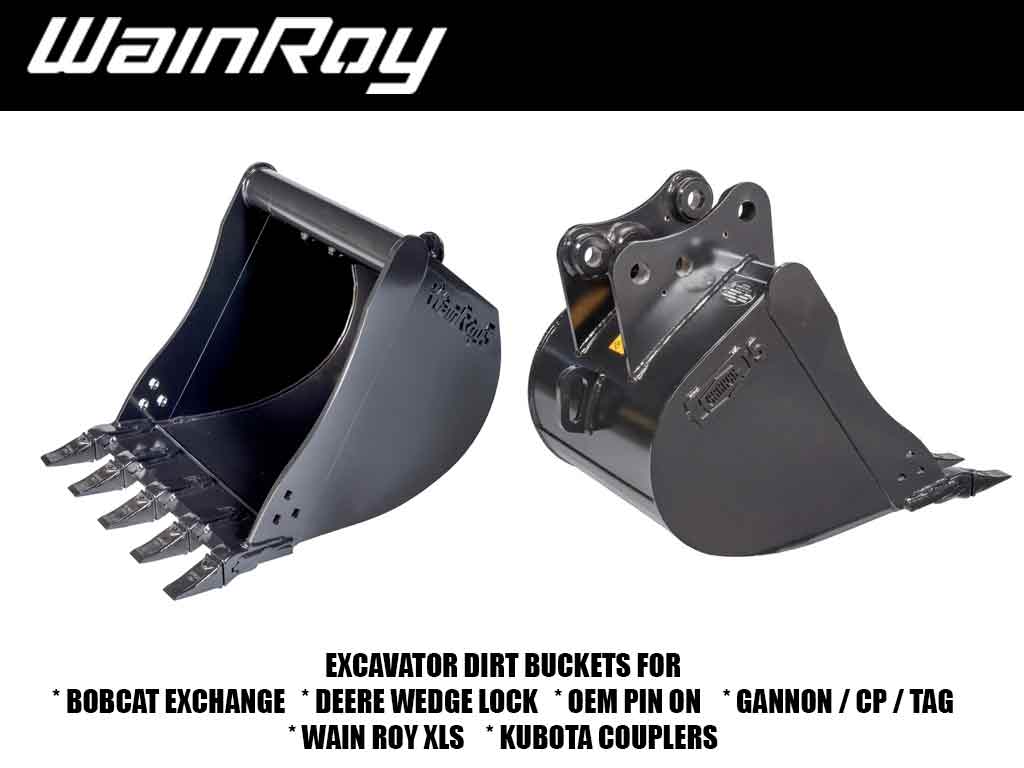

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WEDGE LOCK | WEDGE SECURED AT REAR |  |
| BOBCAT EXCHANGE | HOOK WITH HORIZONTAL PIN |  |
| KUBOTA | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS |
HOOK WITH 1.5" VERTICAL PIN |
 |
|
GANNON ELIMINATOR / TAG / CP |
SMALL HOOK WITH 1.25" VERTICAL PIN |
 |
|
OEM PIN ON WEDGE LOCK BOBCAT EXCHANGE KUBOTA |
CAPACITY | LBS |
| 12” | 1.6 | 144 |
| 16” | 2.5 | 162 |
| 18” | 2.8 | 178 |
| 24” | 4.0 | 214 |
| 30" | 5.2 | 250 |
| 36 | 6.4 | 286 |
|
WAIN ROY XLS GANNON ELIMINATOR |
CAPACITY | LBS |
| 12” | 1.6 | 133 |
| 16” | 2.5 | 155 |
| 18” | 2.8 | 171 |
| 24” | 4.0 | 209 |
| 30" | 5.2 | 246 |
| 36" | 6.4 | 284 |
| BRAND | MODELS: 4500-9500 LBS |
| BOBCAT |
325,425,E32,E35,328,331,334, 335,430 |
| CASE |
CX25,CX26C,CX27B,CX31,CX31B, CB31B,CX36,CX36B,CX37C |
| CAT |
302.5C,303.5D CR,302.5,303CR, 303CR CR,303.5,303.5C CR 302.4D |
| HITACHI |
ZX27U-3,ZX35U-3,EX27,EX35, ZX27U,ZX27U-2,ZX35U-2 |
| IHI / KATO |
28N-3,30NX-2,35N-3,35VX, 20NX,25NX-2,28N-2,35,35N-2, 35NX-2,40N |
| JCB |
8025ZTS,8030ZTS,8035ZTS,8040ZTS, 802,802.4,802.7,803,804,8027,8032 |
| JOHN DEERE |
27 ZTS, 27C ZTS, 27D ZTS, 35 ZTS, 35C ZTS,35D ZTS,110 |
| KOBELCO |
25SR,25SR-2,27SR-2,30SR-2, 30SR-3,27SR-3,35SR-3 |
| KOMATSU |
PC27MR-2,PC27MR-3,PC27MRX-1, PC30MR-2,PC30MR-3,PC35MR-2 |
| KUBOTA |
KH91,KX61-2S,KX71-3,KX91-2, KX91-3S,U25,U35 |
| LIUGONG | CLG904D |
| MECALAC | |
| NEW HOLLAND |
27SR,30SR,E26C,E27B,E30B,E30C E33C,E35B,E37C,EC25,EC35,EH25, EH35 |
| SANY | SY35U |
| TAKEUCHI |
TB025,TB035,TB23R,TB28FR, TB125,TB135,TB138FR,TB228, TB230,TB235,TB235-2 |
| TEREX | TC25,HR14,TC35,HR3.7,HR16 |
| THOMAS | T25,T35,T45 |
| VERMEER | CX224,CX229,CX234 |
| VOLVO |
EC35C,EC35D,EC270,ECR25D, ECR28,ECR38 |
| YANMAR |
VIO20-3,VIO27-5,VIO27-5,VIO35-5 VIO27-5,VIO035-5 |
