WAIN ROY ditch buckets for excavators 12,500 to 20,000 lbs.

STYLE
TYPE
SIZE

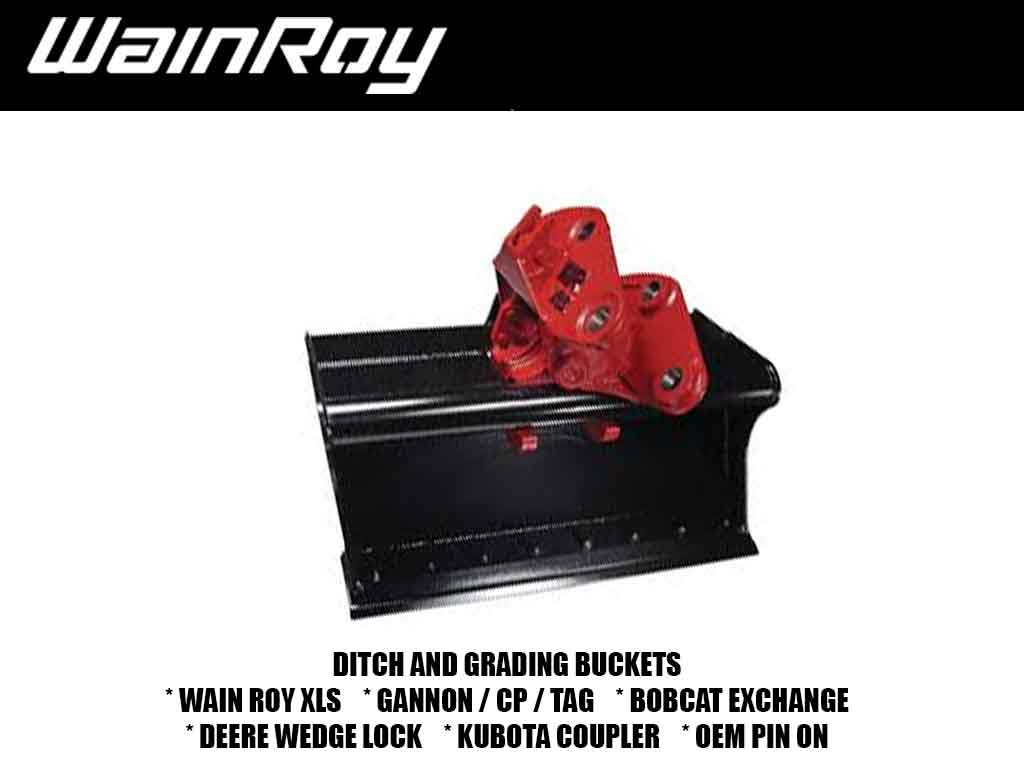

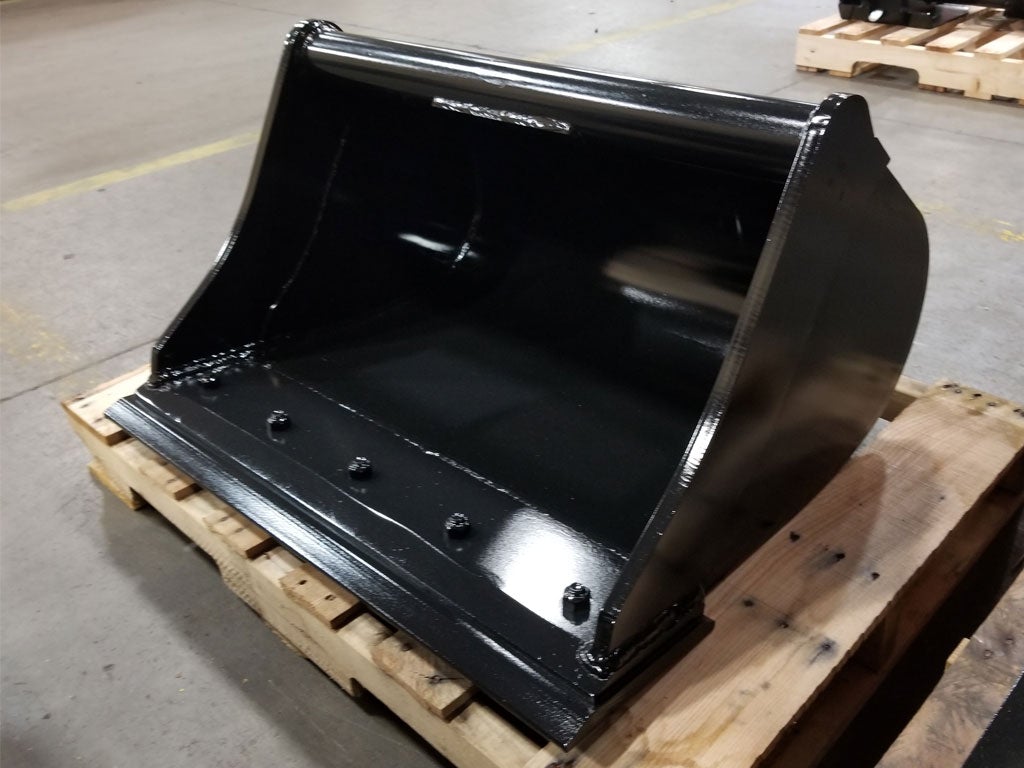

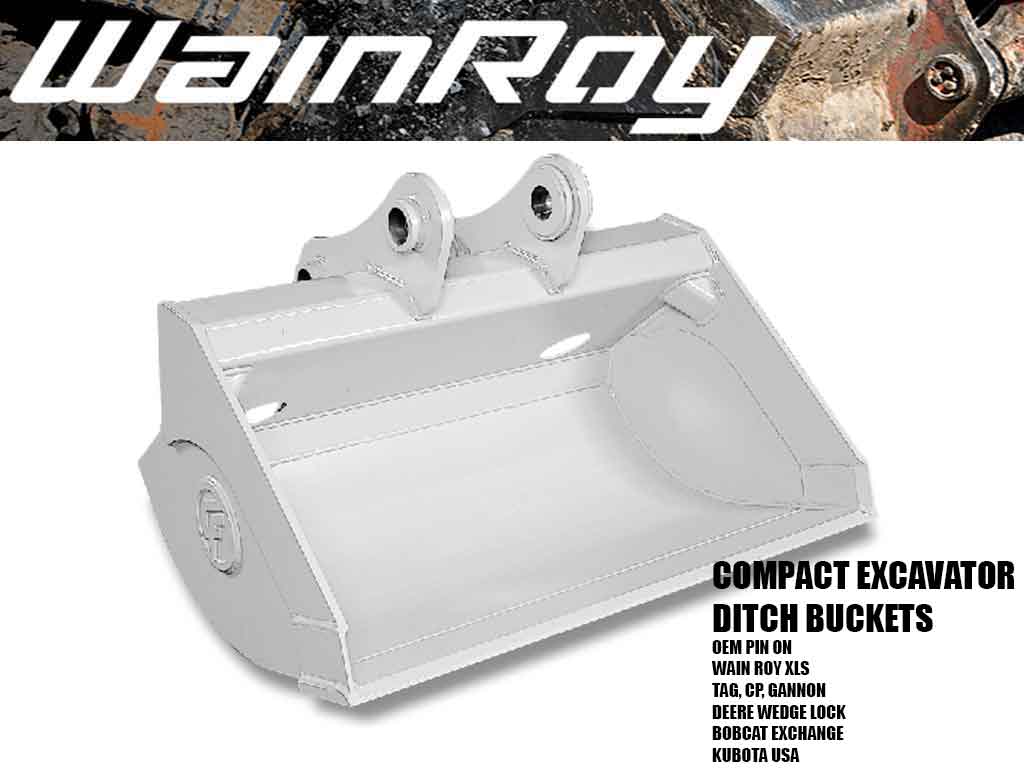

Wain-Roy General Purpose Ditching & Grading Buckets

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WEDGE LOCK WEDGE SECURED AT REAR
BOBCAT EXCHANGE HOOK WITH HORIZONTAL PIN
KUBOTA TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP

SMALL HOOK WITH VERTICAL PIN



OEM PIN ON

WEDGE LOCK

BOBCAT EXCHANGE

KUBOTA

CAPACITY LBS BUCKET HEIGHT  BUCKET LENGTH
30" 5.3 435 21.3" 25.5"
36” 7.3 486 21.3" 25.5"
42” 8.8 546 21.3" 25.5"
48” 10.3 598 21.3" 25.5"
54" 11.7 658 21.3" 25.5"
60" 13.2 718 21.3" 25.5"
72" 16.1 830 21.3" 25.5"

WAIN ROY XLS (1.5" T PIN)

GANNON ELIMINATOR (1.25" T PIN)

CAPACITY LBS
BUCKET HEIGHT BUCKET LENGTH
30” 6.1 305 22" 23"
36” 8.1 352 22" 23"
42” 9.6 400 22" 23"
48” 11.1 448 22" 23"
54" 12.5 528 22" 23"
60" 14.0 587 22" 23"
72" 17.0 704 22" 23"
MAKE MODELS: 8 TON, 12500-20000 LB EXCAVATOR
BOBCAT 442, 442S, E85
CASE CX75C SR, CX75SR, CX80C
CAT 307D, 307EX, 308D CR, 308D CR-SB
COYOTE DX80, DX85R-3
DOOSAN DX80, DX85R-3, S075-V, S70-V, S75-V
DITCH WITCH

GEHL

MUSTANG

Z80 GEN: 2 | 800Z NXT2

HITACHI ZX75US‑5, ZX85USB‑5
HYUNDIA R80CR-9, R80CR-9A
IHI KATO 70Z
JCB 67C-1, 86C-1, 85Z
JOHN DEERE 70, 70D, 75C,80, 80C, 85, 190E
KOBELCO

70SR, 80CS

KOMATSU

PC78MR-6, PC78US-6, PC78US-8, PC78US-10,

PC78UU-6

KUBOTA

KX057‑4

LIUGONG CLG906D
MECALAC 6MCR, 8MCR, 8MCR RR
NEW HOLLAND

EH70, EH80

SANY

SY75C‑TIER 2, SY75C‑TIER 3, SY75C‑TIER 3 (EU),

SY75C‑TIER 3 (US), SY75C‑TIER 4F, SY80C-9S

TAKEUCHI

TB68S, TB070

TEREX TC75 (HR32)
THOMAS T75
VERMEER
VOLVO ERC88
YANMAR

B7 5A, SV100-2A, Vi08
