WAIN ROY

HDM15-9

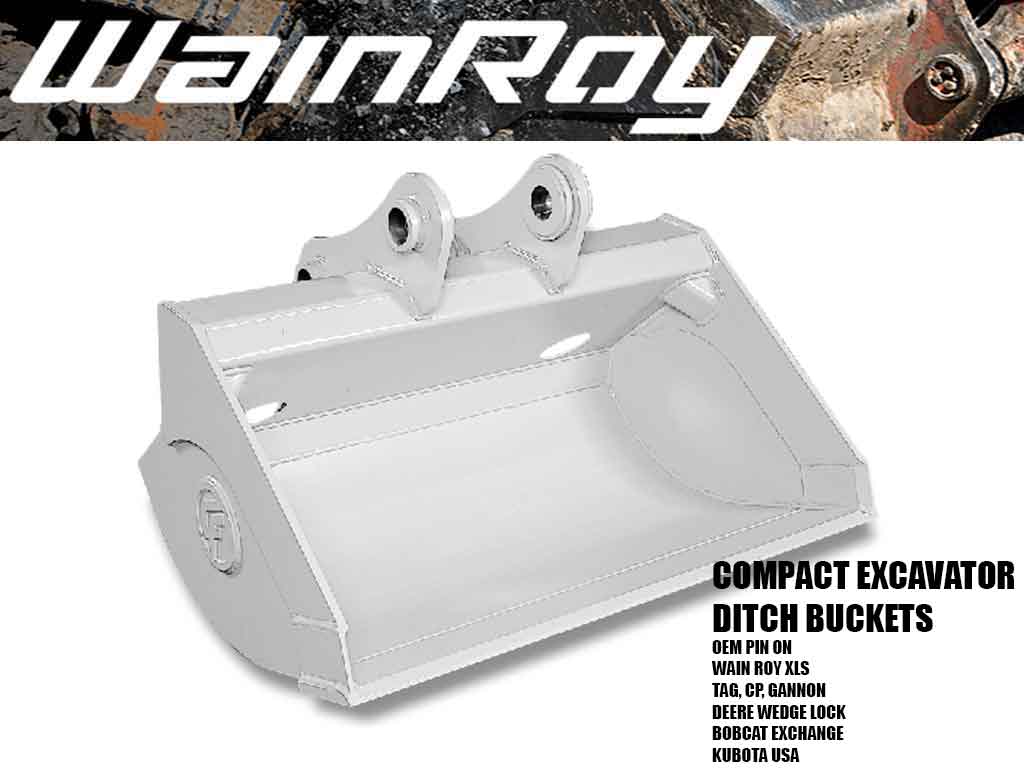

WAIN ROY ditch buckets for excavators less than 4500 lbs.

STYLE
TYPE
SIZE

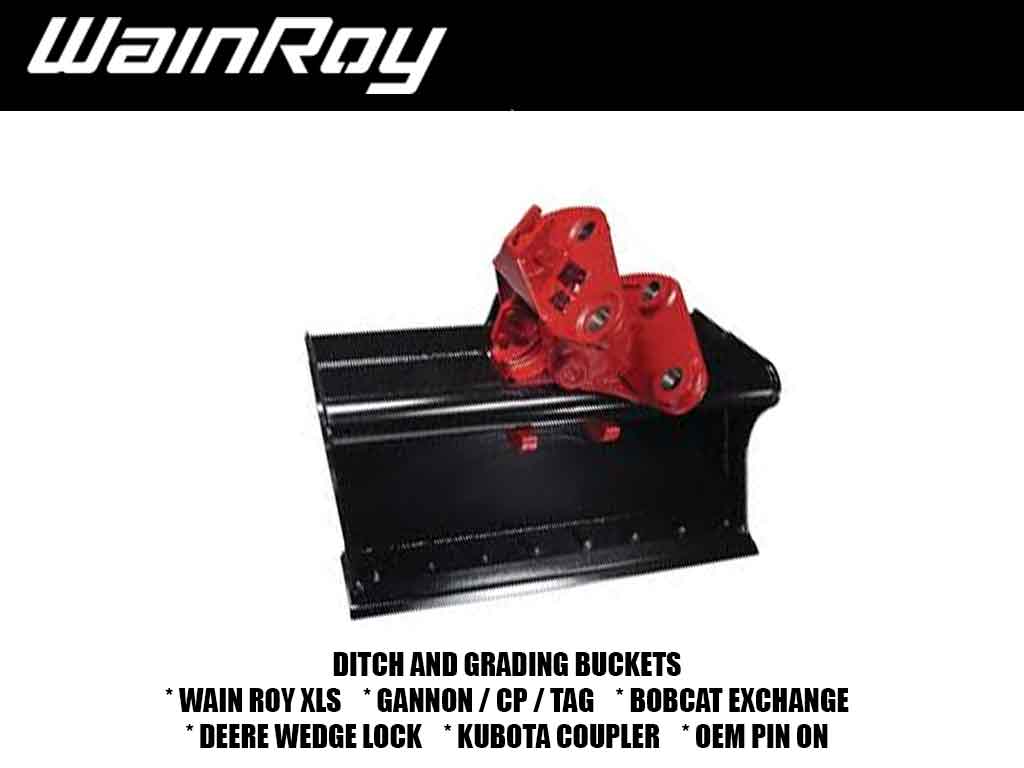

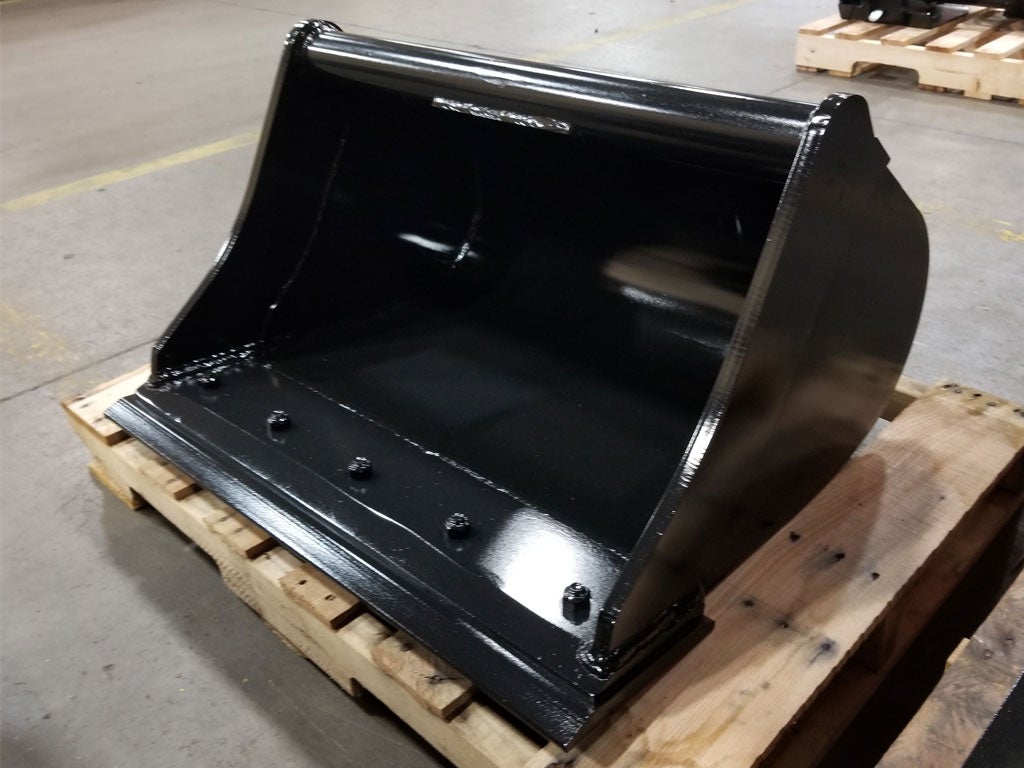

Wain-Roy General Purpose Ditching & Grading Buckets

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WEDGE LOCK WEDGE SECURED AT REAR
BOBCAT EXCHANGE HOOK WITH HORIZONTAL PIN
KUBOTA TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP

SMALL HOOK WITH VERTICAL PIN



OEM PIN ON

WEDGE LOCK

BOBCAT EXCHANGE

KUBOTA

CAPACITY LBS
 9” .59 65
12” 1.08 77
16” 1.26 87
18” 1.45 92
20” 1.75 100
24” 2.05 108
30" 2.25 135
36" 3.00 150

WAIN ROY XLS

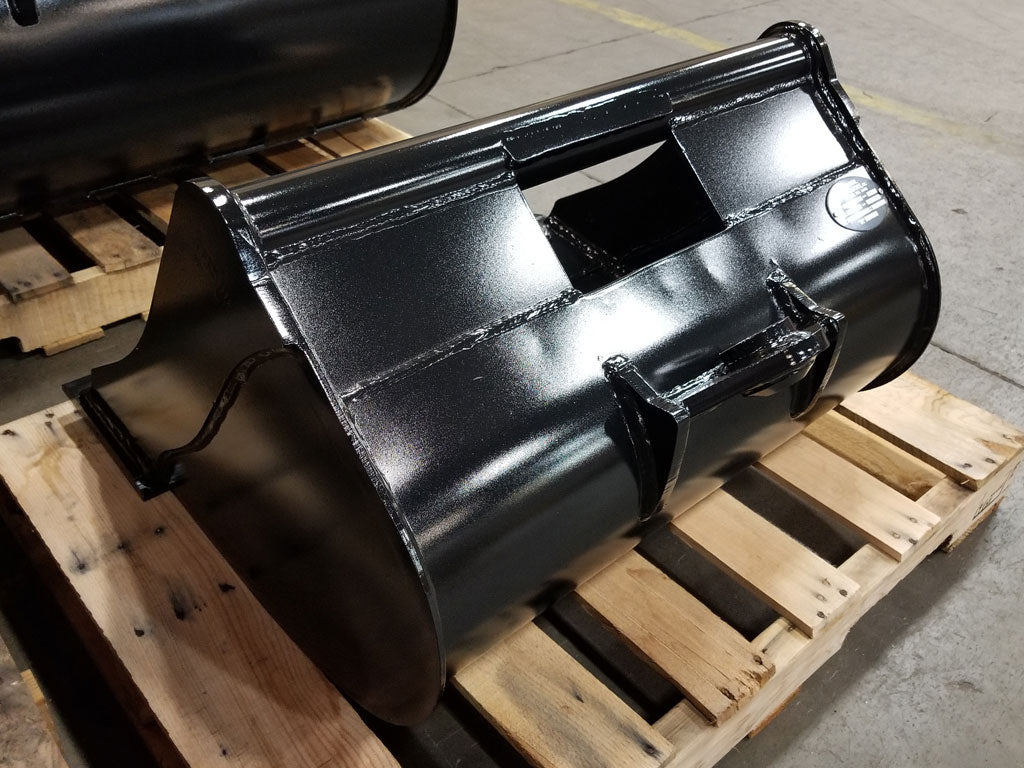

GANNON ELIMINATOR

9” .59 57
12” 1.08 65
16” 1.26 75
18” 1.45 80
20” 1.75 85
24” 2.05 92
30" 2.25 130
36" 3.00 145









 MAKE MODEL UNDER 4500 LB
BOBCAT 316,320,322,323,324,E14,E16,E20
CASE CX14,CX17B,CX17C
CAT

300.9D,301.4C,301.5, 301.6,301.6C,301.7D,

301.8,301.8C,HPU300

COYOTE CE08,CE08-1,CE15
DOOSAN S010,S015
DITCH WITCH MX9,MX15,MX182
DEERE 17C, 17D,17ZTS, 15,17G
GEHL/MUSTANG Z17,170Z
HITACHI EX17, ZX17
HYUNDAI R15-7, R16-7, R17Z
IHI

15NX-2,10G,12G,14G,15J,18J,7J,7JE,9VX,

17NE,17VX,18J

JCB

18Z,19Z

KOBELCO 13SR,SK13SR,SK15SR,17SR
KOMATSU

PC18MR-2, PC20MR-2, PC15MR-8, PC15MRX

PC02-1,PC15MRX,

KUBOTA

B20, B21, U15, KX41-3,13SR,K008-3,KX018-4

U17

NEW HOLLAND

E15, EC15,17SR,E9SR,E10SR,E17C,E18B,E18SR

E15B

TAKEUCHI

TB016, TB014,TB216,TB108,TB210R,TB216,

TB216H

TEREX

HR1.5,HR11,HR12,HR13,TC15,HR1.6, TC16,

HR2.0, TC20

THOMAS

T15,T15V

VERMEER

CX216,CX218,CX219

VOLVO EC15B,EC17C,EC18C,EC20B,EC20C,EC20D
YANMAR

B08-3,VIO15-2, VIO20-2, VIO20, VIO15-3,

VIO20-3,B15,SV08
