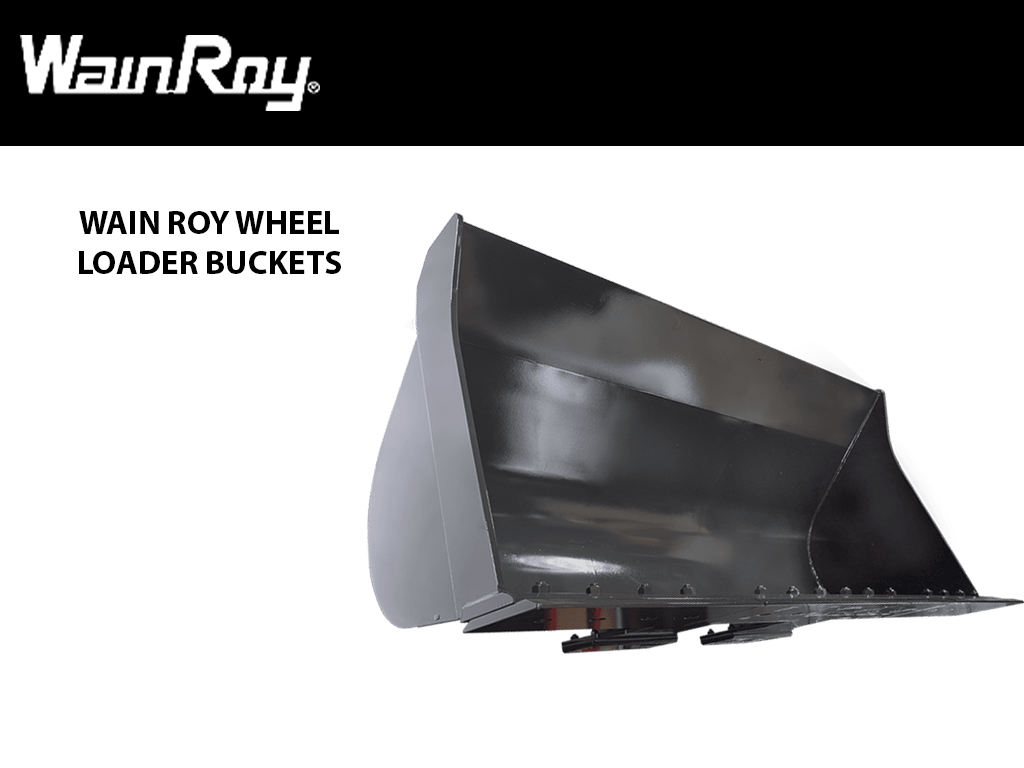

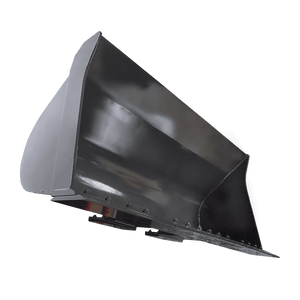

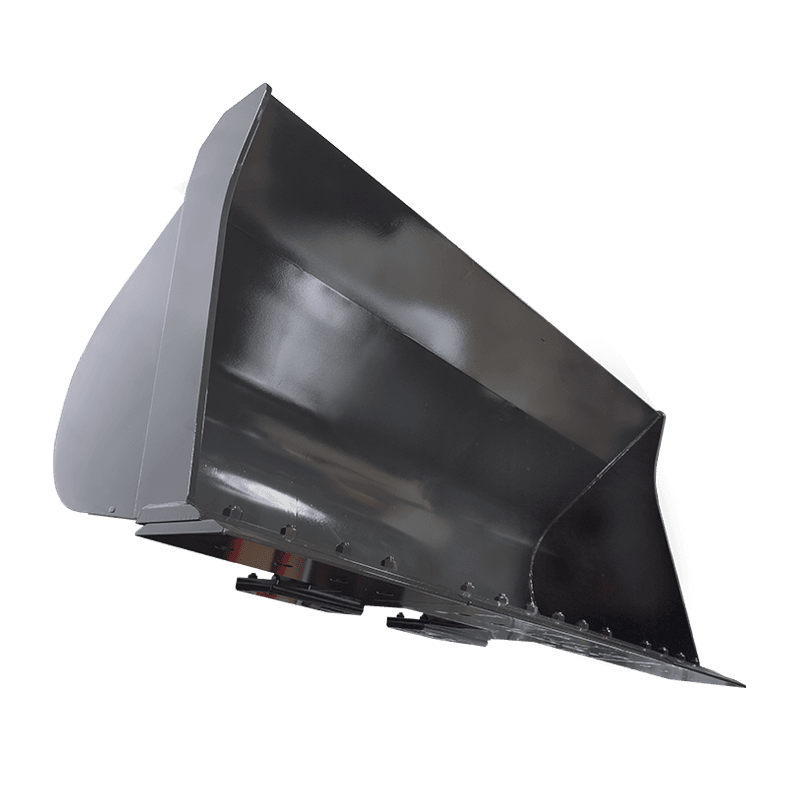

WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)
WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)

09-84E

WAIN ROY General Purpose Buckets for Wheel Loader, Class 1 (0.75 - 1.50 cu. yd.)

$4,360.00 - $6,108.00

Business Financing Available

style
width
edge

GENERAL PURPOSE TLB/WHEEL LOADER BUCKET WITH BOLT-ON EDGE

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs/yd3. The heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

CLASS 1 (0.75 - 1.50 CU. YD.)

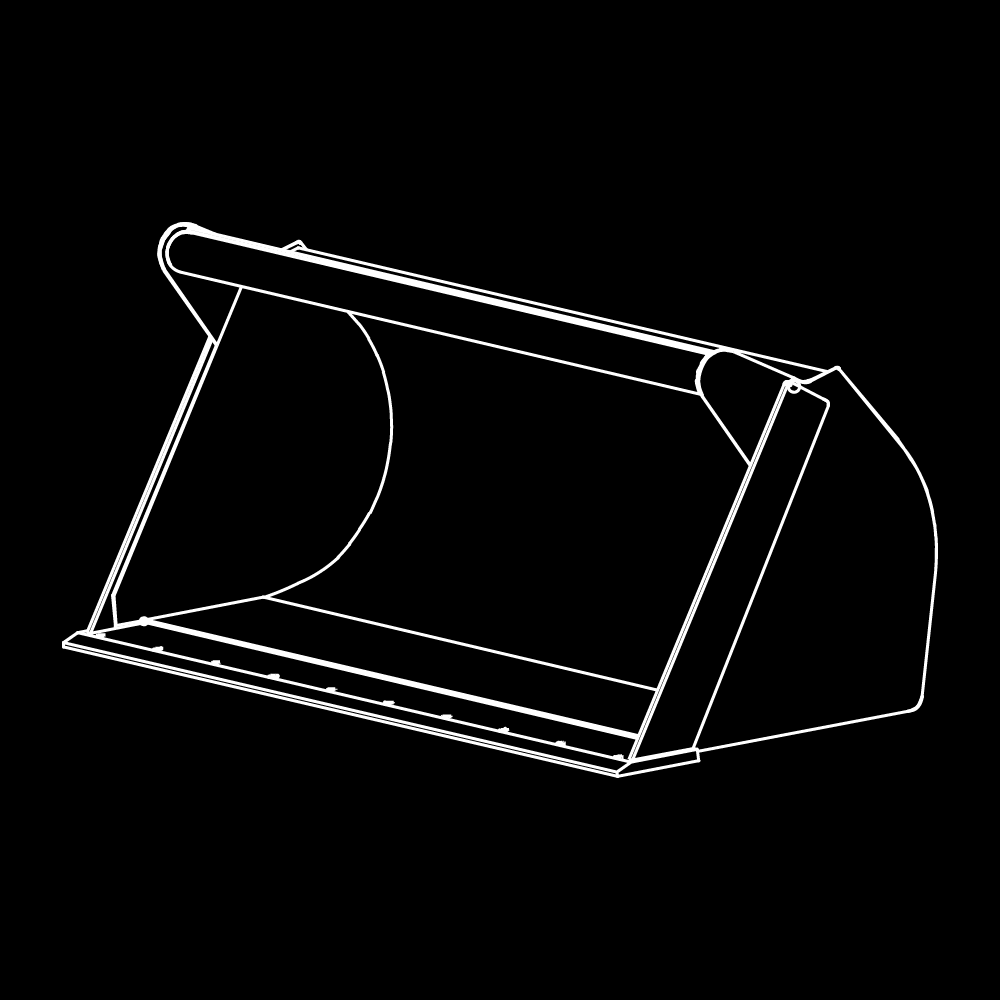

HIGH CAPACITY

STYLE/WIDTH CAPACITY (CU. YD.) LBS
09-84 1.375 1000
09-88 1.500 1080
09-92 1.500 1234
09-96 1.625 1185

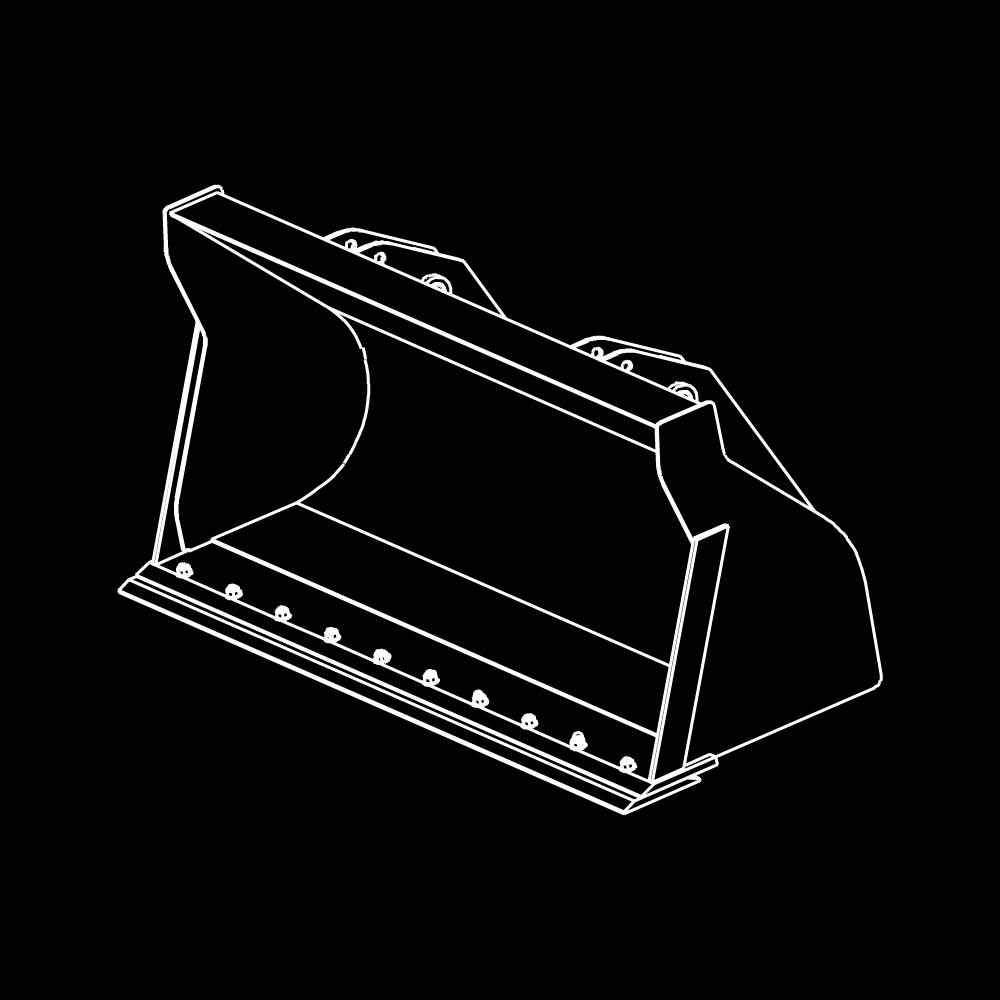

GENERAL PURPOSE

 STYLE/WIDTH CAPACITY (CU. YD.) LBS
77-82 1.000 830
77-84
77-86 1.125 890
77-92 1.250 978

CLASS 1 (0.75 - 1.50 CU.YD.)

MAKE: 1/2 YD TLB MODEL
CATERPILLAR
  • 446B, 446C, 446D, 450E, 450F
JCB
  • 3C 15, 3CX 17, 3CX-15, 3CX-15 SUPER, 4CX 14, 4CX 15, 4CX 17, 4CX-14 SUPER, 4CX-15 SUPER, DYMAX RAIL SYSTEM
JOHN DEERE
  • 710J Backhoe, 710K Backhoe, 710L Backhoe
MECALAC
  • TLB830, TLB840R, TLB850, TLB870, TLB890, TLB990
MAKE: 1/4 YD TLB MODEL
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CATERPILLAR
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70



 CLASS 1

MAKE MODEL
CASE
  • 121E, 121F, 21E, 21F, 221E, 221F, 321E, 321F
CATERPILLAR
  • 903C2, 903D, 904H, 906H, 906M, 907H, 907M, 908H
GEHL
  • 340
JCB
  • 406, 407, 409, 409B
JOHN DEERE
  • 204L, 244J, 244K, 244K-II, 304J, 304L
KAWASAKI
  • 42ZV-2, 45ZV-2
KOMATSU
  • WA50-6
KUBOTA
  • R420S, R520S, R530, R630
LIEBHERR
  • L506, L507, L508, L509
NEW HOLLAD
  • W50C TC, W50C ZB, W50TC, W80C, W80C HS, W80TC
TEREX
  • SKL814, SKL824, SKL834, TL100, TL60, TL65, TL80
VOLVO
  • L20B, L20H, L25B, L25H, L30B, L30G, L35B, L35G
YANMAR
  • V10, V8
