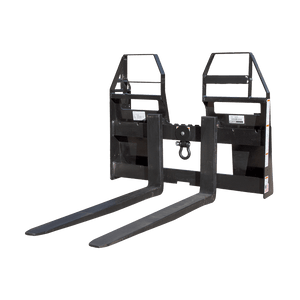

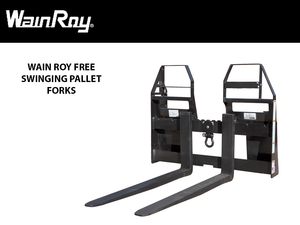

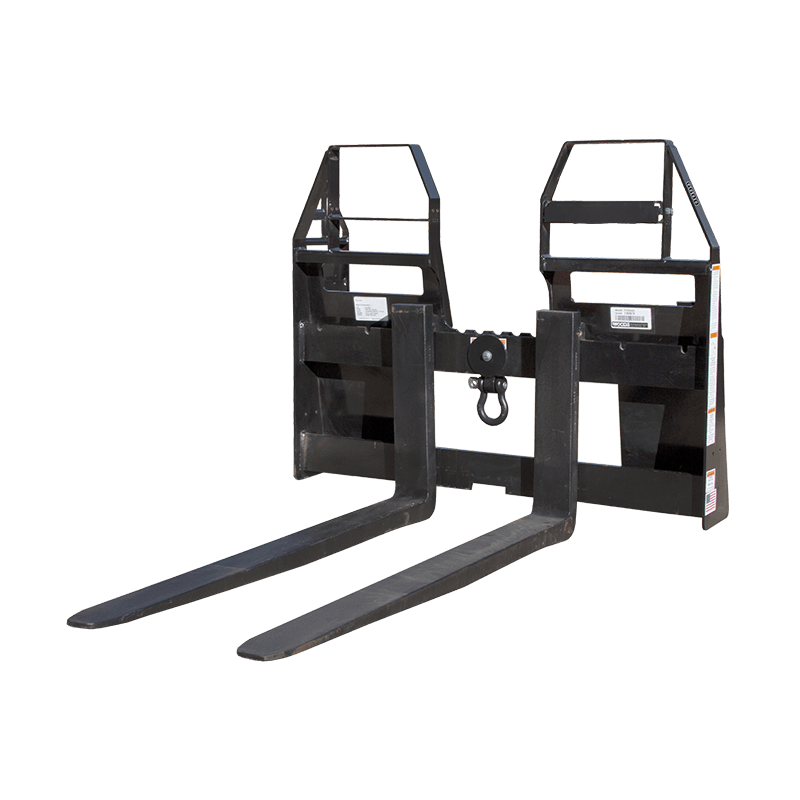

WAIN ROY General Purpose free Swinging Pallet Forks - Full height Walk through frame

frame
fork tine size
lift capacity

PF- & PW-SERIES

GENERAL PURPOSE FREE SWINGING PALLET FORK – FULL HEIGHT AND WALK-THRU FRAME

FEATURES

  • 2200-, 4400- and 6600-lb. fork capacity
  • Certified, forged steel fork tines (ISO Class 2A) for long life
  • Walk-thru frame and low step offer easy access and optimum visibility
  • High back frame with movable walk-thru crossbar to fit your prime mover and application
  • Standard clevis for lifting from a single, secure point on the frame with same lift capacity as the fork tines
  • Compatible with Skid Steer (SAE J2513) Quick Attach Systems
MODEL DESCRIPTION LIFT CAP (LBS.) FORK TINE SIZE (IN.) WT. (LBS.)
PFW2242S Walk-thru frame  2200 42" 328
PFW4442S Walk-thru frame 4400 42" 380
PF4448S Full Frame 4400 48" 436
PFW4448S Walk-thru frame 4400 48" 380
PFW6648S Walk-thru frame 6600 48" 514
