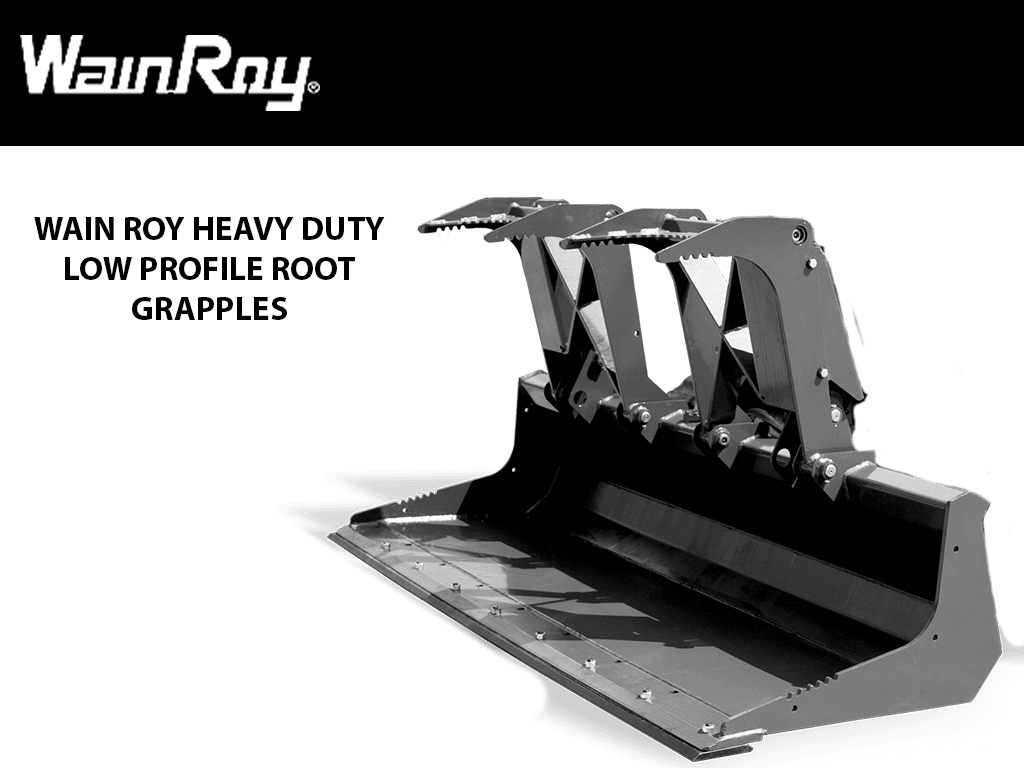

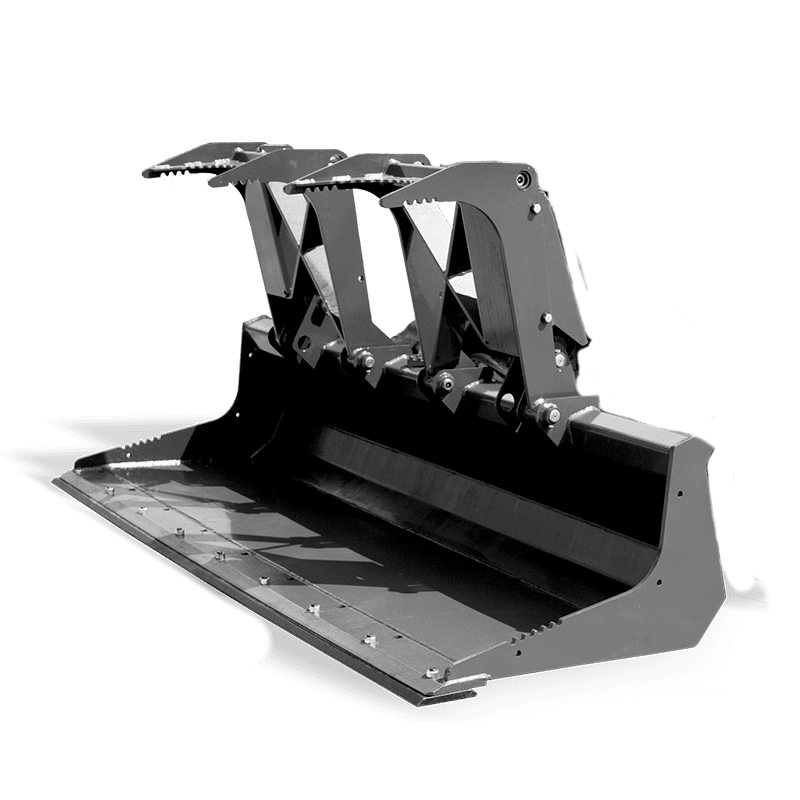

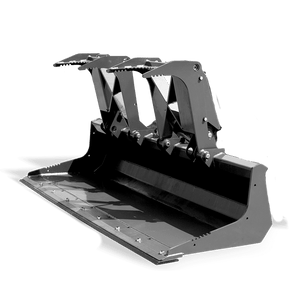

WAIN ROY Heavy Duty Low Profile Root Grapples for skid steers

SIZE

HLRG-SERIES

HEAVY-DUTY, LOW-PROFILE QUICK ATTACH ROOT GRAPPLES

FEATURES

  • Skid Steer (SAE J2513) Quick Attach System
  • Made with grade 80 steel – 2x stronger than mild steel – reducing the weight but maintaining the strength required for any skid steer or tractor application
  • Woods® proprietary serrated cutting edge holds fast to trees and debris
  • Unique design allows smooth grading of surfaces after removing debris
  • Twin hydraulic cylinders allow for independent clamping on uneven material while cylinder placement improves visibility
  • Cylinder stroke control standard for long cylinder life
  • Cylinder guards standard, protecting rods and hoses for longer life
  • Optional slat kit adds versatility by reducing tine spacing when application requires
  • Greasable Pivots
  • Hydraulic hoses and QD couplers (per ISO 16028) included
  • SAE Rated Operating Capacity: up to 4800 lbs.
  • Length: 34”; Height: 27”
  • Grapple Opening: 37”; Grapple Width: 19”
  • Cylinder Bore: 2.76”; Cylinder Rod: 1.38”
  • Pivot Pins: 1.25”
  • Clamping Force per Grapple: 3,000 lbs. @ 3,000 psi
ROOT GRAPPLE WIDTH TINES X SPACING LBS
HLRG65 65" 10 X 6.75" 660
HLRG72 72" 11 X 6.75" 680
HLRG79 79" 12 X 6.75" 700
HLRG86 86" 13 X 6.75" 720
