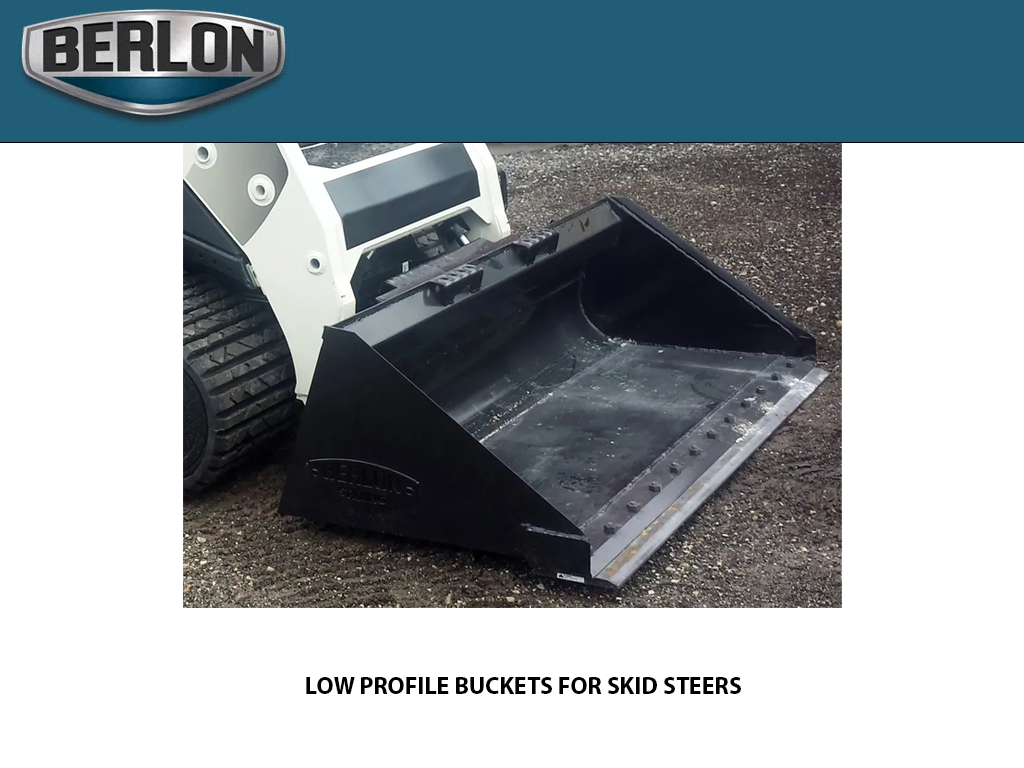

BERLON low profile bucket for skid steers

Size
Edge
Options

Low Profile Bucket

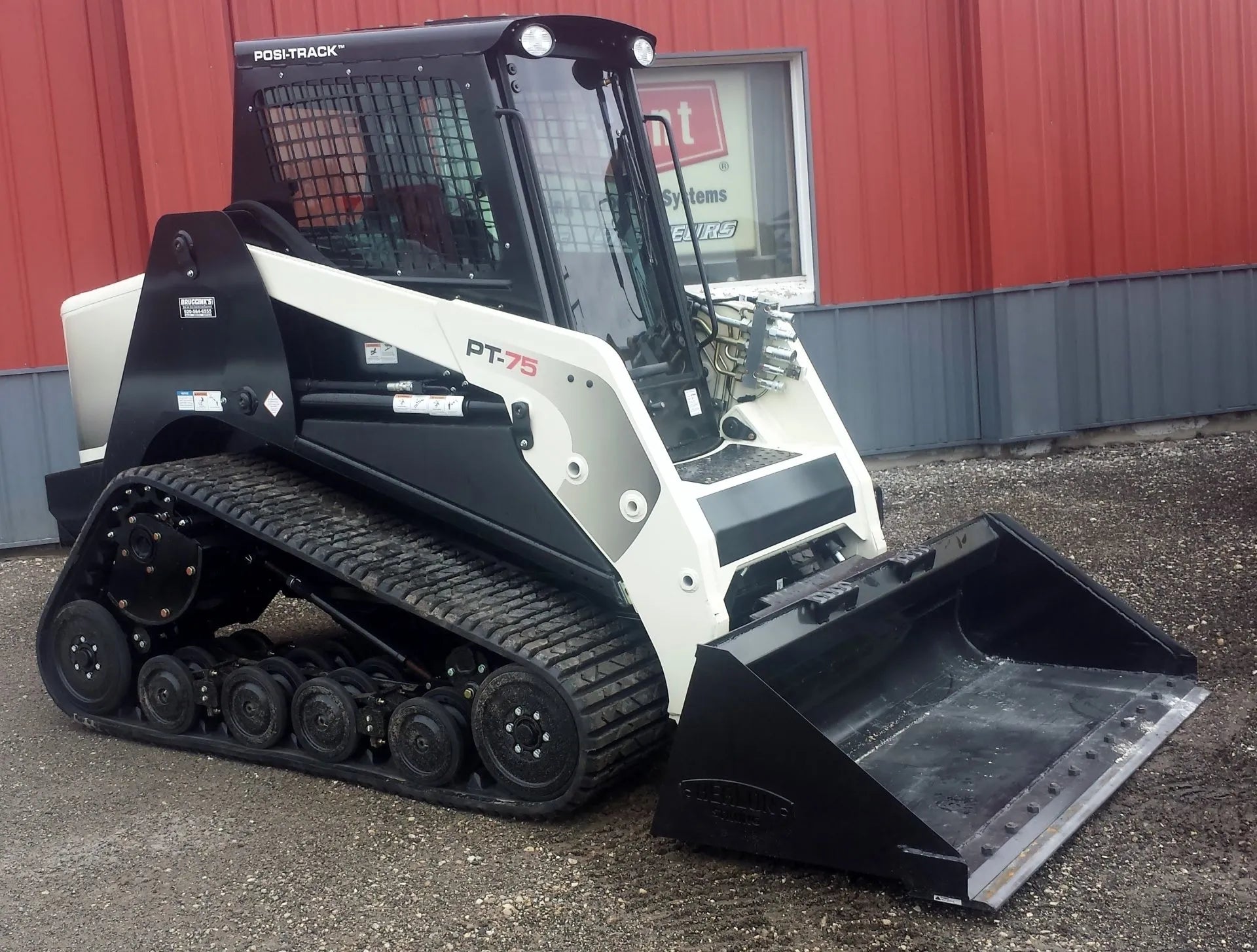

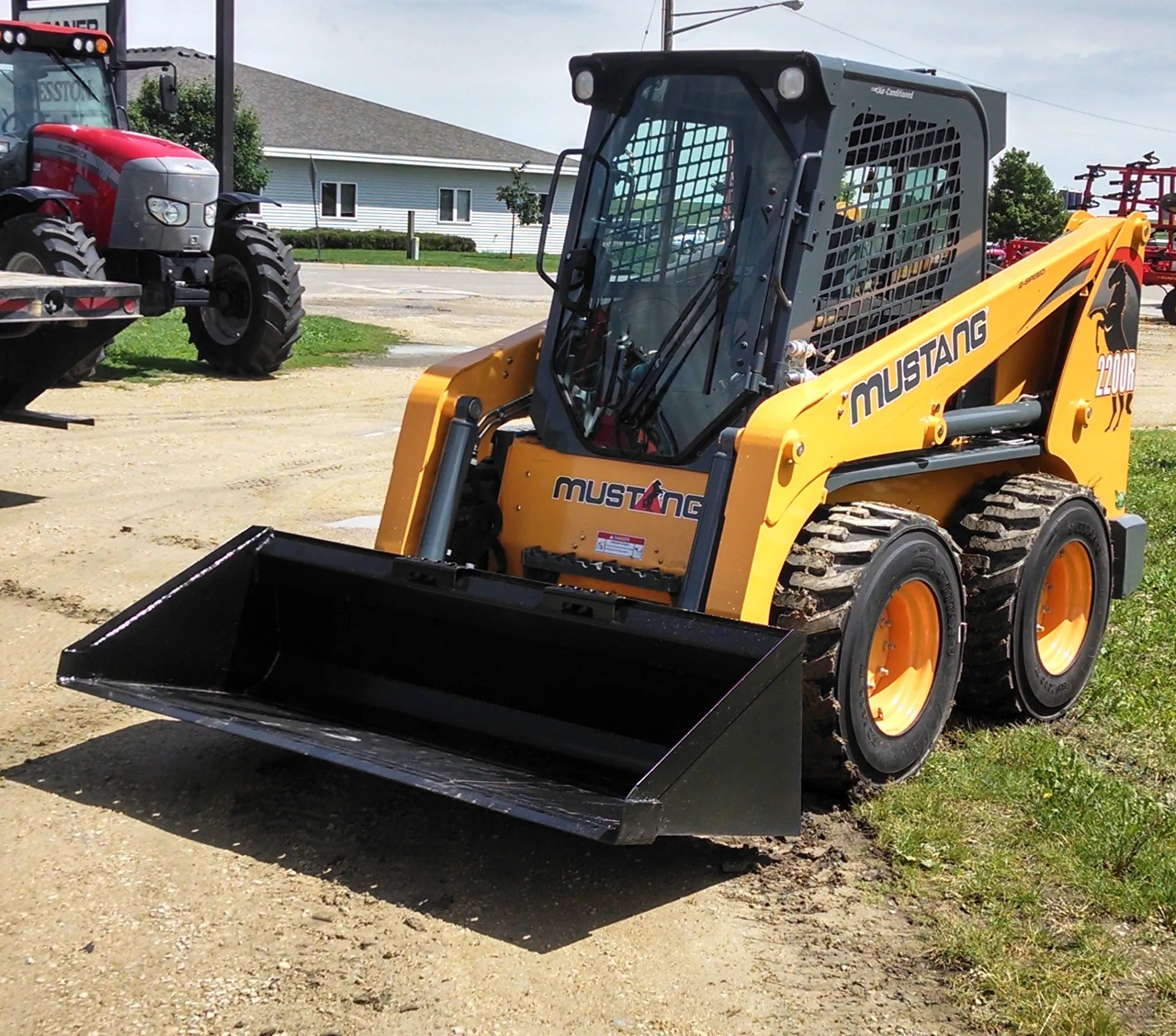

Berlon’s Low Profile bucket is similar to the standard bucket found on many skid steers and is a great choice for a variety of applications.

 Common uses include: Excavating, landscaping, construction, and general purpose.

  • 3/16” thick steel body
  • Reinforcement tube across back of bucket for added strength
  • 3/4” x 6” weld-on cutting edge with holes

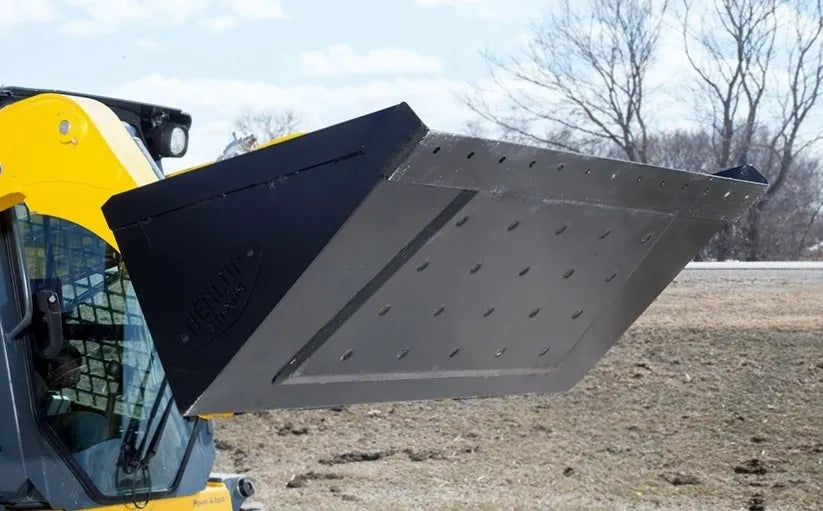

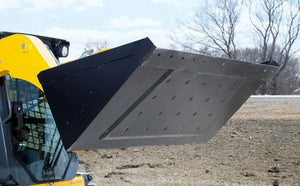

  • Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*
  • Radius kick-out plate for added strength and easy clean-out
B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE WEIGHT
B-60 60.0" 61.5" 21.0" 30.0"
70° 404
B-66 66.0" 67.5" 21.0" 33.0" 70° 465
B-72 72.0" 73.5" 21.0" 33.0" 70° 515
B-78 78.0" 79.5" 21.0" 33.0" 70° 541
B-84 84.0" 85.5" 21.0" 33.0" 70° 571





How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
