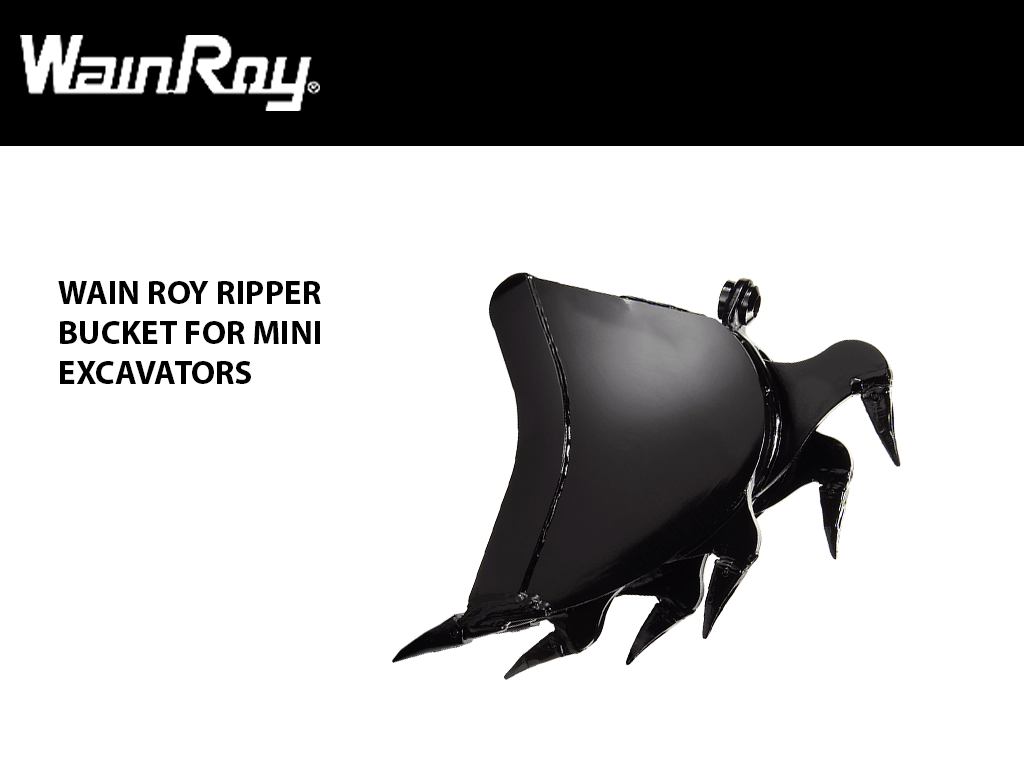

WAIN ROY Ripper Buckets For Mini Excavators 12,500 - 20,000 lbs.

Mounting
Size

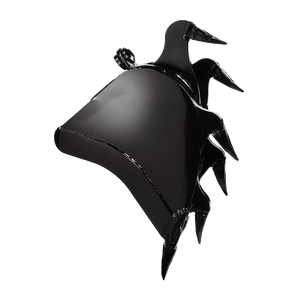

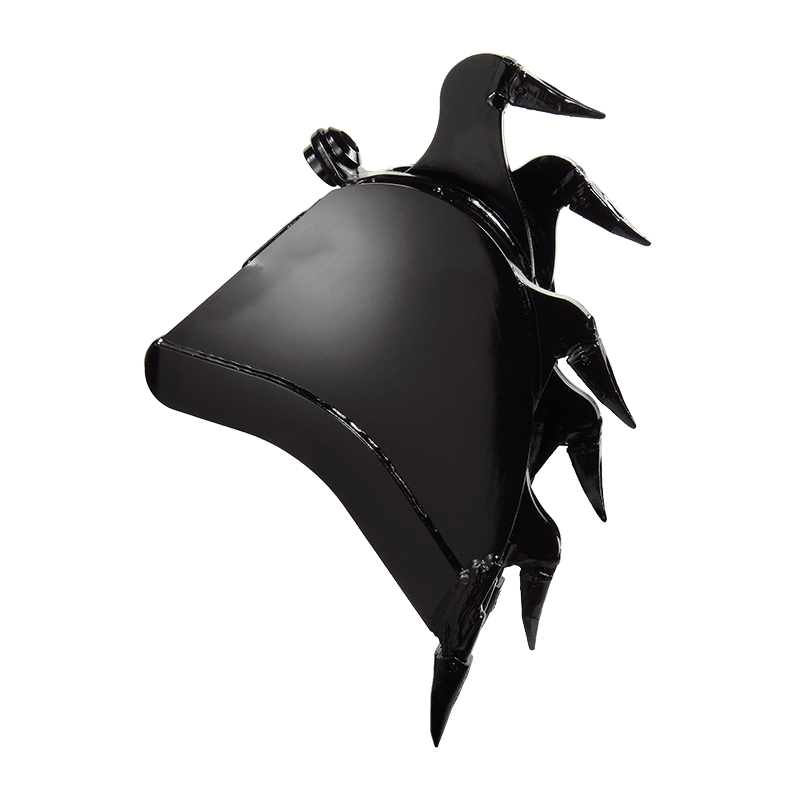

WAIN ROY RIPPER BUCKETS

Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.

Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.

MINI EXCAVATORS 12,500 -20,000 LBS.

RIPPER BUCKET

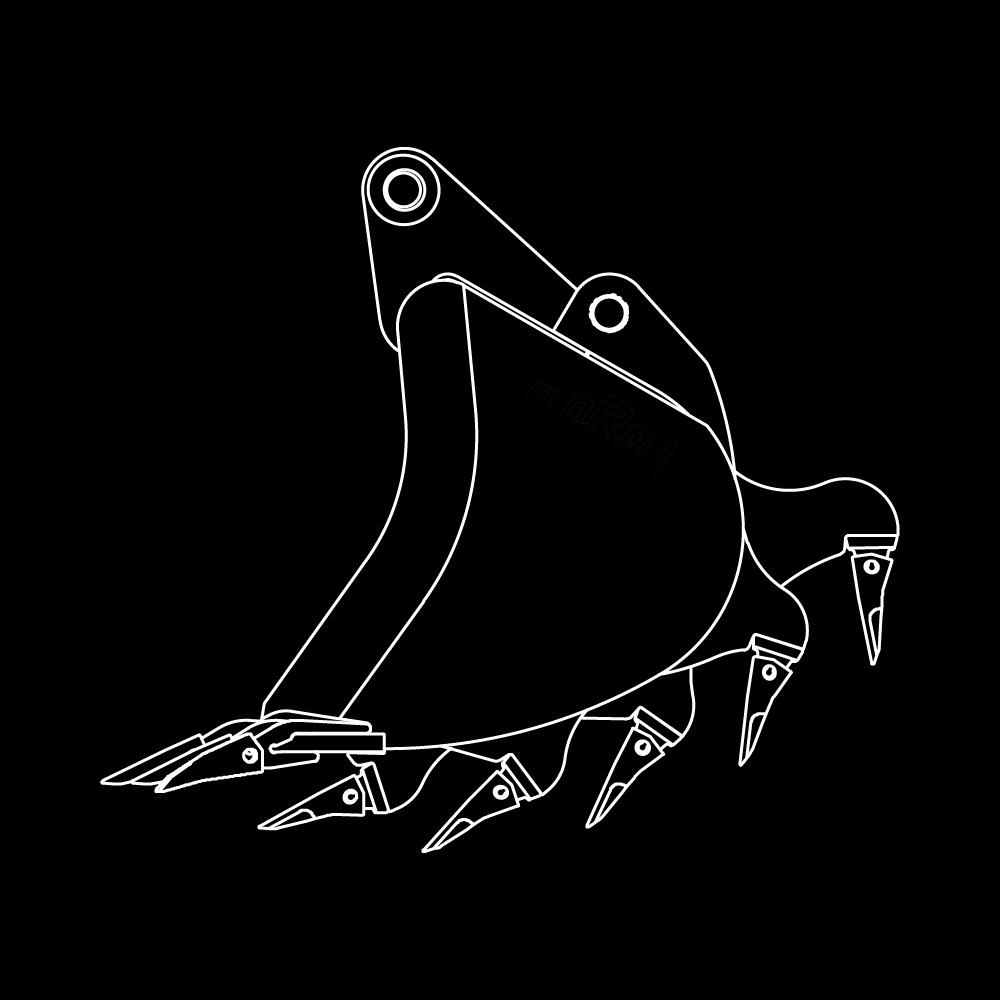

OEM PIN ON

WIDTH CAPACITY (CU. FT.) LBS CUTTING EDGE TEETH
RB1PO-12 12" 3.2 365 3
RB1PO-16 16" 4.3 445 5
RB1PO-18 18" 4.9 460 5
RB1PO-24 24" 6.5 520 5

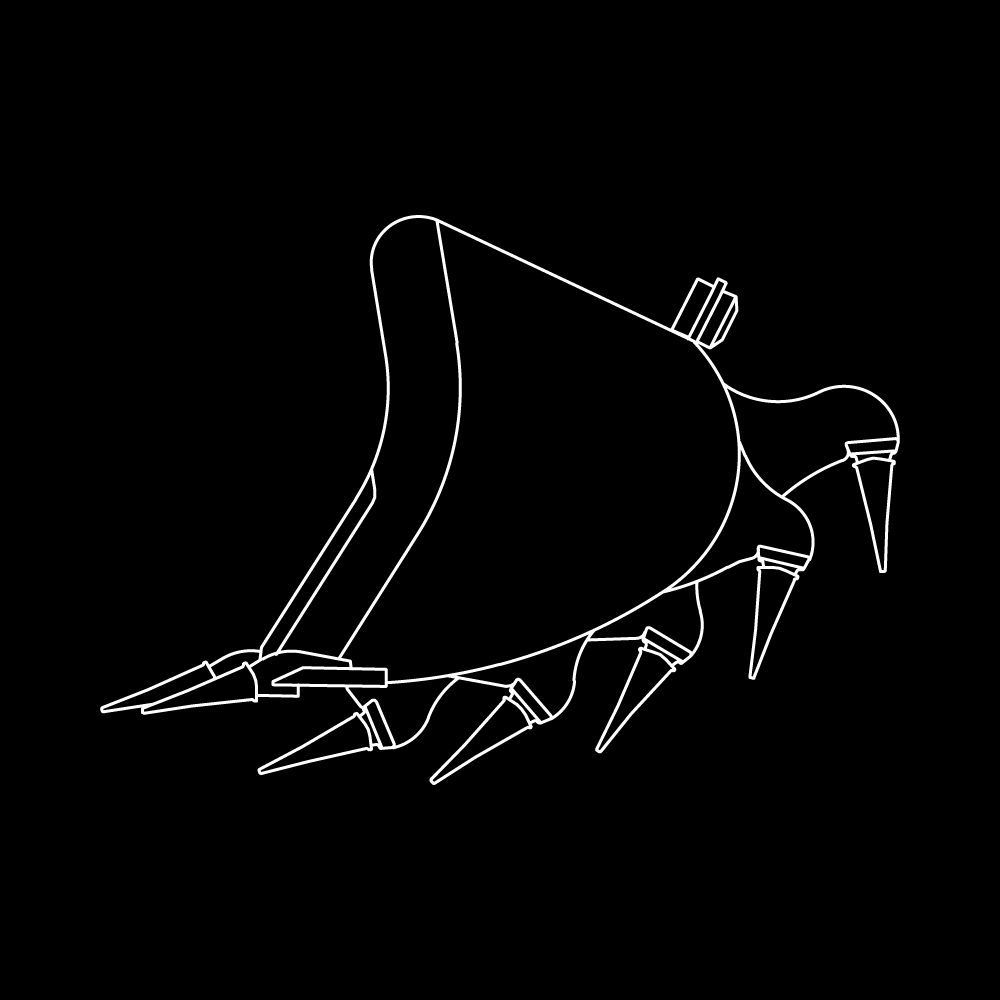

RIPPER BUCKET

WAIN ROY XLS, ORIGINAL

GANNNON, CP, TAG

WIDTH CAPACITY (CU. FT) LBS CUTTING EDGE TEETH
RB1QC-12 12" 3.2
305 3
RB1QC-16 16" 4.3 340 5
RB1QC-18 18" 4.9 356 5
RB1QC-24 24" 6.5 405 5
MAKE MODELS: 8 TON, 12500-20000 LB EXCAVATOR
BOBCAT 442, 442S, E85
CASE CX60C, CX75C SR, CX75SR, CX80C
CAT 306, 307D, 307EX, 308D CR, 308D CR-SB
COYOTE CE60, DX80, DX85R-3
DOOSAN DX60R, DX80, DX85R-3, S075-V, S70-V, S75-V

GEHL

MUSTANG

Z80 GEN: 2 | 800Z NXT2

HITACHI ZX75US‑5, ZX85USB‑5
HYUNDIA R60CR-9, R60CR-9A, R80CR-9, R80CR-9A
IHI KATO 60V-40, 70Z
JCB 67C-1, 86C-1, 85Z
JOHN DEERE 70, 70D, 75C,80, 80C, 85, 190E
KOBELCO

70SR, 80CS

KOMATSU

PC78MR-6, PC78US-6, PC78US-8, PC78US-10,

PC78UU-6

KUBOTA

KX057‑4

LIUGONG CLG906D
MECALAC 6MCR, 8MCR, 8MCR RR
NEW HOLLAND

EH70, EH80

SANY

SY75C‑TIER 2, SY75C‑TIER 3, SY75C‑TIER 3 (EU),

SY75C‑TIER 3 (US), SY75C‑TIER 4F, SY80C-9S

TAKEUCHI

TB68S, TB070

TEREX TC75 (HR32)
THOMAS T75
VERMEER
VOLVO ERC88
YANMAR

B7 5A, SV100-2A, Vi08
