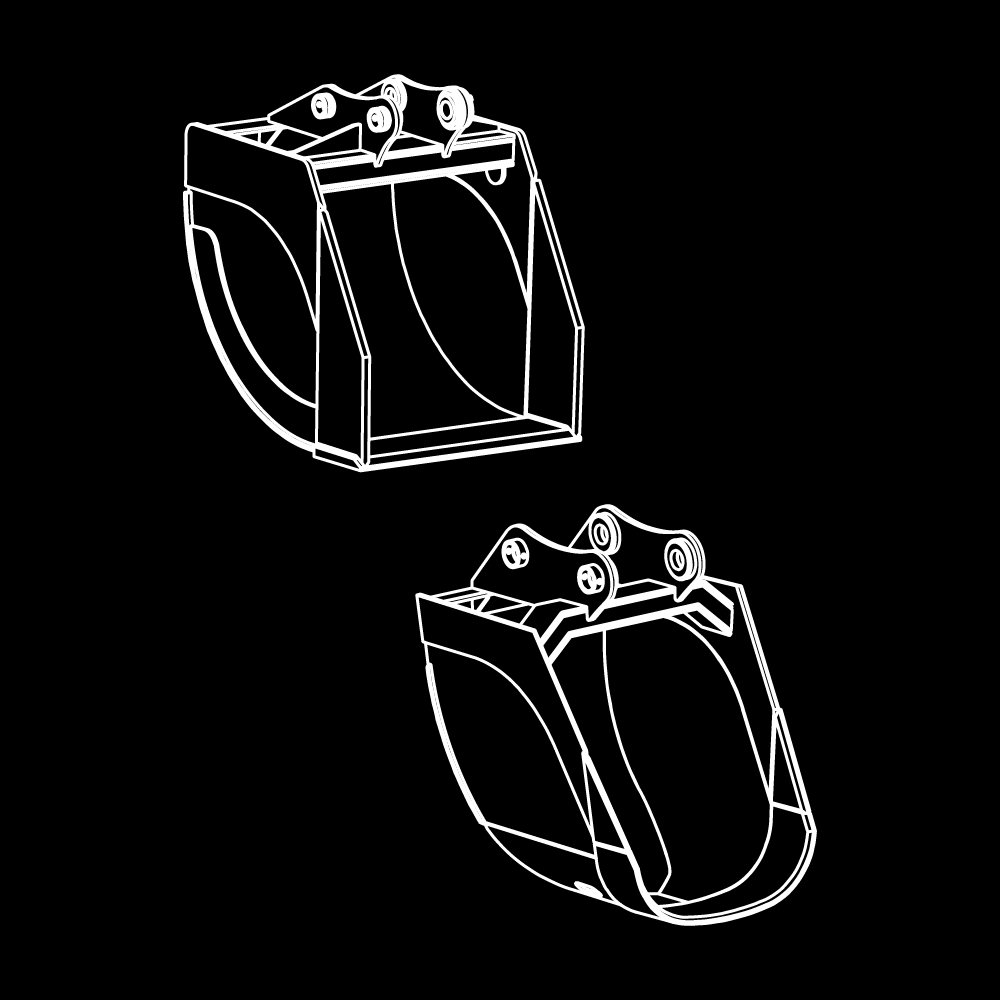

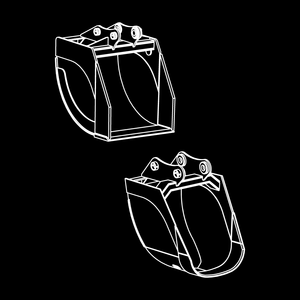

WAIN ROY Sand Buckets for Excavators

WEIGHT CLASS
STYLE

EXCAVATOR PIN-ON SAND BUCKETS

Sand Buckets are designed for handling sand and loose material applications. The bucket draft is typically 6” to 12” inches for efficient loading and unloading of materials. The heavy-duty reinforced top beam design comes in an open or closed design. All models come in round or flat bottom styles and feature T-1 cutting edges and an extra-heavy wear shoe for maximum durability.

SAND BUCKETS

OEM PIN ON

ROUND BOTTOM

WEIGHT CLASS CAPACITY   (CU. YD.) CUTTING EDGE WIDTH  TOP WIDTH
SBR25 12MT (20,000 - 30,000LBS.) UP TO 1.5 UP TO 24" UP TO 24"
SBR35 15MT (30,000 - 41,000 LBS.) 1.0 - 3.0 24" - 48" 24" - 48"
SBR45 20MT (41,000 - 52,000 LBS.) 1.0 - 4.0  24" - 56" 24" - 56"
SBR52 25MT (52,000 - 65,000 LBS.) 1.0 - 6.0 24" - 64" 24" - 64"
SBR70 30MT (65,000 - 95,000 LBS.) 1.0 - 8.0 24" - 72" 24" - 72"
SBR100 45MT (95,000 - 110,000 LBS.) 1.0 - 10.0 24" - 72" 24" - 72"

SAND BUCKETS

OEM PIN ON

SMOOTH BOTTOM

WEIGHT CLASS CAPACITY   (CU. YD) CUTTING EDGE WIDTH TOP WIDTH
SBF25 12MT (20,000 - 30,000 LBS.) UP TO 1.5 UP TO 24" UP TO 24"
SBF35 15MT (30,000 - 41,000 LBS.) 1.0 - 3.0 24" - 48" 24" - 48"
SBF45 20MT (41,000 - 52,000 LBS.) 1.0 - 4.0 24" - 56" 24" - 56"
SBF52 25MT (52,000 - 65,000 LBS.) 1.0 - 6.0  24" - 64" 24" - 64"
SBF70 30MT (65,000 - 95,000 LBS.) 1.0 - 8.0 24" - 72"  24" - 72"
SBF100 45MT (95,000 - 110,000 LBS) 1.0 - 10.0  24" - 72" 24" - 72"
