WAIN ROY Tilt Buckets for Mini Excavators 4,500 - 9,000 lbs.

MOUNTING
Size

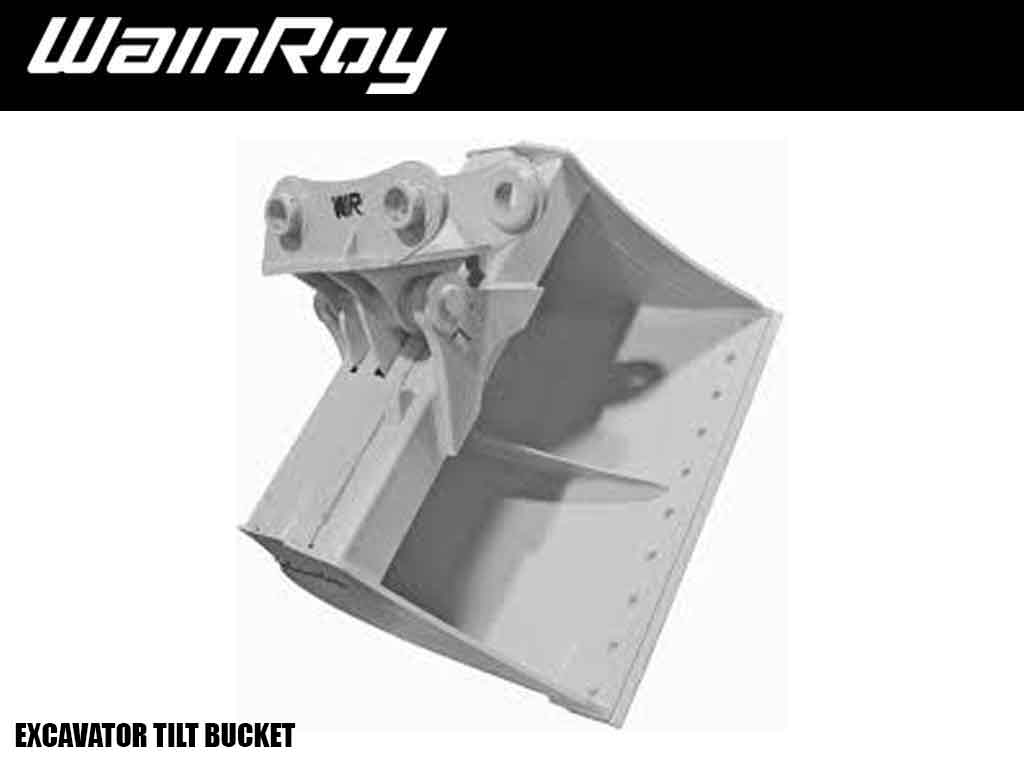

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WEDGE LOCK WEDGE SECURED AT REAR
BOBCAT EXCHANGE HOOK WITH HORIZONTAL PIN
KUBOTA TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP

SMALL HOOK WITH VERTICAL PIN

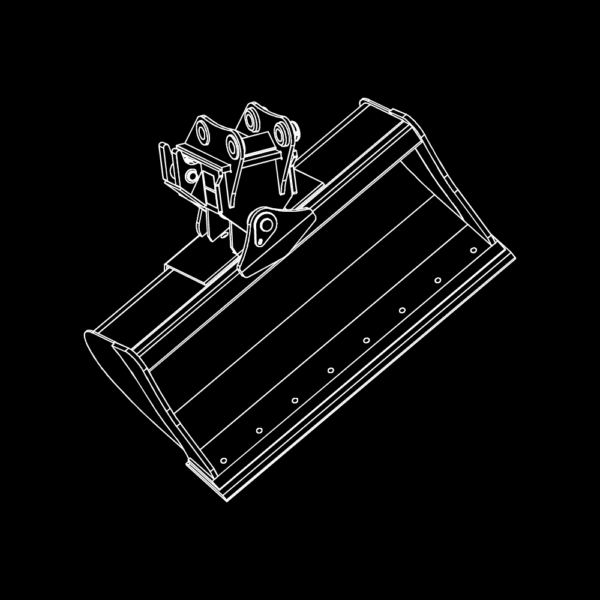

TILT BUCKET

OEM PIN ON

WIDTH
CAPACITY (CU. FT.)
LBS
TLT45PO-24 24" 4.0 470
TLT45PO-30 30" 5.2 500
TLT45PO-36 36" 6.2 530
TLT45PO-42 42" 7.6 560
TLT45PO-48 48" 8.8 590

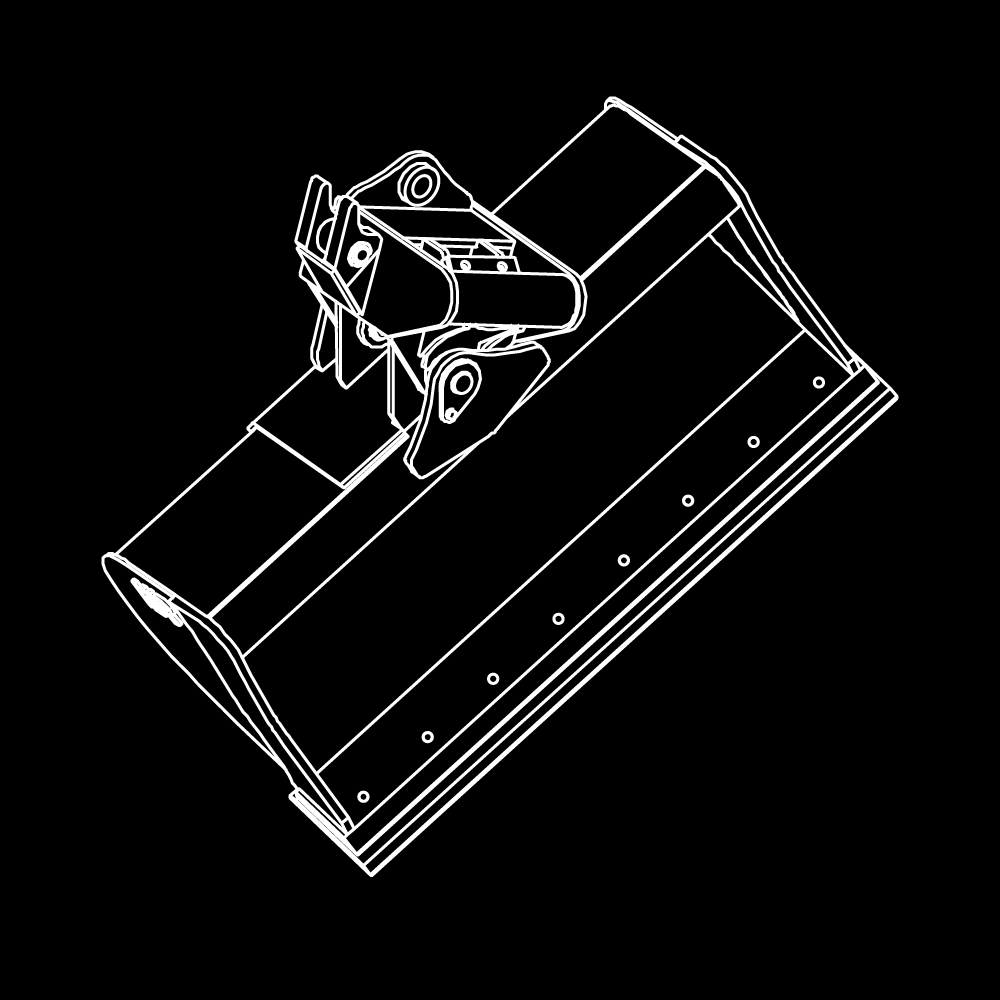

TILT BUCKET

WAIN ROY XLS / ORIGINAL

GANNON / CP / TAG

WIDTH CAPACITY (CU. FT.) LBS

TLT45QC-24

24" 4.0 440

TLT45QC-30

30" 5.2 475

TLT45QC-36

36" 6.4 500

TLT45QC-42

42" 7.6 527

TLT45QC-48

48" 8.8 557
BRAND MODELS:  4500-9500 LBS
BOBCAT

325,425,E32,E35,328,331,334,

335,430

CASE

CX25,CX26C,CX27B,CX31,CX31B,

CB31B,CX36,CX36B,CX37C

CAT

302.5C,303.5D CR,302.5,303CR,

303CR CR,303.5,303.5C CR

302.4D

HITACHI

ZX27U-3,ZX35U-3,EX27,EX35,

ZX27U,ZX27U-2,ZX35U-2

IHI / KATO

28N-3,30NX-2,35N-3,35VX,

20NX,25NX-2,28N-2,35,35N-2,

35NX-2,40N

JCB

8025ZTS,8030ZTS,8035ZTS,8040ZTS,

802,802.4,802.7,803,804,8027,8032

JOHN DEERE

27 ZTS, 27C ZTS, 27D ZTS, 35 ZTS,

35C ZTS,35D ZTS,110

KOBELCO

25SR,25SR-2,27SR-2,30SR-2,

30SR-3,27SR-3,35SR-3

KOMATSU

PC27MR-2,PC27MR-3,PC27MRX-1,

PC30MR-2,PC30MR-3,PC35MR-2

KUBOTA

KH91,KX61-2S,KX71-3,KX91-2,

KX91-3S,U25,U35

LIUGONG CLG904D
MECALAC
NEW HOLLAND

27SR,30SR,E26C,E27B,E30B,E30C

E33C,E35B,E37C,EC25,EC35,EH25,

EH35

SANY SY35U
TAKEUCHI

TB025,TB035,TB23R,TB28FR,

TB125,TB135,TB138FR,TB228,

TB230,TB235,TB235-2

TEREX TC25,HR14,TC35,HR3.7,HR16
THOMAS T25,T35,T45
VERMEER CX224,CX229,CX234
VOLVO

EC35C,EC35D,EC270,ECR25D,

ECR28,ECR38

YANMAR

VIO20-3,VIO27-5,VIO27-5,VIO35-5

VIO27-5,VIO035-5
