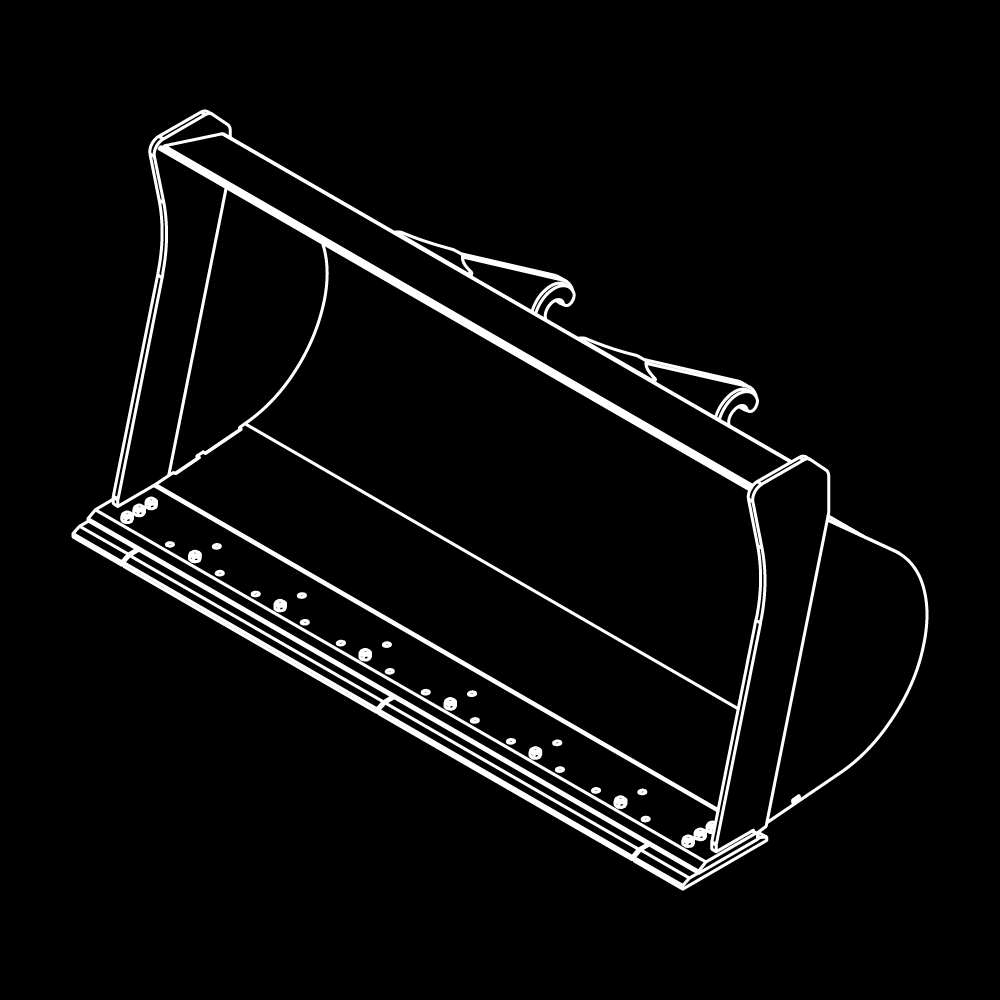

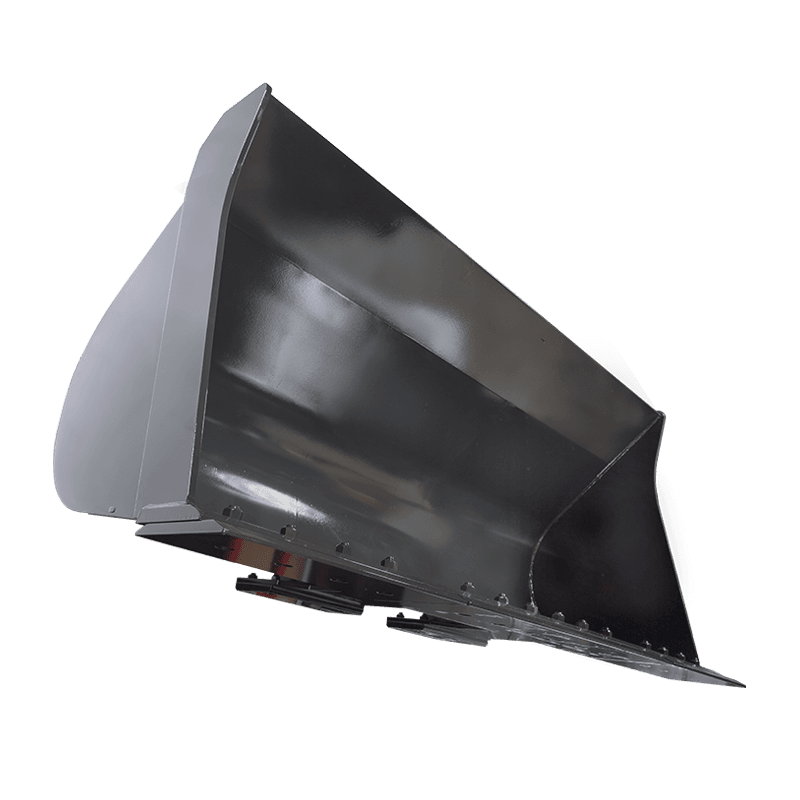

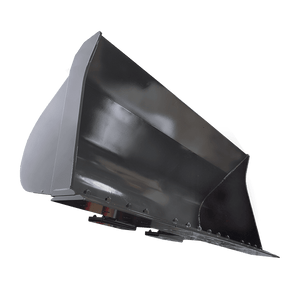

    WAIN ROY Wheel Loader buckets for JRB style coupler
    WAIN ROY Wheel Loader buckets for JRB style coupler
    WAIN ROY Wheel Loader buckets for JRB style coupler

    WAIN ROY Wheel Loader buckets for JRB style coupler

    $7,377.00
    BUCKET CLASS
    WIDTH
    CAPACITY

    DESCRIPTION

    GENERAL PURPOSE WHEEL LOADER FOR JRB® STYLE COUPLER

    FEATURES

    • Compatible with popular JRB ® coupler and John Deere ® coupler styles
    • Flat top edge allows you to visually level the bucket
    • 100 KSI yield material in critical wear areas of bucket, 50 KSI yield material in all other areas
    • 1‑piece moldboard on 1.5 to 3.75 cubic yard buckets
    • 1‑piece bridge on all buckets for added strength
    • Replaceable skid shoes and bolt‑on cutting edges (BOCEs)
    • New slope bottom design features 5% raised dump angle and better roll and fill
    • Intended for use in dirt, gravel, loose materials up to 3,000 lbs per cubic yard



    ALL SPECIFICATIONS ARE FOR 3 PIECE OEM STYLE EDGE. CALLS FOR SPEIFICATIONS ON 4 PIECE OEM STYLE EDGE

    BUCKET CLASS WIDTH SAE HEAPED CAPACITY (CU. YD.) SKID SHOE KIT LBS
    CLASS 2 97" 1.50 3 1508
    CLASS 2  100" 1.75 3 1565
    CLASS 2 100" 2.00 2 1888
    CLASS 2 102" 2.25 2 1959
    CLASS 2  106" 2.50 2 2137
    BUCKET CLASS WIDTH SAE HEAPED CAPACITY (CU. YD.) SKID SHOE KIT LBS
    CLASS 3 106" 2.50 2 2137
    CLASS 3 102" 2.75 1 2328
    CLASS 3 106" 3.00 1 2495
    BUCKET CLASS WIDTH SAE HEAPED CAPACITY (CU. YD.) SKID SHOE KIT  LBS
    CLASS 5 106" 3.00 1 2495
    CLASS 5  106" 3.25 1 2900
    BUCKET CLASS  WIDTH SAE HEAPED CAPACITY (CU. YD.) SKID SHOE KIT LBS
    CLASS 6 119"
    		 3.50 2 3440
    CLASS 6 119" 3.75 2 3498
    CLASS 6  119" 4.00 2 4164
    CLASS 6  119" 4.25 2 4320
    CLASS 6  119" 4.50

    CLASS 2

    MAKE MODEL
    CASE
    • 521E, 521E XT, 521EXR, 521F, 521G
    CATERPILLAR
    • 910M, 912G, 914M, 918M, 924H, 924Hz, IT14G
    DAEWOO / DOOSAN
    • DL200, DL60
    DRESSTA
    • 510E, 515E, 515EH, 515EH HL
    GEHL
    • 540, 650
    HYUNDAI
    • HL740-9
    JCB
    • 411 HT, 416 HT, 417 HT
    JOHN DEERE
    • 324K, 344J, 344L, 444K HL, 444K Powerllel, 444K Z-bar
    KAWASAKI
    • 50ZV, 60Z7, 60ZV-2
    KOMATSU
    • WA120-3, WA150-5, WA150-6
    LIEBHERR
    • L508, L509, L510, L514
    NEW HOLLAD
    • LW90, W100B, W110, W110C, W110TC
    TEREX
    • SKL160H, SKL844, SKL854, TL120, TL160, TXL160-1
    VOLVO
    • L40B, L45B, L45H, L50D, L50E, L50H
    YANMAR
    • V10, V12



    CLASS 3

    MAKE MODEL
    CASE
    • 621DXT, 621E, 621E XR, 621F, 621G
    CATERPILLAR
    • 628Hx, 926M, 928H, 930H, 930M, 938H, IT38H
    DAEWOO / DOOSAN
    • DL200, DL200-5, DL200TC-5, DL220-5, DL250, DL250-5
    DRESSTA
    • 520E, 520EH, 520EH HL
    GEHL
    • 750
    HYUNDAI
    • HL540-9, HL757-9, HL760-9, HL940, HL955, HL955 XT, HL960
    JCB
    • 426HT, 427HT, 427ZX
    JOHN DEERE
    • 524K HL, 524K HL WH, 524K WH, 524K Z-Bar, 524K-II, 524K-II HL, 524K-II Z-Bar, 544K HL, 544K HL Powerllel, 544K HL WH, 544K WH, 544K Z-Bar, 544K-II HL, 544K-II Powerllel, 544K-II Z-Bar
    KAWASAKI
    • 62Z7, 65TMV-2, 65VZ-2, 67TM7
    KOMATSU
    • WA180-3, WA200-5, WA200-7, WA200-8, WA200PZ-6, WA270-7, WA270-8
    LIEBHERR
    • L514, L524 2plus1, L526, L528 2plus1
    NEW HOLLAD
    • W130, W130B, W130C, W130TC
    TEREX
    • SKL260H, SKL863, TXL200-2
    VOLVO
    • L60D, L60E, L60F, L60H, L70E, L70F, L70H


    CLASS 5

    MAKE MODEL
    CASE
    • 721E, 721E XR, 721E XT, 721F, 721G
    CATERPILLAR
    • 930M, 938H, 938M, 950GC, 950H, 950M, 962H, 962L, IT38H
    DAEWOO / DOOSAN
    • DL250, DL250-5, DL250TC-5, DL280-5
    DRESSTA
    • 530E
    HYUNDAI
    • HL740-9, HL757-9, HL760-9, HL955, HL960, HL960 HD, HL960 XT
    JCB
    • 436HT, 436ZX, 437 HT
    JOHN DEERE
    • 624K HL, 624K Powerllell, 624K WH, 624K Z-Bar, 624K-II, 624K-II HL, 624K-II Powerllel, 624K-II TC, 624K-II Z-Bar
    KAWASAKI
    • 67Z7, 70TMV-2, 70Z7, 70Z7 T4F, 70ZV-2
    KOMATSU
    • WA250-3, WA250-5, WA250-6, WA250PZ-6, WA320-3, WA320-5, WA320-6, WA320-7, WA320-8, WA320PZ-6
    LIEBHERR
    • L524 2plus1, L528 2plus1, L538, L538 2plus1, l542 2plus1, L546, L550 Xpower
    NEW HOLLAD
    • LW170, LW170B, LW170TC, W170C
    TEREX
    • SKL873, TL260, TXL250-1, TXL250-2
    VOLVO
    • L60E, L60F WH, L90E, L90F, L90H



    CLASS 6

    MAKE MODEL
    CASE
  • 821E, 821E XR, 821F, 821G
    		•
    CATERPILLAR
    • 950GC, 950H, 950M, 962H, 962L, 962M, 966M XE, 972M XE, IT62H
    DAEWOO / DOOSAN
    • DL300, DL300-5, DL350-5
    DRESSTA
    • 530E
    HYUNDAI
    • HL757-9, HL760-9, HL770-9, HL960, HL960 HD, HL960XT, HL965, HL965XT
    JCB
    • 456HT, 456ZX, 457HT
    JOHN DEERE
    • 644K HL, 644K HL WH, 644K Powerllel, 644K WH, 644K Z-Bar, 724K HL, 724K HL WH, 724K WH, 724K Z-Bar
    KAWASAKI
    • 80Z7, 80Z7 T4F, 80ZV-2, 85Z7, 85ZV-2
    KOMATSU
    • WA380-3, WA380-5, WA380-6, WA380-7, WA380-8
    LIEBHERR
    • L524 2plus1, L528 2plus1, L538 2plus1, L542 2plus1, L550 2plus2, L550 Xpower Z-bar, L556 Xpower Z-bar
    NEW HOLLAD
    • W190, W190B, W190C
    TEREX
    • TXL300-1, TXL300-2
    VOLVO
    • L110E, L110H, L120E, L120H, L120LB, L90E, L90F WH
