WAIN ROY

JB1PO-18

WAINROY Jaw Bucket for mini excavators 12,500 -20,000 LBS

Mounting
Size

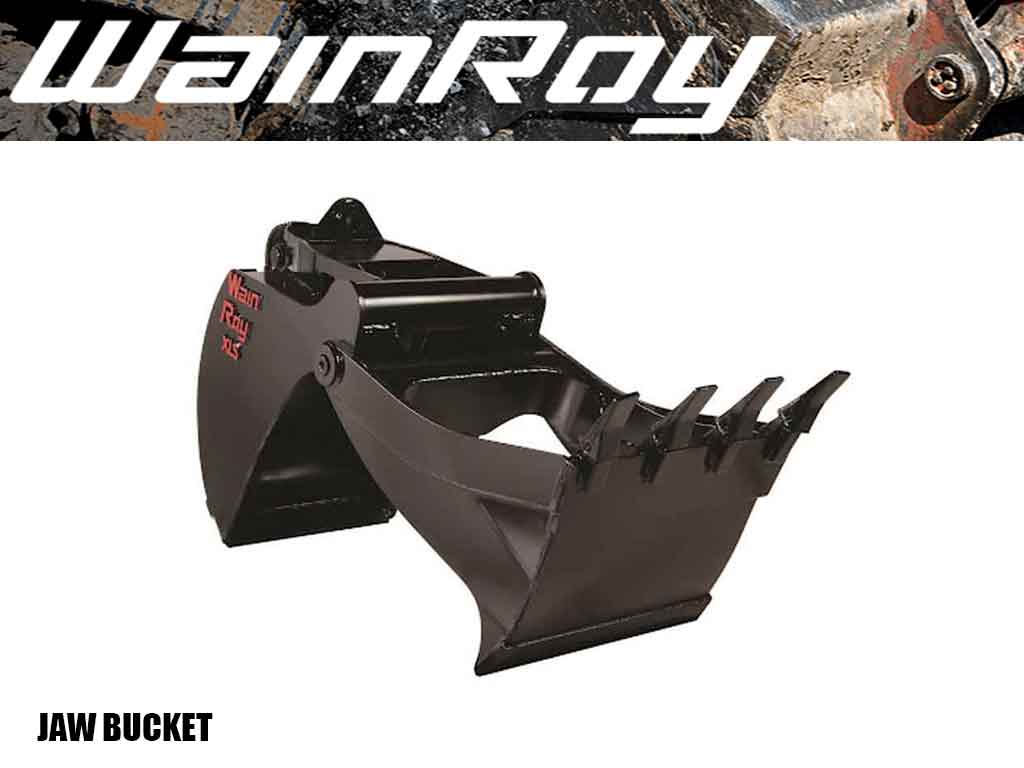

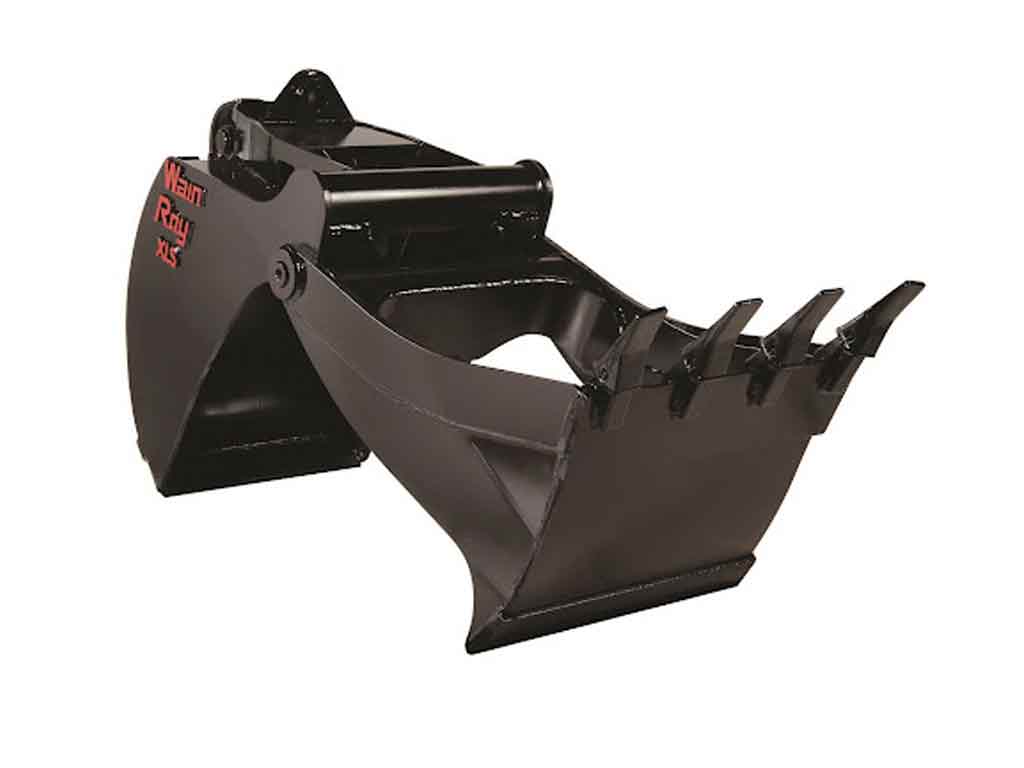

WAIN ROY JAW BUCKETS

Jaw Buckets provide the versatility of a trenching bucket and a thumb in one unit without having to weld thumb brackets onto the boom. Jaw Buckets are effective jobsite trenchers and haulers of cumbersome materials. Remove, load, and backfill material with the front jaw in the closed position and then use the hydraulically actuated jaw to pick and place large objects such as boulders, stumps, pipe, logs, concrete slabs and other debris. Jaw Buckets are an effective multi-use tool for construction applications.

12500 - 20000 lbs. mini excavators

 JAW BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. FT.) LBS OPENING TEETH
JB1PO-18 18" 5.4 570 41" 4
JB1PO-24 24" 7.6 660 41" 4
JB1PO-30 30" 9.7 740 41" 4

JAW BUCKET

WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP

WIDTH CAPACITY (CU. FT.) LBS OPENING  TEETH
JB1QC-24 24" 7.6 650 41" 4
JB1QC-30 30" 9.7 730 41" 4



MAKE MODELS: 8 TON, 12500-20000 LB EXCAVATOR
BOBCAT 442, 442S, E85
CASE CX60C, CX75C SR, CX75SR, CX80C
CAT 306, 307D, 307EX, 308D CR, 308D CR-SB
COYOTE CE60, DX80, DX85R-3
DOOSAN DX60R, DX80, DX85R-3, S075-V, S70-V, S75-V

GEHL

MUSTANG

Z80 GEN: 2 | 800Z NXT2

HITACHI ZX75US‑5, ZX85USB‑5
HYUNDIA R60CR-9, R60CR-9A, R80CR-9, R80CR-9A
IHI KATO 60V-40, 70Z
JCB 67C-1, 86C-1, 85Z
JOHN DEERE 70, 70D, 75C,80, 80C, 85, 190E
KOBELCO

70SR, 80CS

KOMATSU

PC78MR-6, PC78US-6, PC78US-8, PC78US-10,

PC78UU-6

KUBOTA

KX057‑4

LIUGONG CLG906D
MECALAC 6MCR, 8MCR, 8MCR RR
NEW HOLLAND

EH70, EH80

SANY

SY75C‑TIER 2, SY75C‑TIER 3, SY75C‑TIER 3 (EU),

SY75C‑TIER 3 (US), SY75C‑TIER 4F, SY80C-9S

TAKEUCHI

TB68S, TB070

TEREX TC75 (HR32)
THOMAS T75
VERMEER
VOLVO ERC88
YANMAR

B7 5A, SV100-2A, Vi08
