WBBG60.5

WERK-BRAU box style grapple for 105,000 -150,000 lbs Excavators (50 & 60MT)

Size

1/24

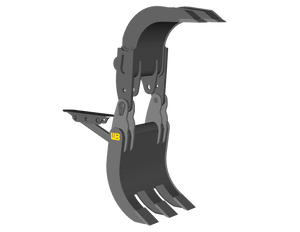

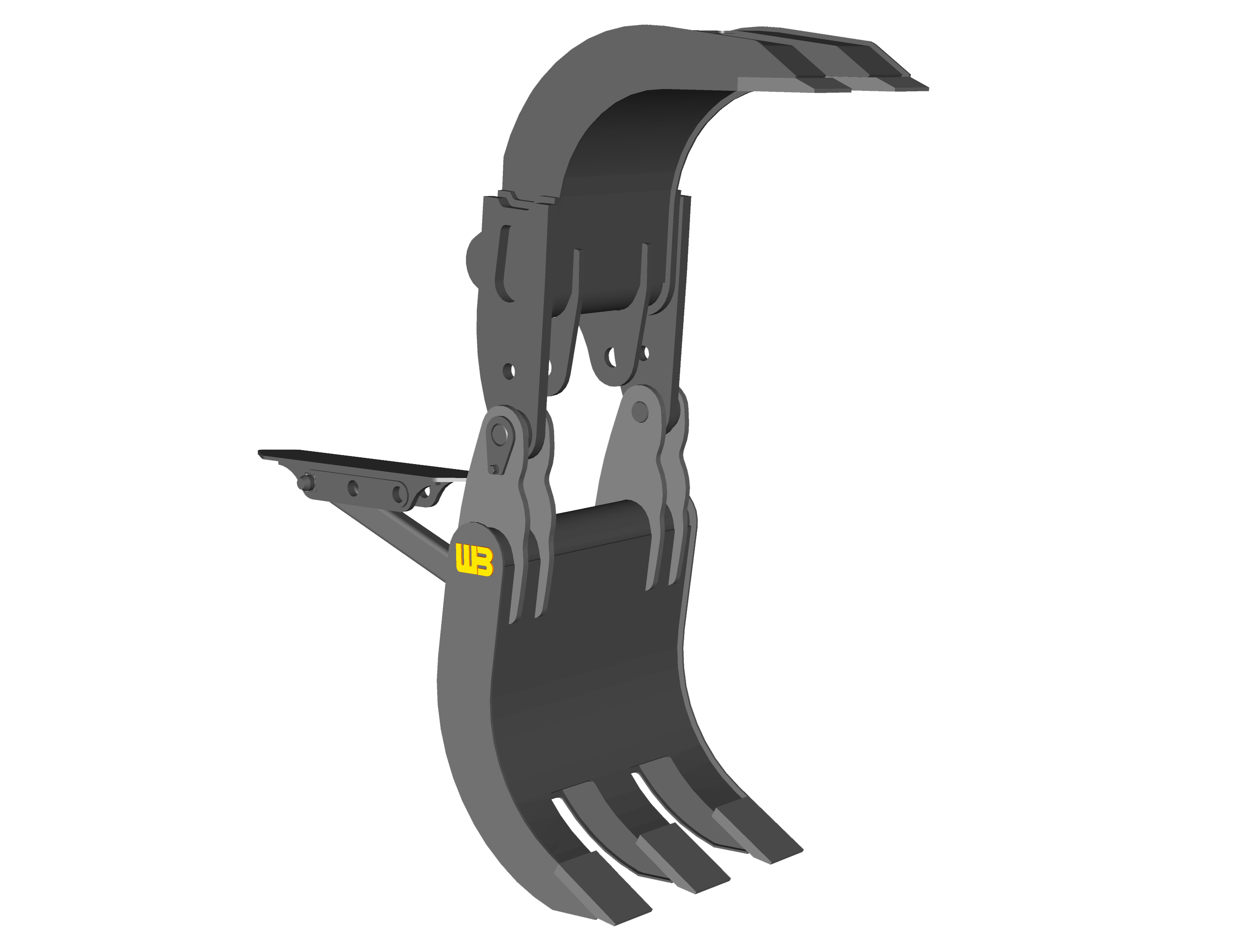

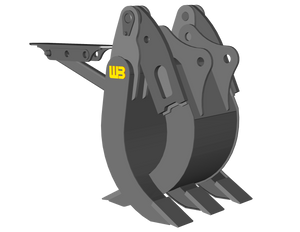

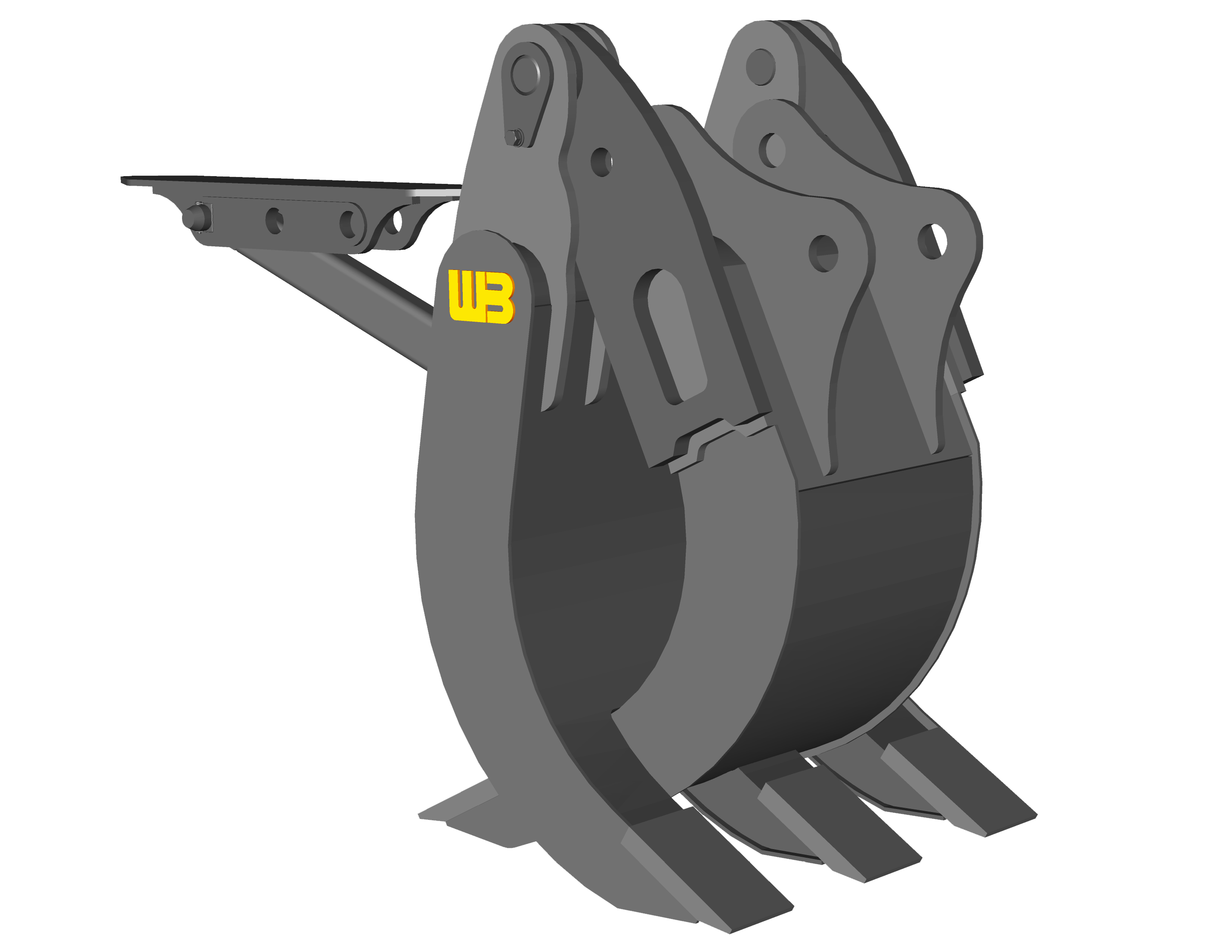

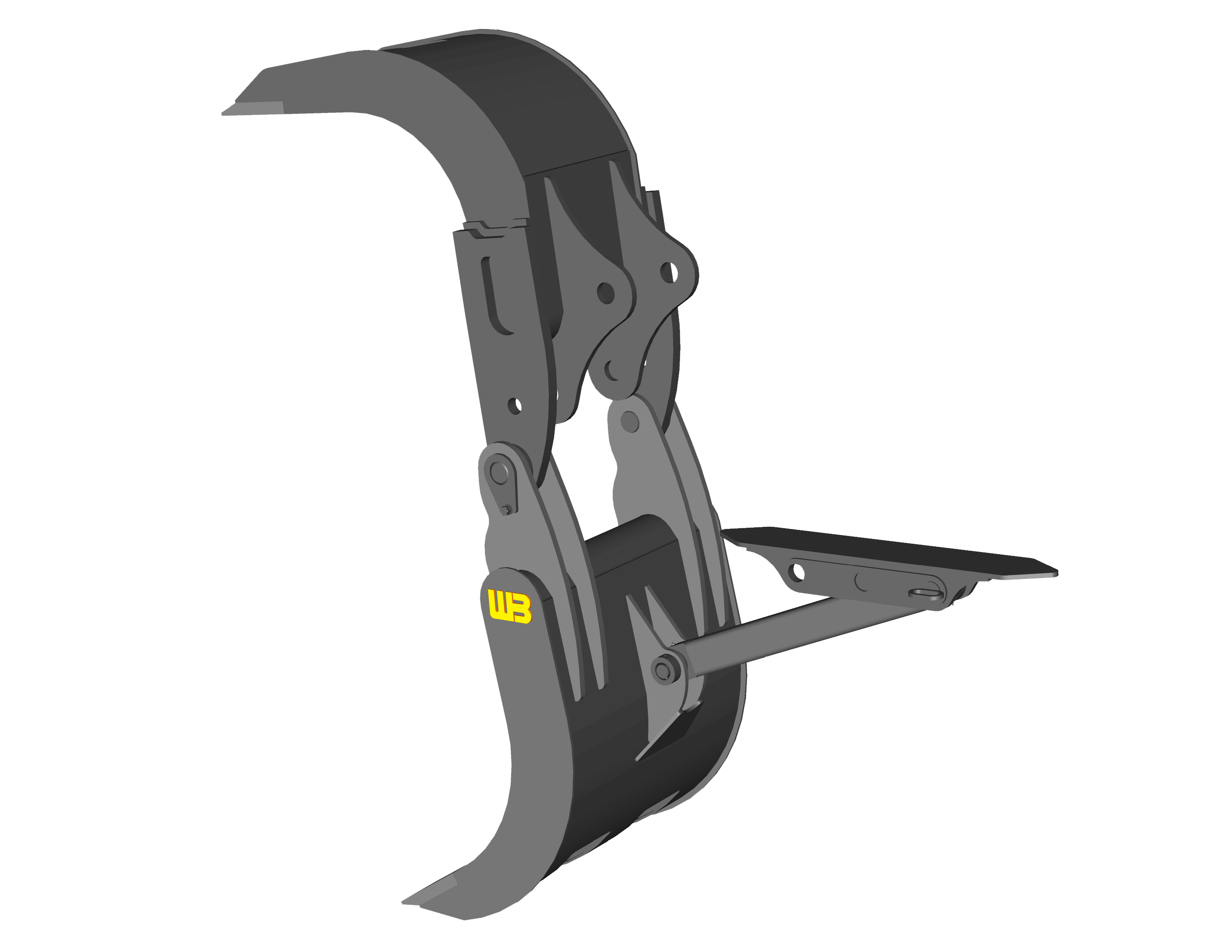

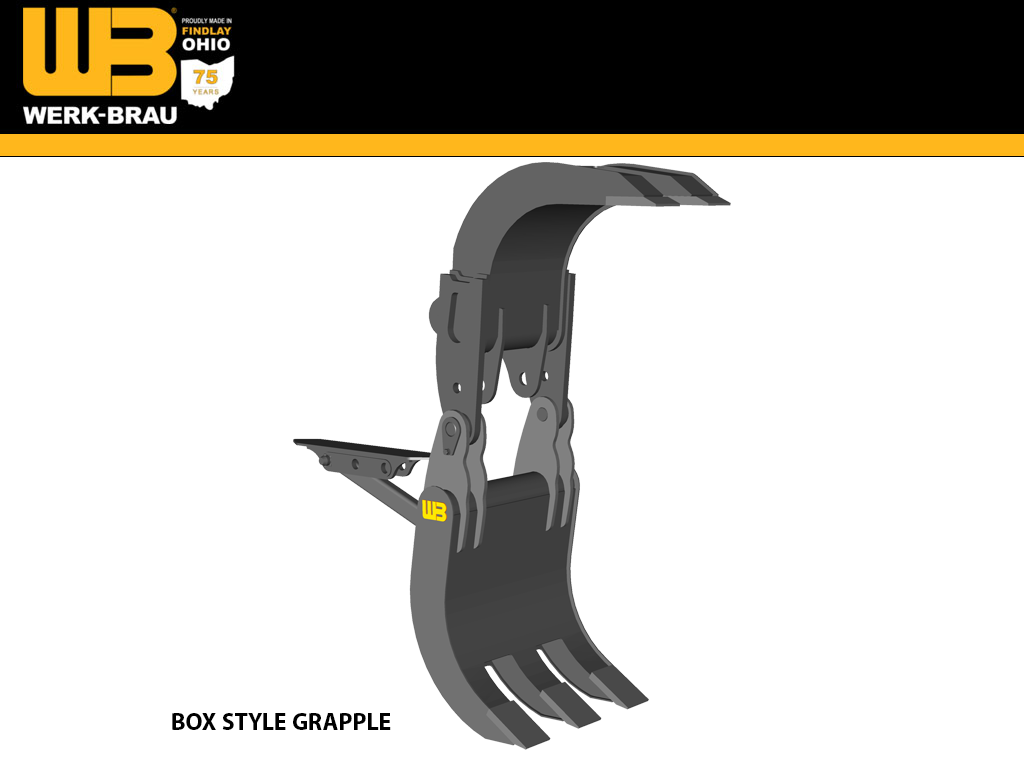

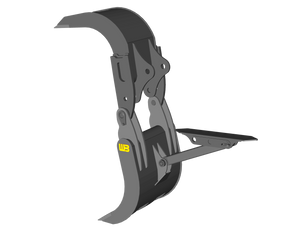

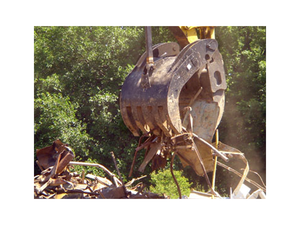

Box Style Grapple

Recommended Applications

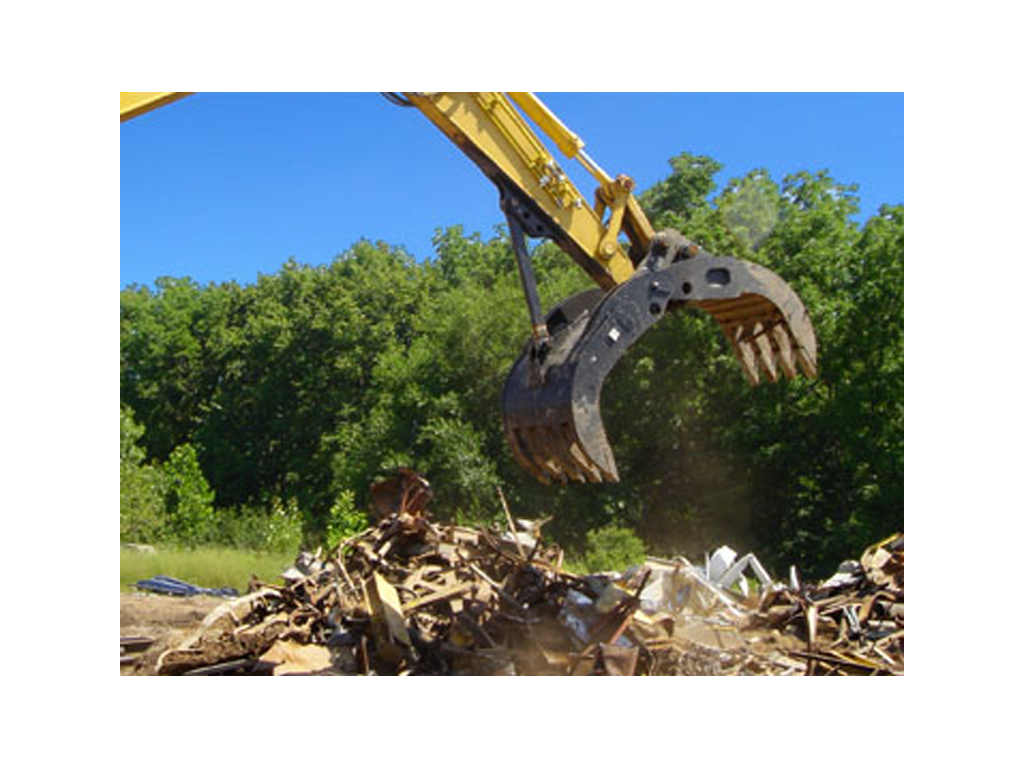

Werk-Brau's wide mouth box style grapple is specifically designed to handle various objects of different sizes such as brush, rocks, and demolition debris. Single grapples may be used with a bucket. Dual grapple styles are also available. Not designed for digging or prying.

Construction

T-1 steel is utilized in all critical or high wear components to ensure that this grapple has a long operating life. High strength steel is used throughout the weldment. Pivot points are made from hardened greaseable bushings, and are easy to access for regular greasing. The style of this grapple allows for additional reinforcement. At the end of each tine are edge pads.

Cutting Equipment Options

Not applicable.

Standard Sizes

Various widths and models are available to choose from.

Additional Features

Additional tines and width designs are available



PART NUMBER  WIDTH JAW OPENING NO. OF TINES WEIGHT
WBBG60.5 60" 155"
2/3
6,950
WBBG72.5 72" 155" 3/4 7,600
WBBG84.5 84" 155" 4/5 8,700

50MT

MAKE / WEIGHT CLASS 50MT (105,000 - 125,000 LBS.)
CASE
CAT 352F
DOOSAN DX490, DX530LC-5, DX530LC-5SLR
HITACHI
HYUNDAI HX520
JOHN DEERE
KOBELCO
KOMATSU
LIEBHERR R 954 C, R956 C
LINK BELT
SANY
TAKEUCHI
VOLVO

60MT

MAKE / WEIGHT CLASS 60MT (125,000 - 150,000 LBS.)
CASE
CAT 365, 345 UHD
DOOSAN
HITACHI
HYUNDAI
JOHN DEERE 670G LC
KOBELCO
KOMATSU PC650
LIEBHERR R 954, R966
LINK BELT
SANY
TAKEUCHI
VOLVO
