WBBG36.05
WERK-BRAU box style grapple for 24,000 -33,000 lbs Excavators (12MT)
$15,667.00 - $18,880.00
1/24

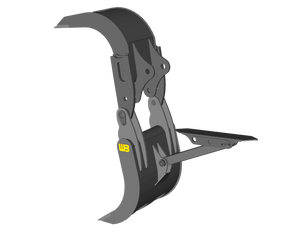

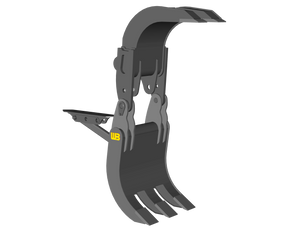

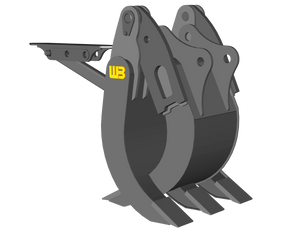

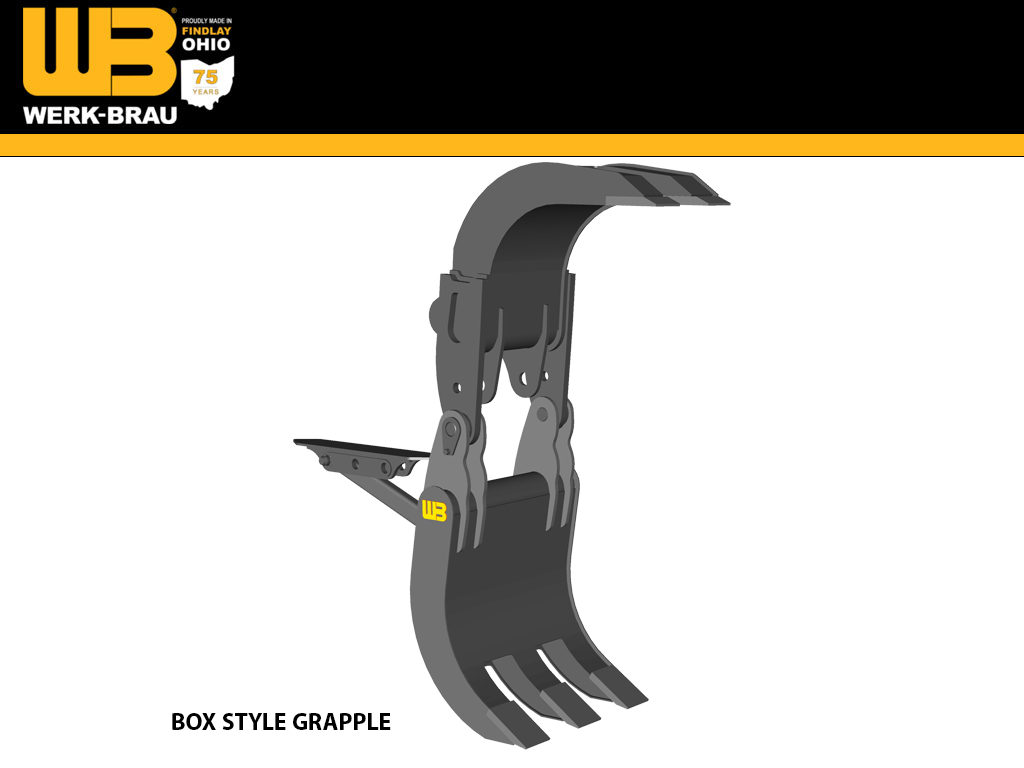

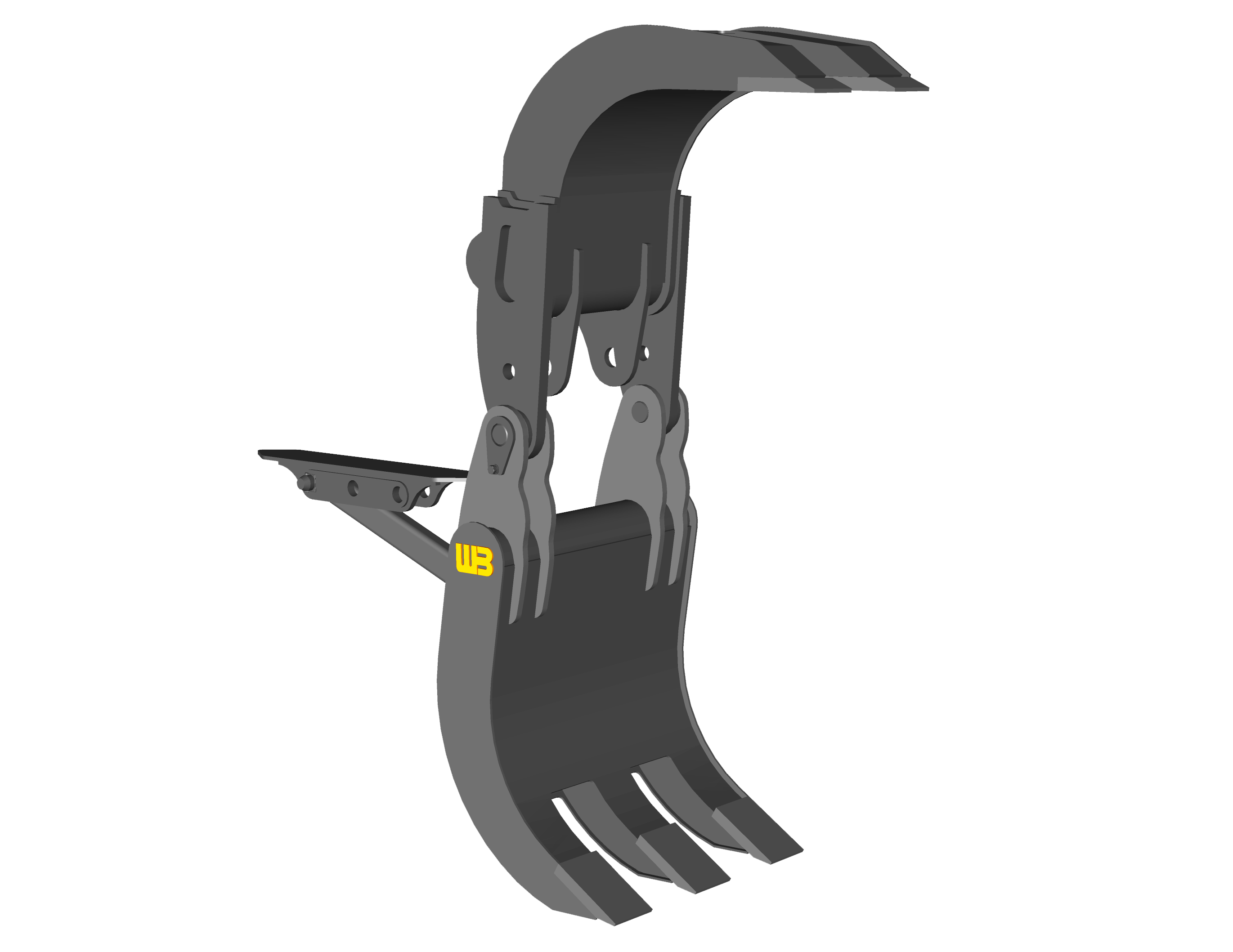

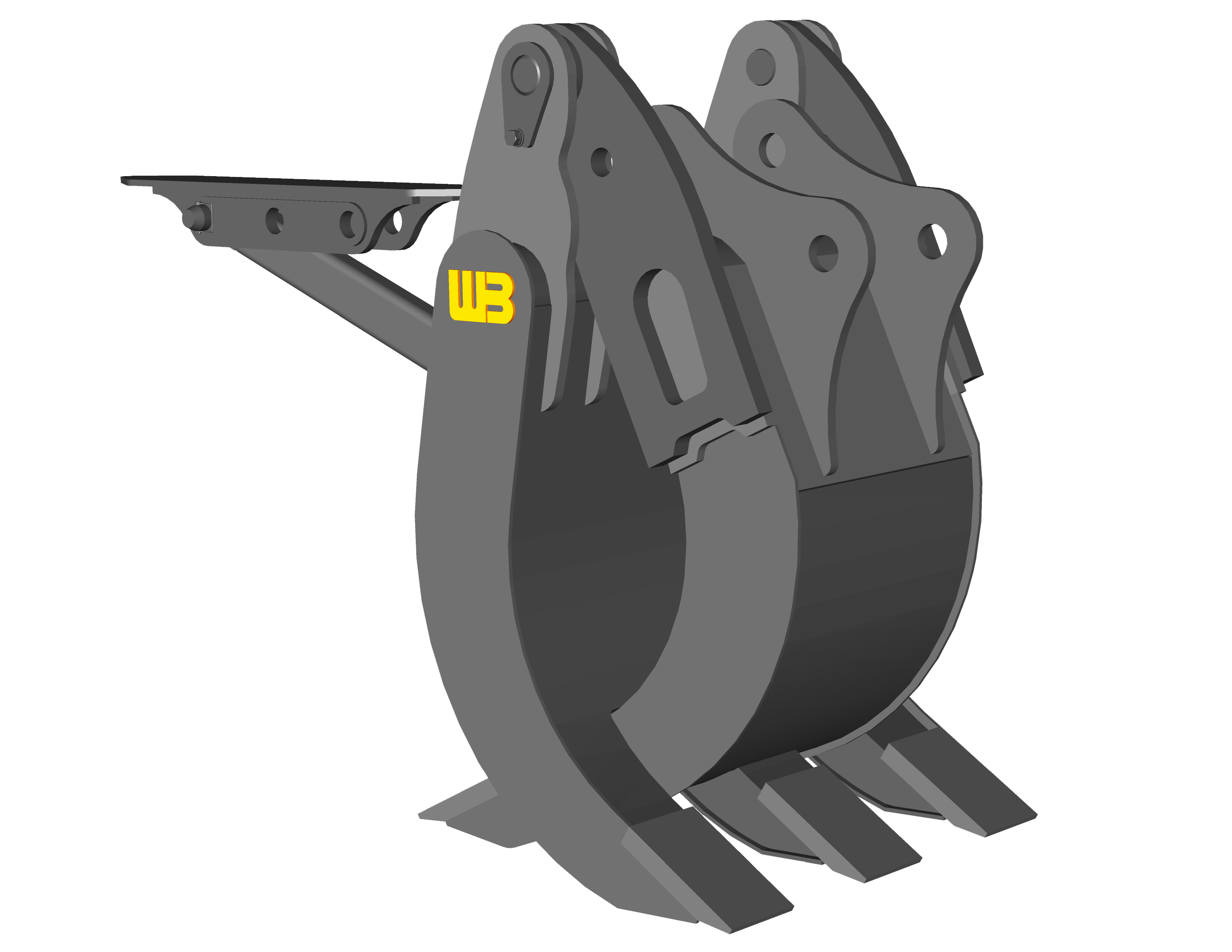

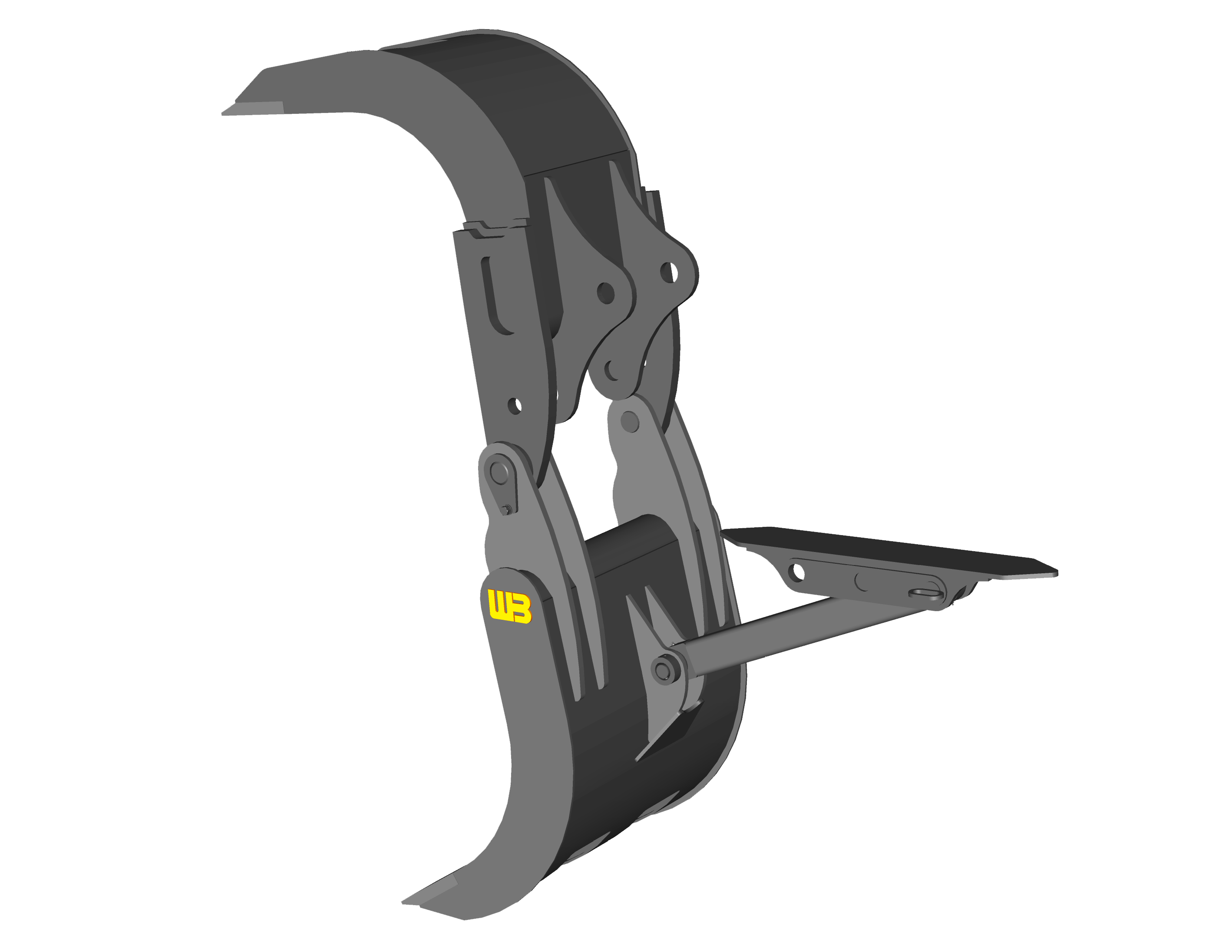

Box Style Grapple
Recommended Applications

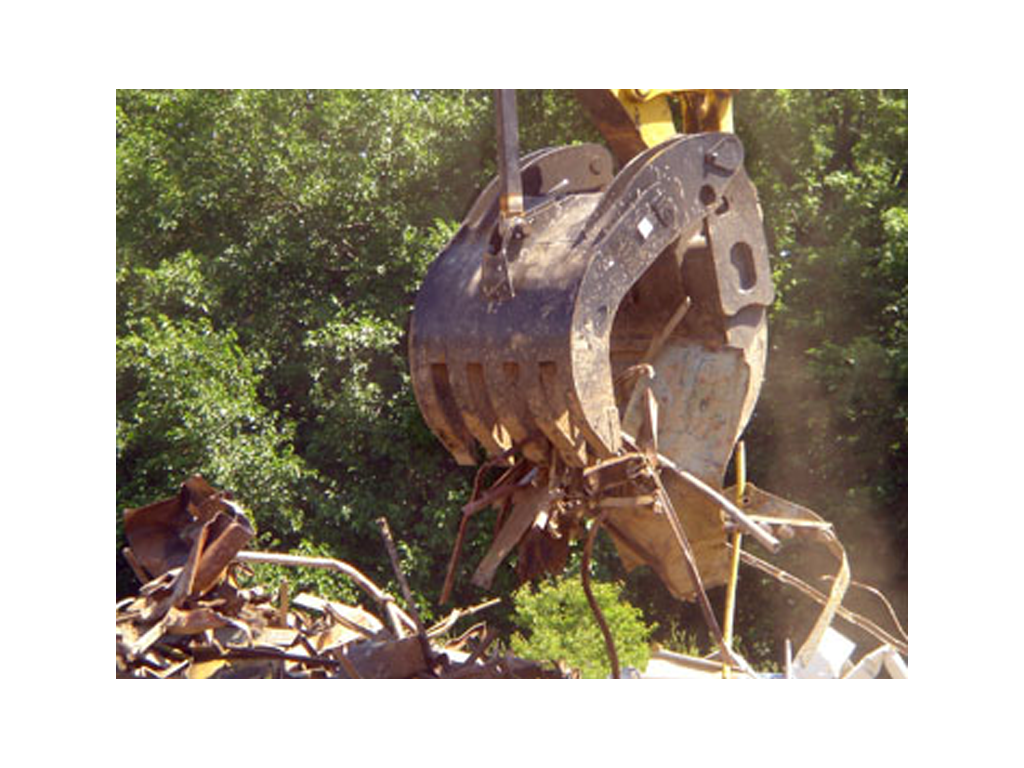

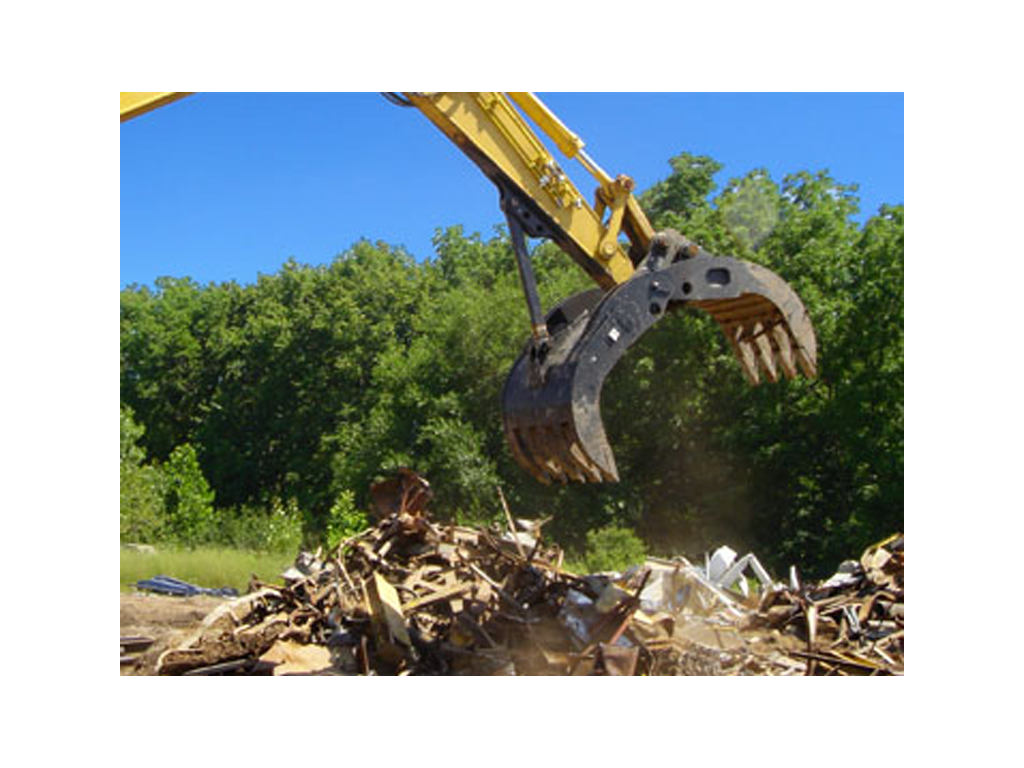

Werk-Brau's wide mouth box style grapple is specifically designed to handle various objects of different sizes such as brush, rocks, and demolition debris. Single grapples may be used with a bucket. Dual grapple styles are also available. Not designed for digging or prying.
Construction
T-1 steel is utilized in all critical or high wear components to ensure that this grapple has a long operating life. High strength steel is used throughout the weldment. Pivot points are made from hardened greasable bushings, and are easy to access for regular greasing. The style of this grapple allows for additional reinforcement. At the end of each tine are edge pads.
Cutting Equipment Options
Not applicable.
Standard Sizes
Various widths and models are available to choose from.
Additional Features
Additional tines and width designs are available
| PART NUMBER | WIDTH | JAW OPENING | NO. OF TINES | WEIGHT |
| WBBG36.05 |
36" |
86" |
2/3 |
2,100 |
| WBBG42.05 |
42" |
86" |
2/3 |
2,200 |
| WBBG48.05 |
48" |
86" |
3/4 |
2,350 |
12MT
| MAKE / WEIGHT CLASS | 12MT (24,000 - 33,000 LBS.) |
| CASE | CX130, CX145D, CX140E |
| CAT | 311, 313, 314F, 315F (A-Linkage) |
| DOOSAN | DX140LC-5, DX140LCR-5, DX140W-5 |
| HITACHI | ZX130 |
| HYUNDAI | HX140, HX145, HX220 LR |
| JOHN DEERE | 130G, 135G, 130P |
| KOBELCO | SK140, ED160 |
| KOMATSU | PC138 |
| LIEBHERR | |
| LINK BELT | 130X4, 145X4, 210X4 LR |
| SANY | SY135, SY235 LR, SY265 LR |
| TAKEUCHI | TB1140, TB2150 |
| VOLVO | EW140, EC140, ECR145 |
