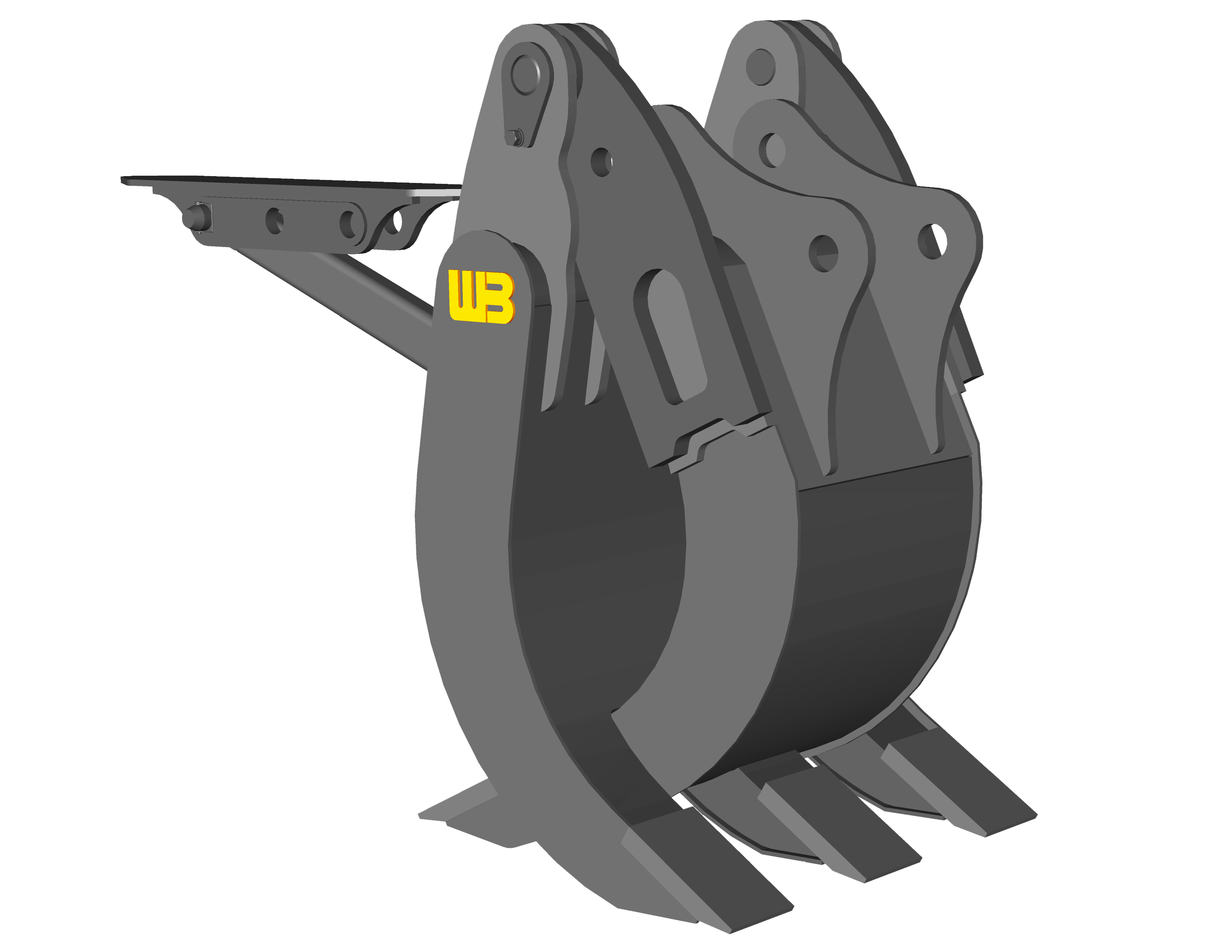

WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)
WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)

WBBG48.3

WERK-BRAU box style grapple for 59,000 -82,000 lbs Excavators (30 & 35MT)

$29,747.00 - $35,280.00

Business Financing Available

Size

11/24

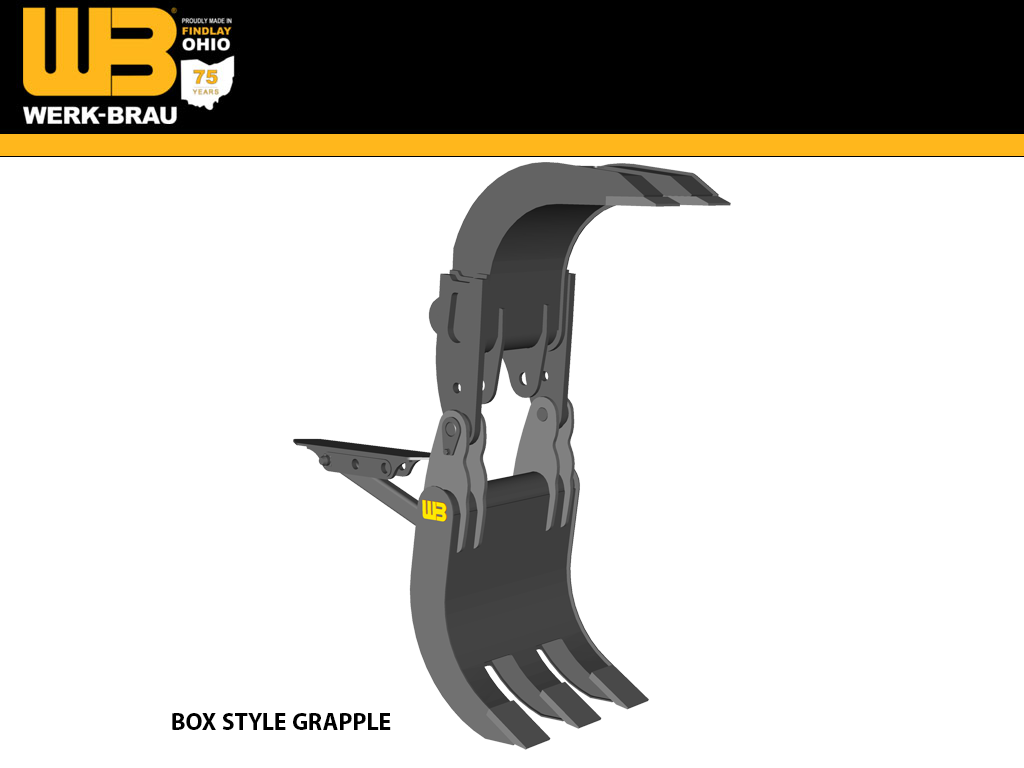

Box Style Grapple

Recommended Applications

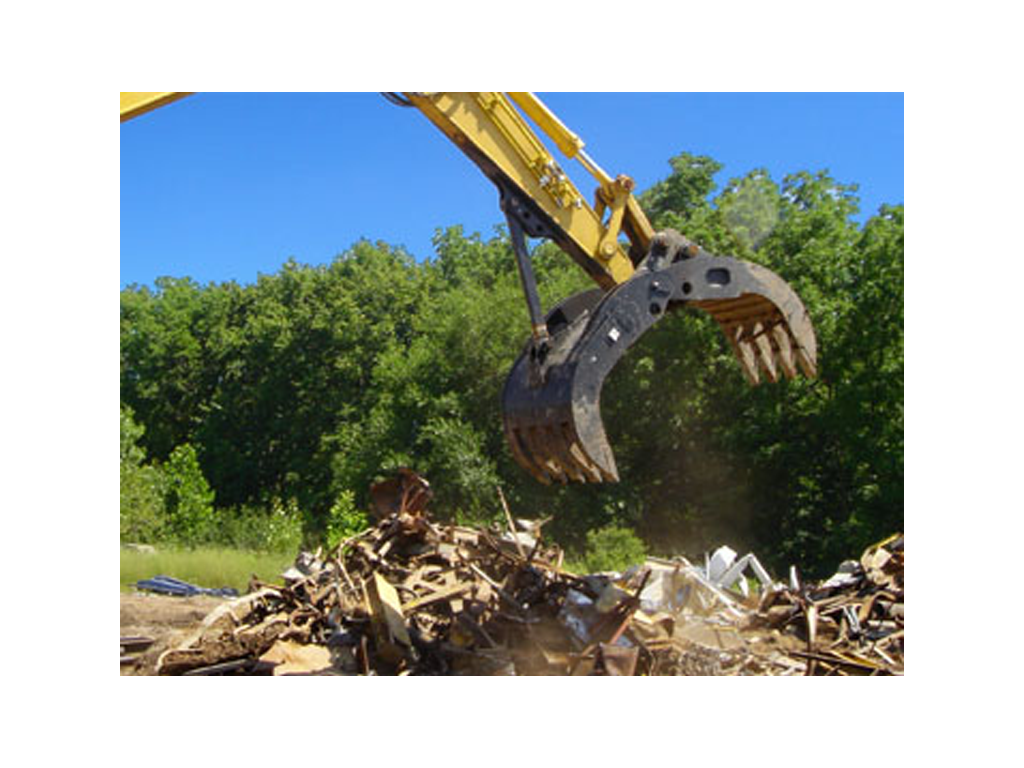

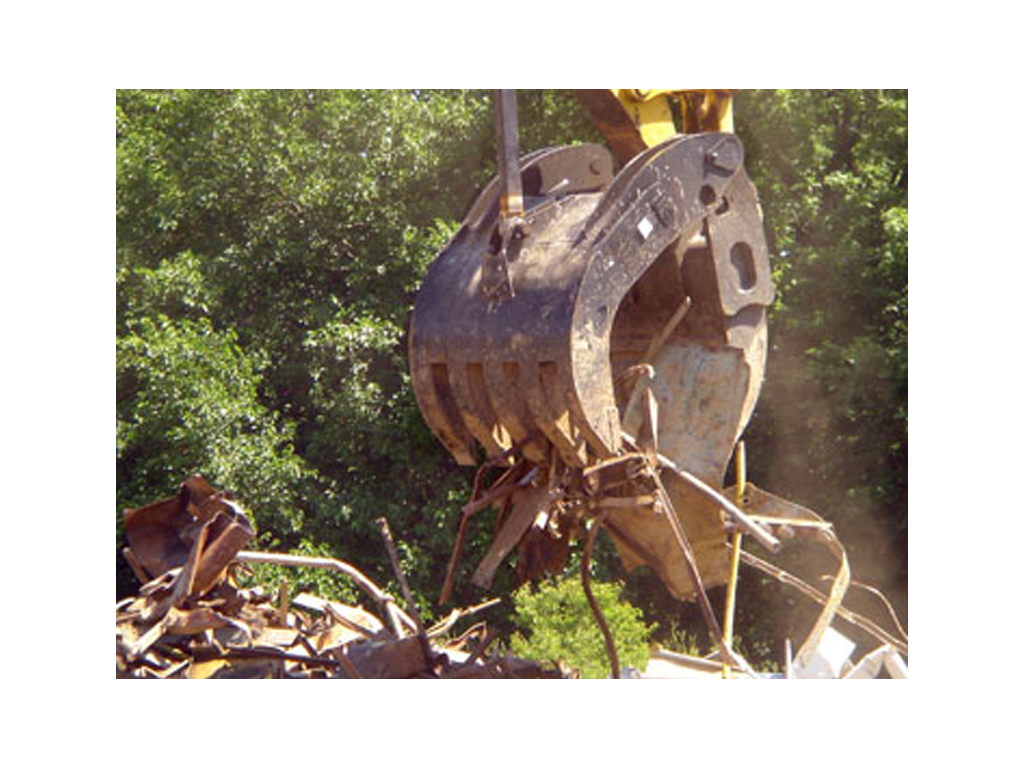

Werk-Brau's wide mouth box style grapple is specifically designed to handle various objects of different sizes such as brush, rocks, and demolition debris. Single grapples may be used with a bucket. Dual grapple styles are also available. Not designed for digging or prying.

Construction

T-1 steel is utilized in all critical or high wear components to ensure that this grapple has a long operating life. High strength steel is used throughout the weldment. Pivot points are made from hardened greaseable bushings, and are easy to access for regular greasing. The style of this grapple allows for additional reinforcement. At the end of each tine are edge pads.

Cutting Equipment Options

Not applicable.

Standard Sizes

Various widths and models are available to choose from.

Additional Features

Additional tines and width designs are available.



PART NUMBER  WIDTH JAW OPENING NO. OF TINES WEIGHT
WBBG48.3
 48"
 116"
 2/3
 4,300
WBBG54.3 54" 116"
 3/4 4,800
WBBG60.3 60" 116"
 4/5
 5,100

30MT

MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY305, SY335
TAKEUCHI
VOLVO EC290, EC300, EC305, ECR355

35MT
MAKE / WEIGHT CLASS 35MT (68,500 - 82,000 LBS.)
CASE CX350
CAT 330, 335, 336F DB-LINKAGE
DOOSAN DX350LC-5, DX420LC-5
HITACHI ZX350, ZX380
HYUNDAI HX330, HX350, HX380
JOHN DEERE 350G, 380G, 350P
KOBELCO SK350
KOMATSU PC300, PC350, PC360, PC390
LIEBHERR R 934 CL, R 924 C, R936
LINK BELT 350X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
