1MCR12

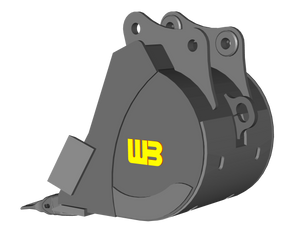

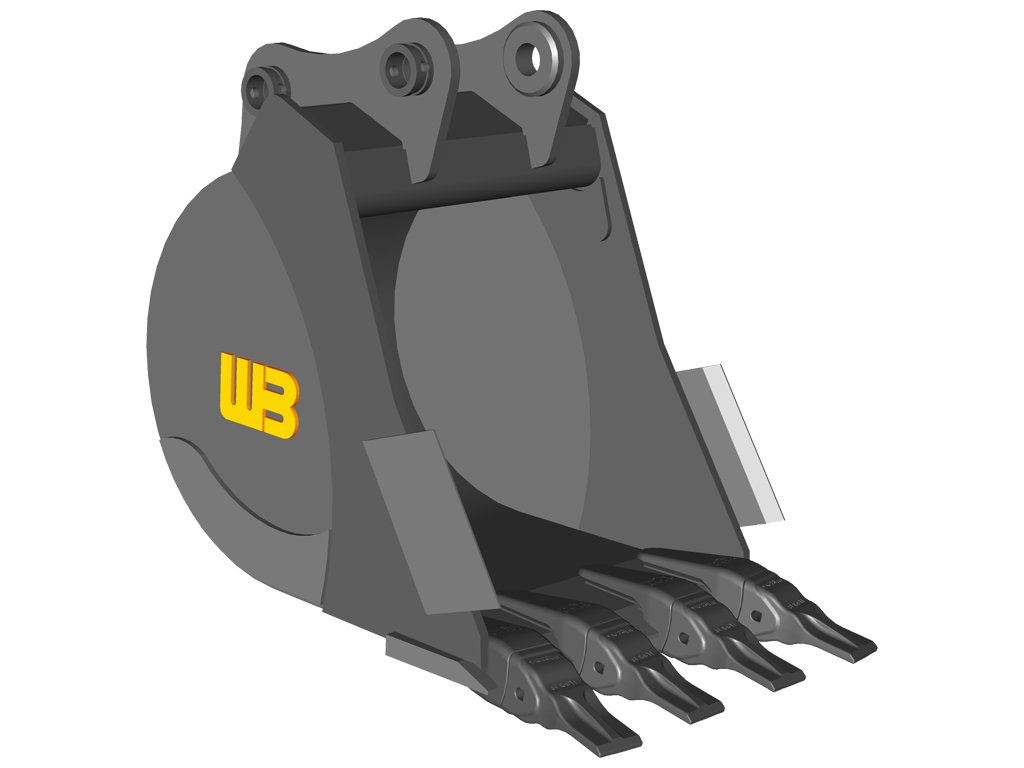

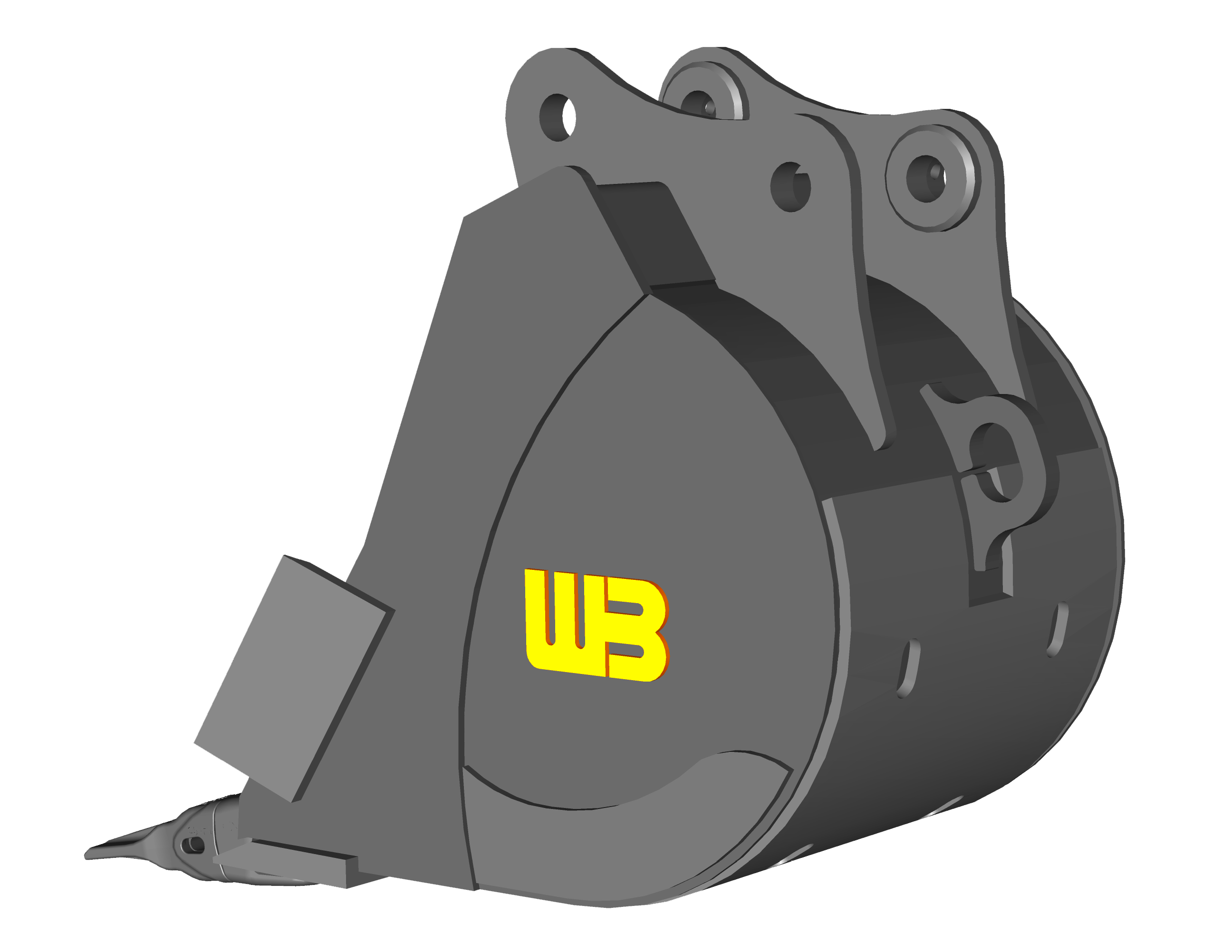

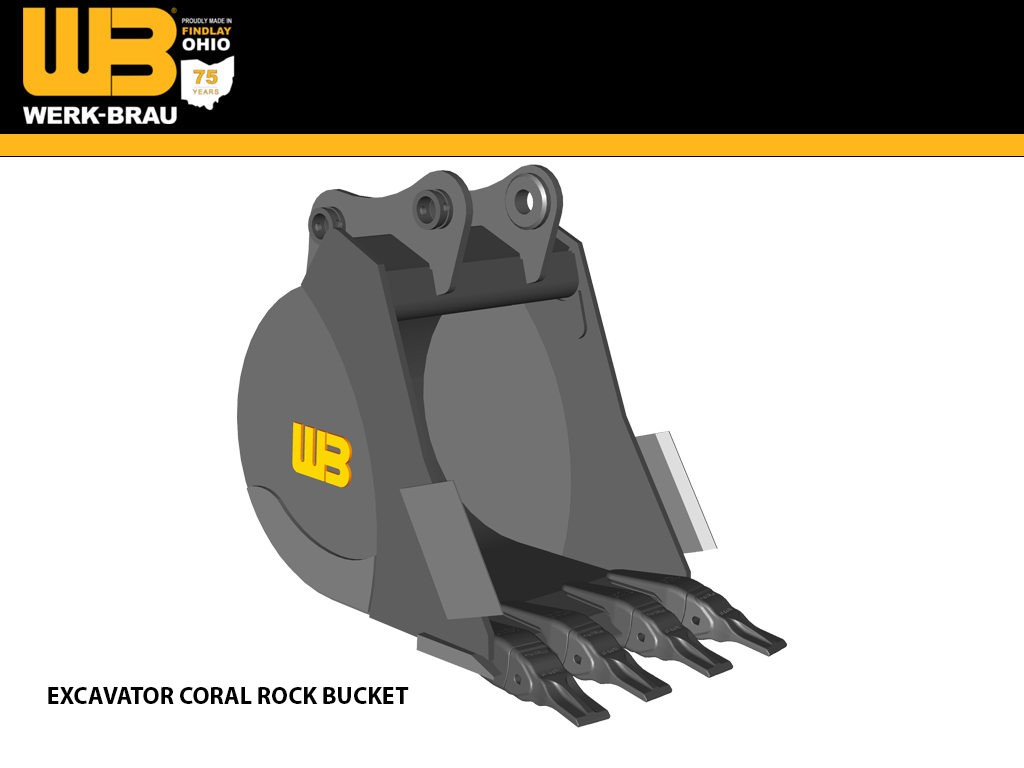

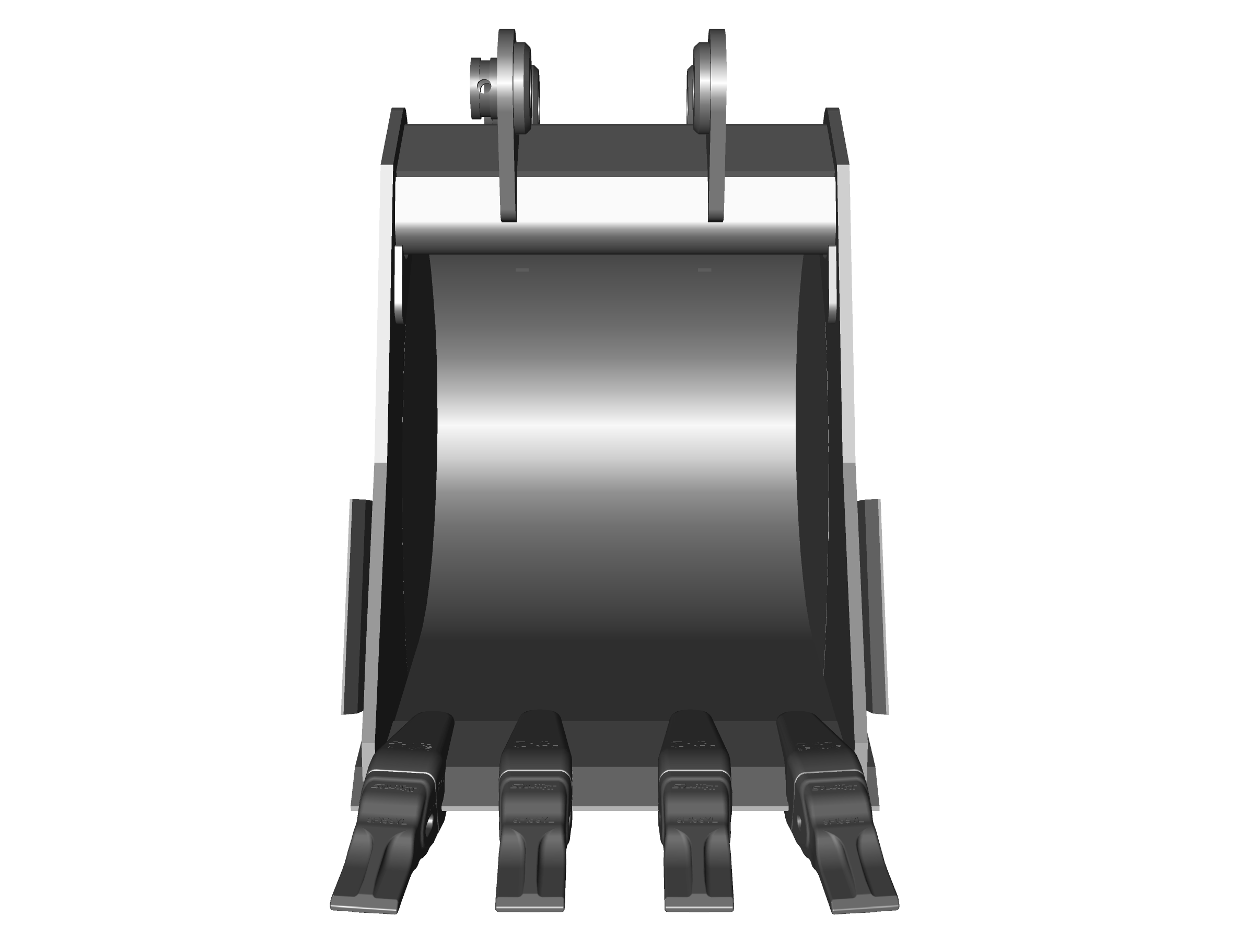

WERK-BRAU Coral Rock Bucket for 5,000 - 7,500 lbs. Excavators. (Mini 1)

Size
Options

1/24

WERK-BRAU CORAL ROCK BUCKETS


Recommended Applications

Specifically designed for the "peeling" required to dig coral rock. These buckets can also be used in other applications such as demolition work, highly abrasive applications, shot rock, and moderate prying.

Quality Construction

High strength, wear resistant steel is utilized in all critical and high wear components. The cutting edge is backed by a wear plate that covers the entire bucket bottom. Side wear plates protect the bucket sides. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. The cutting edge on this bucket is designed with additional thickness. The cutting edge is protected by an increased number of smaller teeth.

Cutting Equipment Options

A variety of high quality brand teeth are available to choose from.

Standard Sizes

.78 cu. ft. to 17.1 cu. ft. of various widths are available.

Additional Features

Side cutters are optional for additional side clearance. Box rippers are available for this bucket and can be installed upon request. Special designs and capacities are available. Please request a quote from your local dealer.



PART # WIDTH CAPACITY NO. TEETH WEIGHT
1MCR12 12" 1.77 4 205
1MCR16 16" 2.36
5
235
1MCR18 18" 2.66
6
245
1MCR20 20" 2.96
6 260
1MCR24 24" 3.54
8 290
MAKE / WEIGHT CLASS MINI 1 (5,000 - 7,500 LBS.)
BOBCAT 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425
CASE CX31B, CX36B, CX37C
CAT 302.7DCR, 303ECR
DOOSAN DX30, DX35
DITCH WITCH XT1600
GEHL GE283X, GE303, GE353, GE383Z
HITACHI ZX35U-2
HYUNDAI R35, R36
IHI 35N-2
JCB 2CX, 8030, 8035, MIDI
JOHN DEERE 35G
KOBELCO 30SR, 35SR
KOMATSU PC27MR-3, PC35MR-3
KUBOTA U35, U48, KX033, KX040, KX71
LINK BELT
MUSTANG ME3003, 2803ZT, ME3503, ME3703, 3803ZT
NEW HOLLAND E30, E35
SANY SY26, SY35
TAKEUCHI TB125, TB135, TB228, TB240, TB138FR, TB235
VOLVO EC35C, ECR48C
YANMAR Vio27-5, Vio35-5, Vio45-5, Vio-50
WACKER NEUSON EZ28, EZ38, 3503
