8HDCRIB-2
1/24

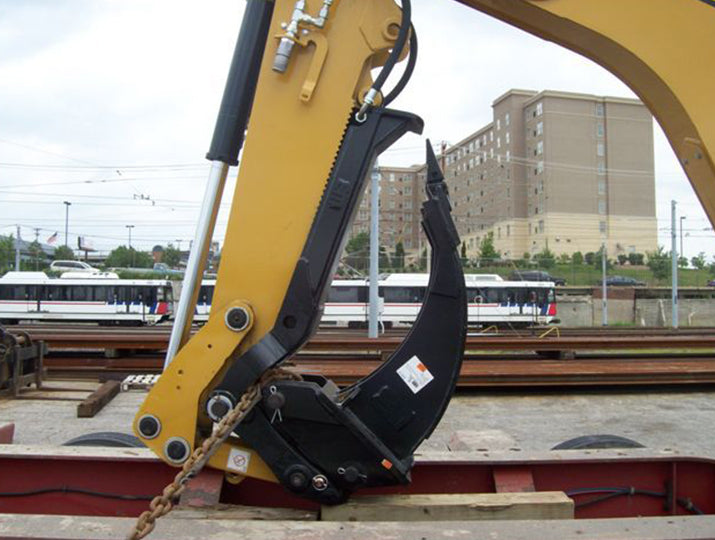

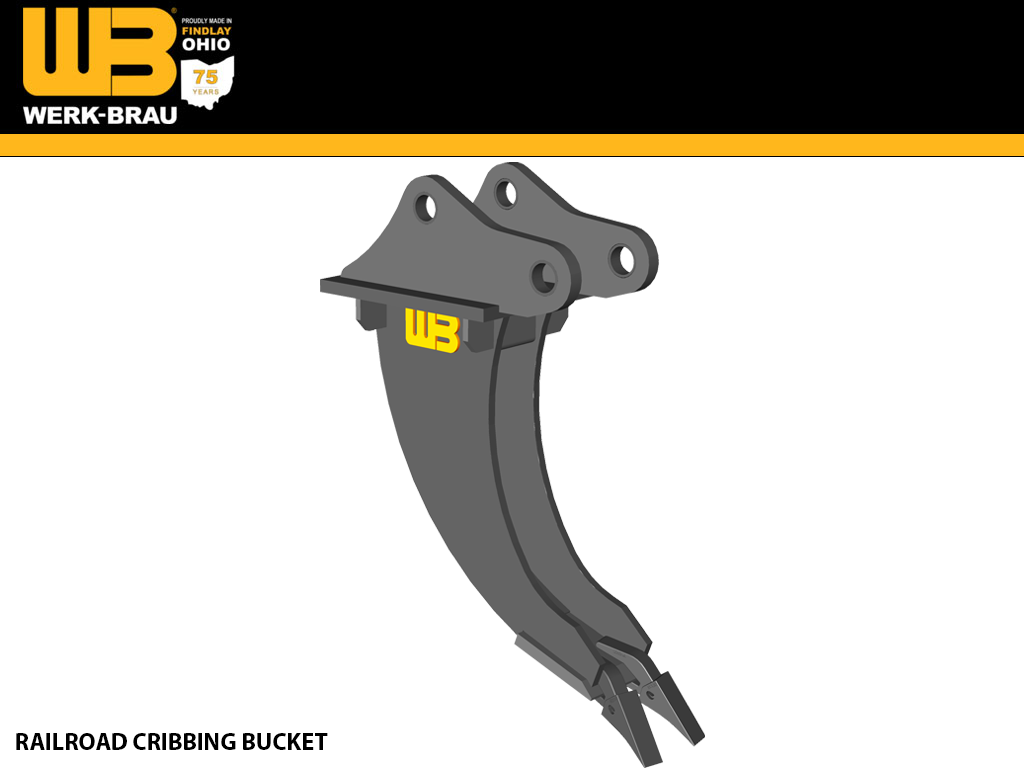

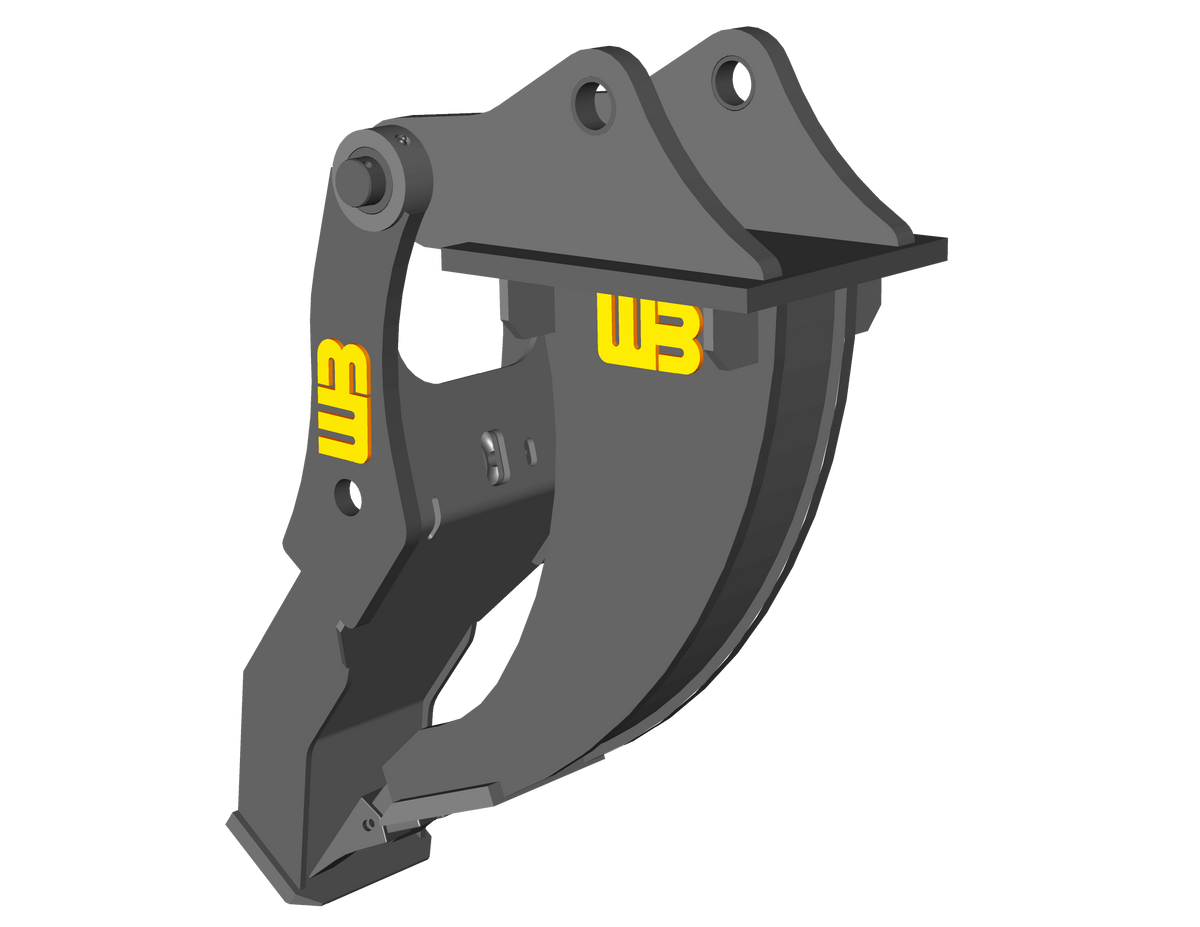

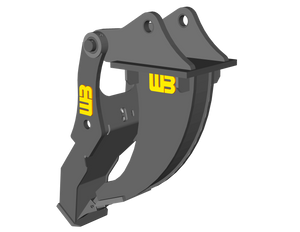

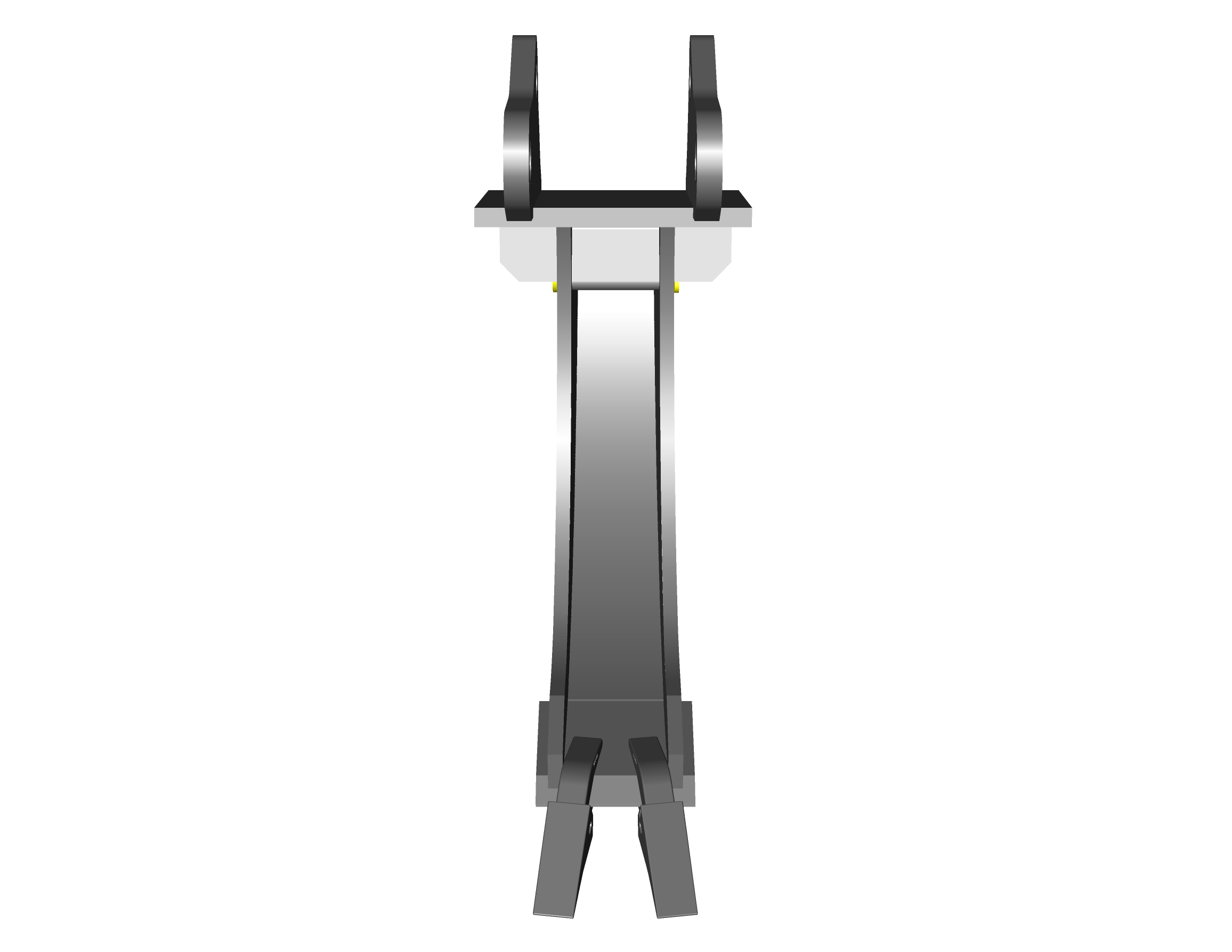

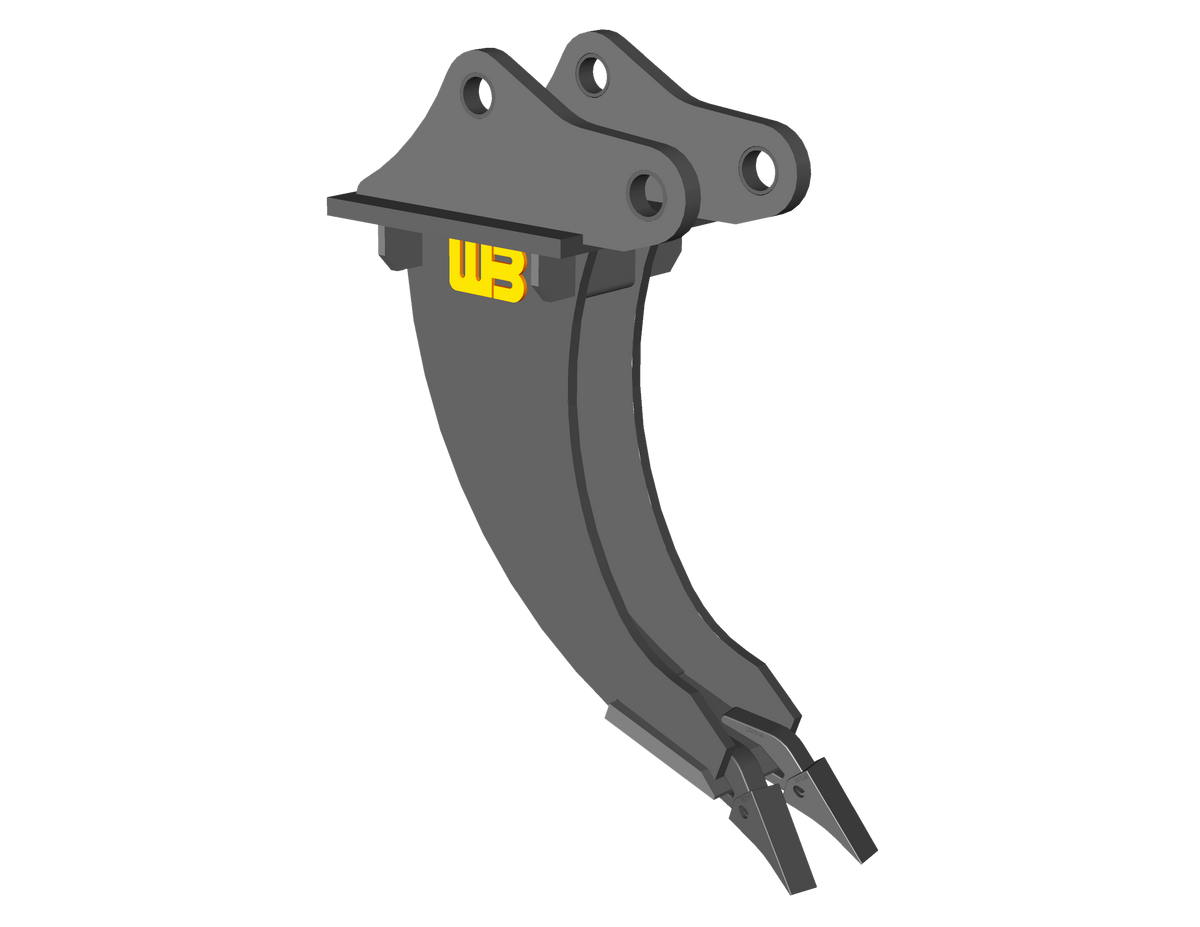

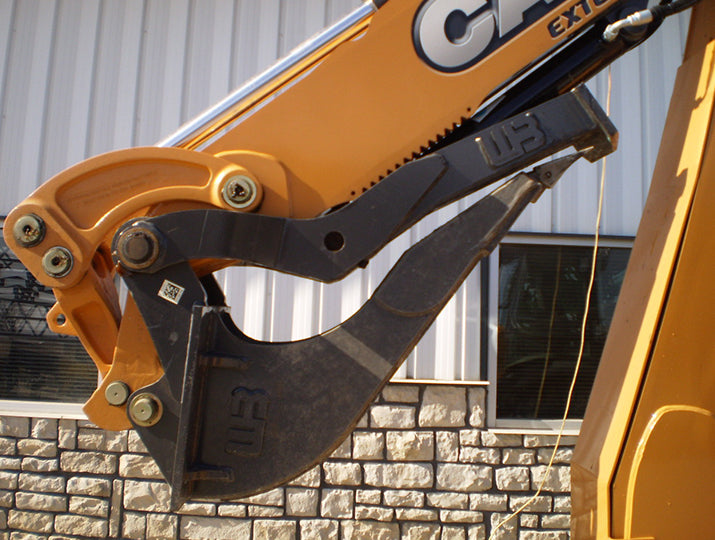

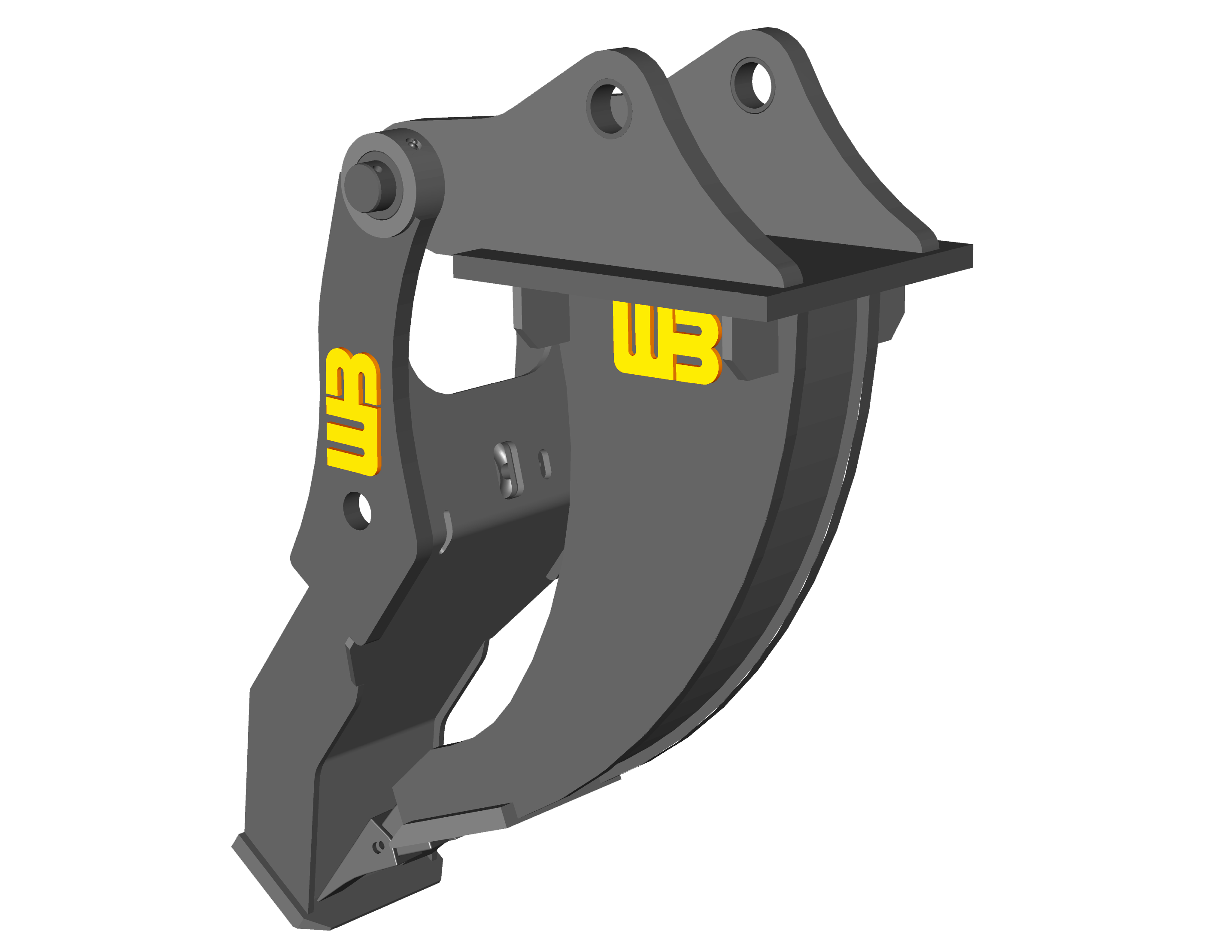

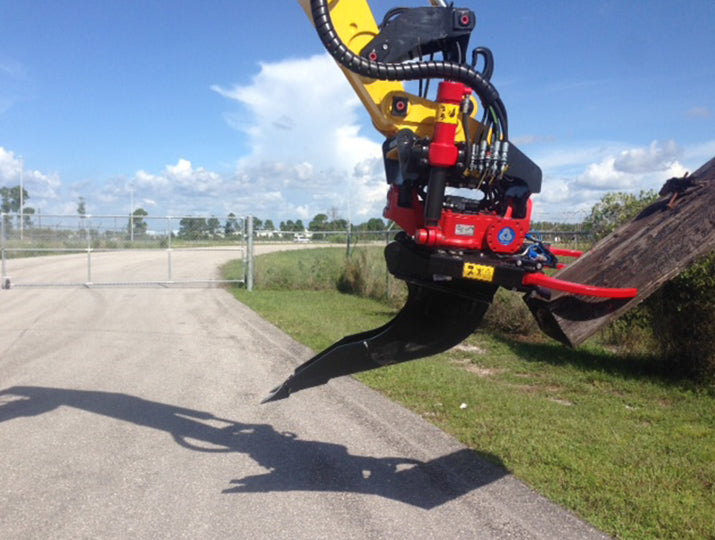

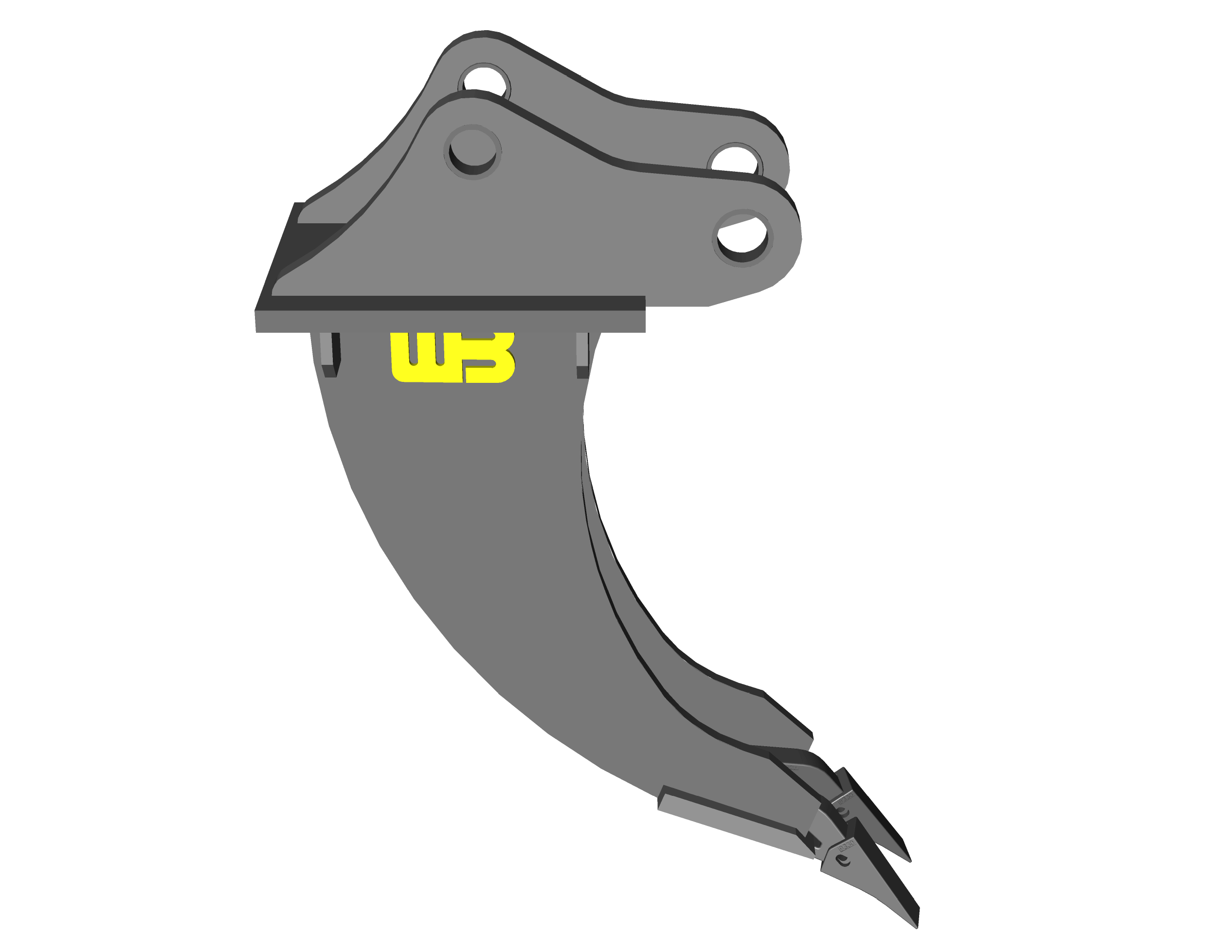

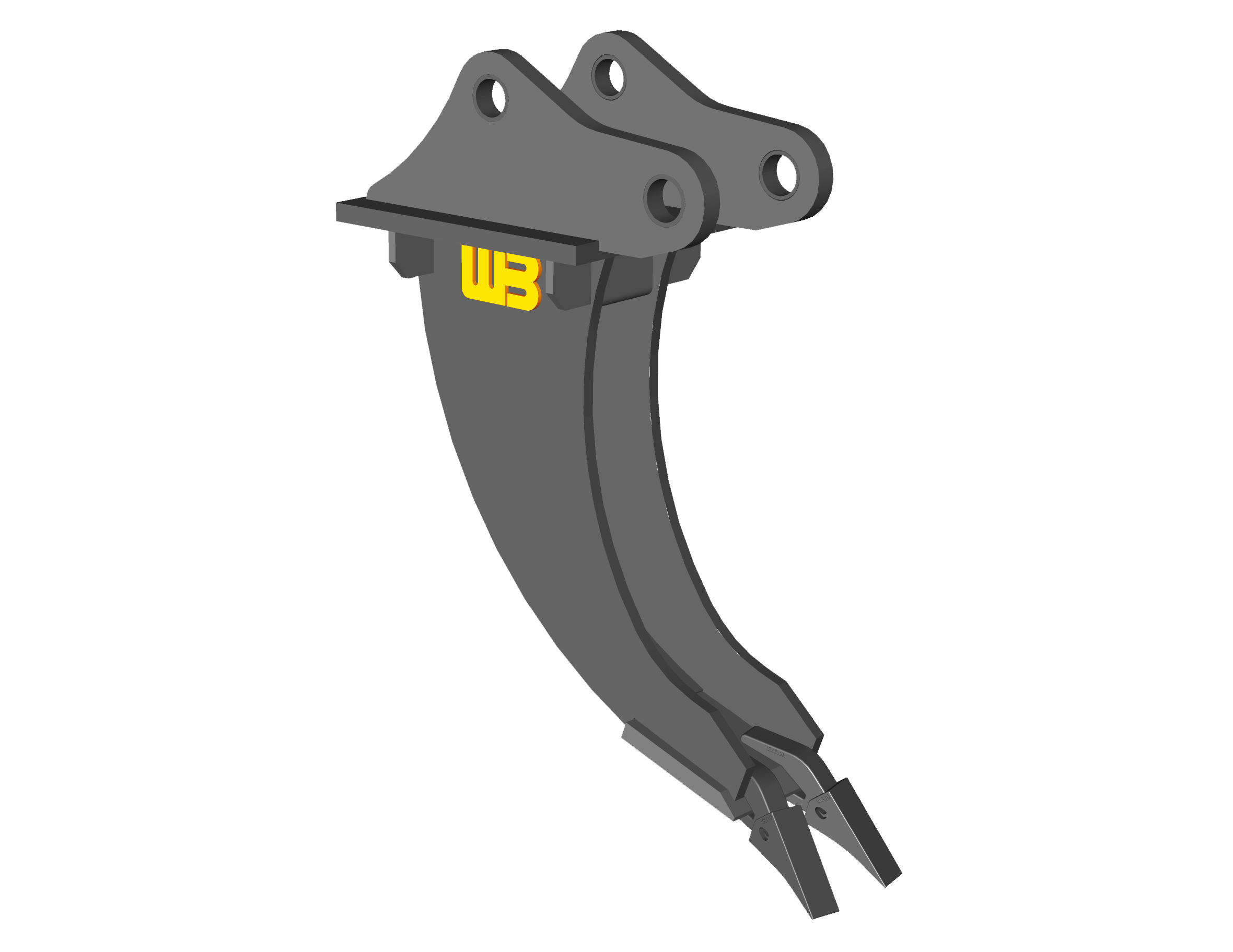

Werk-Brau’s heavy duty Railroad Cribbing bucket is a popular choice in the railroad industry for the task of removing of railroad ties, and some minor trenching. Due to its low capacity this bucket is not designed for normal trenching.
High strength steel is used in all critical components of this Bucket. Each Railroad Cribbing Bucket features an inserted shank that can be replaced, giving the Bucket a longer life. Extra heavy sides provide additional durability. Heavy duty version has wear straps and extra heavy cutting edge to withstand more rugged use. Each Bucket comes with two angled teeth for maximum material removal. This bucket features a flat top for hangers. Gussets provide extra rigidity in high stress areas.
OEM approved pin-on teeth are utilized on the standard model and cast teeth in the heavy duty. Different teeth are available. Special designs and capacities are available
PART # | WIDTH | STYLE | # OF TEETH | WEIGHT |
8HDCRIB-2 |
8" |
MINI | 2 | 200 |
MINI 1
MAKE / WEIGHT CLASS | MINI 1 (5,000 - 7,500 LBS.) |
BOBCAT | 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425 |
CASE | CX31B, CX36B, CX37C |
CAT | 302.7DCR, 303ECR |
DOOSAN | DX30, DX35 |
DITCH WITCH | XT1600 |
GEHL | GE283X, GE303, GE353, GE383Z |
HITACHI | ZX35U-2 |
HYUNDAI | R35, R36 |
IHI | 35N-2 |
JCB | 2CX, 8030, 8035, MIDI |
JOHN DEERE | 35G |
KOBELCO | 30SR, 35SR |
KOMATSU | PC27MR-3, PC35MR-3 |
KUBOTA | U35, U48, KX033, KX040, KX71 |
LINK BELT | |
MUSTANG | ME3003, 2803ZT, ME3503, ME3703, 3803ZT |
NEW HOLLAND | E30, E35 |
SANY | SY26, SY35 |
TAKEUCHI | TB125, TB135, TB228, TB240, TB138FR, TB235 |
VOLVO | EC35C, ECR48C |
YANMAR | Vio27-5, Vio35-5, Vio45-5, Vio-50 |
WACKER NEUSON | EZ28, EZ38, 3503 |
MINI 15
MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
CASE | CX50B, CX55B, CX57C, CX60C |
CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
DOOSAN | DX60, DX63-3 |
DITCH WITCH | |
GEHL | GE503Z, GE603 |
HITACHI | ZX50, AX60 |
HYUNDAI | R55, R60 |
IHI | 40JX, 45JX |
JCB | 8040, 8045, 8052 |
JOHN DEERE | 50G |
KOBELCO | 50SR, 55SRX |
KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
KUBOTA | U55, KX057 |
LINK BELT | |
MUSTANG | 5003ZT, 6003 |
NEW HOLLAND | E50, E55BX |
SANY | SY50, SY60 |
TAKEUCHI | TB145, TB153FR, TB250, TB260 |
VOLVO | EC55B, ECR58 |
YANMAR | Vio55-5 |
WACKER NEUSON | ET65, EW65, EZ53, 6003 |
