HD140-65-60

WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 24,000 - 33,000 lbs. Excavators (12MT)

1/24

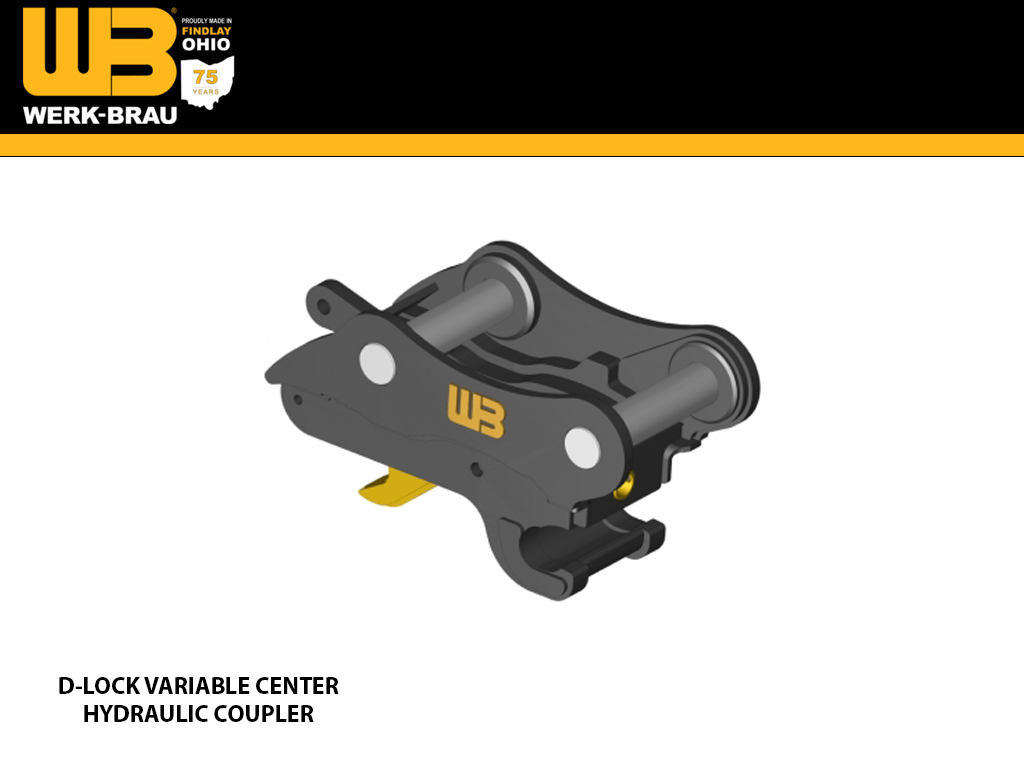

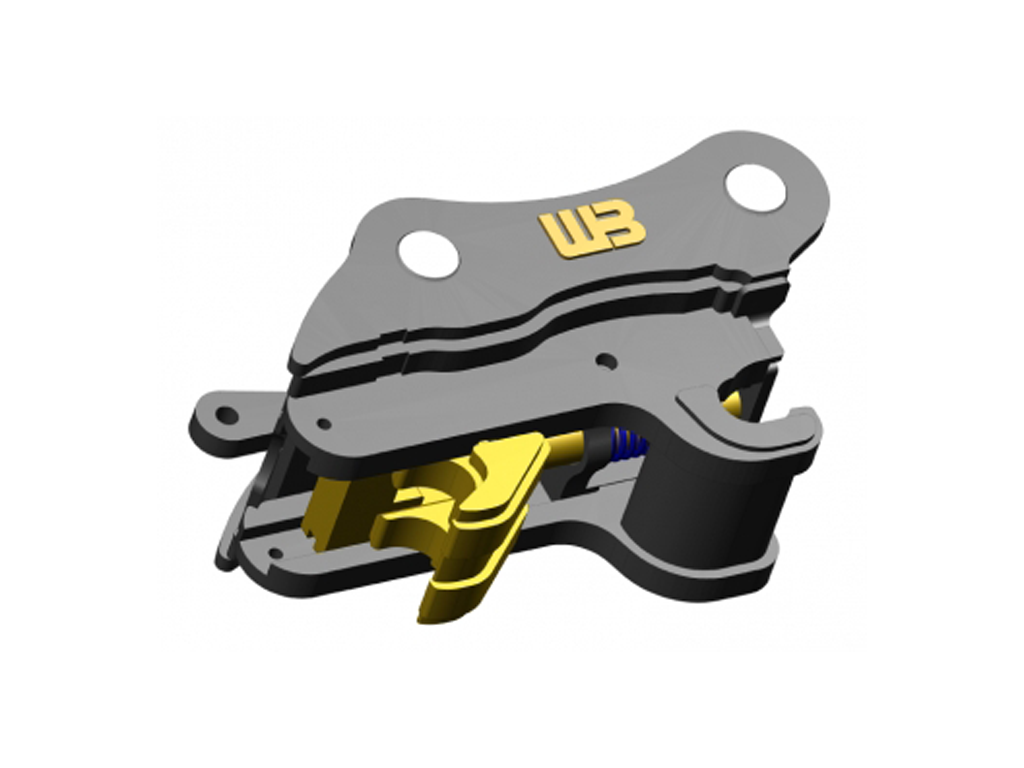

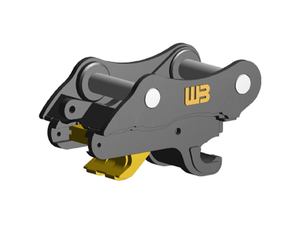

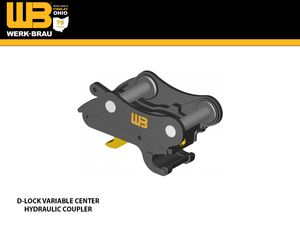

D-Lock Variable Center Hydraulic Coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

  • Automatic front lock – Locks the front pin in the event the rear pin is not secured
  • Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
  • Highly visible front lock indicator
  • Safety system does not rely on gravity
  • Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
  • Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
  • Simple yet safe unlock procedure eliminates accidental releases
  • Only requires two hydraulic lines
  • Compact design – Improving machine performance
  • No greasing or lubrication required

HEAVY DUTY

PART # PIN DIAMETER BASE WIDTH PIN RANGE WEIGHT
HD140-65-60
65 & 60
220

340-410

345-425

410



MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145
