HD145-65-60 / BR15-####
WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 24,000 - 33,000 lbs. Excavators (12MT)
$8,893.00
7/25

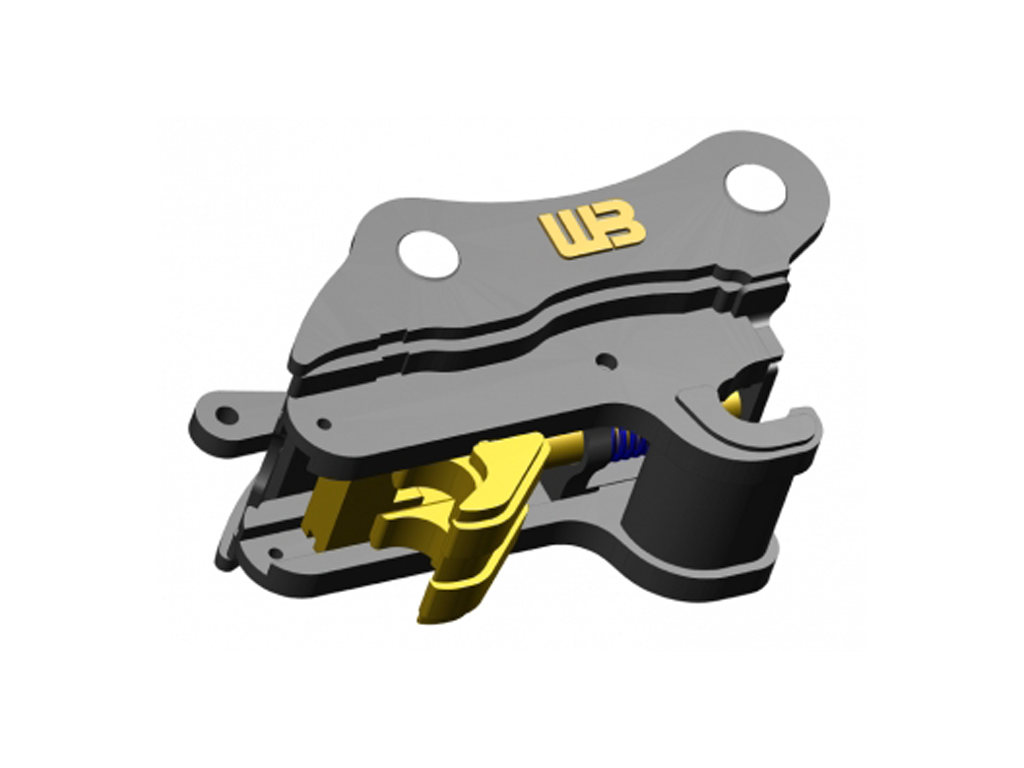

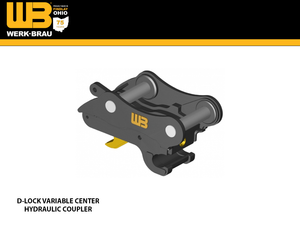

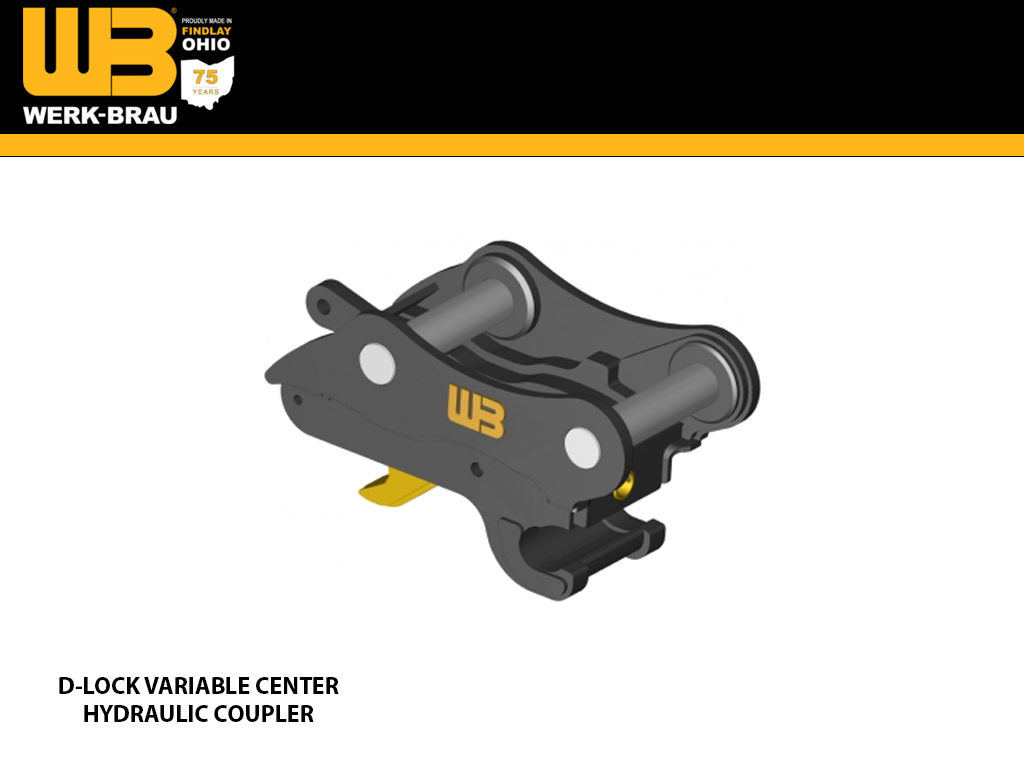

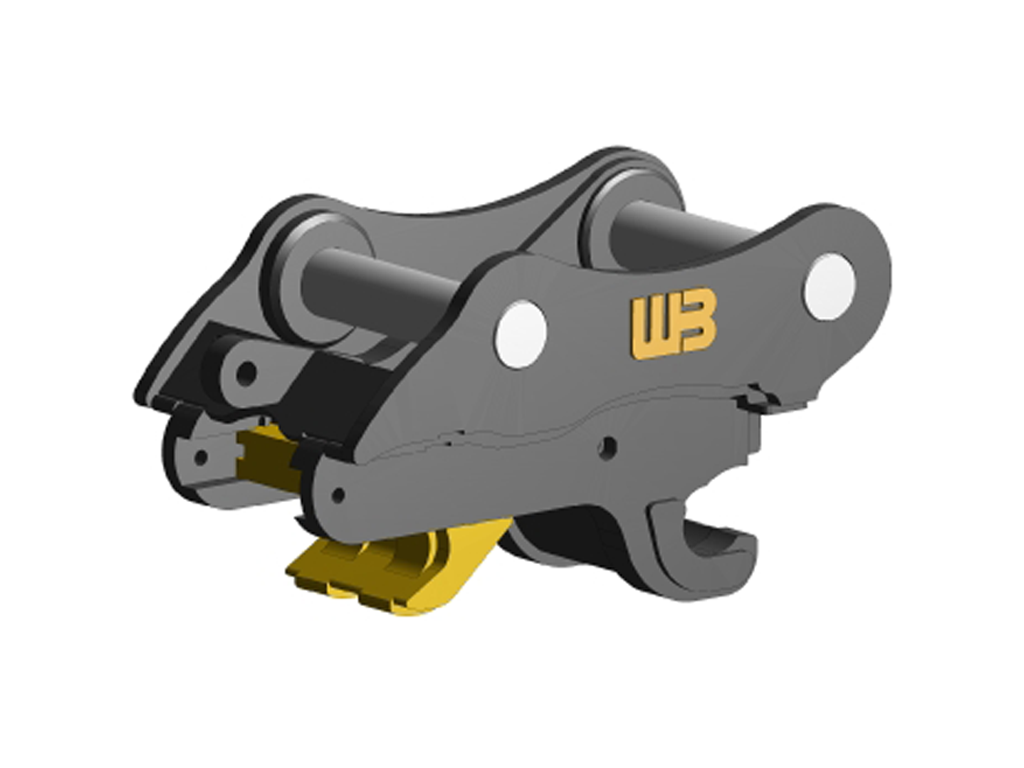

D-Lock Variable Center Hydraulic Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
HEAVY DUTY
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD140-65-60 |
65 & 60 |
220 |
346-405 355-422 |
410 |
| MAKE / WEIGHT CLASS | 12MT (24,000 - 33,000 LBS.) |
| CASE | CX130, CX145D, CX140E |
| CAT | 311, 313, 314F, 315F (A-Linkage) |
| DOOSAN | DX140LC-5, DX140LCR-5, DX140W-5 |
| HITACHI | ZX130 |
| HYUNDAI | HX140, HX145, HX220 LR |
| JOHN DEERE | 130G, 135G, 130P |
| KOBELCO | SK140, ED160 |
| KOMATSU | PC138 |
| LIEBHERR | |
| LINK BELT | 130X4, 145X4, 210X4 LR |
| SANY | SY135, SY235 LR, SY265 LR |
| TAKEUCHI | TB1140, TB2150 |
| VOLVO | EW140, EC140, ECR145 |
