HD1255-BR15-####

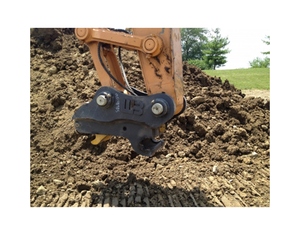

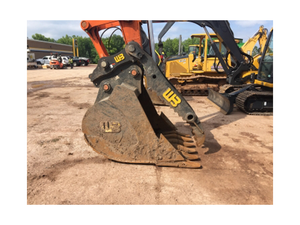

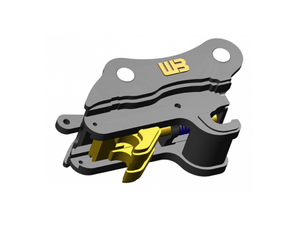

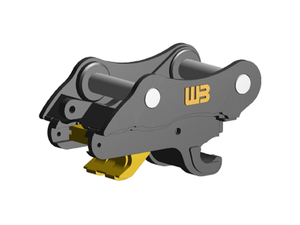

WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 264,000 - 280,000 Excavators (120 MT)
$78,173.00
7/25
D-Lock Variable Center Hydraulic Coupler
PLEASE CALL FOR SHIPPING!
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD1255 |
TBD |
TBD | TBD | TBD |
120MT
| MAKE / WEIGHT CLASS | 120MT (264,000 - 280,000 LBS.) |
| CASE | |
| CAT | |
| DOOSAN | |
| HITACHI | EX1200 |
| HYUNDAI | |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC1250 |
| LIEBHERR | |
| LINK BELT | |
| SANY | |
| TAKEUCHI | |
| VOLVO |
