HD185-80-70 / BR19-####
WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 33,000 - 42,000 lbs. Excavators (15MT)
$10,690.00
7/25

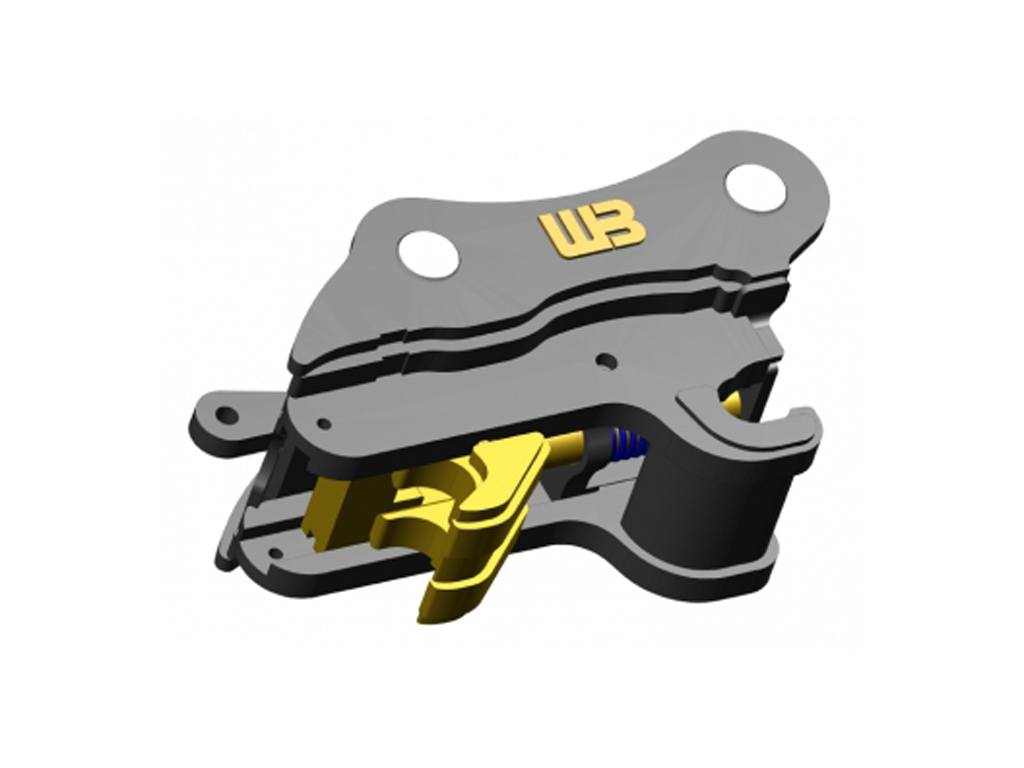

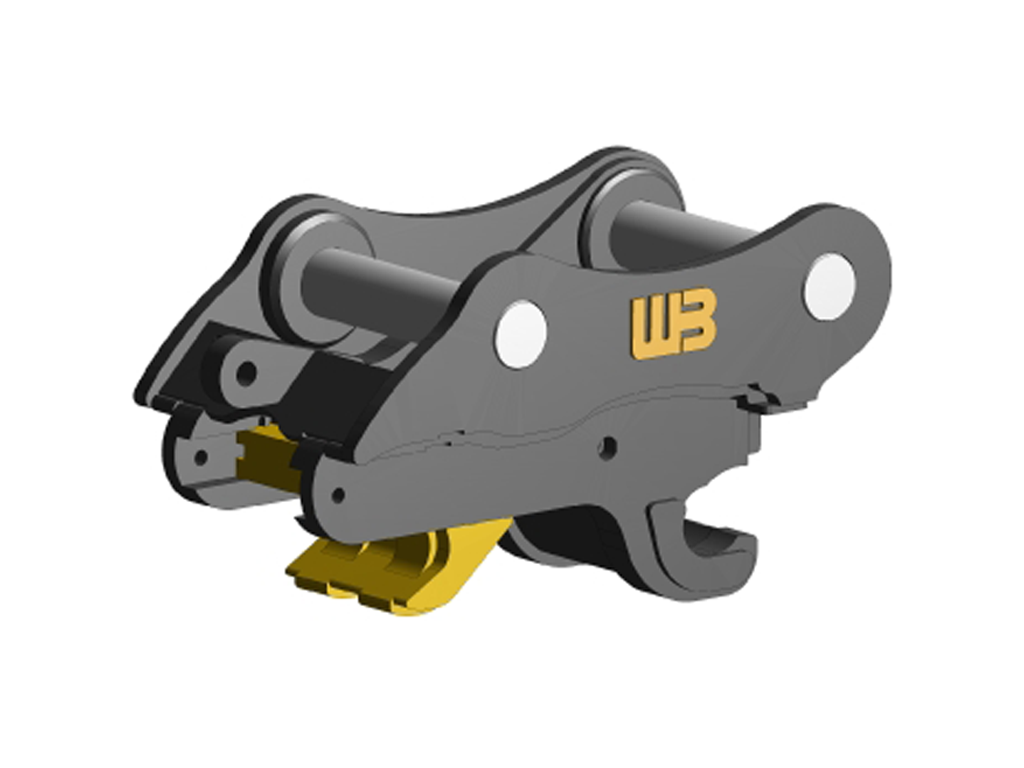

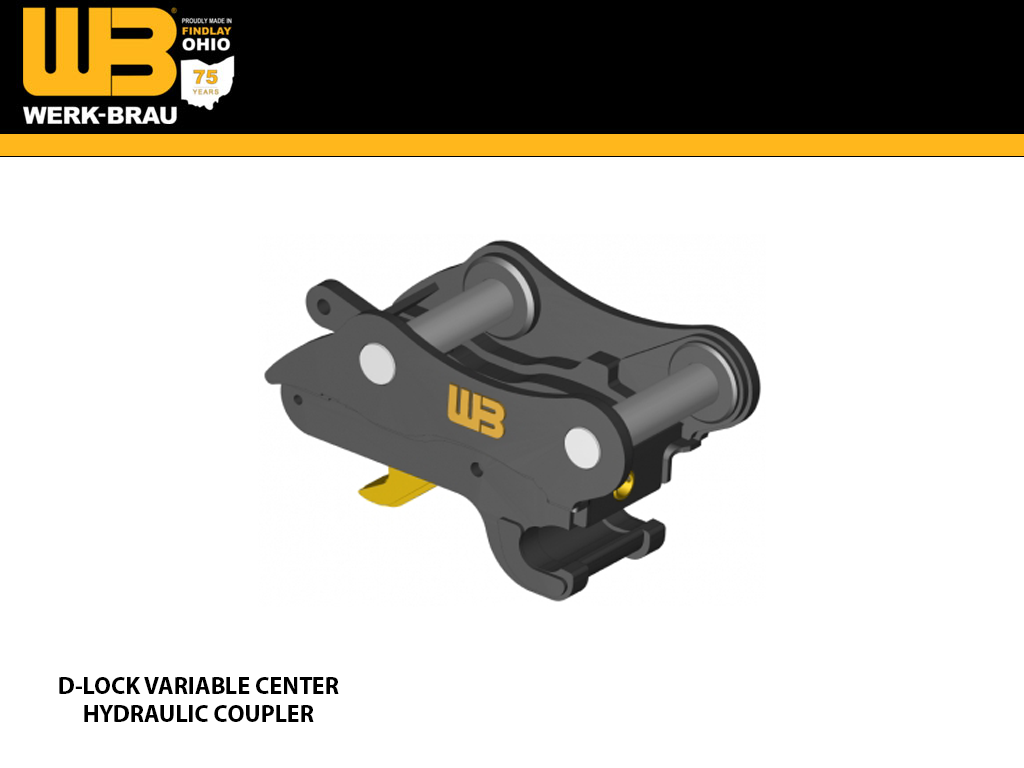

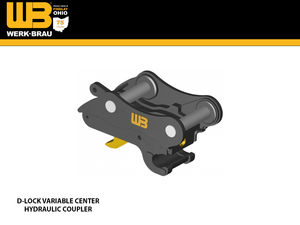

D-Lock Variable Center Hydraulic Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
HEAVY DUTY
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD180-80-70 |
80 & 70 |
278 |
374-465 390-495 |
650 |
| MAKE / WEIGHT CLASS | 15MT (33,000 - 42,000 LBS.) |
| CASE | CX160, CX170E, CX190E |
| CAT | 315D, 316F, 318F, M318F |
| DOOSAN | DX180LC-5, DX190W-5 |
| HITACHI | ZX160 |
| HYUNDAI | HX160, HX180 |
| JOHN DEERE | 160G, 160P |
| KOBELCO | ED195, SK170 |
| KOMATSU | PC170 |
| LIEBHERR | |
| LINK BELT | 160X4 |
| SANY | |
| TAKEUCHI | |
| VOLVO | EW160, EW180, EC160, EC180 |
