HD250-90-80
WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 42,000 - 68,000 lbs. Excavators (20,25 & 30MT)
$12,807.00 - $13,827.00
1/24

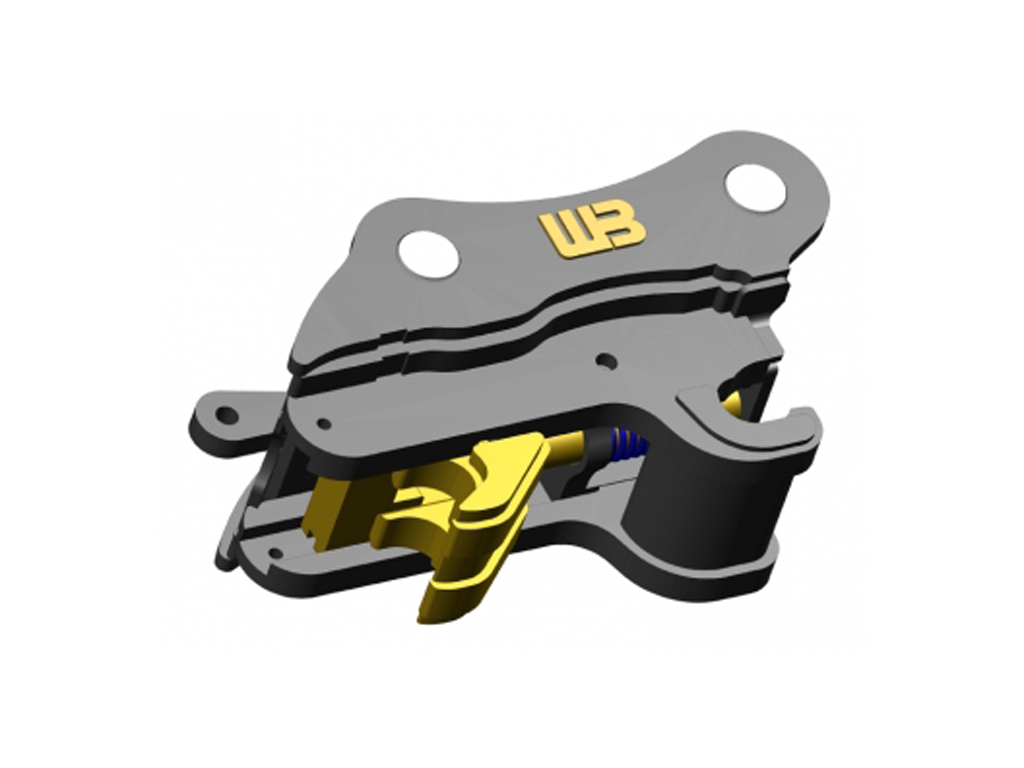

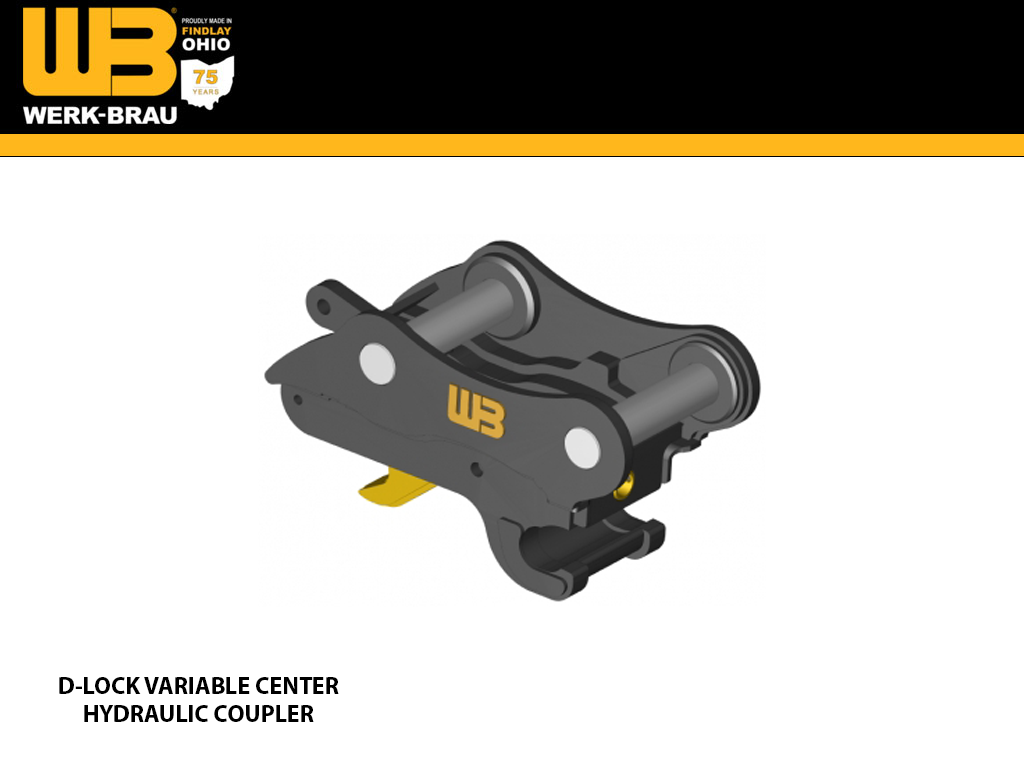

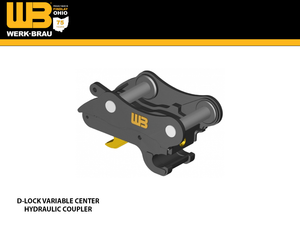

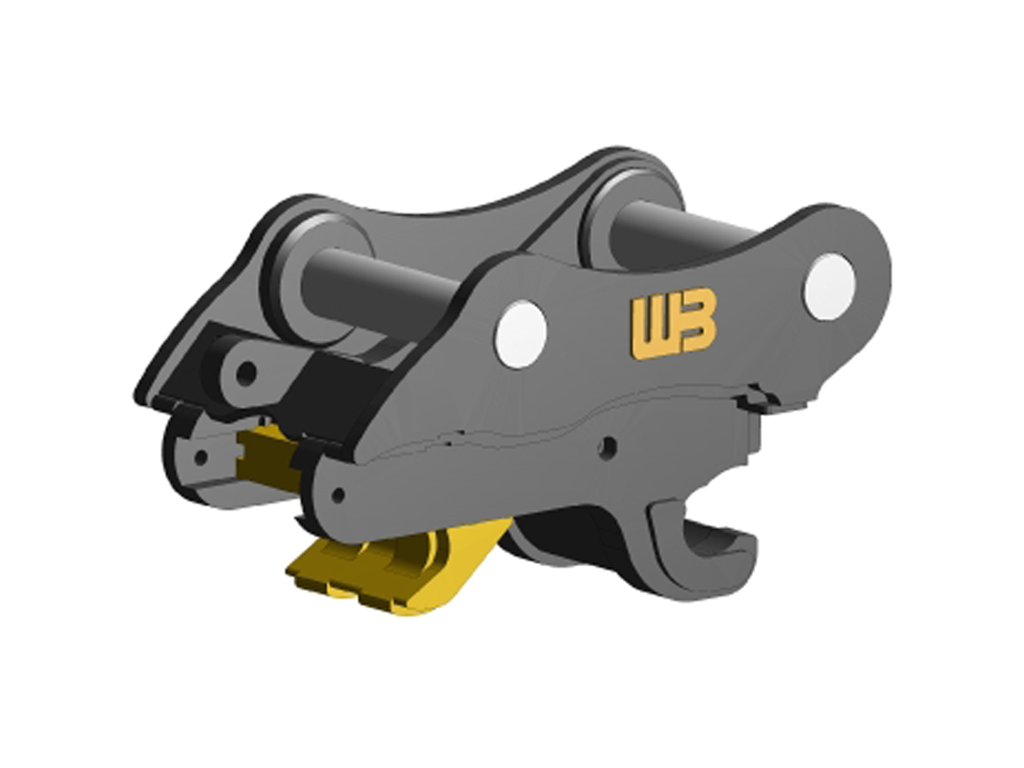

D-Lock Variable Center Hydraulic Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD250-90-80 |
90 & 90mm | 320 |
441-517 455-545 |
910 lbs |
| HD290-90 | 90 | 320 | 455-545 | 910 |
20MT
| MAKE / WEIGHT CLASS | 20MT (42,000 - 50,000 LBS.) |
| CASE | CX210, CX220E, CX235, CX245 |
| CAT | 320, 321, M322F, 323 (B-Linkage) |
| DOOSAN | DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5 |
| HITACHI | ZX180, ZX200, ZX210, ZX245 |
| HYUNDAI | HX220, HX235 |
| JOHN DEERE | 210G, 245G, 180P, 210P, 190GW, 230GW |
| KOBELCO | SK210, SK230SR, SK260, SK270SR |
| KOMATSU | PC210-11, PC228, PC238 |
| LIEBHERR | R 920 L, 922 L |
| LINK BELT | 210X4, 234X4, 245X4 |
| SANY | SY215 |
| TAKEUCHI | |
| VOLVO | EC200, EW210, EC210, EC220, ECR235 |
25MT
| MAKE / WEIGHT CLASS | 25MT (50,000 - 59,000 LBS.) |
| CASE | CX250, CX260E |
| CAT | 325, 326F |
| DOOSAN | DX255LC-5 |
| HITACHI | ZX240, ZX250 |
| HYUNDAI | HX260 |
| JOHN DEERE | 250G, 250P |
| KOBELCO | SK260LC |
| KOMATSU | PC240 |
| LIEBHERR | R 916 L, R 924 L, R 934 CD |
| LINK BELT | 250X3, 250X4 |
| SANY | SY235, SY265 |
| TAKEUCHI | |
| VOLVO | EC240, EC250 |
30MT
| MAKE / WEIGHT CLASS | 30MT (59,500 - 68,000 LBS.) |
| CASE | CX300, CX365E |
| CAT | 326, 328, 329, 335F, CB-LINKAGE |
| DOOSAN | DX300LC-5, DX300LC-5SLR |
| HITACHI | ZX300, ZX345 |
| HYUNDAI | HX300 |
| JOHN DEERE | 300G, 345G, 300P |
| KOBELCO | SK300 |
| KOMATSU | PC270, PC290, PC308 |
| LIEBHERR | |
| LINK BELT | 300X3, 300X4, 355X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
