HD460-115

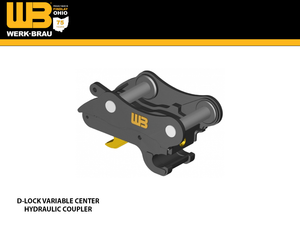

WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 105,000 - 125,000 lbs. Excavators (50MT)
$22,833.00
11/24

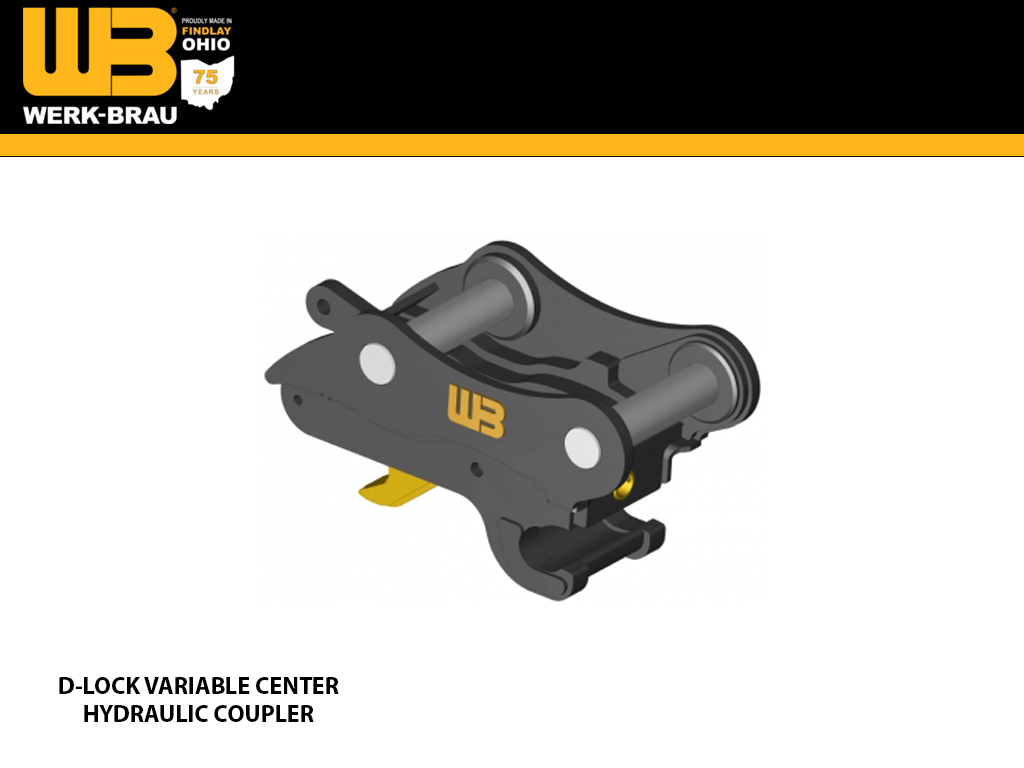

D-Lock Variable Center Hydraulic Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD460-115 |
115 |
TBD |
TBD | 1850 lbs. |
| HD460-120 |
120 |
TBD | TBD | 1850 lbs. |
50MT
| MAKE / WEIGHT CLASS | 50MT (105,000 - 125,000 LBS.) |
| CASE | |
| CAT | 352F |
| DOOSAN | DX490, DX530LC-5, DX530LC-5SLR |
| HITACHI | |
| HYUNDAI | HX520 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | |
| LIEBHERR | R 954 C, R956 C |
| LINK BELT | |
| SANY | |
| TAKEUCHI | |
| VOLVO |
