HD080-45 / BR19-####

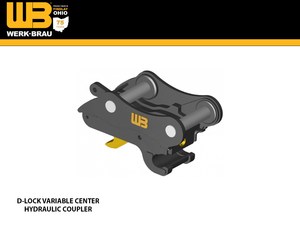

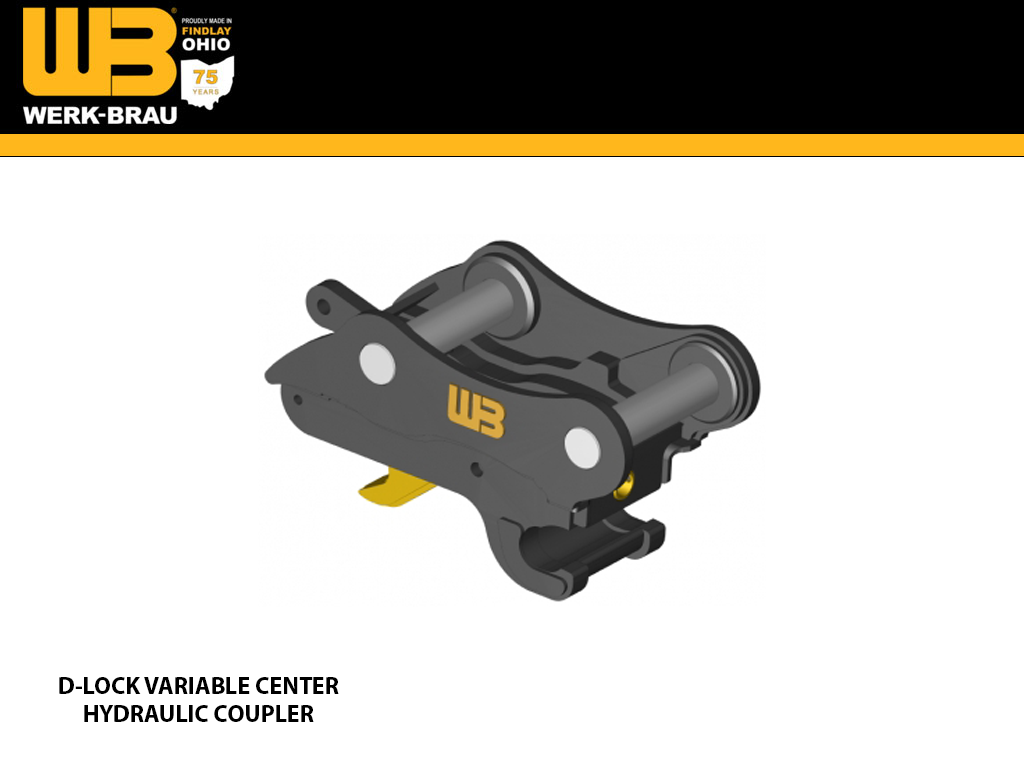

Werk-Brau D-lock Variable Center Hydraulic Couplers for 11,000-25,000 lbs. Excavators (mini 3, 4 & 5)
$4,664.00 - $6,604.00
6/26

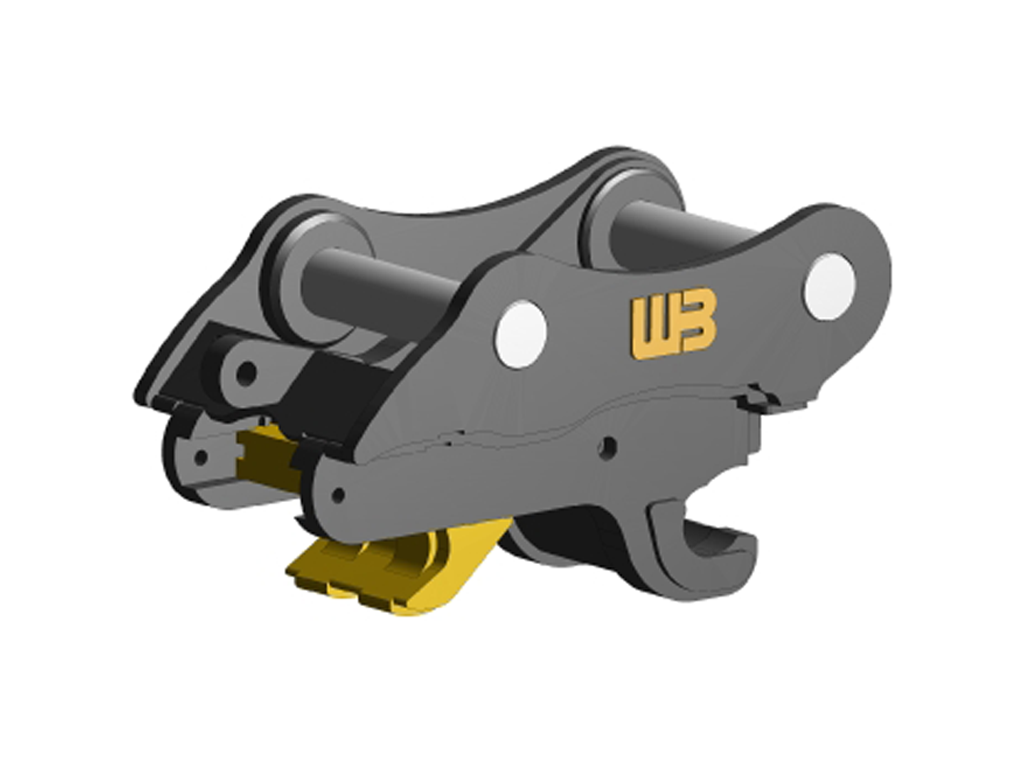

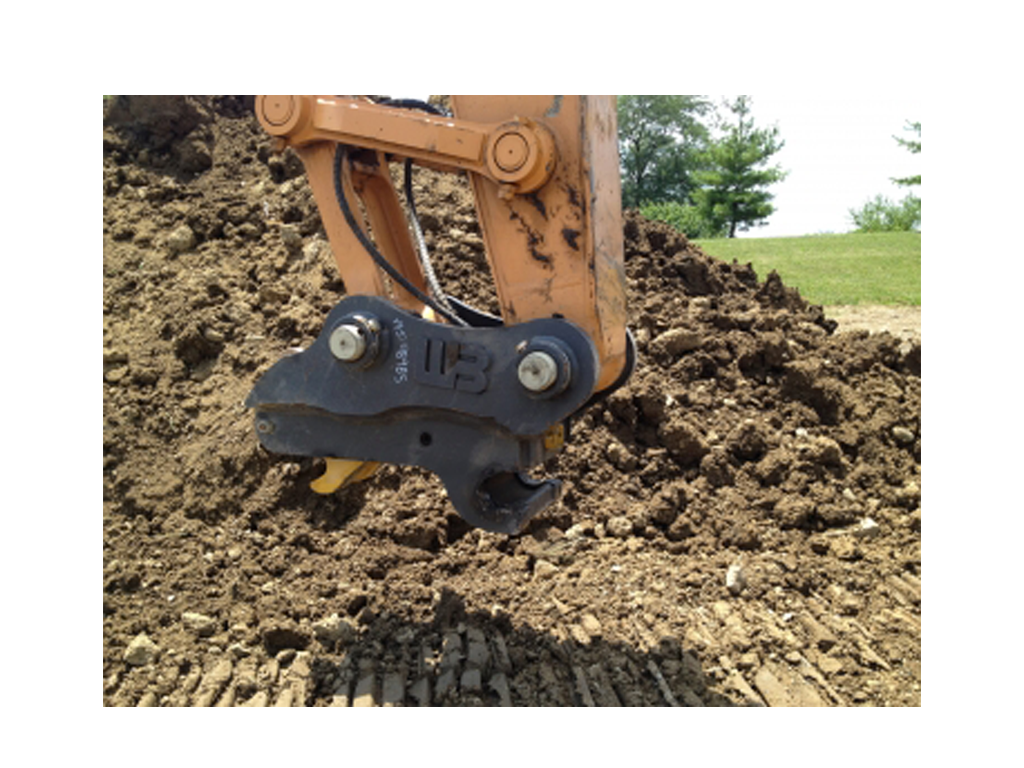

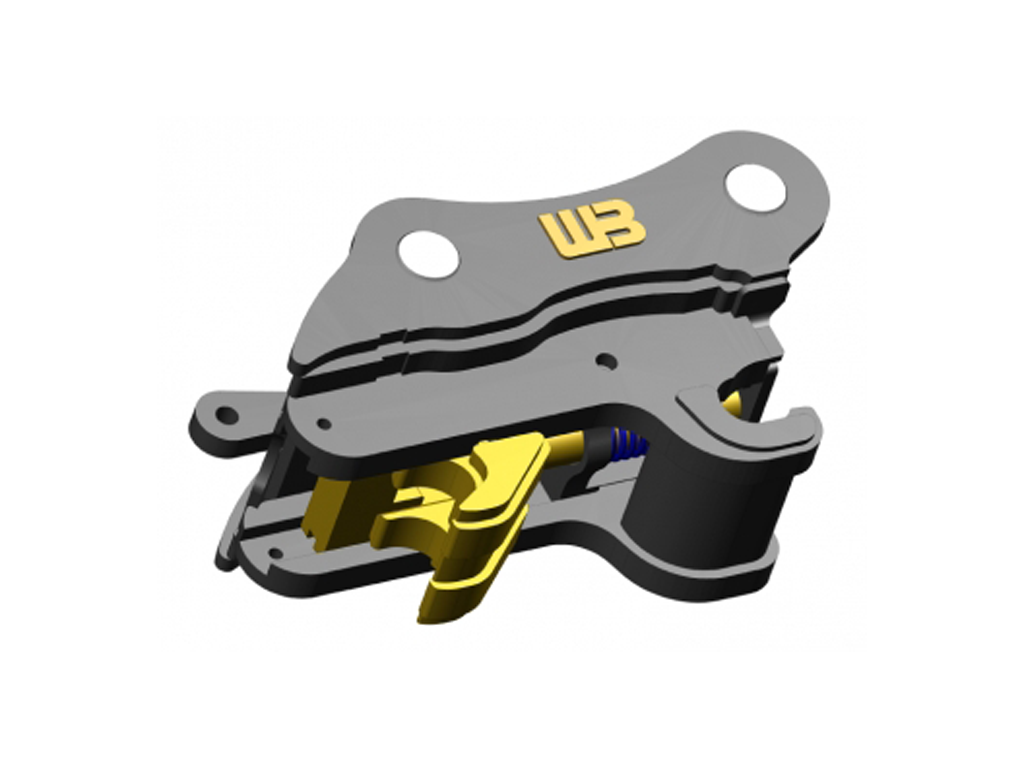

WERK-BRAU D-LOCK HYDRAULIC PIN GRABBER COUPLER
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
| PART # | PIN DIAMETER | BASE WIDTH | PIN SPREAD | WEIGHT |
| HD080-45 |
45 |
165 |
280-315 | 130 |
| HD080-50 |
50 |
165 |
280-315 | 130 |
| HD080-55 |
55 |
165 |
280-315 | 130 |
| HD080-60 |
60 |
165 |
285-315 | 130 |
| HD085-55-50 |
50-55 |
TBD |
TBD | 140 |
| Hydraulic Kits |
| Part Number | Description | Function |
| BR19-#### | Full-Line Style Hydraulic Kit w/ 3-Button Switch | full line kit - Includes all the lines, fittings, valves, switches, electrical lines, etc. This goes from the D-Lock coupler all the way up/down the stick to the tank of the machine. |
| BR20-#### | Full-Line Style Hydraulic Kit w/ Toggle Switch | |
| SH4-#### | Bucket Curl Style Hydraulic Kit | Simplified BR19 Kit - includes the lines that connect the D-lock to the bucket curl cylinder on the stick. Also includes the electric lines that go from the coupler valve to inside of the cab, along with the electrical switch that goes within the cab. |
| DLOR-#### | Pressure Sensor Hydraulic Kit |
MINI 3
| MAKE / WEIGHT CLASS | MINI 3 (11,000 - 14,000 LBS.) |
| BOBCAT | E80, E85 |
| CASE | |
| CAT | 306CR |
| DOOSAN | DX80 |
| DITCH WITCH | |
| GEHL | GE753Z, GE803 |
| HITACHI | |
| HYUNDAI | R75 |
| IHI | 55N-2, 55NX, 65NX, 80NX |
| JCB | 8060 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC78, PC95, PC88MR-8 |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | 8003, 7503ZT |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | HR32 |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON | ET90, EW100, 8003 |
MINI 4
| MAKE / WEIGHT CLASS | MINI 4 (14,000 - 16,000 LBS.) |
| BOBCAT | |
| CASE | CX75, CX80 |
| CAT | 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB |
| DOOSAN | DX85SR-3 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX75, ZX80 |
| HYUNDAI | R80 |
| IHI | |
| JCB | 8080 |
| JOHN DEERE | 75G, 85G |
| KOBELCO | 70SR, 75SR, 80CS, SK85 |
| KOMATSU | |
| KUBOTA | KX080 |
| LINK BELT | 75, 80 |
| MUSTANG | |
| NEW HOLLAND | E70, E80 |
| SANY | SY75, SY80 |
| TAKEUCHI | TB070, TB175, TB180FR, TB285, TB290 |
| VOLVO | EC70, ECR88 |
| YANMAR | SV100, Vio-70, Vio75-a, Vio-80, B7-5A |
| WACKER NEUSON |
MINI 5
| MAKE / WEIGHT CLASS | MINI 5 (16,000 - 25,000 LBS.) |
| BOBCAT | 7X125 |
| CASE | |
| CAT | 310 |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | GE1202 |
| HITACHI | ZX90, ZX100 |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | ME12002 |
| NEW HOLLAND | E90 |
| SANY | |
| TAKEUCHI | |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON |
