3MHD12

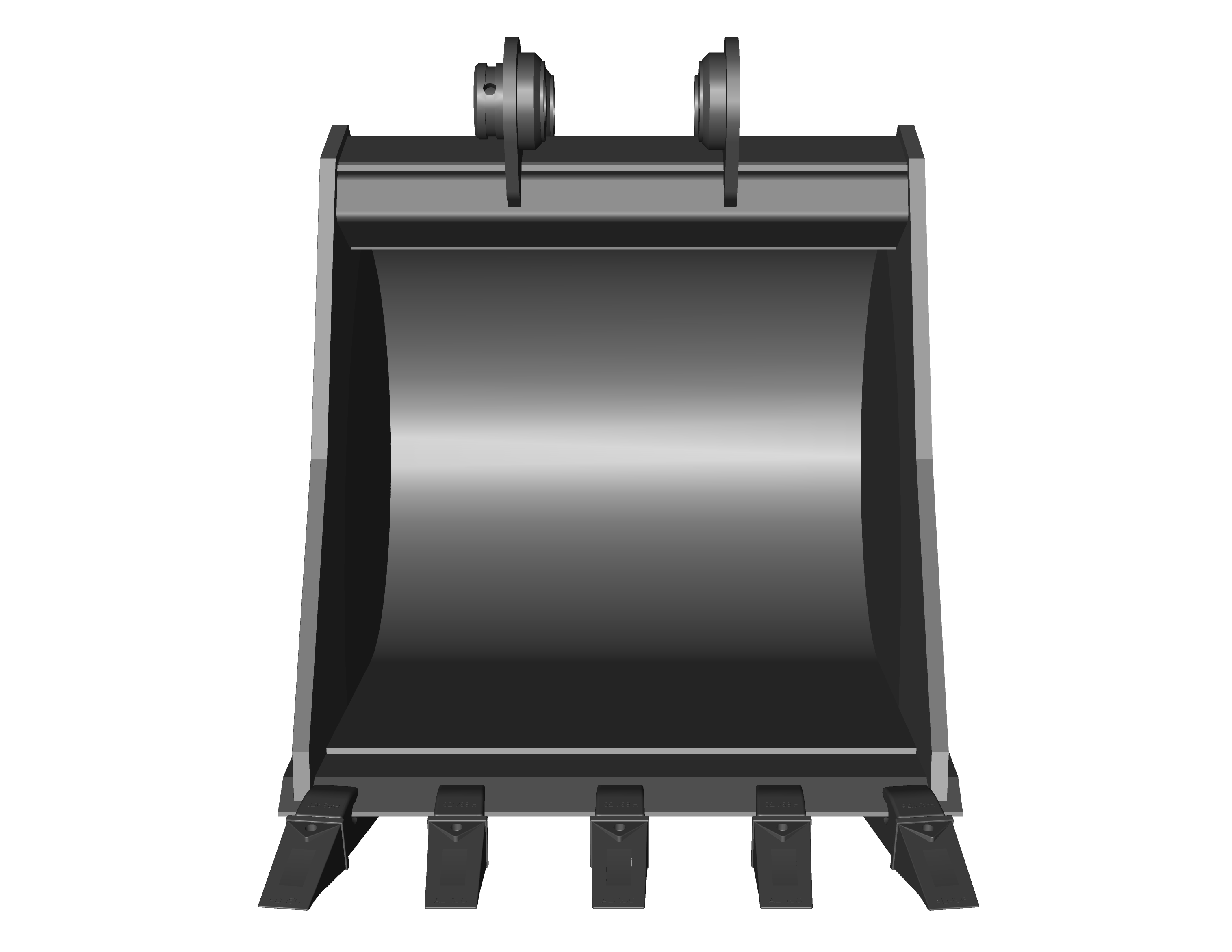

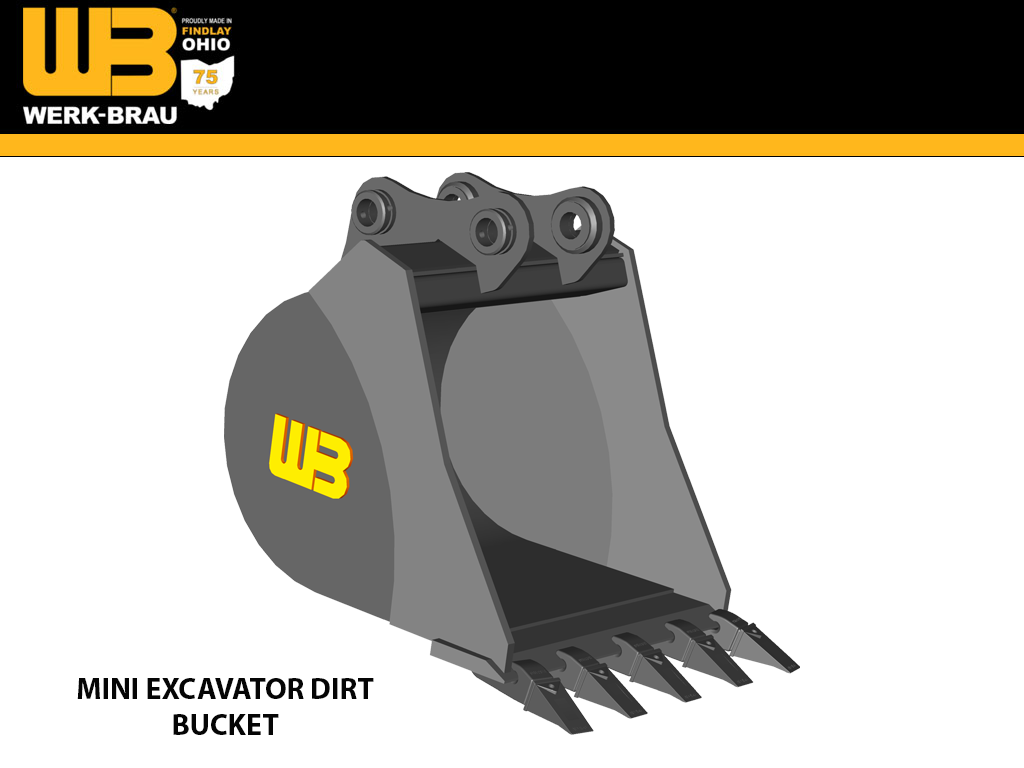

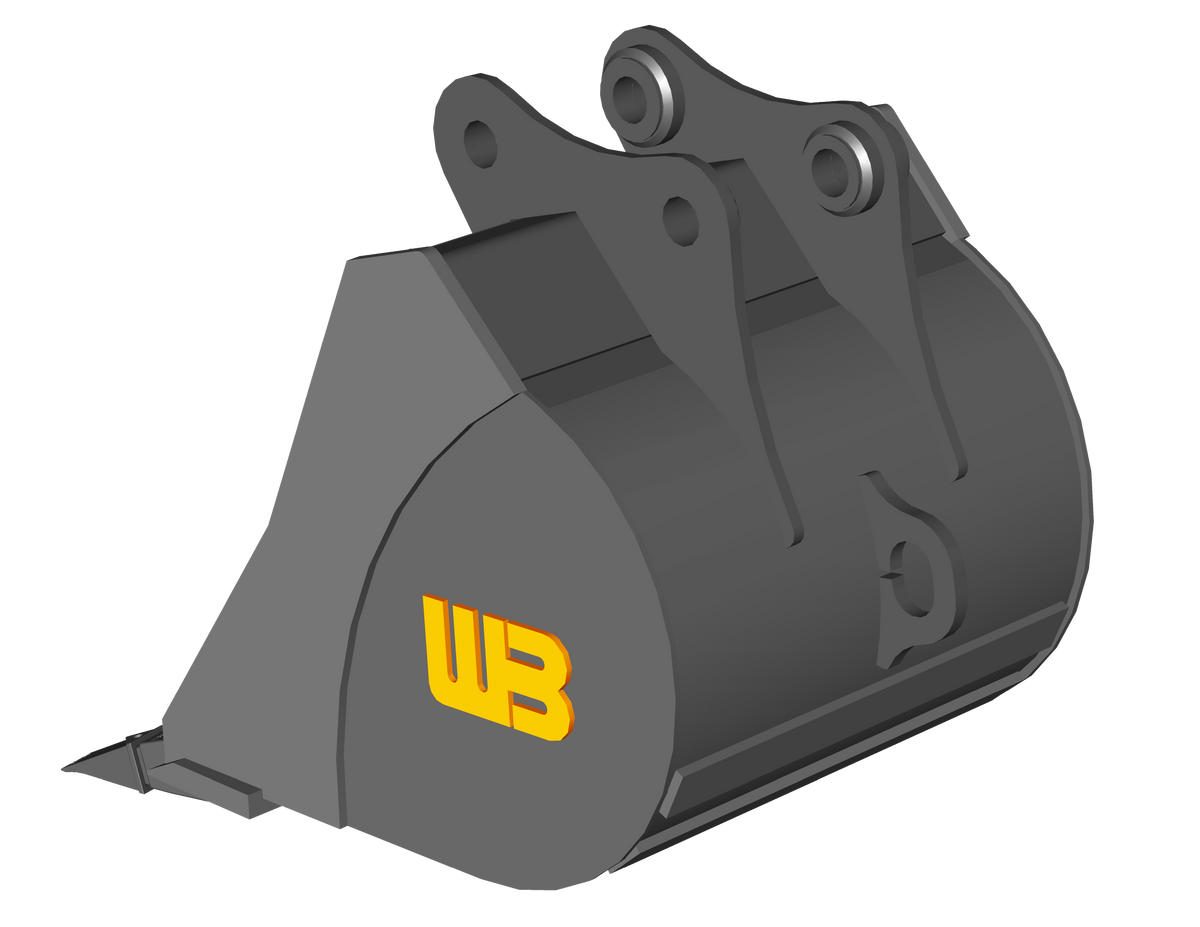

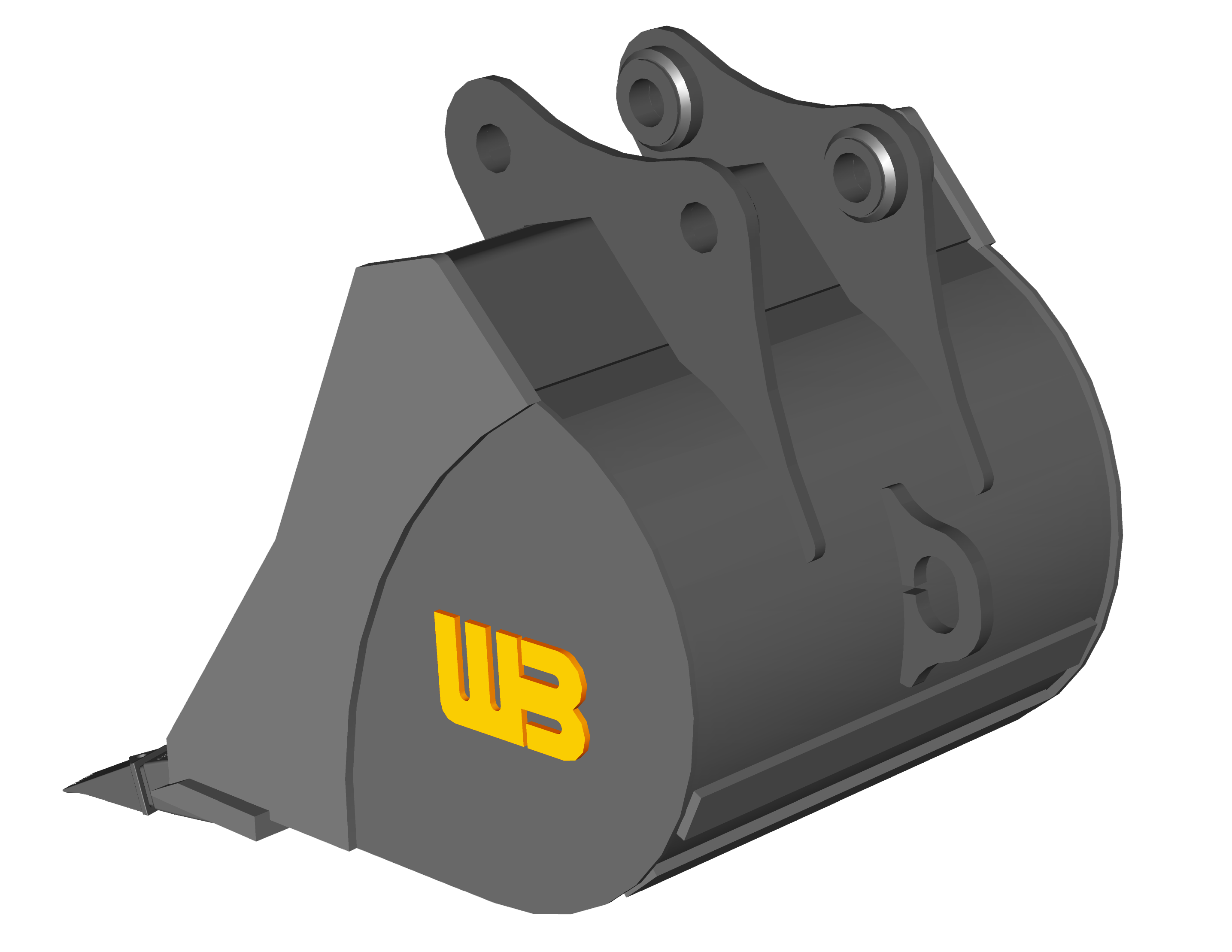

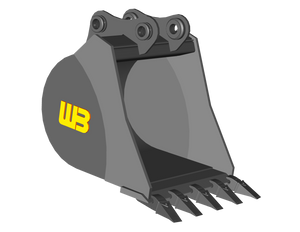

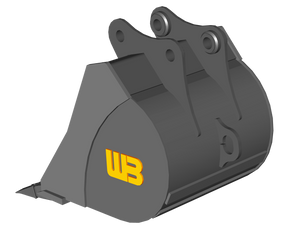

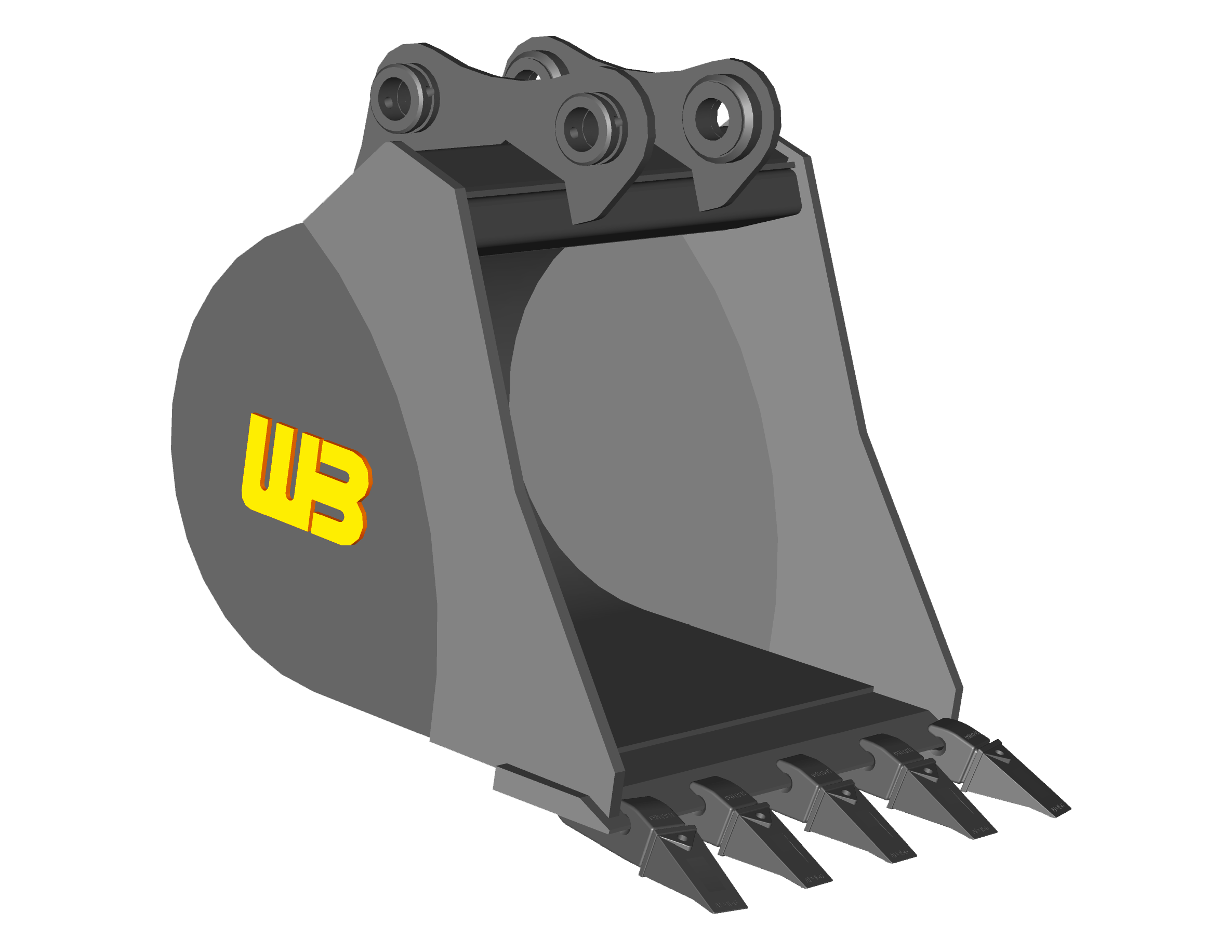

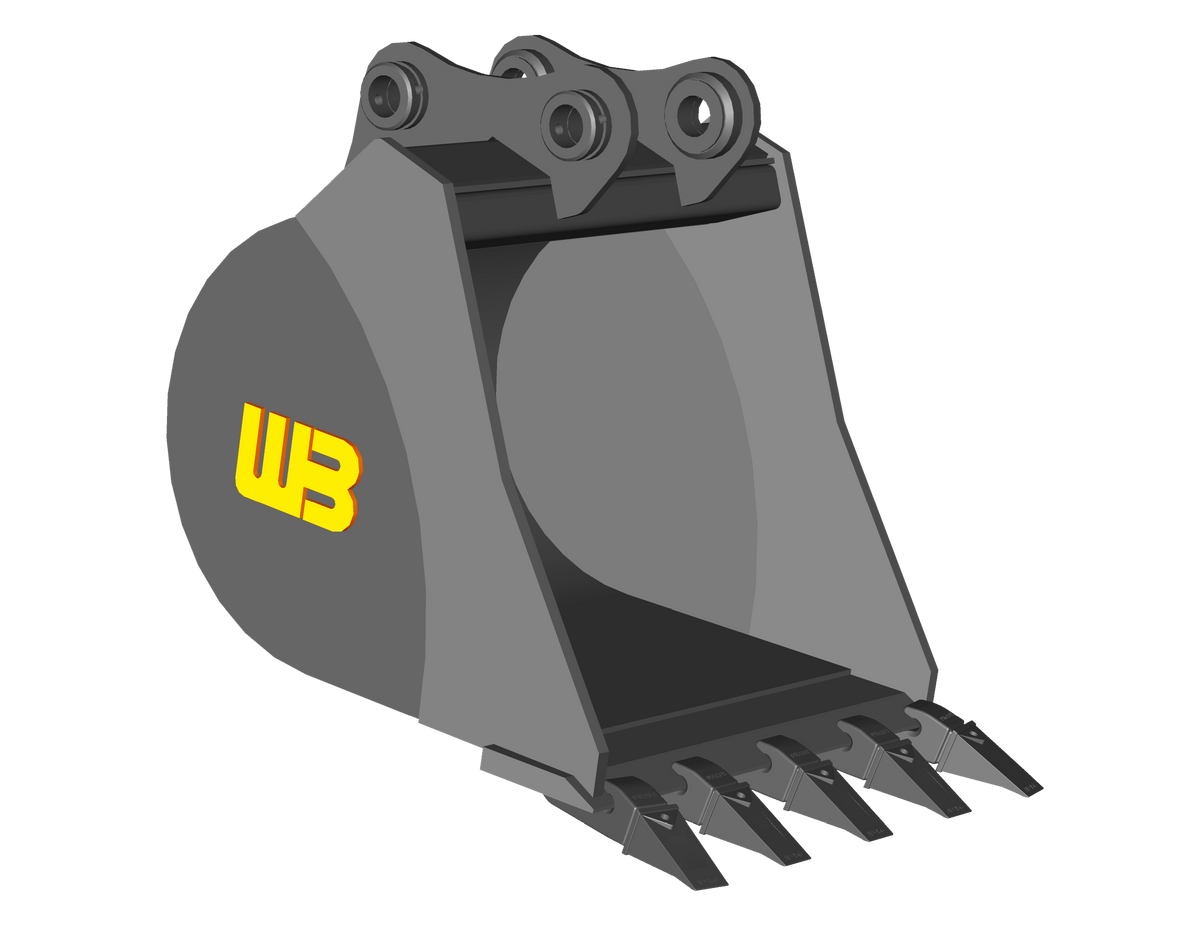

WERK-BRAU Dirt Bucket for 11,000 - 14,000 lbs. Excavators. (Mini 3)

Style
Size

1/24

WERK-BRAU DIRT BUCKETS


Recommended Applications

Specifically designed for tough clay or dirt with rock scattered through the soil. This bucket can be used for applications other than digging, such as when paired with a thumb material handling. Werk-Brau does not recommend using this bucket for prying required to dig solid rock. For extreme digging conditions see the 'Severe Duty Bucket' and 'V-Line Strata Rock Bucket'.

Quality Construction

High quality T-1 steel is utilized in all critical or high wear components to ensure that this bucket has a long operation life. The cutter bit is made from heavy duty cast material. The cutting edge is backed by a heavy reinforcing plate with straps protecting the rest of the bottom. Side wear plates reinforce the sides for backfilling. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Each bucket is equipped with industry standard teeth for extra durability. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request. Bolt on cutting edges are optional. Bolt on side cutters are highly recommended.

Standard Sizes

8" to 42", depending on size capacity of machine, are available.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Special designs, widths, and capacities are available, please request a quote from a Dealer or contact Werk-Brau directly.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
3MHD12 12" 3.00 3 370
3MHD16 16" 4.00
3 410
3MHD18 18" 4.60
4 460
3MHD20 20" 5.00
4
475
3MHD24 24" 6.20
5 505
3MHD30 30" 8.00
5
540
3MHD36 36" 9.50
6 630
3MHD42 42" 11.00 6 720
MAKE / WEIGHT CLASS MINI 3 (11,000 - 14,000 LBS.)
BOBCAT E80, E85
CASE
CAT 306CR
DOOSAN DX80
DITCH WITCH
GEHL GE753Z, GE803
HITACHI
HYUNDAI R75
IHI 55N-2, 55NX, 65NX, 80NX
JCB 8060
JOHN DEERE
KOBELCO
KOMATSU PC78, PC95, PC88MR-8
KUBOTA
LINK BELT
MUSTANG 8003, 7503ZT
NEW HOLLAND
SANY
TAKEUCHI HR32
VOLVO
YANMAR
WACKER NEUSON ET90, EW100, 8003
