4MHD12

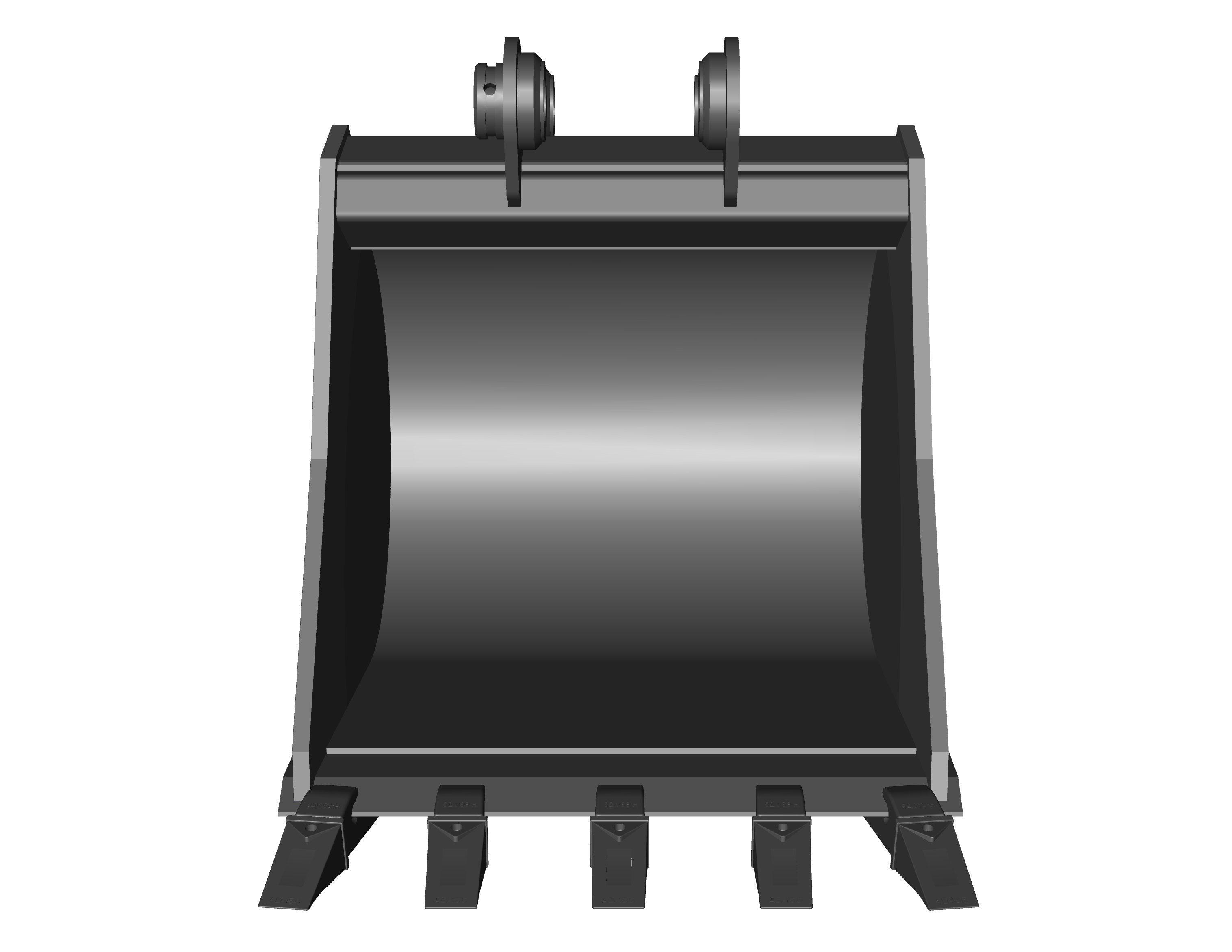

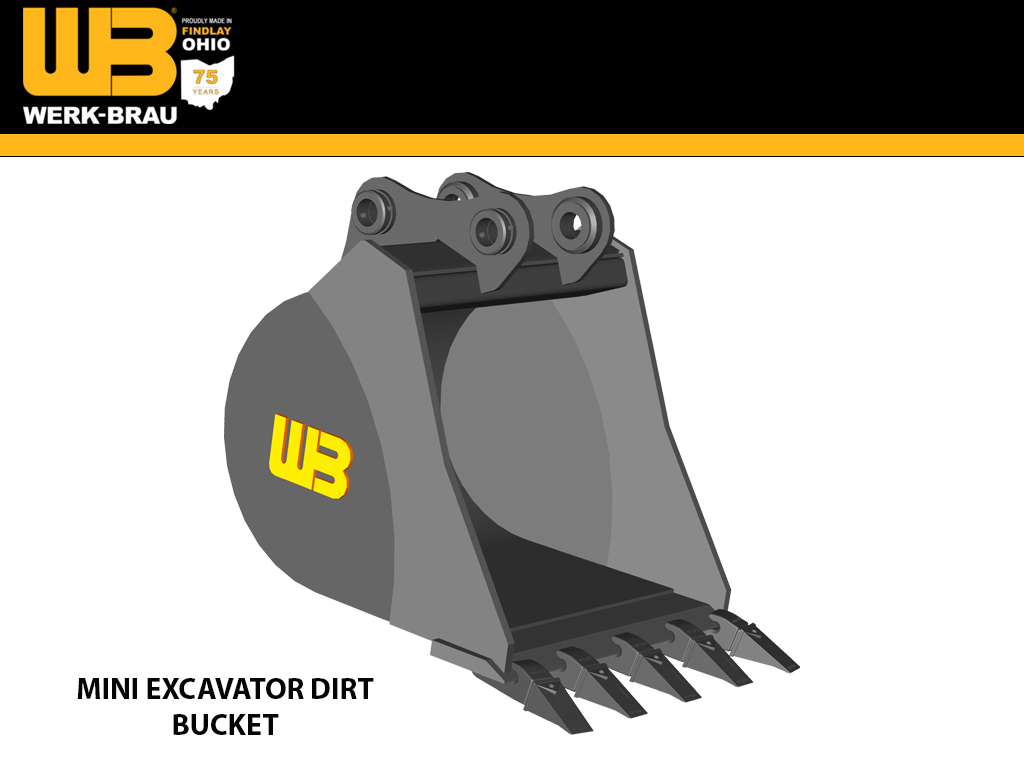

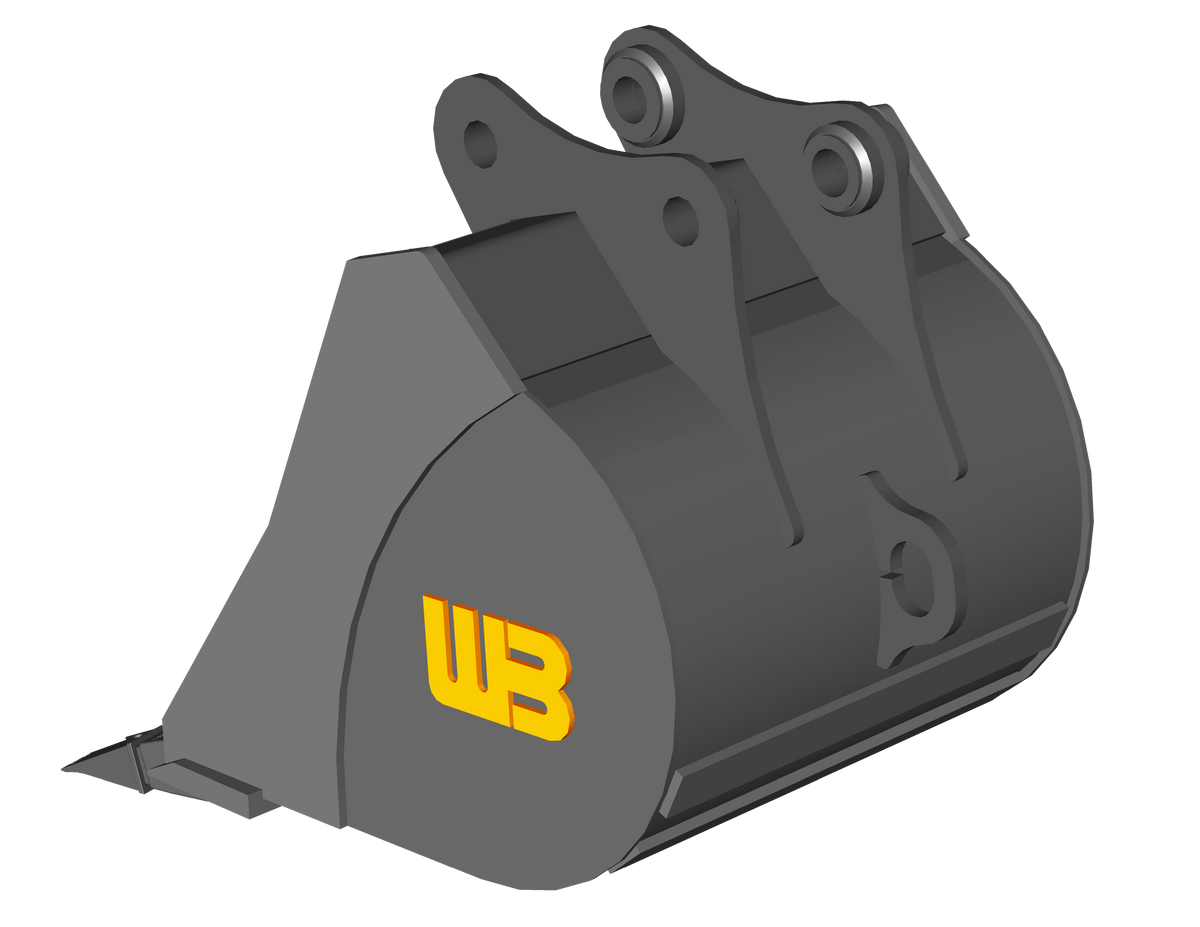

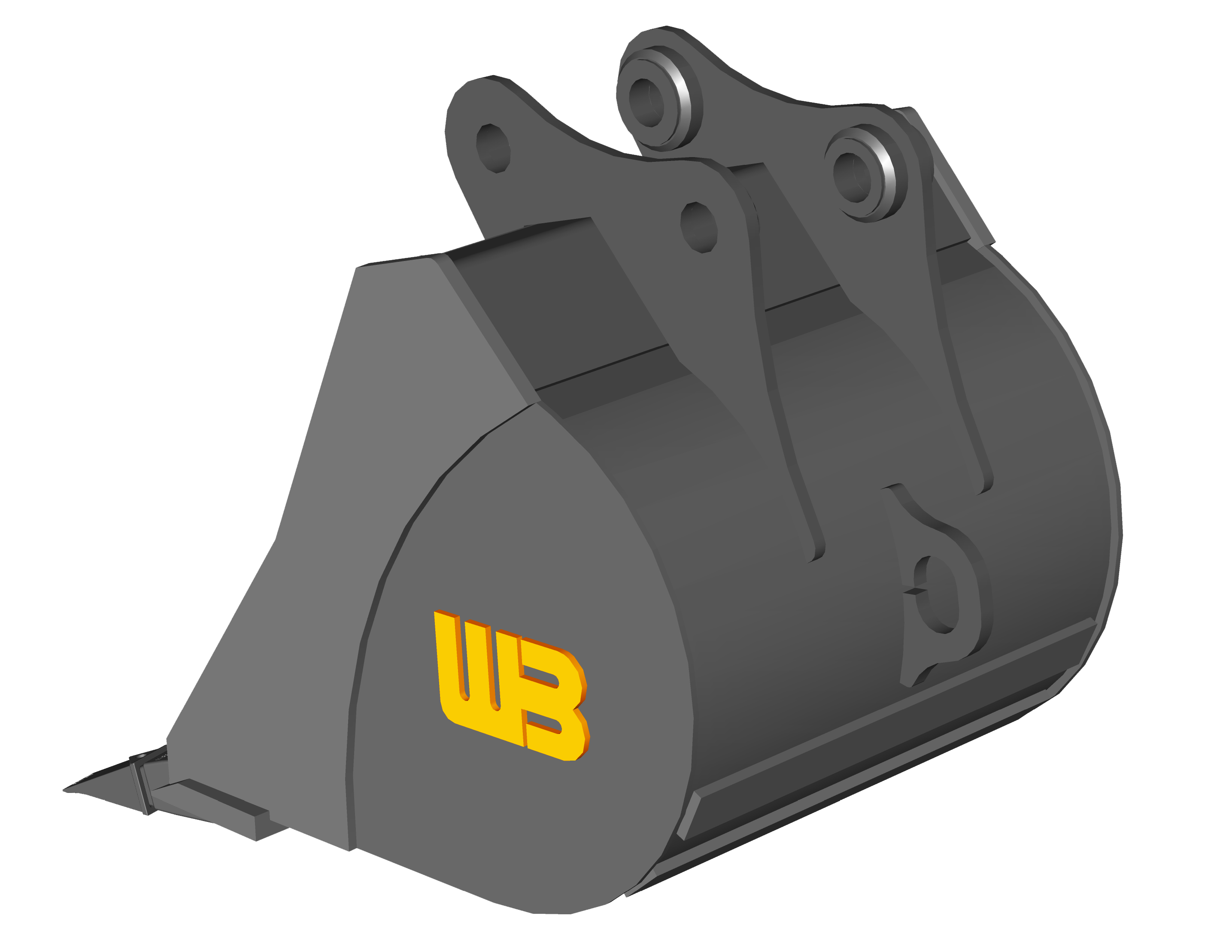

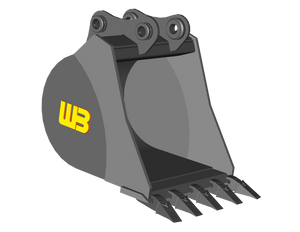

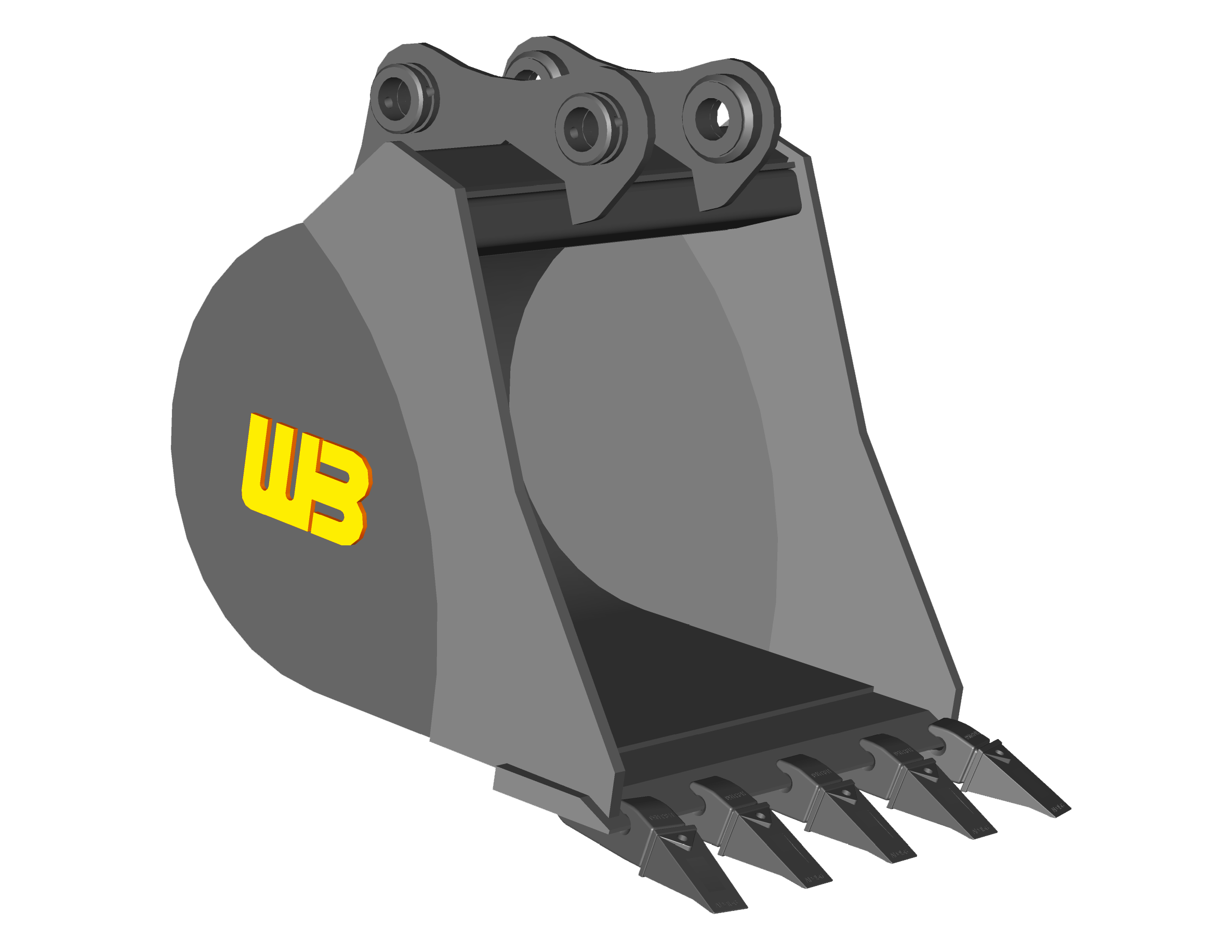

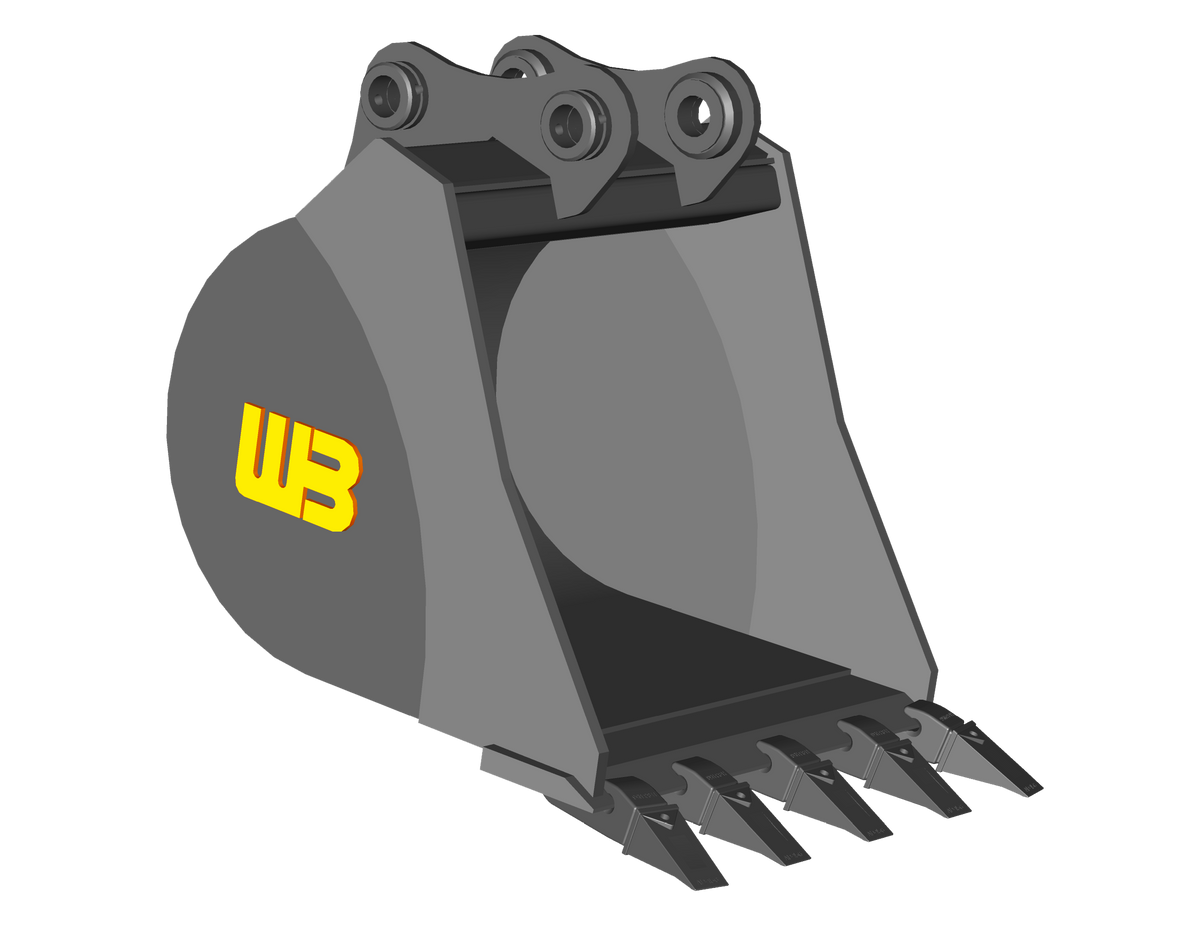

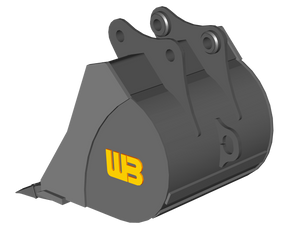

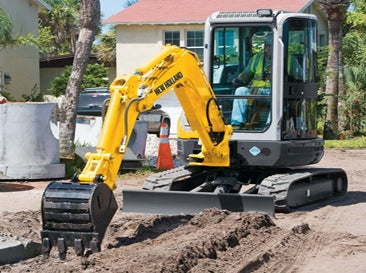

WERK-BRAU Dirt Bucket for 14,000 - 16,000 lbs. Excavators. (Mini 4)

Style
Size

1/24

WERK-BRAU DIRT BUCKETS


Recommended Applications

Specifically designed for tough clay or dirt with rock scattered through the soil. This bucket can be used for applications other than digging, such as when paired with a thumb material handling. Werk-Brau does not recommend using this bucket for prying required to dig solid rock. For extreme digging conditions see the 'Severe Duty Bucket' and 'V-Line Strata Rock Bucket'.

Quality Construction

High quality T-1 steel is utilized in all critical or high wear components to ensure that this bucket has a long operation life. The cutter bit is made from heavy duty cast material. The cutting edge is backed by a heavy reinforcing plate with straps protecting the rest of the bottom. Side wear plates reinforce the sides for backfilling. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Each bucket is equipped with industry standard teeth for extra durability. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request. Bolt on cutting edges are optional. Bolt on side cutters are highly recommended.

Standard Sizes

8" to 42", depending on size capacity of machine, are available.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Special designs, widths, and capacities are available, please request a quote from a Dealer or contact Werk-Brau directly.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
4MHD12 12" 4.40
3 400
4MHD16 16" 5.40
3 445
4MHD18 18" 5.80
4 490
4MHD20 20" 6.40
4
525
4MHD24 24" 7.60
5 545
4MHD30 30" 9.60
5
580
4MHD36 36" 11.50
6 660
4MHD42 42" 13.40
6 780
MAKE / WEIGHT CLASS MINI 4 (14,000 - 16,000 LBS.)
BOBCAT
CASE CX75, CX80
CAT 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB
DOOSAN DX85SR-3
DITCH WITCH
GEHL
HITACHI ZX75, ZX80
HYUNDAI R80
IHI
JCB 8080
JOHN DEERE 75G, 85G
KOBELCO 70SR, 75SR, 80CS, SK85
KOMATSU
KUBOTA KX080
LINK BELT 75, 80
MUSTANG
NEW HOLLAND E70, E80
SANY SY75, SY80
TAKEUCHI TB070, TB175, TB180FR, TB285, TB290
VOLVO EC70, ECR88
YANMAR SV100, Vio-70, Vio75-a, Vio-80, B7-5A
WACKER NEUSON
