15MHD12
1/24

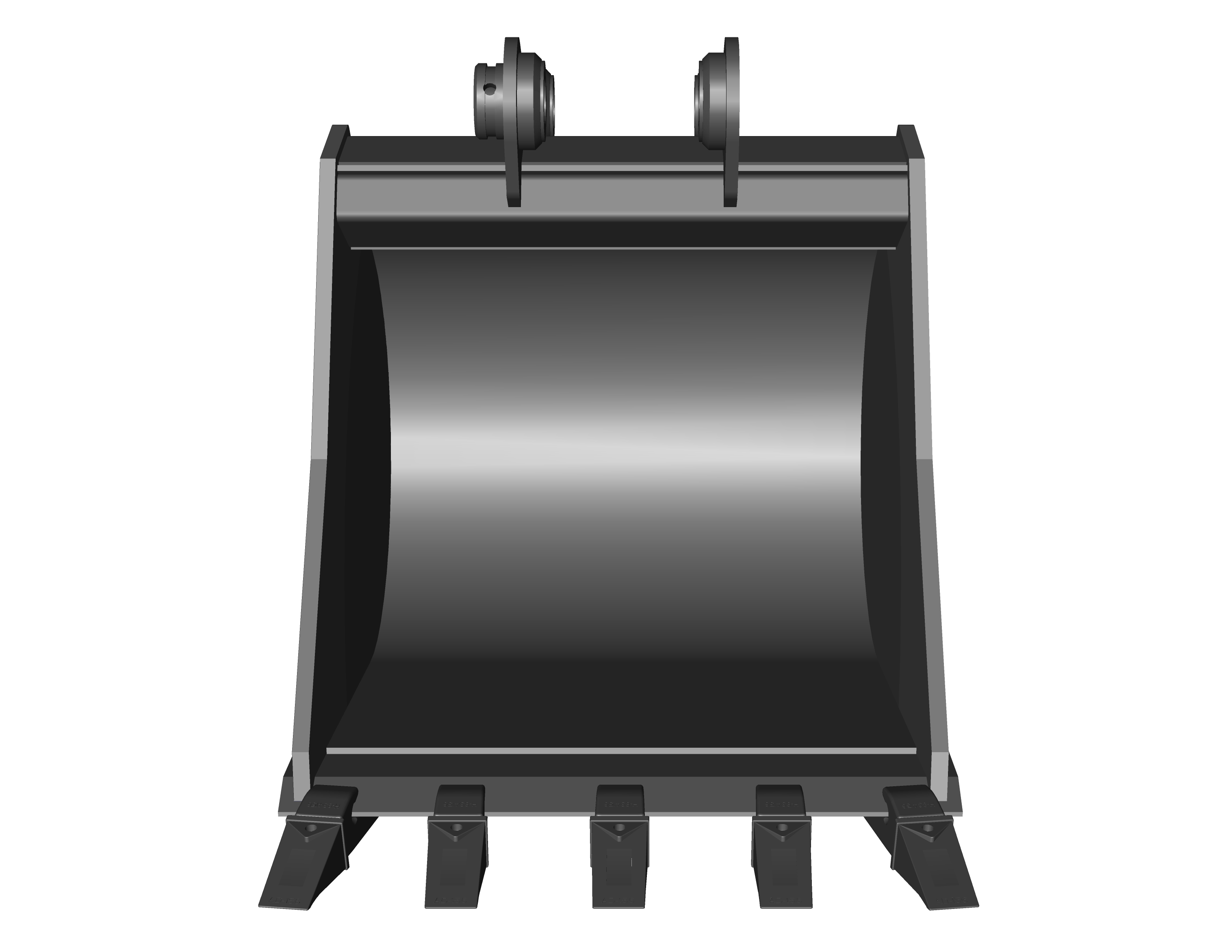

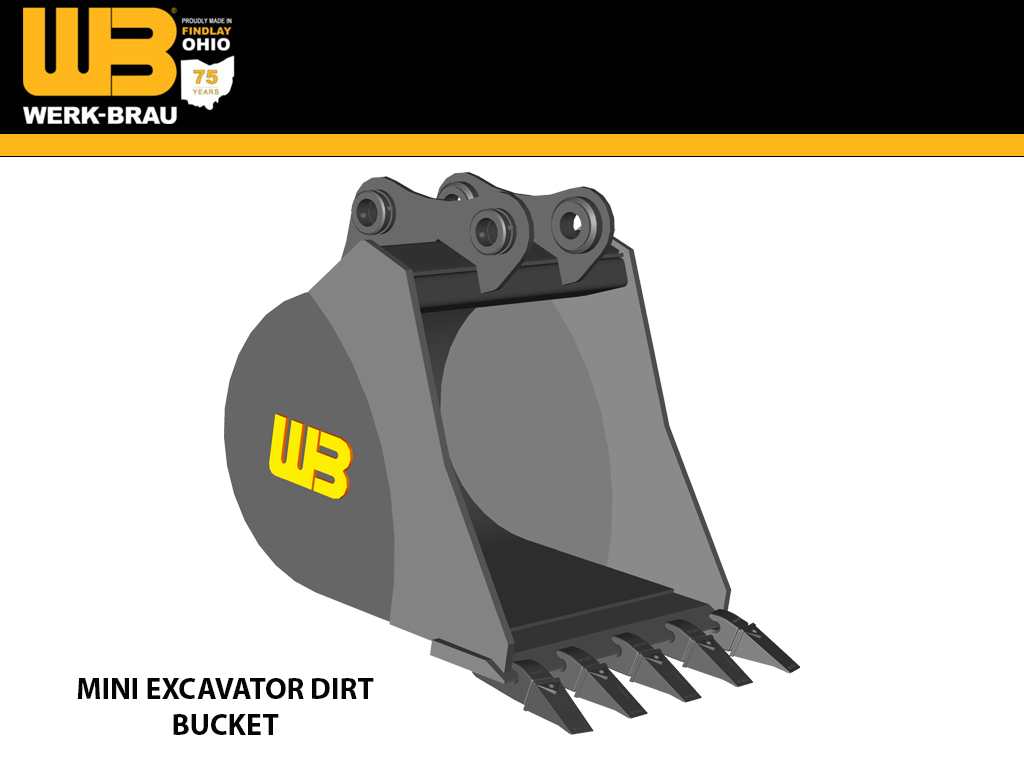

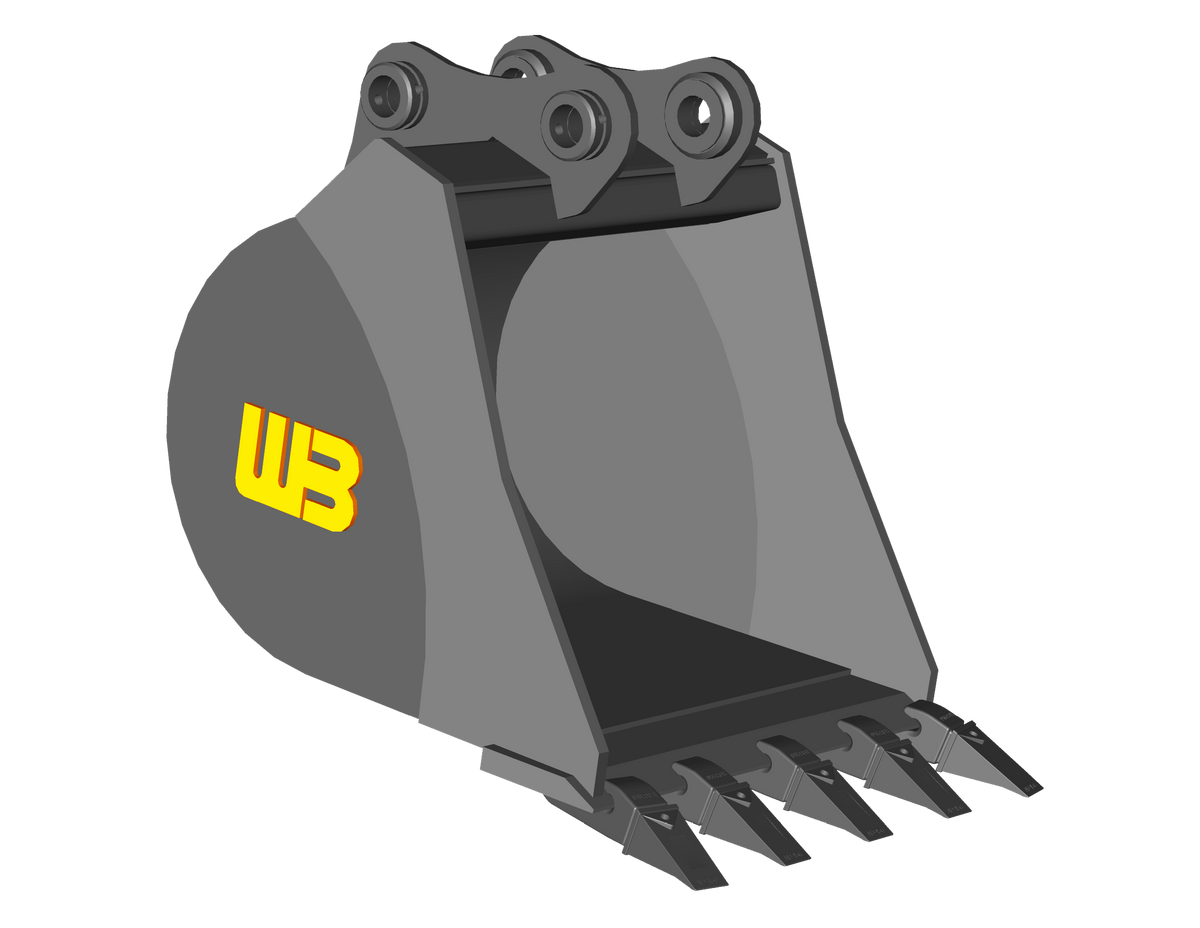

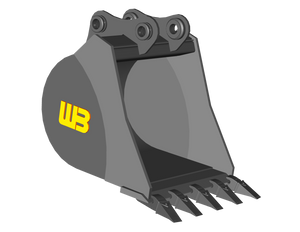

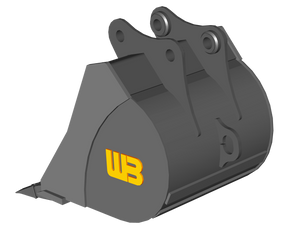

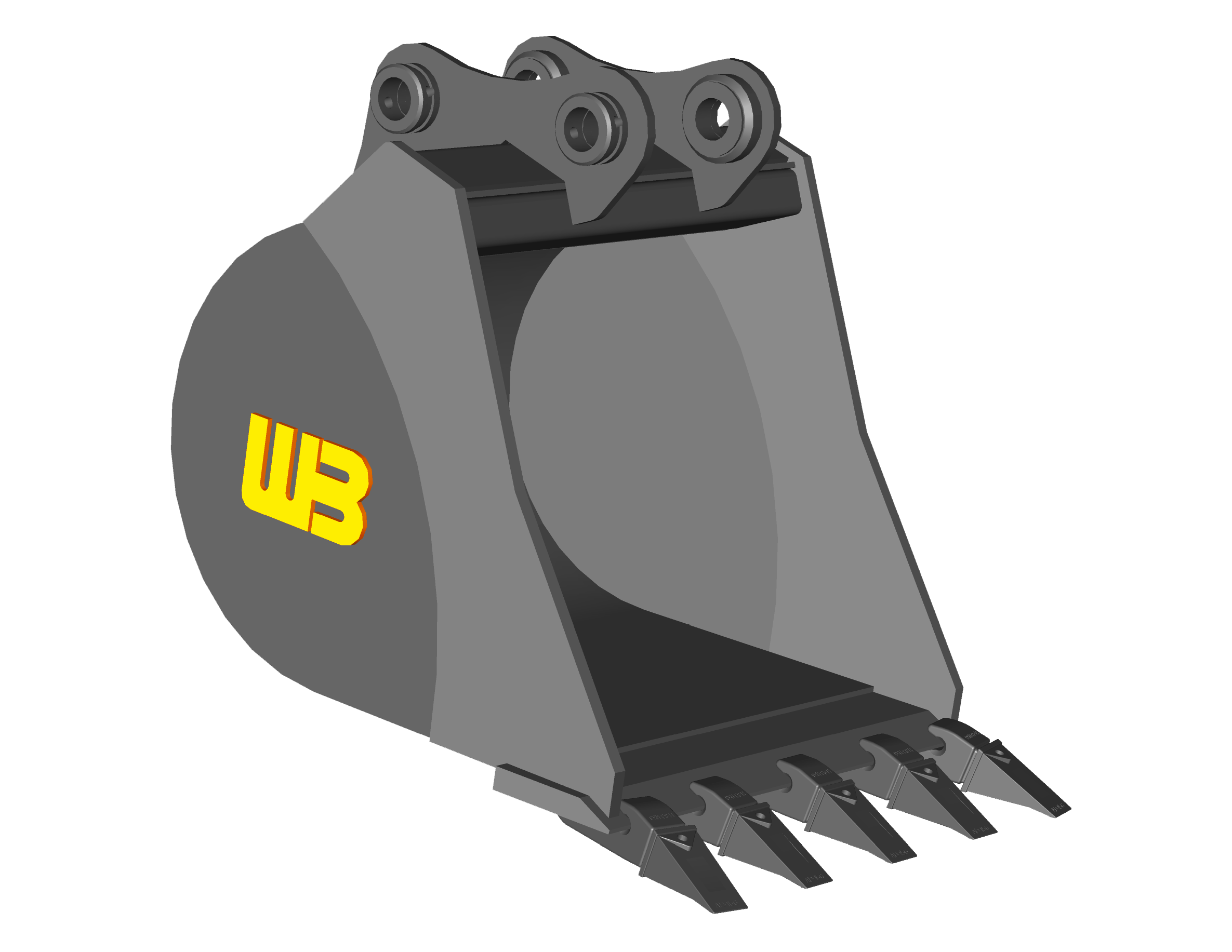

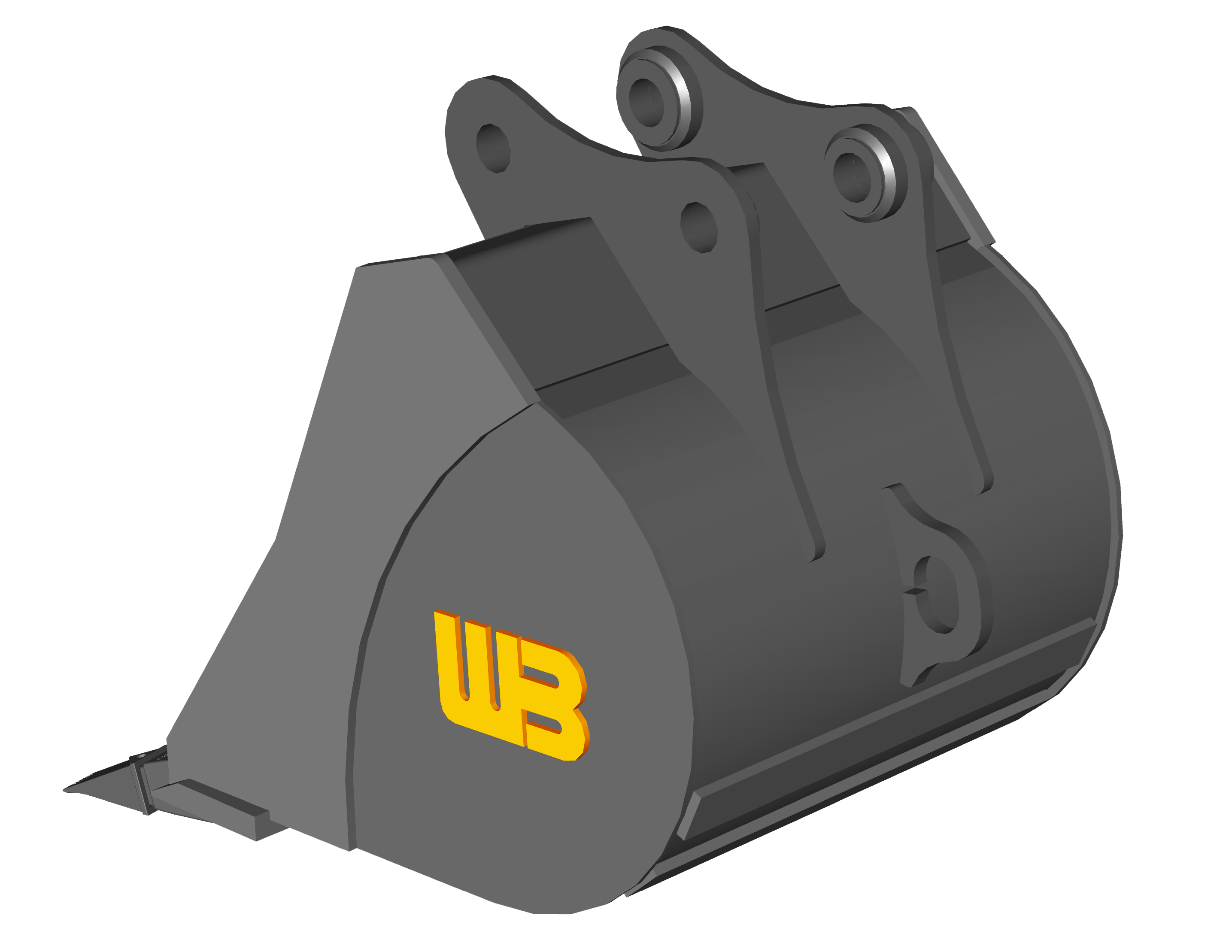

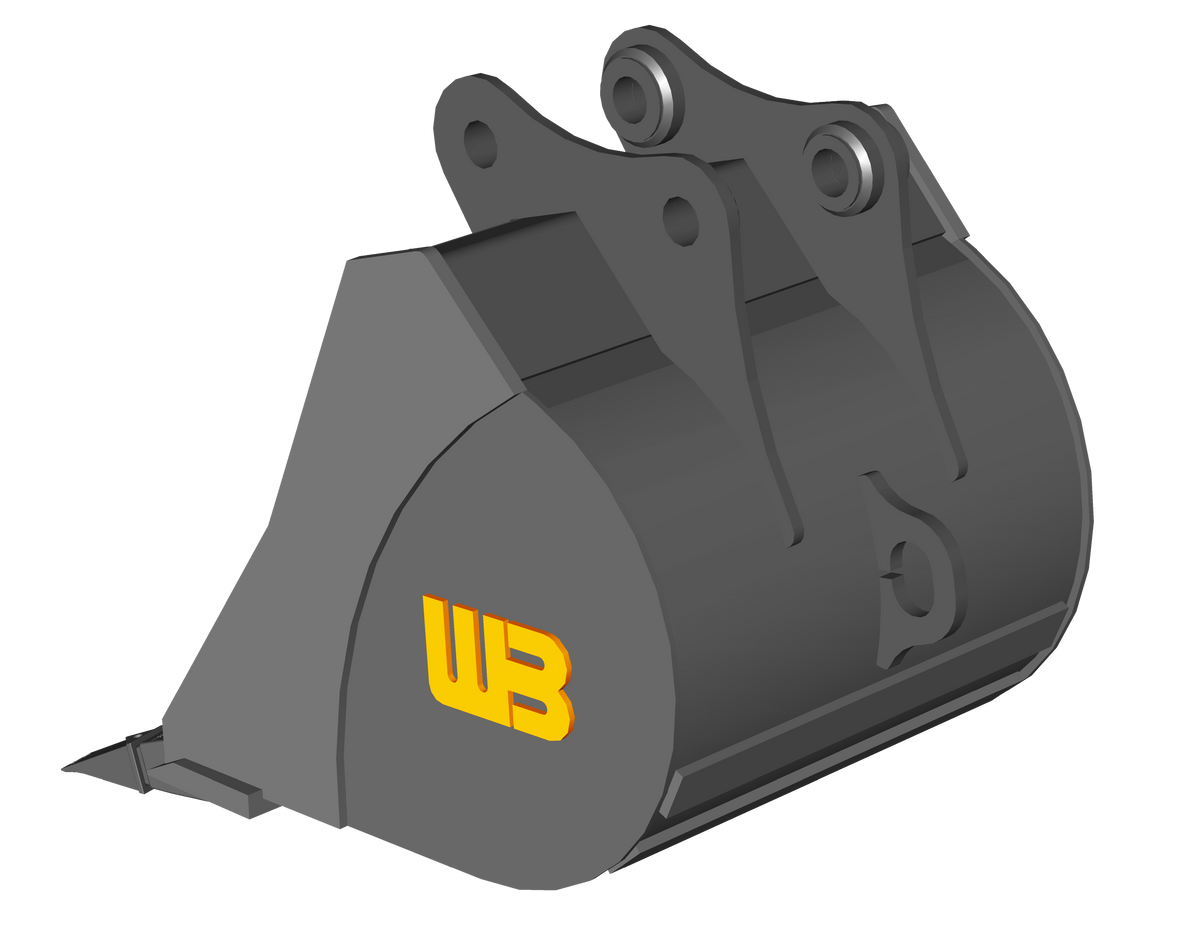

Specifically designed for tough clay or dirt with rock scattered through the soil. This bucket can be used for applications other than digging, such as when paired with a thumb material handling. Werk-Brau does not recommend using this bucket for prying required to dig solid rock. For extreme digging conditions see the 'Severe Duty Bucket' and 'V-Line Strata Rock Bucket'.
High quality T-1 steel is utilized in all critical or high wear components to ensure that this bucket has a long operation life. The cutter bit is made from heavy duty cast material. The cutting edge is backed by a heavy reinforcing plate with straps protecting the rest of the bottom. Side wear plates reinforce the sides for backfilling. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Each bucket is equipped with industry standard teeth for extra durability. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request. Bolt on cutting edges are optional. Bolt on side cutters are highly recommended.
8" to 42", depending on size capacity of machine, are available.
Bolt-on side cutters are highly recommended for added endurance. Special designs, widths, and capacities are available, please request a quote from a Dealer or contact Werk-Brau directly.
PART # | WIDTH | CAPACITY | NO. TEETH | WEIGHT |
15MHD12 | 12" | 2.40 |
3 | 249 |
15MHD16 | 16" | 3.20 |
3 | 275 |
15MHD18 | 18" | 3.60 |
4 | 295 |
15MHD20 | 20" | 4.00 |
4 |
315 |
15MHD24 | 24" | 5.00 |
5 | 338 |
15MHD30 | 30" | 6.40 |
5 |
365 |
15MHD36 | 36" | 7.80 | 6 | 500 |
MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
CASE | CX50B, CX55B, CX57C, CX60C |
CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
DOOSAN | DX60, DX63-3 |
DITCH WITCH | |
GEHL | GE503Z, GE603 |
HITACHI | ZX50, AX60 |
HYUNDAI | R55, R60 |
IHI | 40JX, 45JX |
JCB | 8040, 8045, 8052 |
JOHN DEERE | 50G |
KOBELCO | 50SR, 55SRX |
KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
KUBOTA | U55, KX057 |
LINK BELT | |
MUSTANG | 5003ZT, 6003 |
NEW HOLLAND | E50, E55BX |
SANY | SY50, SY60 |
TAKEUCHI | TB145, TB153FR, TB250, TB260 |
VOLVO | EC55B, ECR58 |
YANMAR | Vio55-5 |
WACKER NEUSON | ET65, EW65, EZ53, 6003 |
