2MHD12

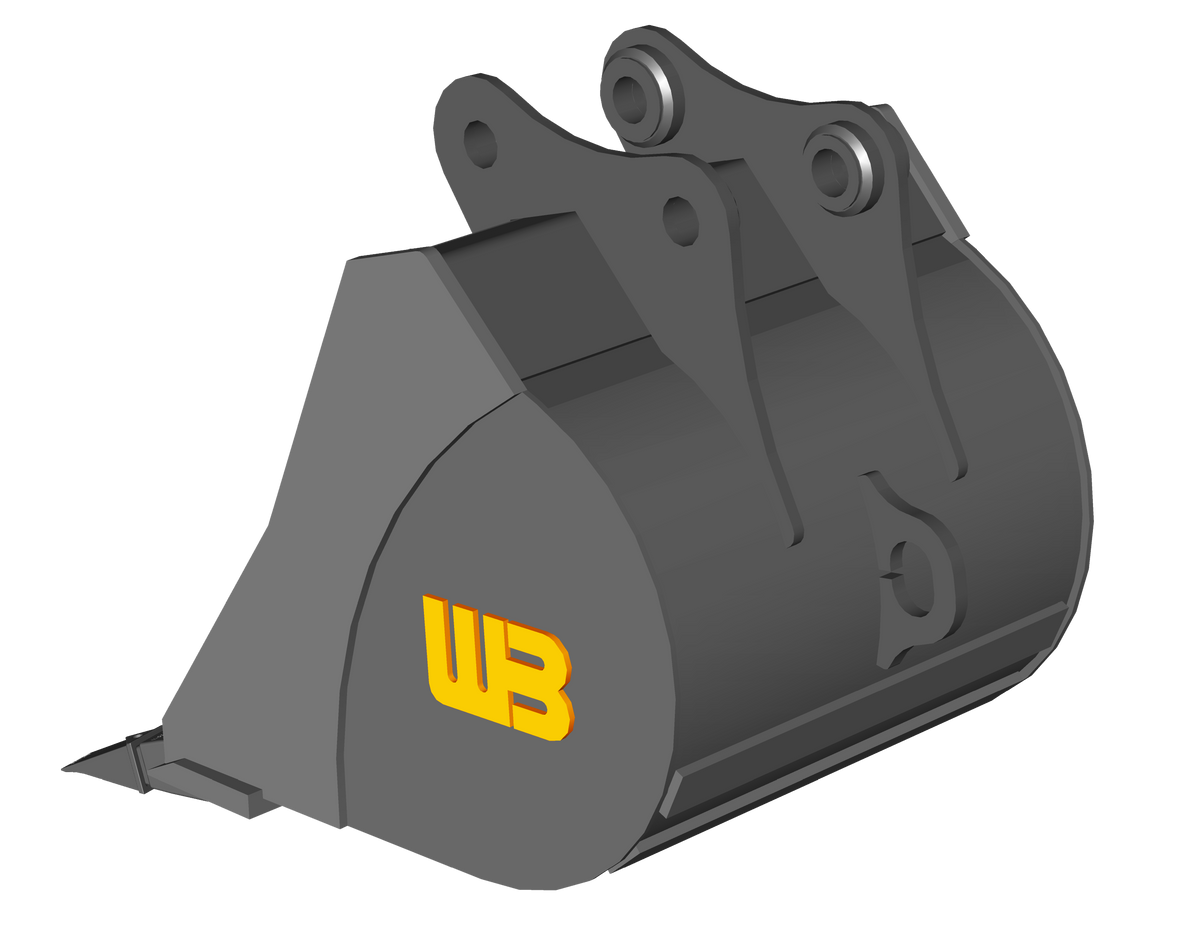

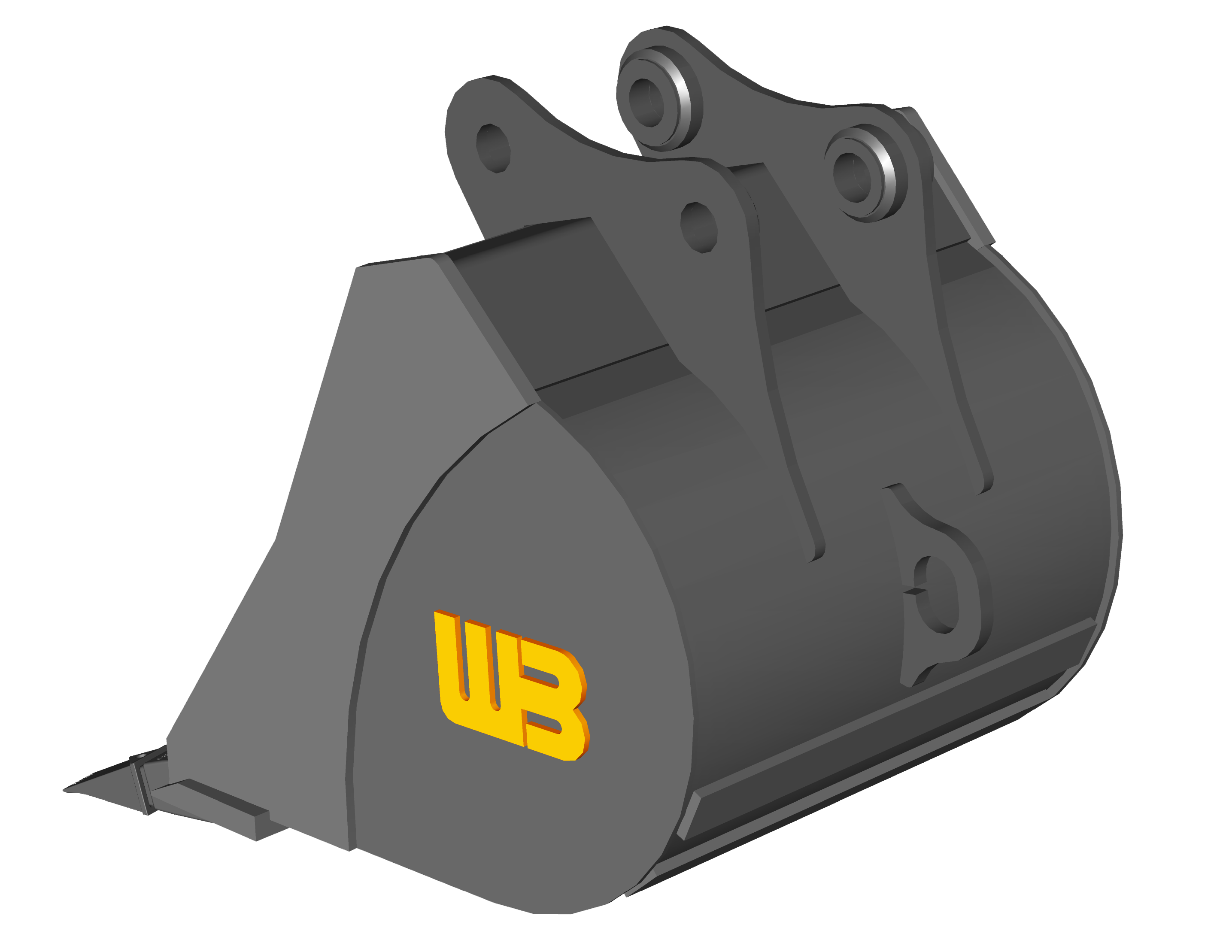

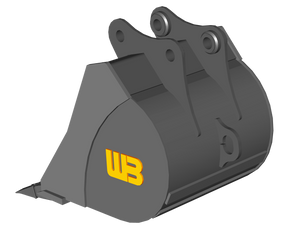

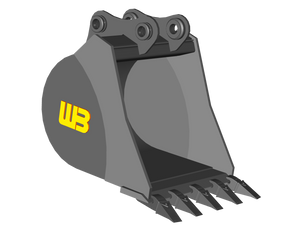

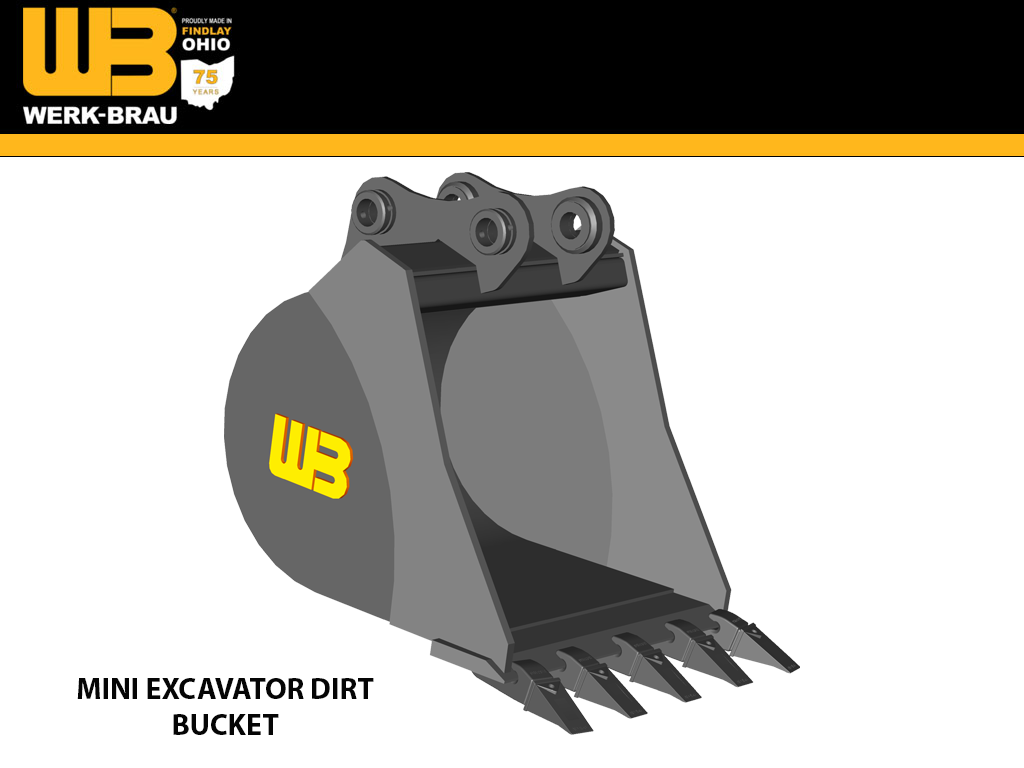

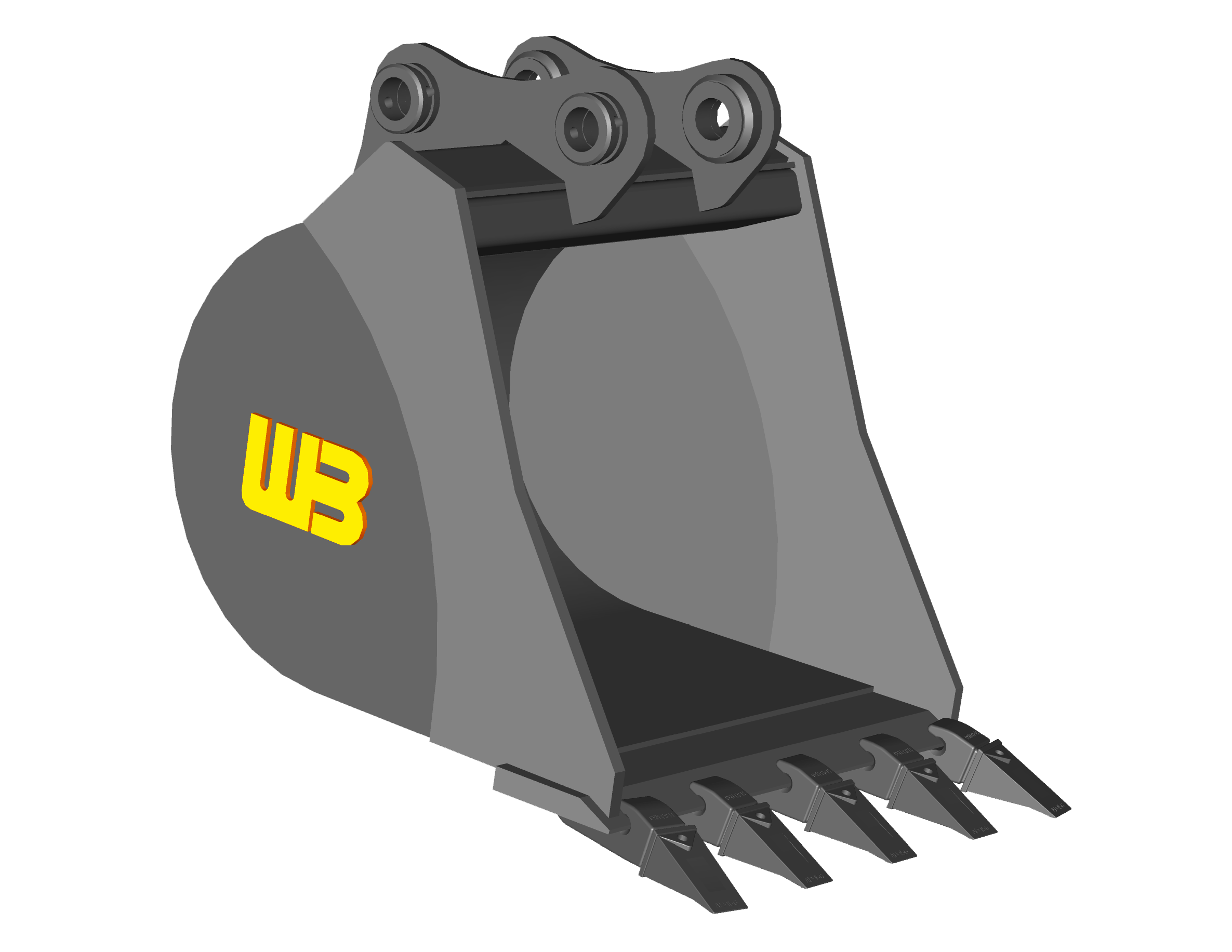

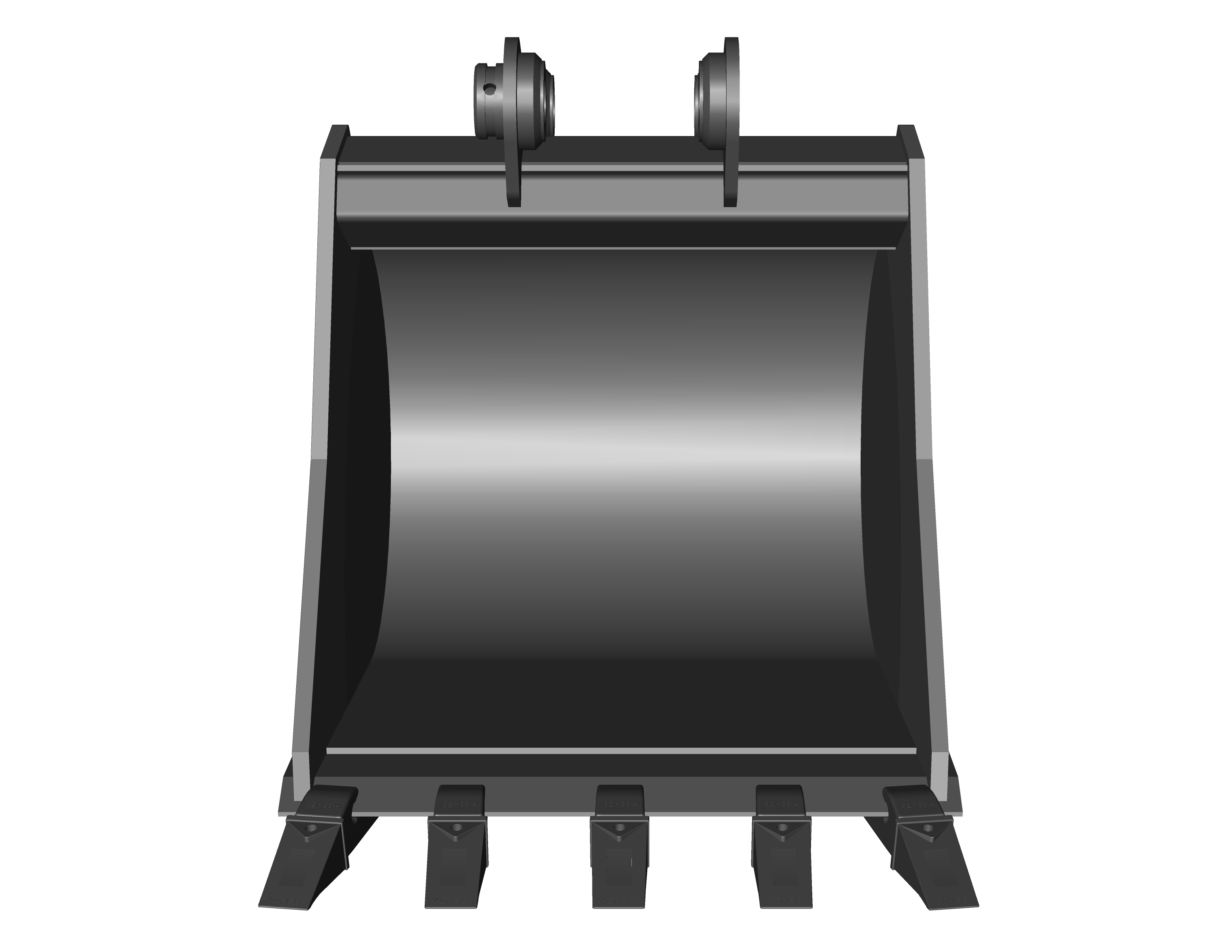

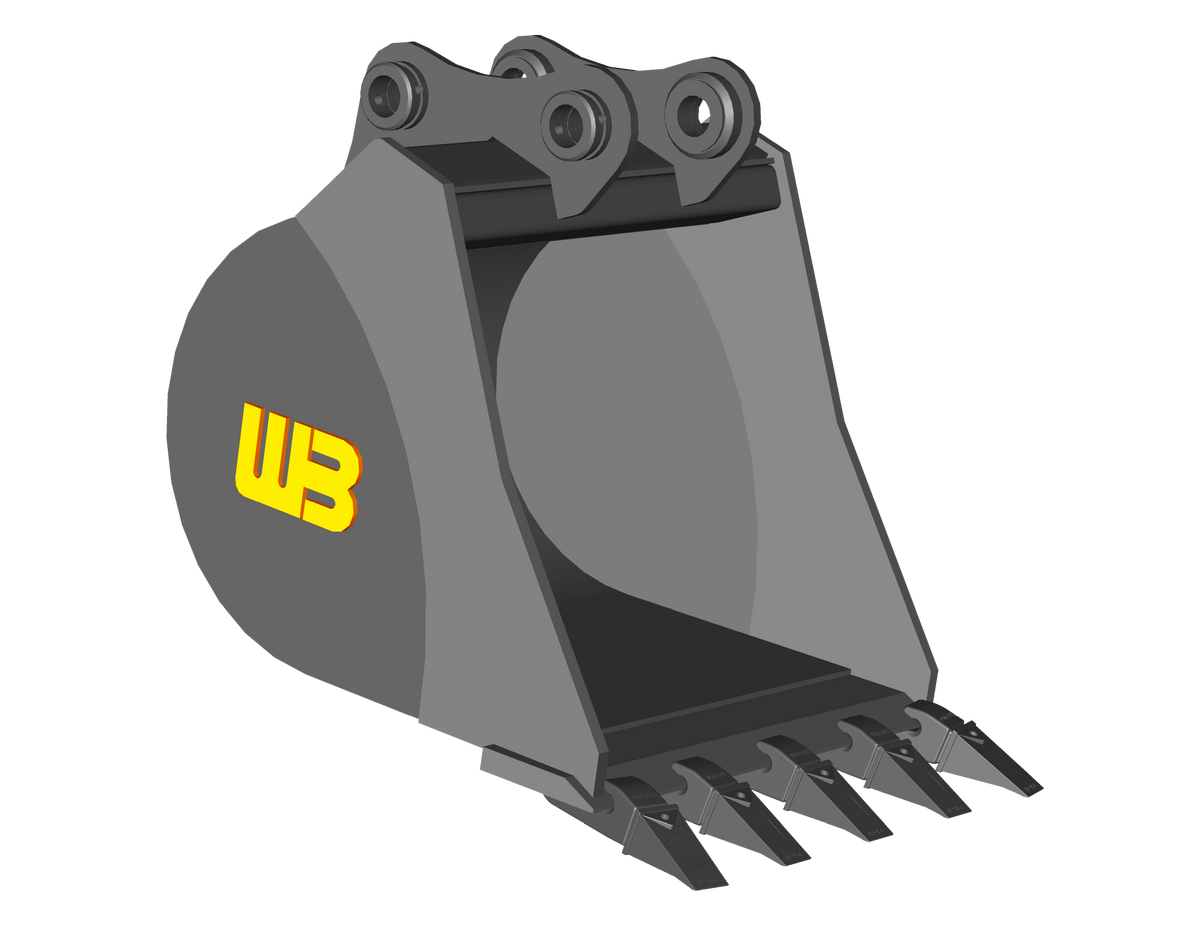

WERK-BRAU Dirt Bucket for 7,500 - 11,000 lbs. Excavators. (Mini 2)

Style
Size

1/24

WERK-BRAU DIRT BUCKETS


Recommended Applications

Specifically designed for tough clay or dirt with rock scattered through the soil. This bucket can be used for applications other than digging, such as when paired with a thumb material handling. Werk-Brau does not recommend using this bucket for prying required to dig solid rock. For extreme digging conditions see the 'Severe Duty Bucket' and 'V-Line Strata Rock Bucket'.

Quality Construction

High quality T-1 steel is utilized in all critical or high wear components to ensure that this bucket has a long operation life. The cutter bit is made from heavy duty cast material. The cutting edge is backed by a heavy reinforcing plate with straps protecting the rest of the bottom. Side wear plates reinforce the sides for backfilling. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Each bucket is equipped with industry standard teeth for extra durability. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request. Bolt on cutting edges are optional. Bolt on side cutters are highly recommended.

Standard Sizes

8" to 42", depending on size capacity of machine, are available.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Special designs, widths, and capacities are available, please request a quote from a Dealer or contact Werk-Brau directly.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
2MHD12 12" 2.60
3 290
2MHD16 16" 3.50
3 300
2MHD18 18" 3.90
4 330
2MHD20 20" 4.30
4
350
2MHD24 24" 5.20
5 390
2MHD30 30" 6.50
5
430
2MHD36 36" 7.80 6 475
MAKE / WEIGHT CLASS MINI 2 (7,500 - 11,000 LBS.)
BOBCAT
CASE
CAT
DOOSAN
DITCH WITCH
GEHL
HITACHI
HYUNDAI
IHI
JCB
JOHN DEERE 60G
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG
NEW HOLLAND
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON
