1MDCG24

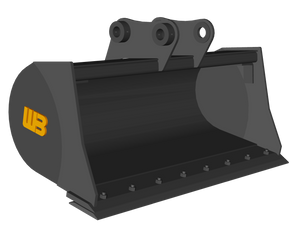

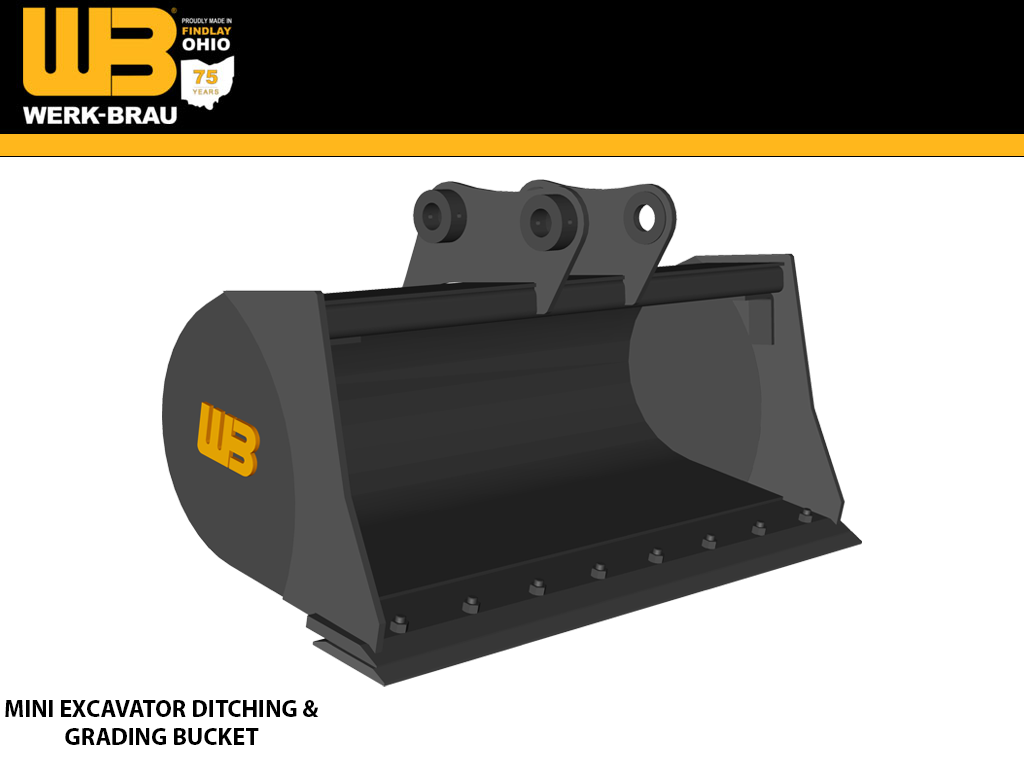

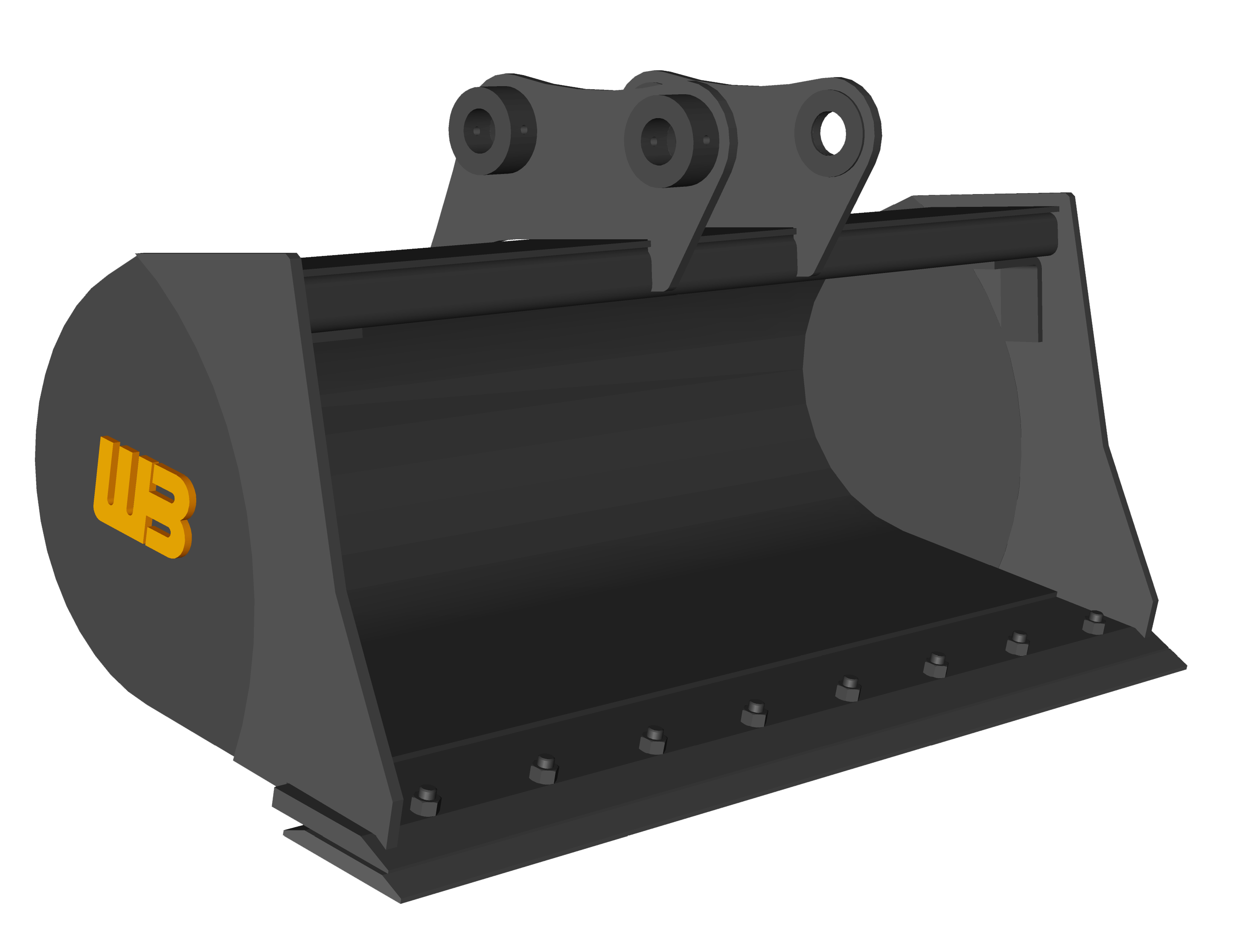

WERK-BRAU Ditching & Grading Bucket for 5,000 - 11,000 lbs. Excavators. (Mini 1)(Mini 15)

Size

1/24

WERK-BRAU DITCHING & GRADING BUCKETS


Recommended Applications

Werk-Brau's ditching and grading bucket is specifically engineered for ditch maintenance, grading, slope work, and construction. This bucket is not designed for tough digging applications.

Quality Construction

High quality T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. Bottom wear straps provide extra reinforcing. Each bucket is designed with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Bucket comes with optional suction relief holes to allow easy dumping of sticky soils found in ditch maintenance.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 30" - 84", and capacities of .13 cu. yd. - 4.0 cu. yd.

Additional Features

Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drainage holes are available. For aquatic applications Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.


PART # WIDTH CAPACITY LIP SIZE WEIGHT
1MDCG24 24"
3.54
3/4" x 6" 217
1MHCG30 30"
4.43
3/4" x 6"
244
1MDCG36 36" 5.31 3/4" x 6" 269
1MDCG42 42" 6.20 3/4" x 6" 296
1MDCG48 48" 7.00 3/4" x 6" 323

MINI 1

MAKE / WEIGHT CLASS MINI 1 (5,000 - 7,500 LBS.)
BOBCAT 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425
CASE CX31B, CX36B, CX37C
CAT 302.7DCR, 303ECR
DOOSAN DX30, DX35
DITCH WITCH XT1600
GEHL GE283X, GE303, GE353, GE383Z
HITACHI ZX35U-2
HYUNDAI R35, R36
IHI 35N-2
JCB 2CX, 8030, 8035, MIDI
JOHN DEERE 35G
KOBELCO 30SR, 35SR
KOMATSU PC27MR-3, PC35MR-3
KUBOTA U35, U48, KX033, KX040, KX71
LINK BELT
MUSTANG ME3003, 2803ZT, ME3503, ME3703, 3803ZT
NEW HOLLAND E30, E35
SANY SY26, SY35
TAKEUCHI TB125, TB135, TB228, TB240, TB138FR, TB235
VOLVO EC35C, ECR48C
YANMAR Vio27-5, Vio35-5, Vio45-5, Vio-50
WACKER NEUSON EZ28, EZ38, 3503


MINI 15

MAKE / WEIGHT CLASS MINI 15 (7,500 - 11,000 LBS.)
BOBCAT 335, 337, 341, 435, E45, E50, E55, E60
CASE CX50B, CX55B, CX57C, CX60C
CAT 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR
DOOSAN DX60, DX63-3
DITCH WITCH
GEHL GE503Z, GE603
HITACHI ZX50, AX60
HYUNDAI R55, R60
IHI 40JX, 45JX
JCB 8040, 8045, 8052
JOHN DEERE 50G
KOBELCO 50SR, 55SRX
KOMATSU PC45MR-3, PC55MR-3, PC58UU-3
KUBOTA U55, KX057
LINK BELT
MUSTANG 5003ZT, 6003
NEW HOLLAND E50, E55BX
SANY SY50, SY60
TAKEUCHI TB145, TB153FR, TB250, TB260
VOLVO EC55B, ECR58
YANMAR Vio55-5
WACKER NEUSON ET65, EW65, EZ53, 6003
