3DCG54

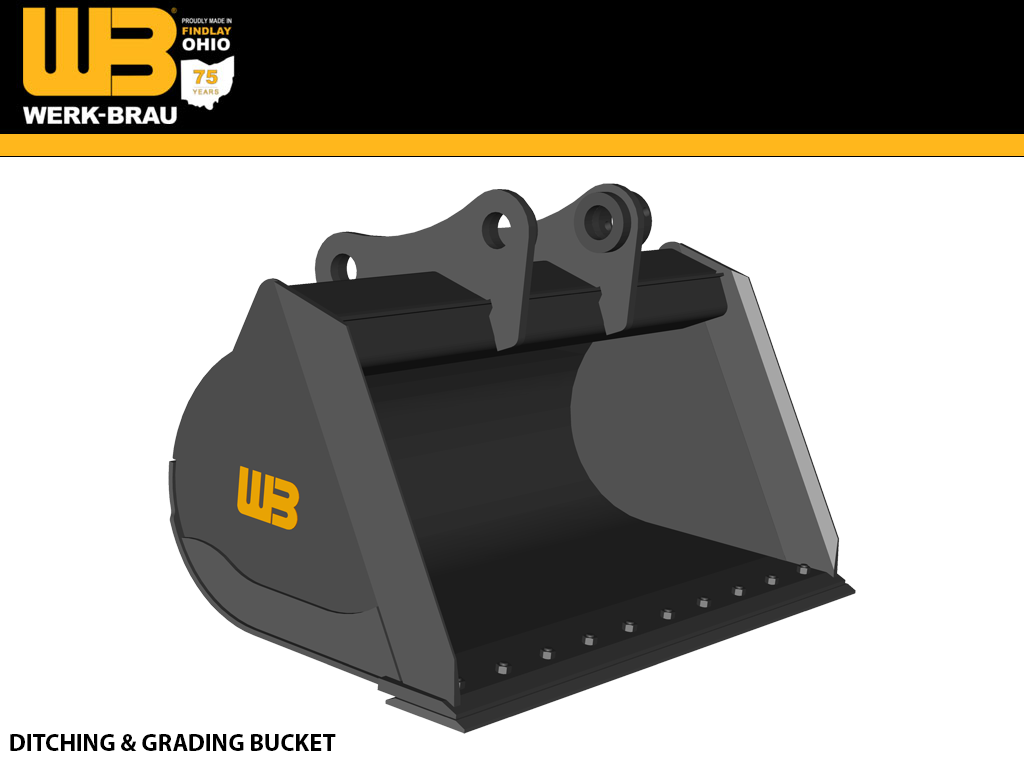

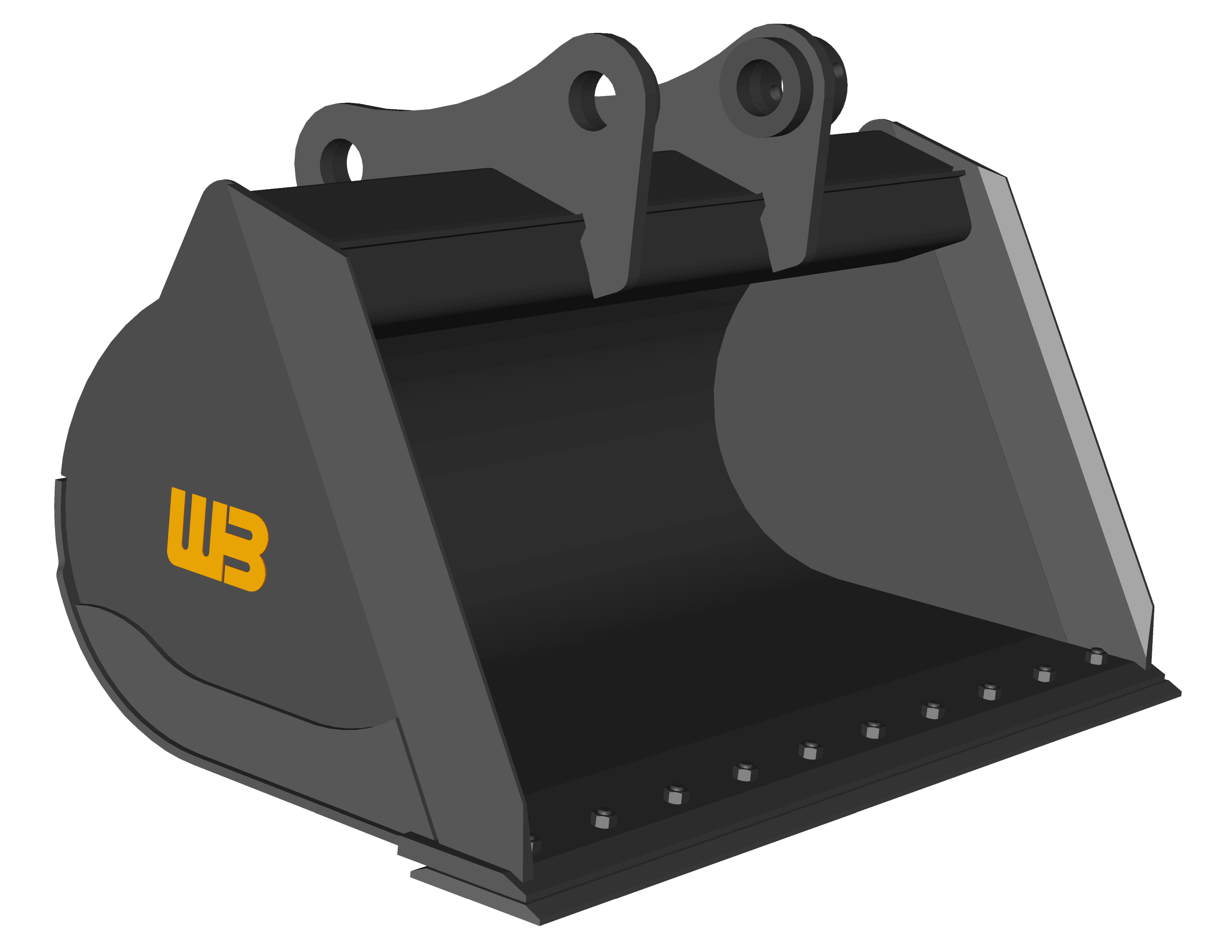

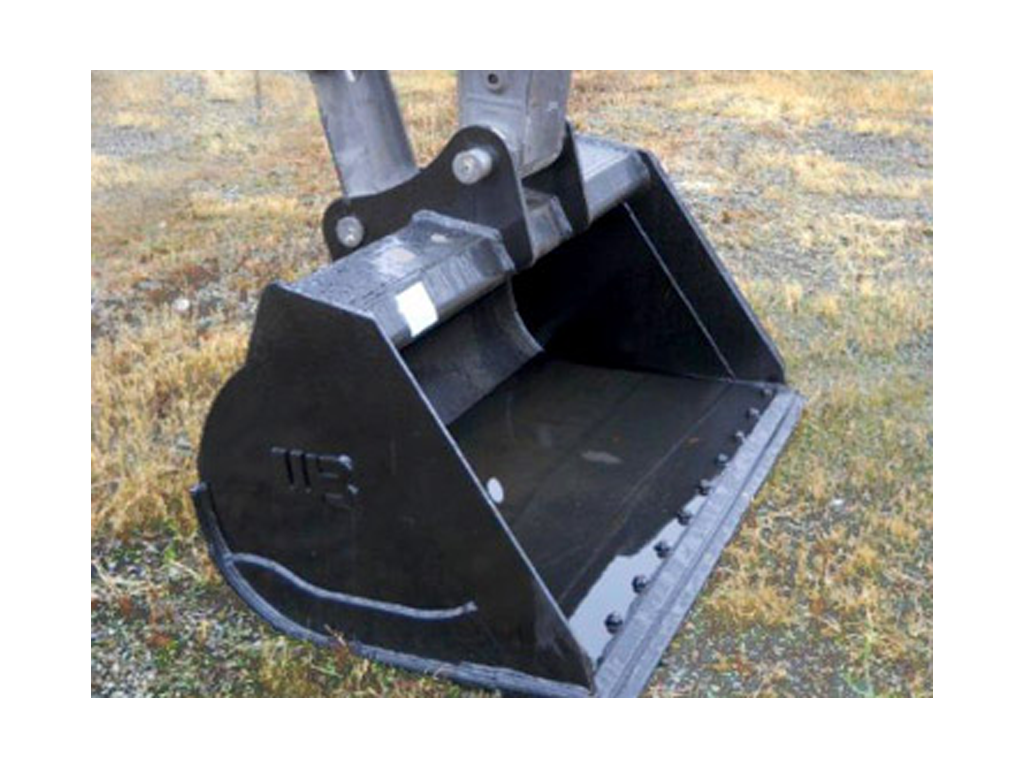

Werk-Brau Ditching & Grading Bucket for 59,000-68,000 lbs. Excavators (30MT)
$8,720.00 - $10,613.00
1/24
DITCHING & GRADING BUCKETS
Recommended Applications
Specifically designed for ditch maintenance and construction. Also useful in grading and slope work. For high capacity buckets, use the next weight class up in Ditching Bucket, except long reach machines. Werk-Brau manufactures a severe duty version of this bucket.
Construction
Werk-Brau manufactures this bucket using T-1 steel in all high wear components to ensure that the bucket will have a long operating life. A rigid top section assures structural stability in the wider sizes. The bottom of the bucket is reinforced with wear straps. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Equipment Options
Teeth are not used on these buckets due to the application.
Standard Sizes
Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 3.81 cu. yd.
Additional Features
Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drain holes are available, for aquatic applications, Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.
| PART # | WIDTH | CAPACITY | WEIGHT |
| 3DCG54 | 54" | 1.13 |
2,000 |
| 3DCG60 | 60" | 1.25 |
2,150 |
| 3DCG66 | 66" |
1.38 |
2,300 |
| 3DCG72 | 72" | 1.51 |
2,450 |
| 3DCG84 | 84" | 1.77 | 2,750 |
| MAKE / WEIGHT CLASS | 30MT (59,500 - 68,000 LBS.) |
| CASE | CX300, CX365E |
| CAT | 326, 328, 329, 335F, CB-LINKAGE |
| DOOSAN | DX300LC-5, DX300LC-5SLR |
| HITACHI | ZX300, ZX345 |
| HYUNDAI | HX300 |
| JOHN DEERE | 300G, 345G, 300P |
| KOBELCO | SK300 |
| KOMATSU | PC270, PC290, PC308 |
| LIEBHERR | |
| LINK BELT | 300X3, 300X4, 355X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
