5DCG60

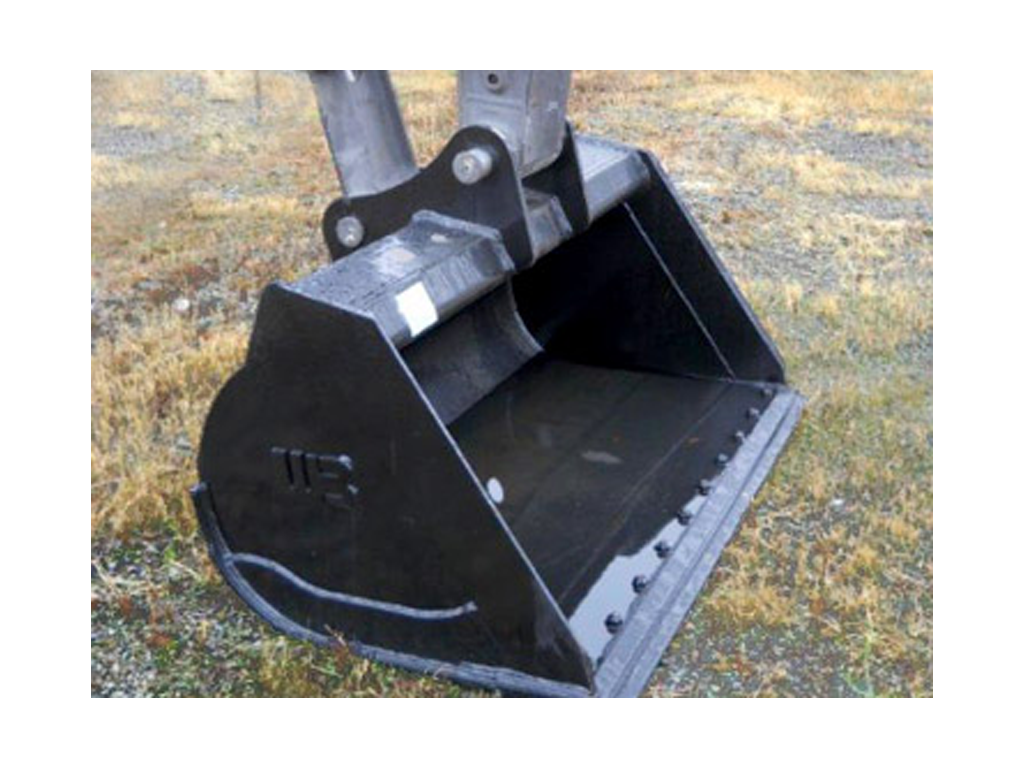

Werk-Brau Ditching & Grading Bucket for 82,000-105,000 lbs. Excavators (40MT)

WIDTH

1/24

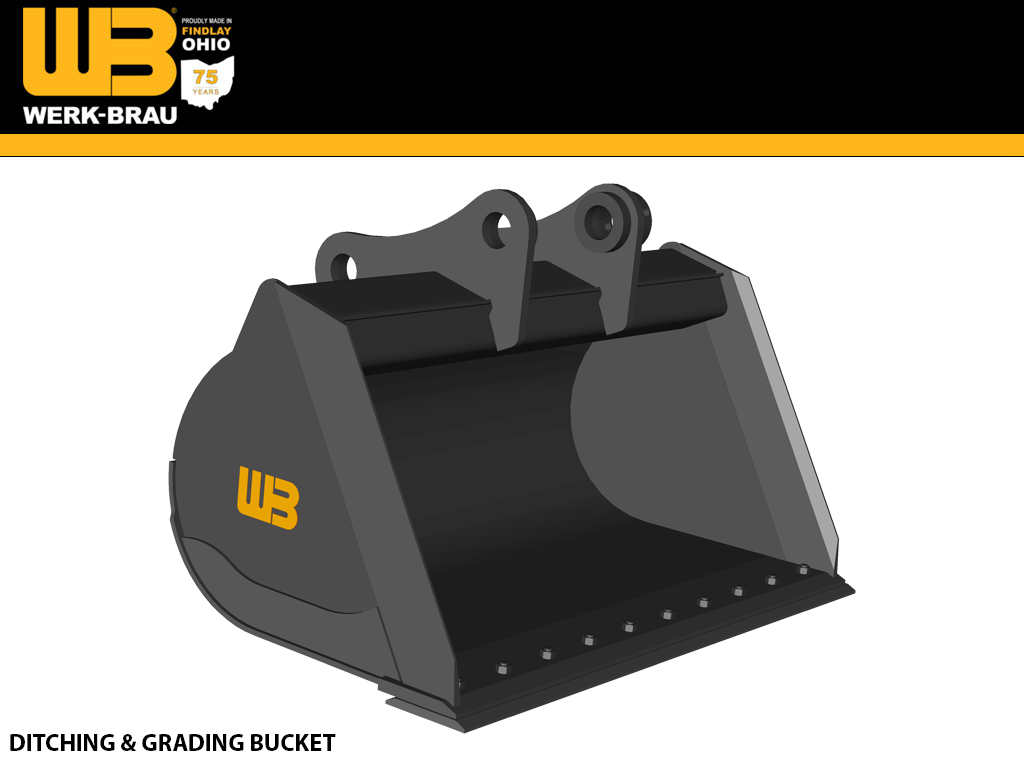

DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work. For high capacity buckets, use the next weight class up in Ditching Bucket, except long reach machines. Werk-Brau manufactures a severe duty version of this bucket.

Construction

Werk-Brau manufactures this bucket using T-1 steel in all high wear components to ensure that the bucket will have a long operating life. A rigid top section assures structural stability in the wider sizes. The bottom of the bucket is reinforced with wear straps. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 3.81 cu. yd.

Additional Features

Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drain holes are available, for aquatic applications, Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY WEIGHT
5DCG60 60" 1.48
3,100
5DCG66 66"
1.63
3,275
5DCG72 72" 1.78
3,500
5DCG78 78" 1.92
3,750
5DCG84 84" 2.07
3,875
MAKE / WEIGHT CLASS 40MT (82,500 - 105,000 LBS.)
CASE CX470, CX490
CAT 349F
DOOSAN DX480, DX490LC-5
HITACHI ZX450, ZX470, ZX490
HYUNDAI HX480
JOHN DEERE 470G, 470P
KOBELCO SK480, SK485, SK500
KOMATSU PC400, PC450, PC490
LIEBHERR R 944
LINK BELT 460, 470, 490X4
SANY SY500
TAKEUCHI
VOLVO EC460, EC480
