WBBM4

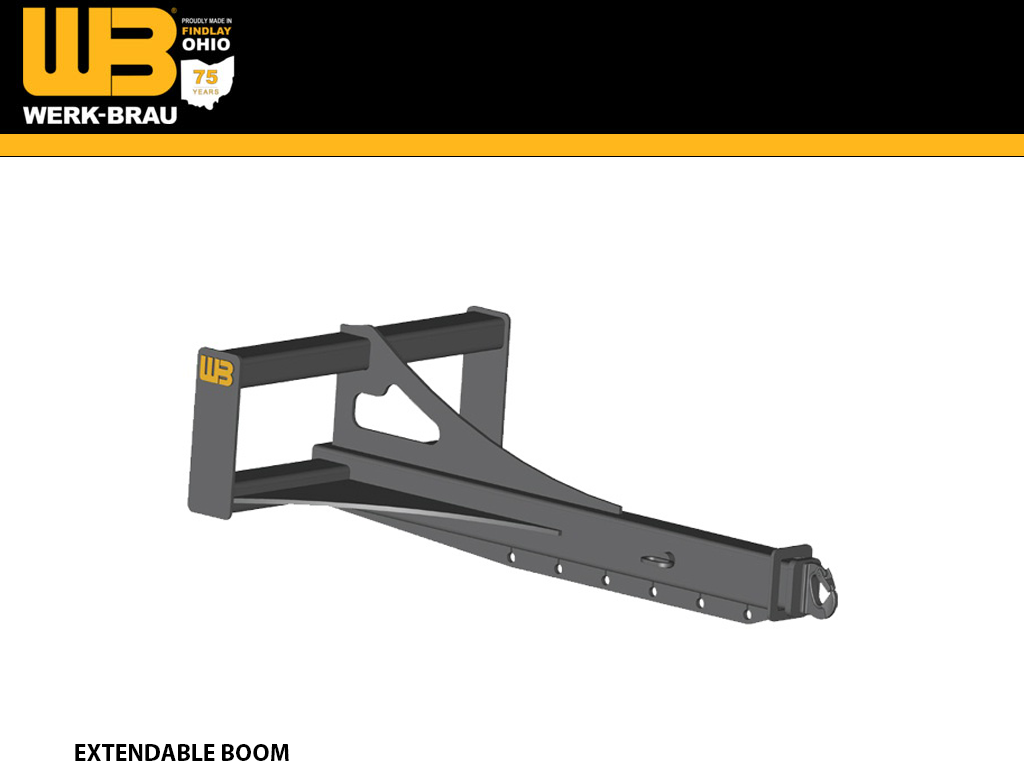

WERK-BRAU Extendable Boom for Wheel loaders 33,000 - 43,000 lbs. (class 4)
$8,600.00
3/24

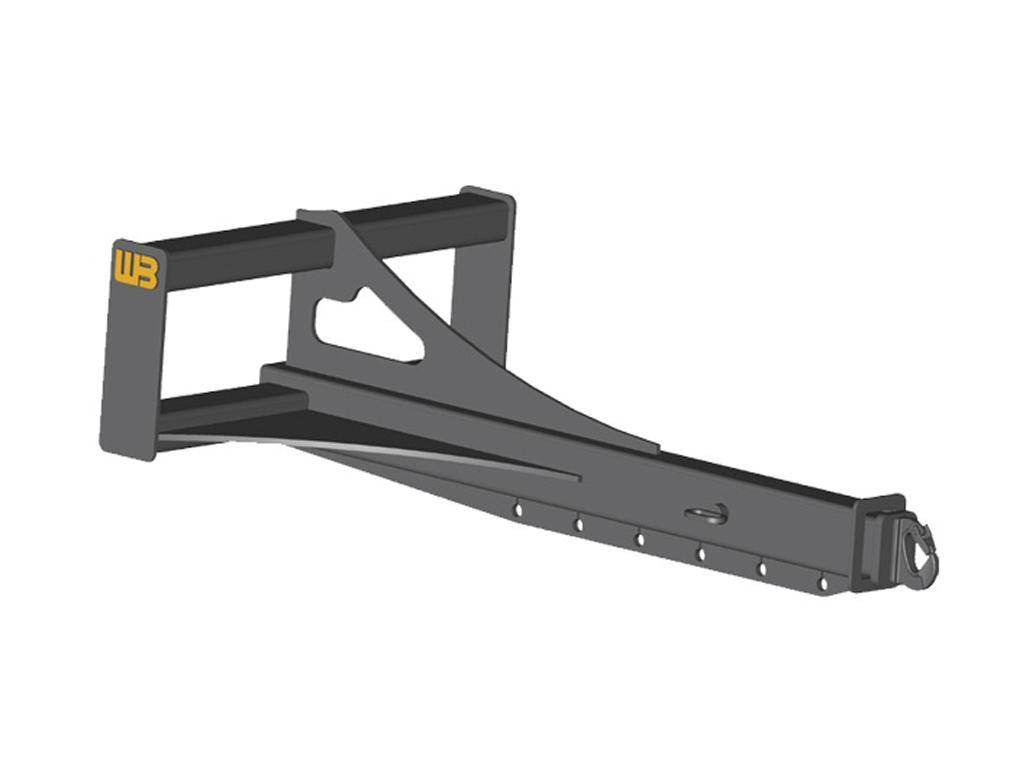

EXTENDABLE BOOM
Recommended Applications
Werk-Brau's Extendable Boom is ideally used for long reach material handling. Each boom features multiple positions and lengths, and only requires one pin to change lengths. This Boom eliminates the need for an overhead or mobile crane with the handling of pipe and other materials.
Quality Construction
Box style boom extension is constructed of high tensile steel for added life and durability. Each boom is manufactured with a heavy duty lifting loops. There are 6-7 Clevis loops under each boom.
Standard Sizes
Reach from 7' - 12' fully extended.
Additional Features
Available with Werk-Brau front coupler or pin-up connection.
- One pin used to change lengths
- Versatile lifting loops
- 6-7 Clevis loops under boom
- Box style boom
- Boom has multiple positions
- Gunnebo hook
| PART # | REACH | CAPACITY RETRACTED | CAPACITY EXTENDED | WEIGHT |
| WBBM4 | 8'-12' | 11,000 | 6,700 | 1500 |
| CLASS 4 (33,000 - 43,000 LBS) | MODEL |
| CASE | 821G, 921G |
| CAT | 950, 960, 962, IT62 |
| DEVELON | DL300-5, DL320-7, DL350-5, DL380-7 |
| HITACHI | ZW220, ZW250 |
| HYUNDAI | HL960, HL760 |
| JCB | 456, 457 |
| JOHN DEERE | 644, 724 |
| KOMATSU | WA380, WA430 |
| KUBOTA | |
| LIEBHERR | L556X |
| LINK-BELT | L150 |
| NEW HOLLAND | LW190 |
| SANY | SW405 |
| TAKEUCHI | |
| VOLVO | L110, L120 |
| WACKER NEUSON | |
| YANMAR |
