LHG2100200

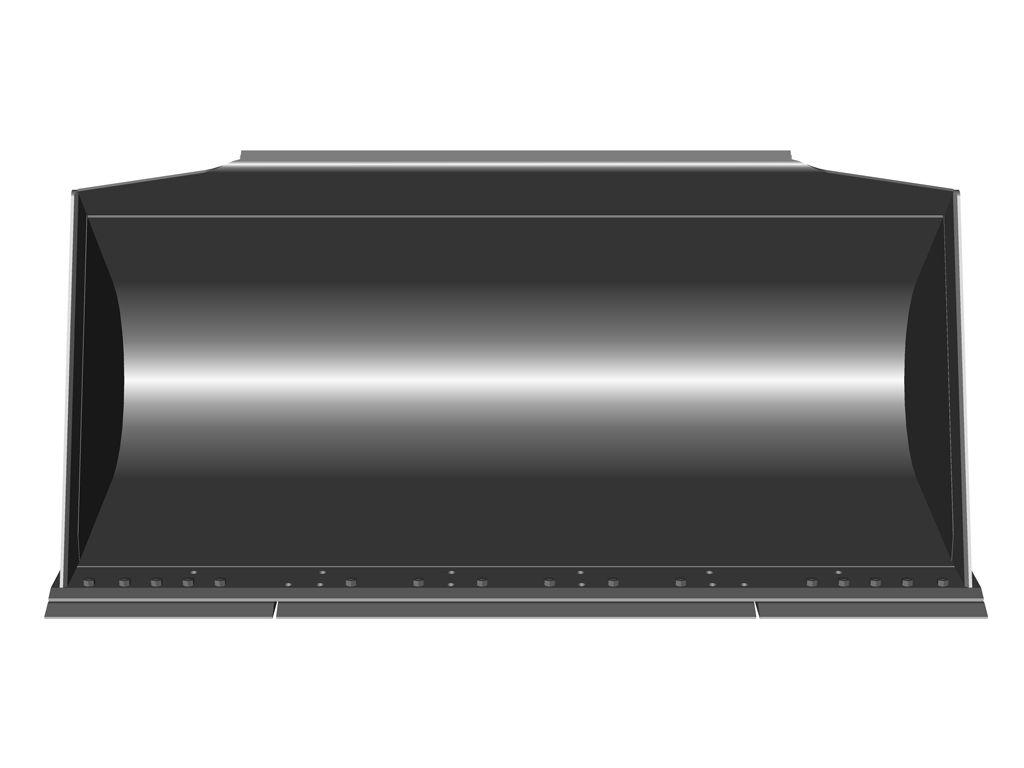

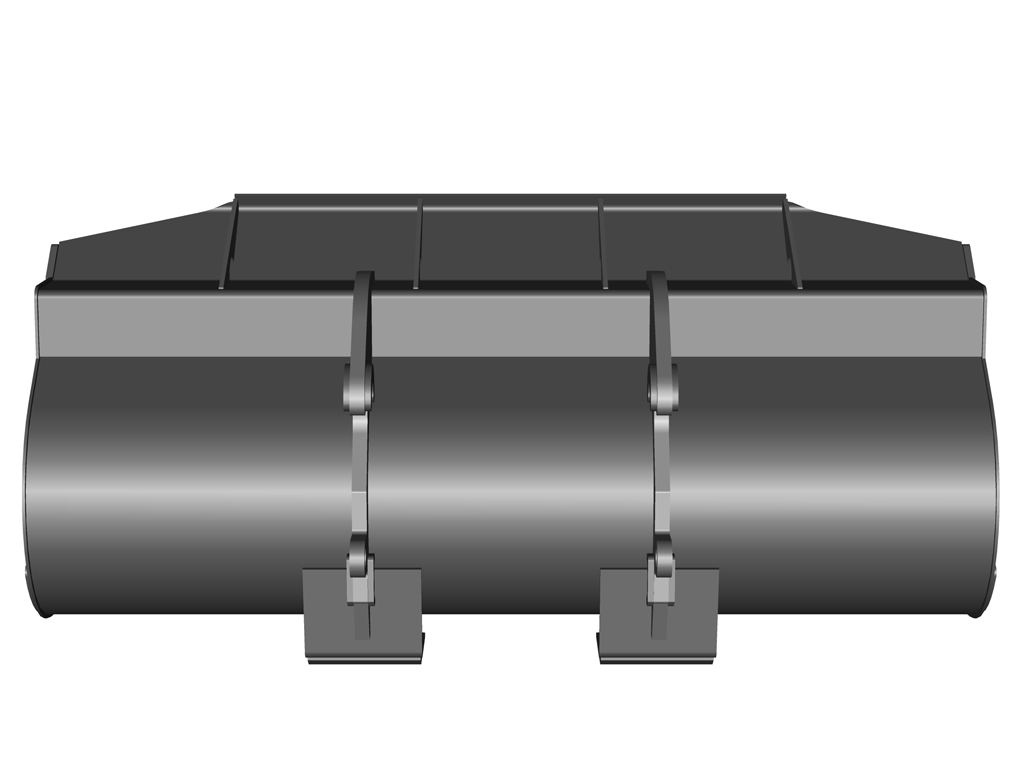

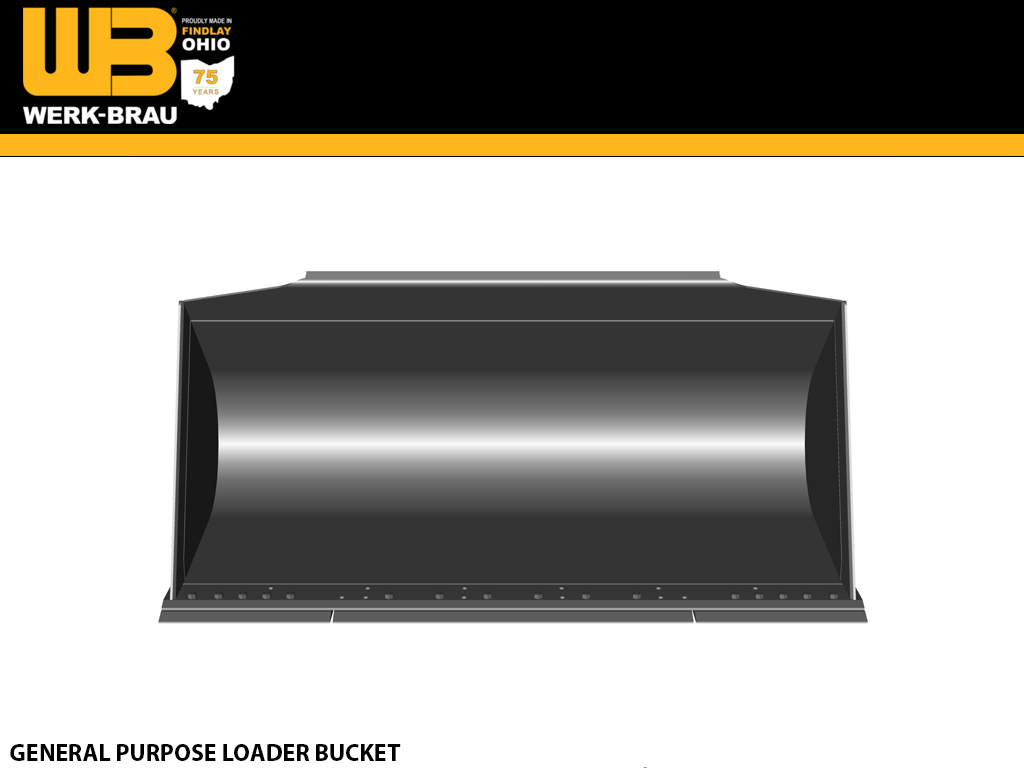

WERK-BRAU General Purpose Loader buckets for Wheel loaders 20,000 - 26,000 lbs. (class 2)

Capacity

2/24

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.

Features

  • Enhanced High performance Profile
  • Designed for general purpose applications with material densities up to 3,200 lb/cy
  • Performance side plates & increased roll back angle allow for greater material retention
  • 5%+ greater material retention
  • Tapered side plates to reduce wear & easier dumping
  • integrated spill guard

PART # WIDTH CAPACITY WEIGHT
LHG2100200
100"
2.00 1880
LHG2100225 100"
2.25 1950
LHG2100250 100" 2.50
2040
LHG2100275 100" 2.75
2175
LHG2100300 100" 3.00
2270

CLASS 2
CLASS 2 (20,000 - 26,000 LBS) MODEL
CASE 521G
CAT 924, 928, 930, IT24-28
DEVELON DL200-5, DL200TC-5, DL200-7
HITACHI ZW140
HYUNDAI HL730, HL740, HL940
JCB 416
JOHN DEERE 444
KOMATSU WA150, WA200
KUBOTA
LIEBHERR L526
LINK-BELT
NEW HOLLAND LW110
SANY
TAKEUCHI
VOLVO L60
WACKER NEUSON
YANMAR
