LHG3100250

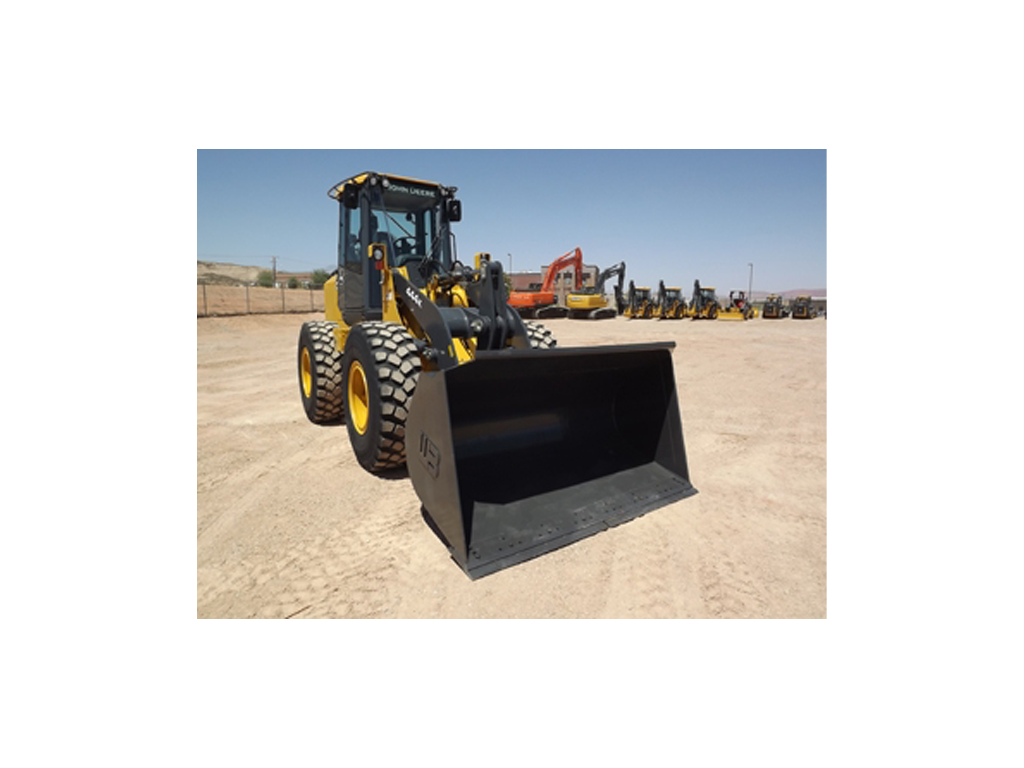

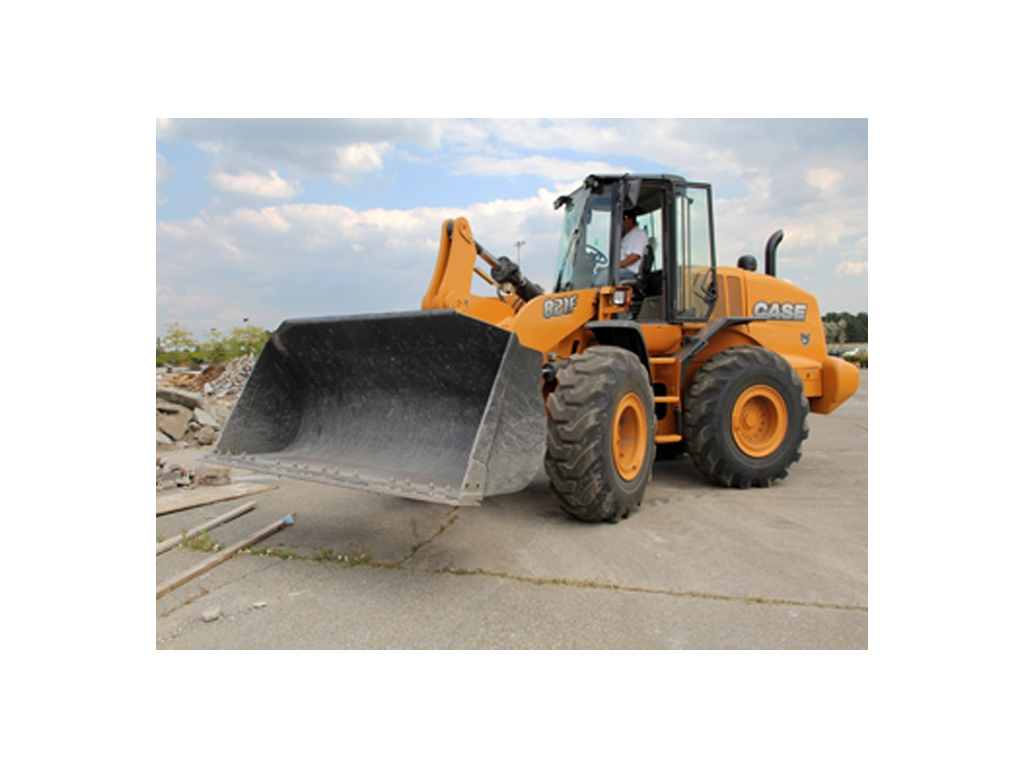

WERK-BRAU General Purpose Loader buckets for Wheel loaders 26,000 - 30,000 lbs. (class 3)

Capacity

2/24

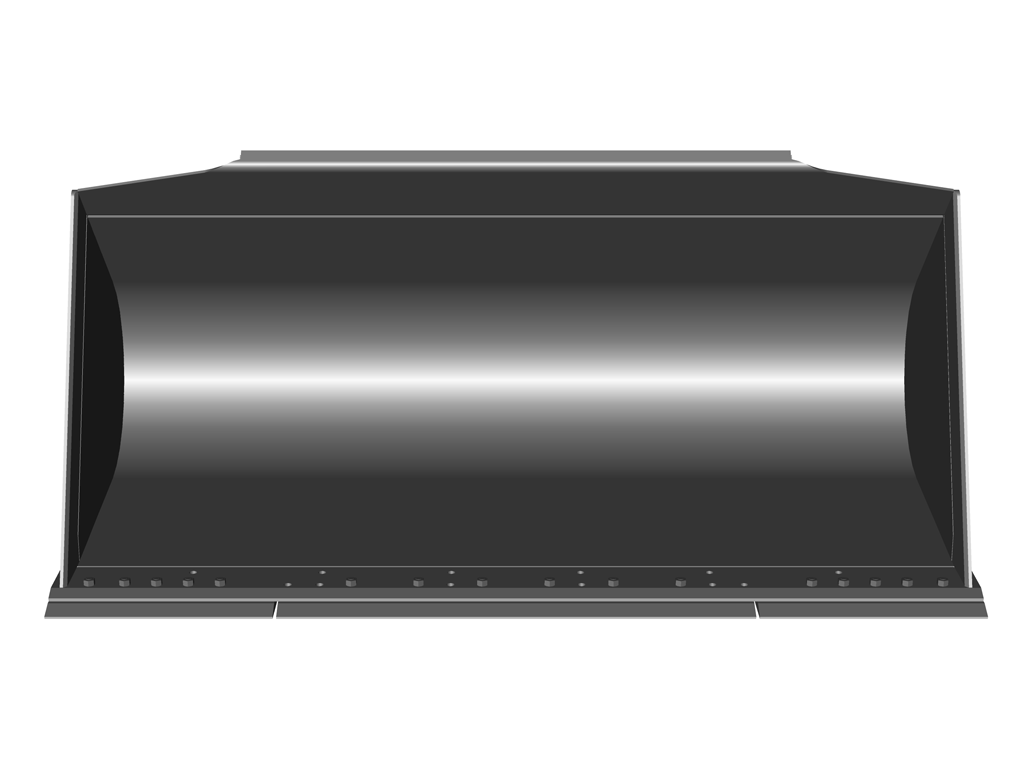

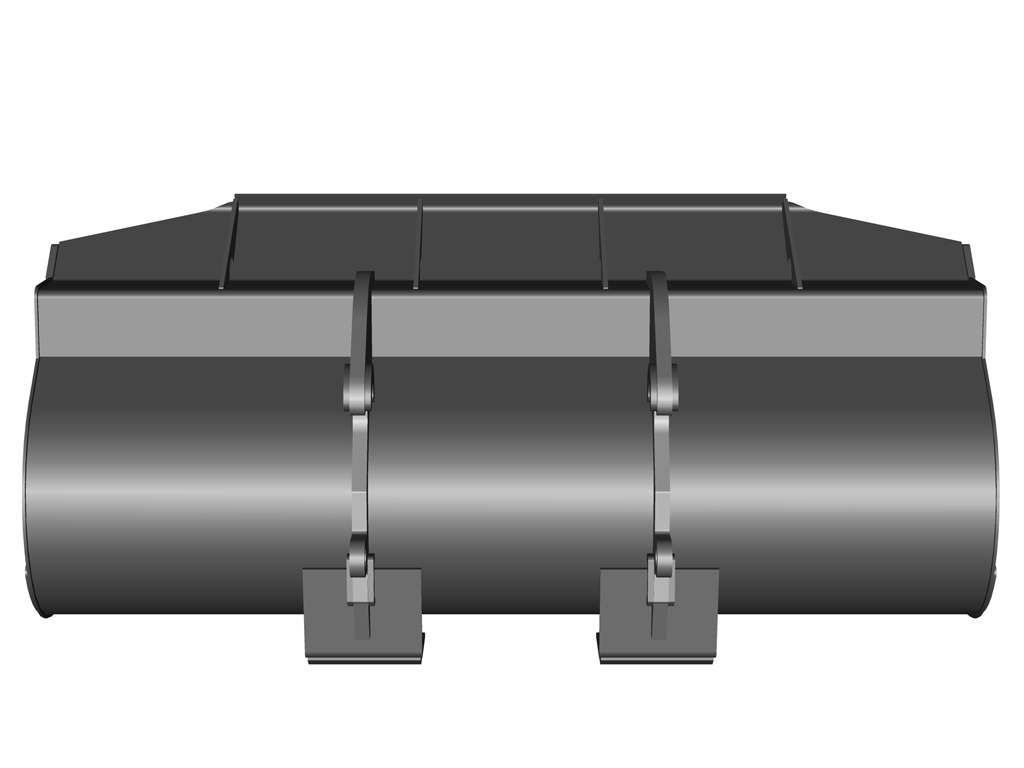

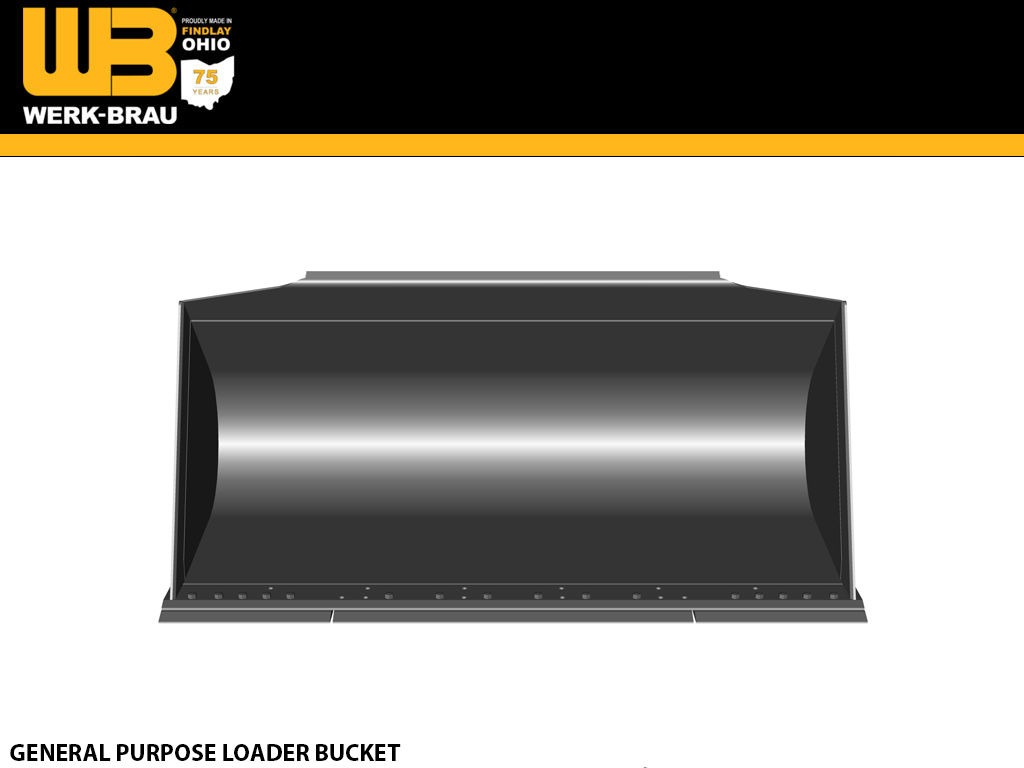

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.


Features


  • Enhanced High performance Profile
  • Designed for general purpose applications with material densities up to 3,200 lb/cy
  • Performance side plates & increased roll back angle allow for greater material retention
  • 5%+ greater material retention
  • Tapered side plates to reduce wear & easier dumping
  • integrated spill guard

PART # WIDTH CAPACITY WEIGHT
LHG3100250
100"
2.50 2040
LHG3100275 100"
2.75
2175
LHG3100300 100" 3.00
2270


CLASS 3

CLASS 3 (26,000 - 30,000 LBS) MODEL
CASE 621G
CAT 935, 936
DEVELON DL220-5, DL220-7
HITACHI ZW150
HYUNDAI HL750
JCB 426, 427
JOHN DEERE 524, 544
KOMATSU WA250, WA270
KUBOTA
LIEBHERR L538
LINK-BELT L140
NEW HOLLAND LW130
SANY SW305
TAKEUCHI
VOLVO L70
WACKER NEUSON
YANMAR
