LHG35105325

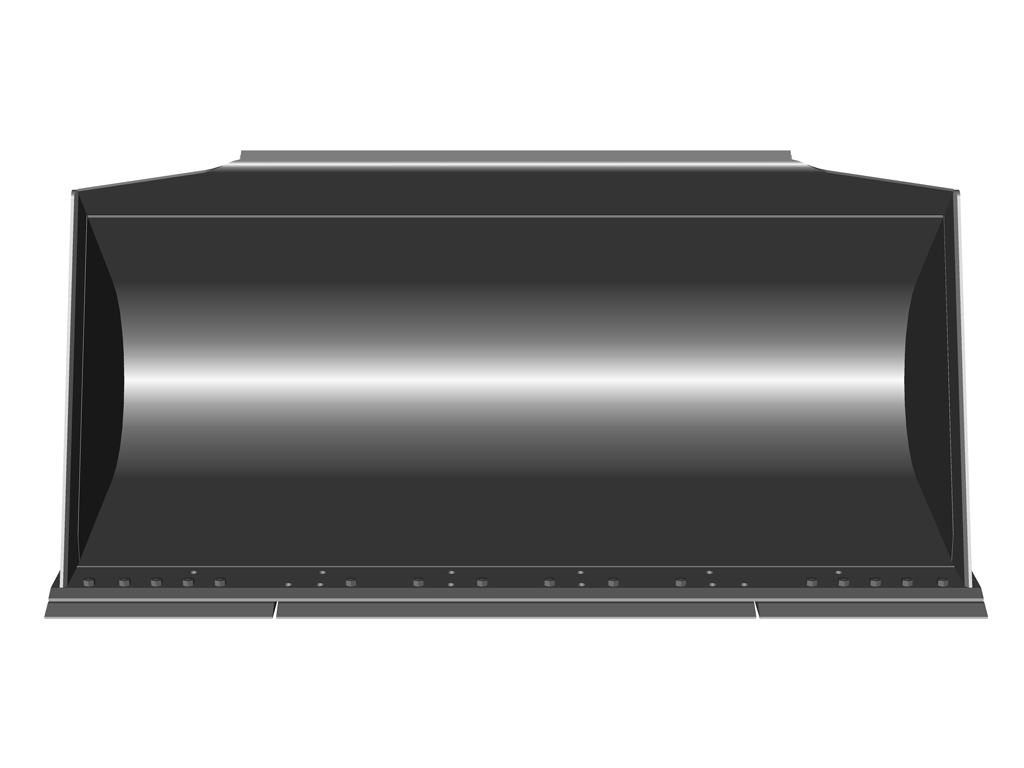

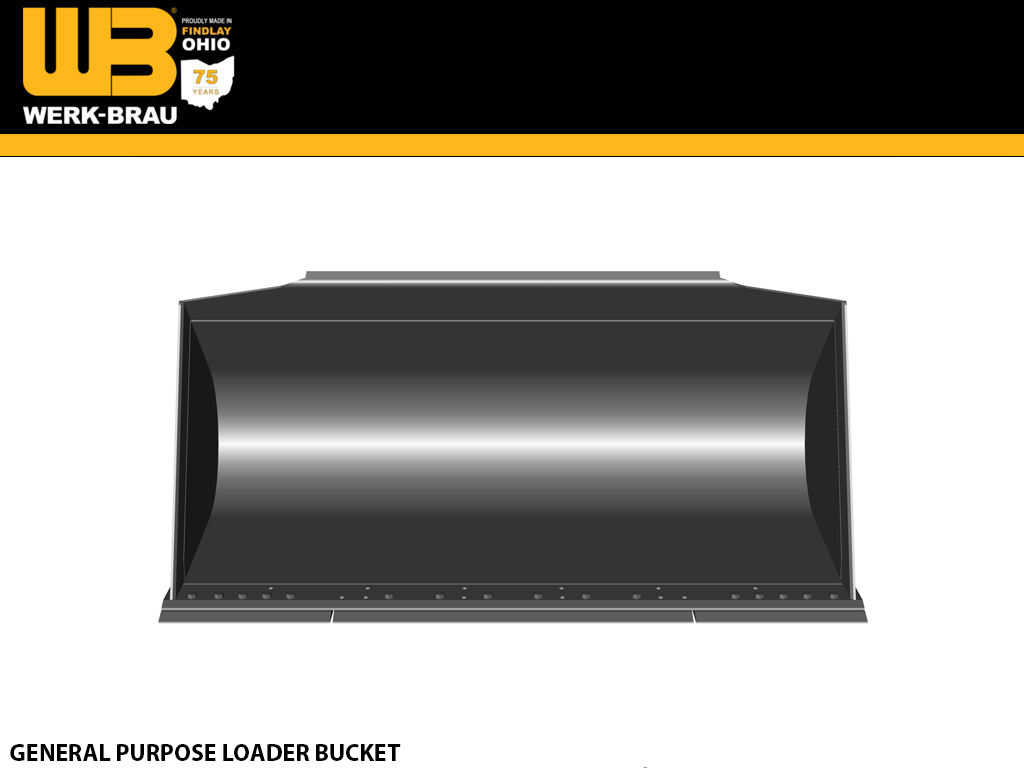

WERK-BRAU General Purpose Loader buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

Capacity

2/24

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.


Features


  • Enhanced High performance Profile
  • Designed for general purpose applications with material densities up to 3,200 lb/cy
  • Performance side plates & increased roll back angle allow for greater material retention
  • 5%+ greater material retention
  • Tapered side plates to reduce wear & easier dumping
  • integrated spill guard

PART # WIDTH CAPACITY WEIGHT
LHG35105300
105"
3.00
2790
LHG35105325 105"
3.25
2870
LHG35105350 105" 3.50
2960
LHG35105375 105" 3.75 3090


CLASS 3.5

CLASS 3.5 (30,000 - 33,000 LBS) MODEL
CASE 721G
CAT 938, IT38
DEVELON DL250-7, DL280-7
HITACHI ZW180
HYUNDAI HL955, HL757
JCB 436, 437
JOHN DEERE 624
KOMATSU WA320
KUBOTA
LIEBHERR L546, L550X
LINK-BELT
NEW HOLLAND LW170
SANY
TAKEUCHI
VOLVO L90
WACKER NEUSON
YANMAR
