LHG4117400

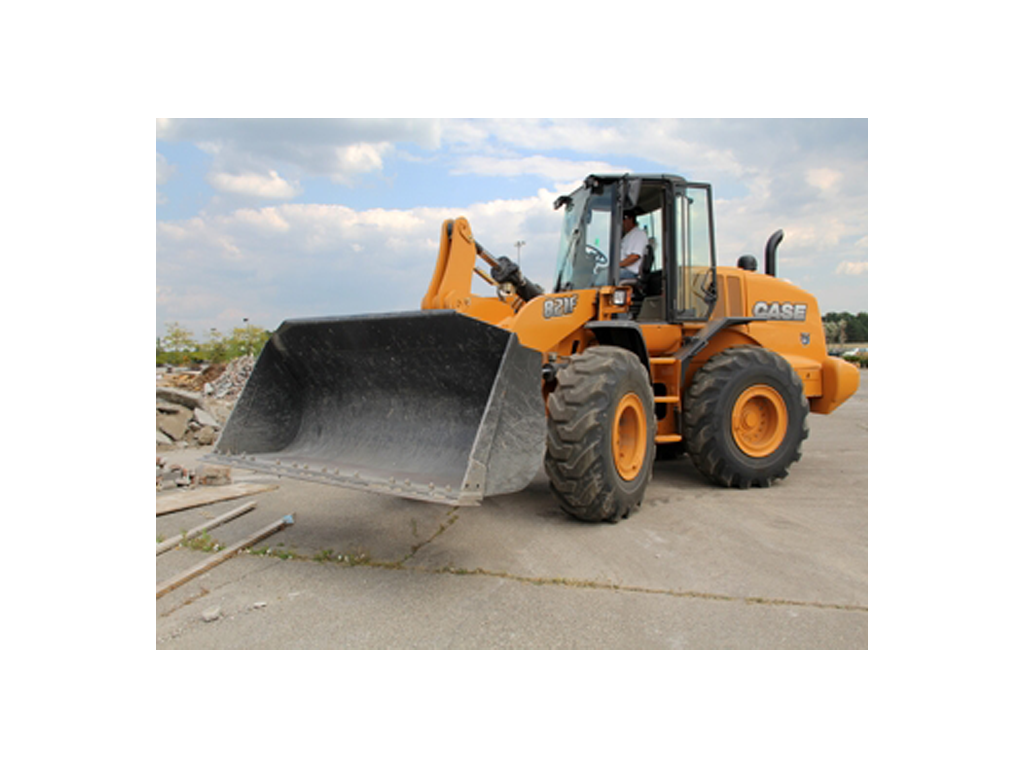

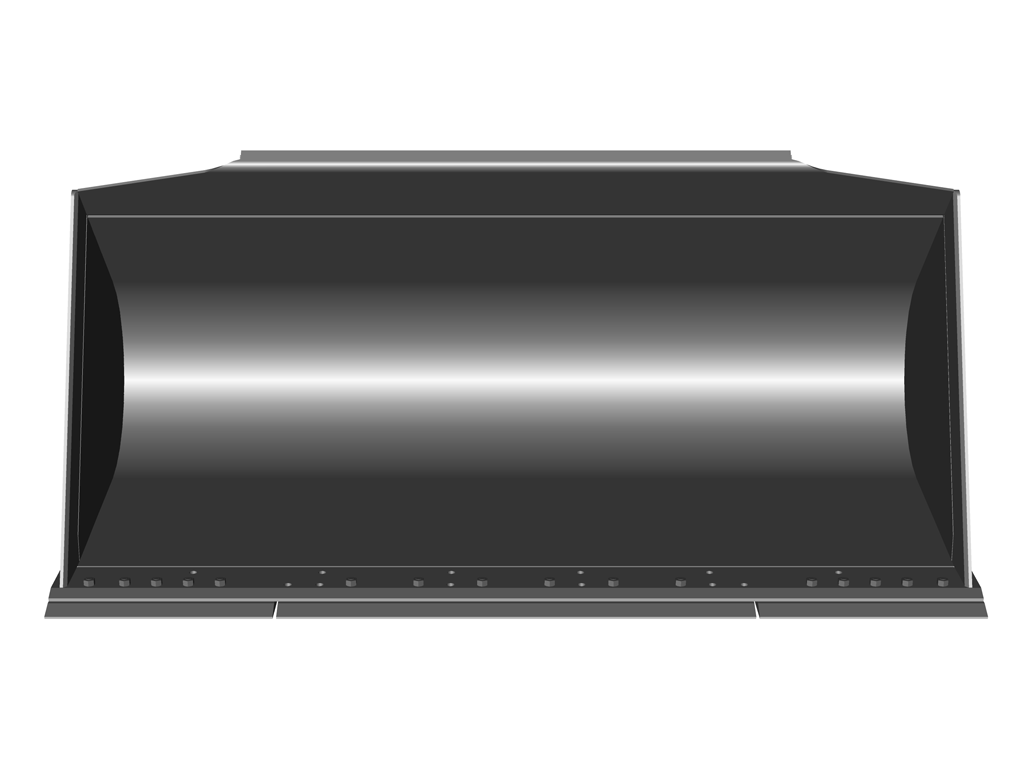

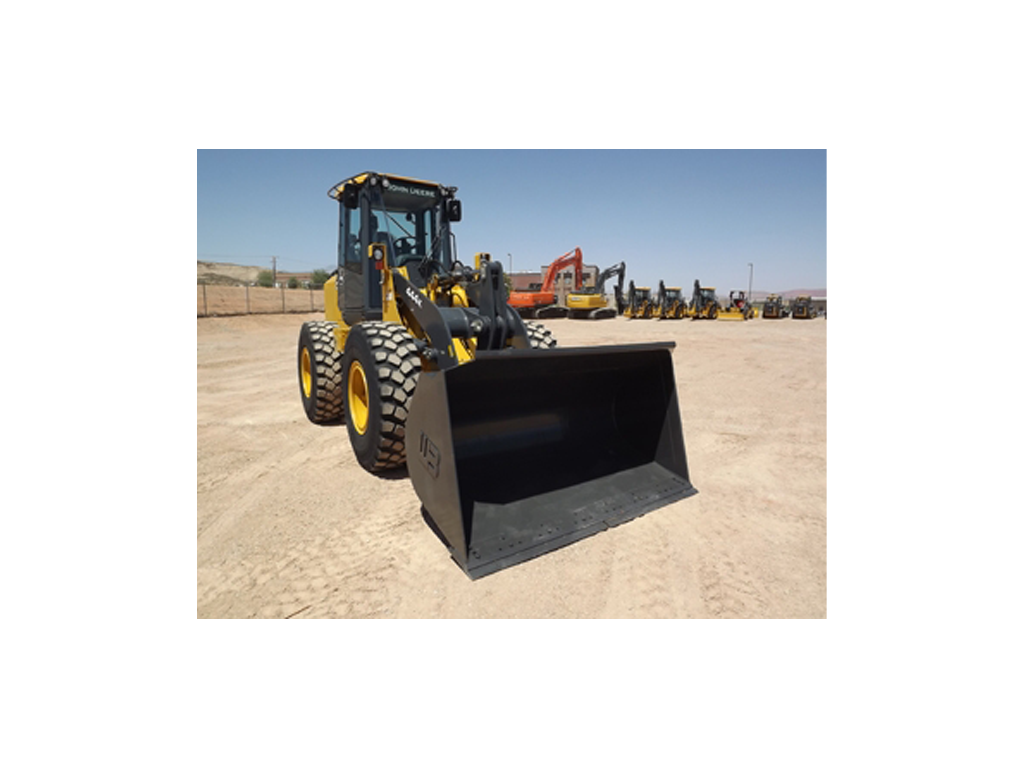

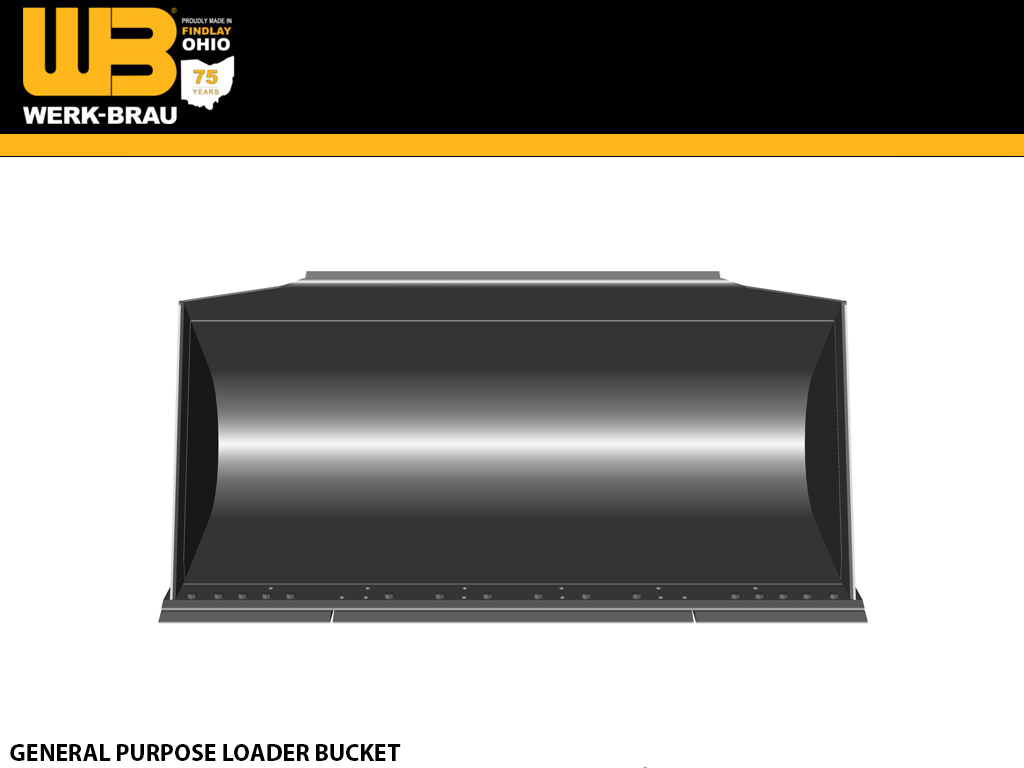

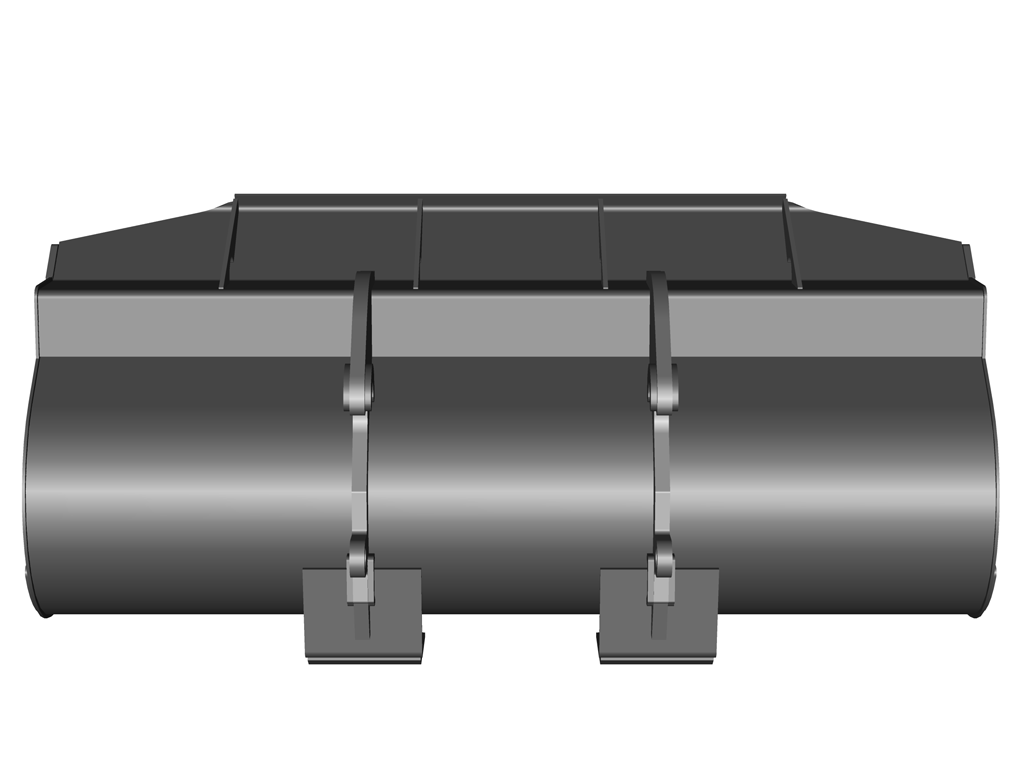

WERK-BRAU General Purpose Loader buckets for Wheel loaders 33,000 - 43,000 lbs. (class 4)

Capacity

2/24

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.


Features


  • Enhanced High performance Profile
  • Designed for general purpose applications with material densities up to 3,200 lb/cy
  • Performance side plates & increased roll back angle allow for greater material retention
  • 5%+ greater material retention
  • Tapered side plates to reduce wear & easier dumping
  • integrated spill guard

PART # WIDTH CAPACITY WEIGHT
LHG4117350
117"
3.50
3300
LHG4117400
117"
4.00
3520
LHG4117425
117" 4.25
3590
LHG4117450
117" 4.50
3690
LHG4117475 117" 4.75 3850
LHG4117500 117" 5.00 3950
LHG4117525 117" 5.25 4000


CLASS 4

CLASS 4 (33,000 - 43,000 LBS) MODEL
CASE 821G, 921G
CAT 950, 960, 962, IT62
DEVELON DL300-5, DL320-7, DL350-5, DL380-7
HITACHI ZW220, ZW250
HYUNDAI HL960, HL760
JCB 456, 457
JOHN DEERE 644, 724
KOMATSU WA380, WA430
KUBOTA
LIEBHERR L556X
LINK-BELT L150
NEW HOLLAND LW190
SANY SW405
TAKEUCHI
VOLVO L110, L120
WACKER NEUSON
YANMAR
