LHG5124500

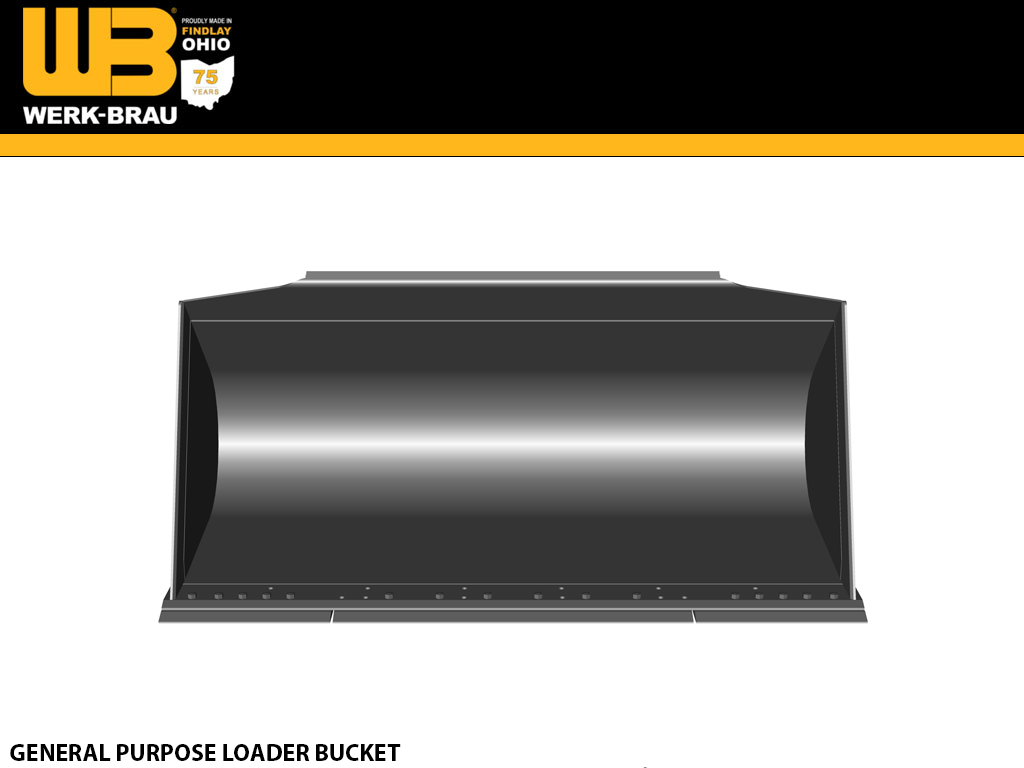

WERK-BRAU General Purpose Loader buckets for Wheel loaders 43,000 - 51,000 lbs. (class 5)

Capacity

2/24

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.


Features


  • Enhanced High performance Profile
  • Designed for general purpose applications with material densities up to 3,200 lb/cy
  • Performance side plates & increased roll back angle allow for greater material retention
  • 5%+ greater material retention
  • Tapered side plates to reduce wear & easier dumping
  • integrated spill guard

PART # WIDTH CAPACITY WEIGHT
LHG5124475
124"
4.75
4650
LHG5124500
124"
5.00 4750
LHG5124525
124" 5.25
4900
LHG5124550
124" 5.50
5020
LHG5124575 124" 5.75
5120
LHG5124600 124" 6.00
5250
LHG5124625 124" 6.25
5380


CLASS 5

CLASS 5 (43,000 - 51,000 LBS) MODEL
CASE 1021G, 1121G
CAT 966, 970
DEVELON DL420-5, DL420-7, DL450-5, DL450-7
HITACHI ZW310, ZX330
HYUNDAI HL970, HL770
JCB
JOHN DEERE 744, 824
KOMATSU WA470, WA480
KUBOTA
LIEBHERR L566X
LINK-BELT
NEW HOLLAND LW230
SANY
TAKEUCHI
VOLVO L150
WACKER NEUSON
YANMAR
