1GR18

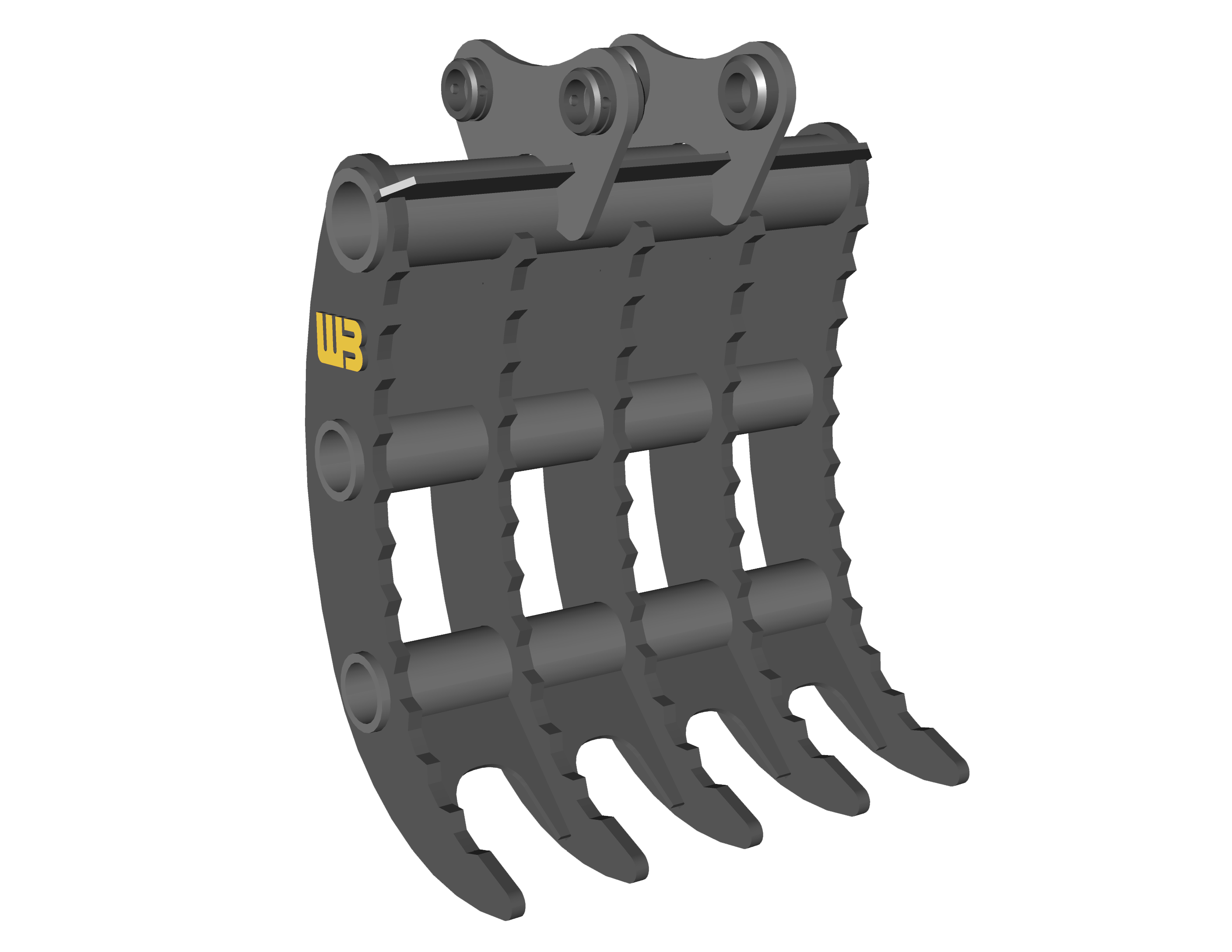

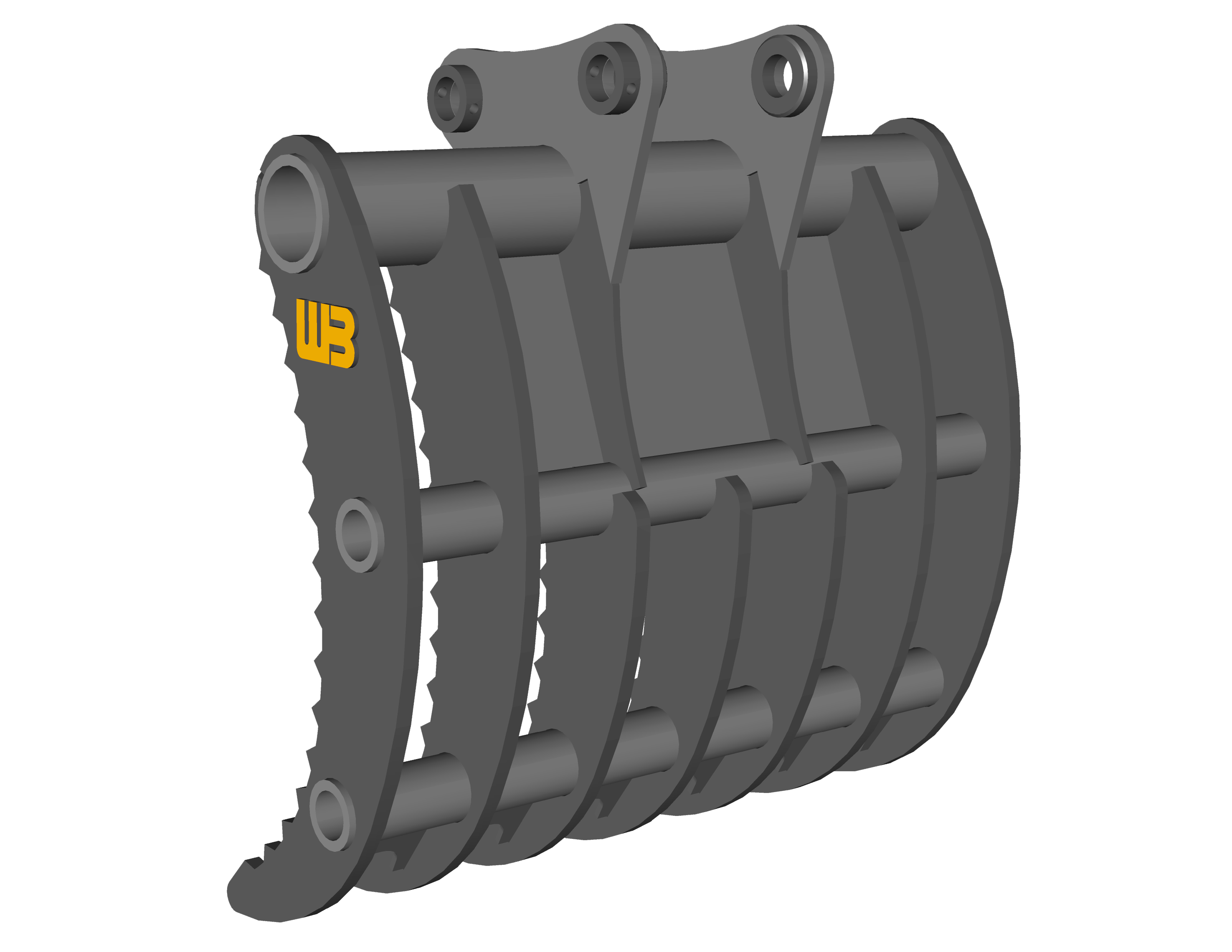

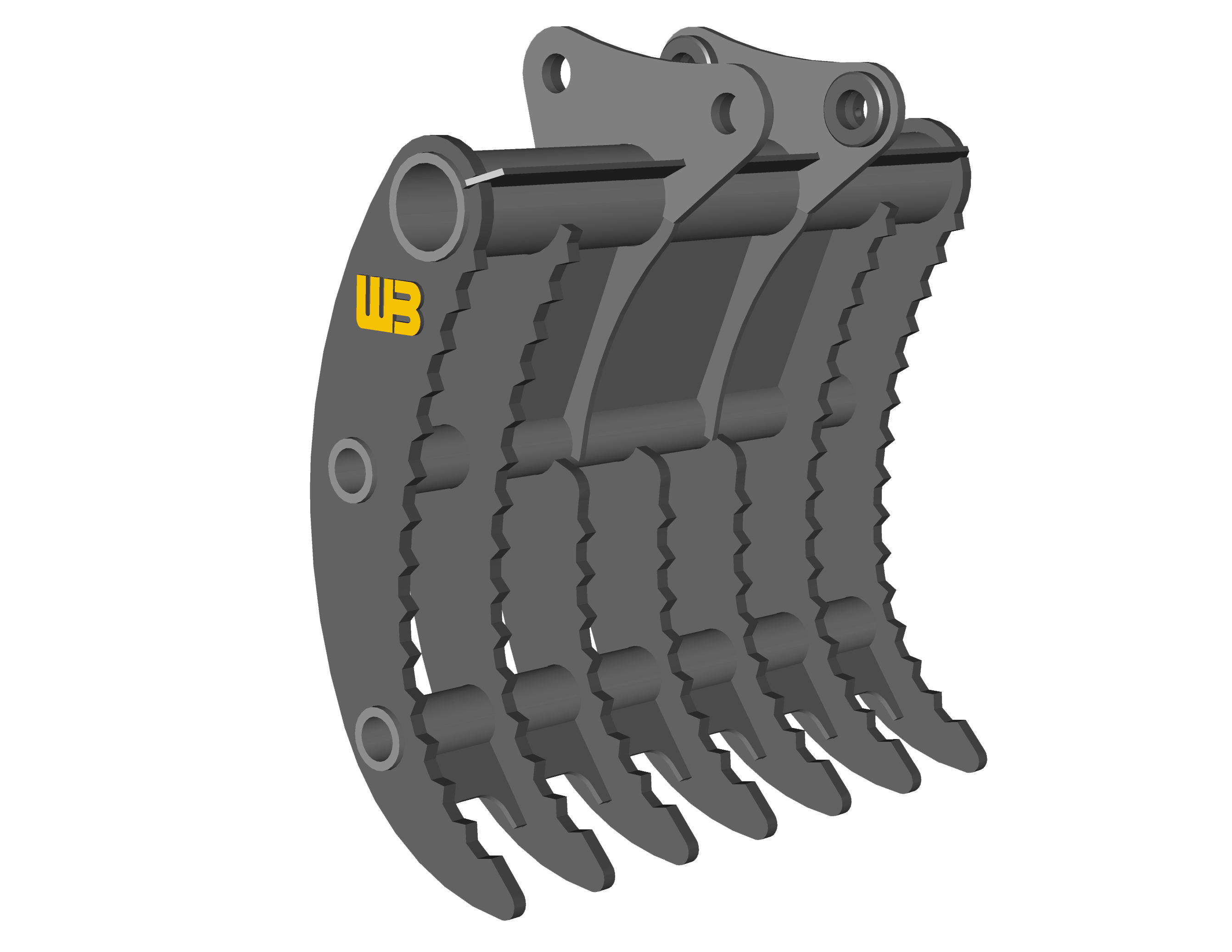

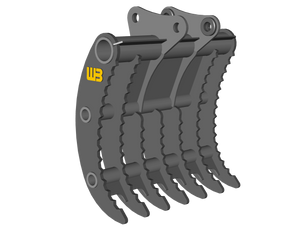

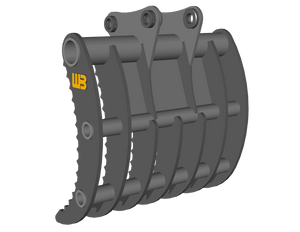

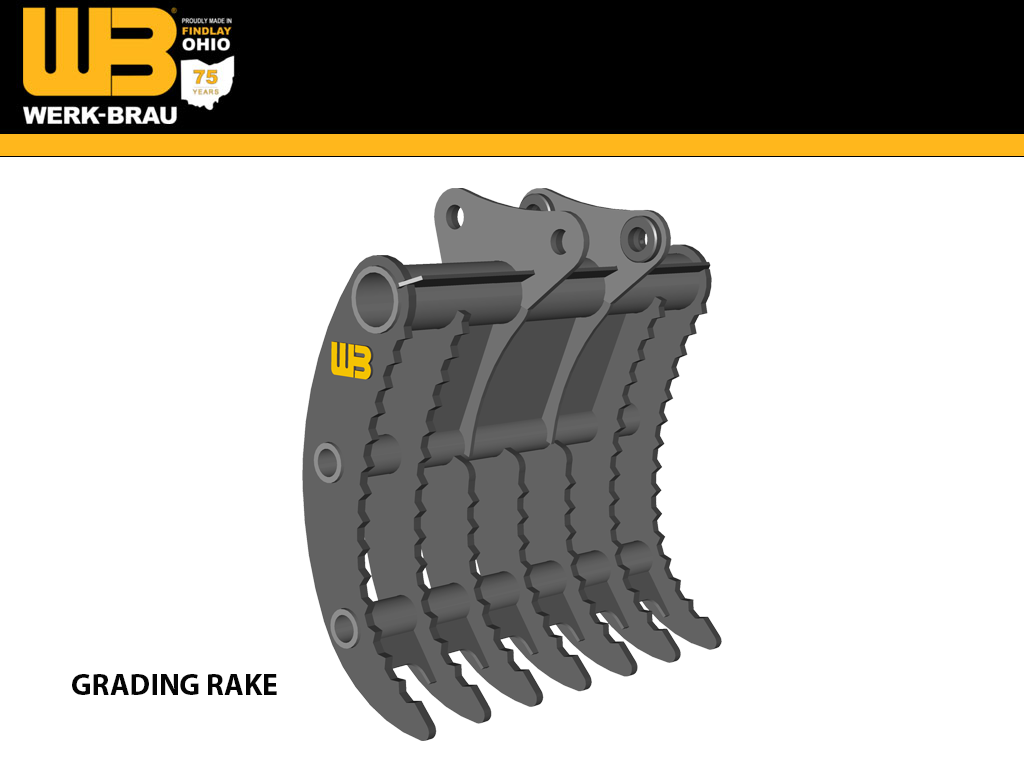

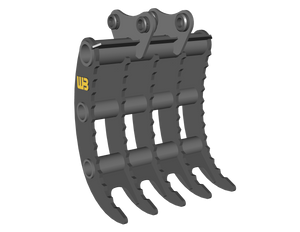

WERK BRAU GRADING RAKE FOR MINI EXCAVATORS
$1,887.00 - $4,100.00
2/24
MINI EX GRADING RAKE
Recommended Applications
Werk-Brau's mini-excavator grading/grapple rake is specifically designed for land clearing, gathering of demolition debris, and sorting of material. This grading/grapple rake is not designed to dig or rip soil. This grading/grapple rake can also be integrated with a thumb for dual hydraulic grapple action.
Quality Construction
Wear resistant high strength steel is used extensively throughout the weldment and rakes construction. Each tine is heavy duty and supported by reinforcing plates. Gussets are placed between tines for added strength.
Cutting Equipment Options
Serrated tines are available.
Standard Sizes
The grading/grapple rake can come in a variety of special widths. Additional tines are available. Special designs and options are available, please request a quote from your local dealer.
Thumb Option
The corresponding thumb attachment is sold separately.
***REFER TO MACHINE CLASS / FITS TAB TO DETERMINE YOUR MACHINE CLASS
| MACHINE CLASS | WIDTH | TINES | WEIGHT |
| mini 1 & mini 15 |
18" | 3 |
200 |
| mini 1 & mini 15 | 24" |
5 |
250 |
| mini 1 & mini 15 | 36" |
5 |
305 |
| mini 1 & mini 15 | 42" |
7 | 335 |
| MACHINE CLASS | WIDTH | TINES | WEIGHT |
| mini 2 & mini 3 |
24" |
3 |
275 |
| mini 2 & mini 3 | 36" | 5 |
320 |
| mini 2 & mini 3 | 42" |
5 |
350 |
| MACHINE CLASS | WIDTH | TINES | WEIGHT |
| mini 4 & mini 5 |
36" |
5 |
350 |
| mini 4 & mini 5 | 42" |
5 |
390 |
| mini 4 & mini 5 | 48" |
5 |
425 |
| MACHINE CLASS | WEIGHT |
| MINI 1 | 5,000 - 7,500 lbs. |
| MINI 15 | 7,500 - 11,000 lbs. |
| MINI 2 | 7,500 - 11,000 lbs. |
| MINI 3 | 11,000 - 14,000 lbs. |
| MINI 4 | 14,000 - 16,000 lbs. |
| MINI 5 | 16,000 - 24,000 lbs. |
MINI 1
| MAKE / WEIGHT CLASS | MINI 1 (5,000 - 7,500 LBS.) |
| BOBCAT | 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425 |
| CASE | CX31B, CX36B, CX37C |
| CAT | 302.7DCR, 303ECR |
| DOOSAN | DX30, DX35 |
| DITCH WITCH | XT1600 |
| GEHL | GE283X, GE303, GE353, GE383Z |
| HITACHI | ZX35U-2 |
| HYUNDAI | R35, R36 |
| IHI | 35N-2 |
| JCB | 2CX, 8030, 8035, MIDI |
| JOHN DEERE | 35G |
| KOBELCO | 30SR, 35SR |
| KOMATSU | PC27MR-3, PC35MR-3 |
| KUBOTA | U35, U48, KX033, KX040, KX71 |
| LINK BELT | |
| MUSTANG | ME3003, 2803ZT, ME3503, ME3703, 3803ZT |
| NEW HOLLAND | E30, E35 |
| SANY | SY26, SY35 |
| TAKEUCHI | TB125, TB135, TB228, TB240, TB138FR, TB235 |
| VOLVO | EC35C, ECR48C |
| YANMAR | Vio27-5, Vio35-5, Vio45-5, Vio-50 |
| WACKER NEUSON | EZ28, EZ38, 3503 |
MINI 15
| MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
| BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
| CASE | CX50B, CX55B, CX57C, CX60C |
| CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
| DOOSAN | DX60, DX63-3 |
| DITCH WITCH | |
| GEHL | GE503Z, GE603 |
| HITACHI | ZX50, AX60 |
| HYUNDAI | R55, R60 |
| IHI | 40JX, 45JX |
| JCB | 8040, 8045, 8052 |
| JOHN DEERE | 50G |
| KOBELCO | 50SR, 55SRX |
| KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
| KUBOTA | U55, KX057 |
| LINK BELT | |
| MUSTANG | 5003ZT, 6003 |
| NEW HOLLAND | E50, E55BX |
| SANY | SY50, SY60 |
| TAKEUCHI | TB145, TB153FR, TB250, TB260 |
| VOLVO | EC55B, ECR58 |
| YANMAR | Vio55-5 |
| WACKER NEUSON | ET65, EW65, EZ53, 6003 |
MINI 2
| MAKE / WEIGHT CLASS | MINI 2 (7,500 - 11,000 LBS.) |
| JOHN DEERE | 60G |
MINI 3
| MAKE / WEIGHT CLASS | MINI 3 (11,000 - 14,000 LBS.) |
| BOBCAT | E80, E85 |
| CASE | |
| CAT | 306CR |
| DOOSAN | DX80 |
| DITCH WITCH | |
| GEHL | GE753Z, GE803 |
| HITACHI | |
| HYUNDAI | R75 |
| IHI | 55N-2, 55NX, 65NX, 80NX |
| JCB | 8060 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC78, PC95, PC88MR-8 |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | 8003, 7503ZT |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | HR32 |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON | ET90, EW100, 8003 |
MINI 4
| MAKE / WEIGHT CLASS | MINI 4 (14,000 - 16,000 LBS.) |
| BOBCAT | |
| CASE | CX75, CX80 |
| CAT | 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB |
| DOOSAN | DX85SR-3 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX75, ZX80 |
| HYUNDAI | R80 |
| IHI | |
| JCB | 8080 |
| JOHN DEERE | 75G, 85G |
| KOBELCO | 70SR, 75SR, 80CS, SK85 |
| KOMATSU | |
| KUBOTA | KX080 |
| LINK BELT | 75, 80 |
| MUSTANG | |
| NEW HOLLAND | E70, E80 |
| SANY | SY75, SY80 |
| TAKEUCHI | TB070, TB175, TB180FR, TB285, TB290 |
| VOLVO | EC70, ECR88 |
| YANMAR | SV100, Vio-70, Vio75-a, Vio-80, B7-5A |
MINI 5
| MAKE / WEIGHT CLASS | MINI 5 (16,000 - 25,000 LBS.) |
| BOBCAT | 7X125 |
| CASE | |
| CAT | 310 |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | GE1202 |
| HITACHI | ZX90, ZX100 |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | ME12002 |
| NEW HOLLAND | E90 |
