WL2GB100-2.50

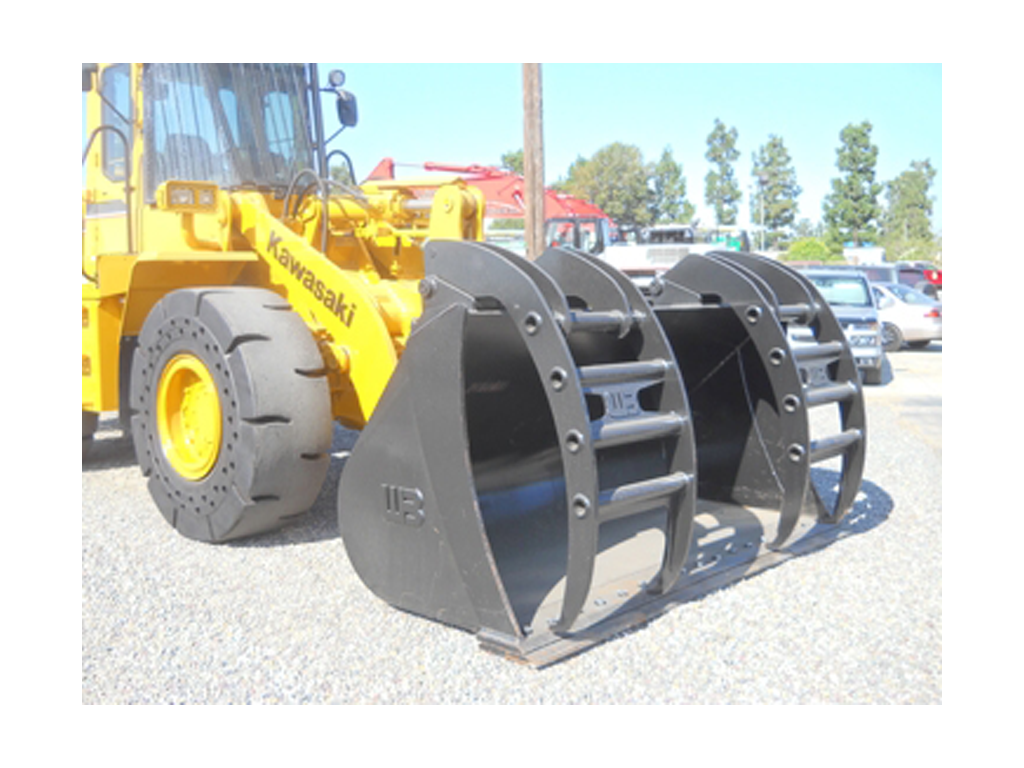

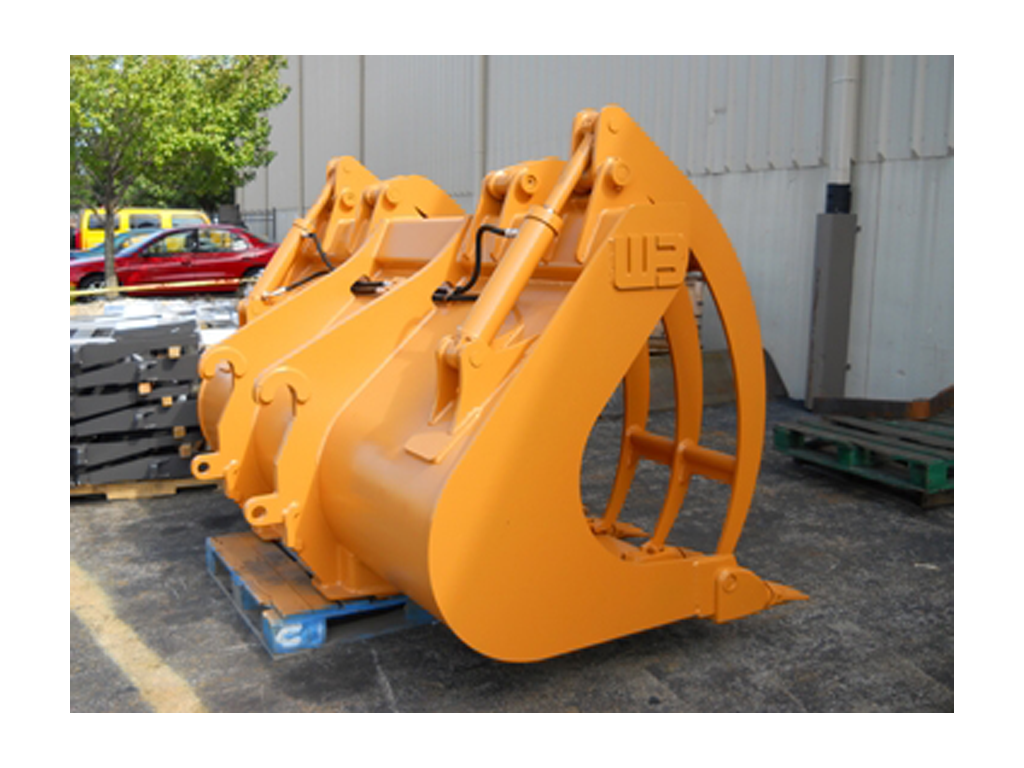

WERK-BRAU Grapple Bucket for Wheel loaders 20,000 - 26,000 lbs. (class 2)

Capacity

2/24

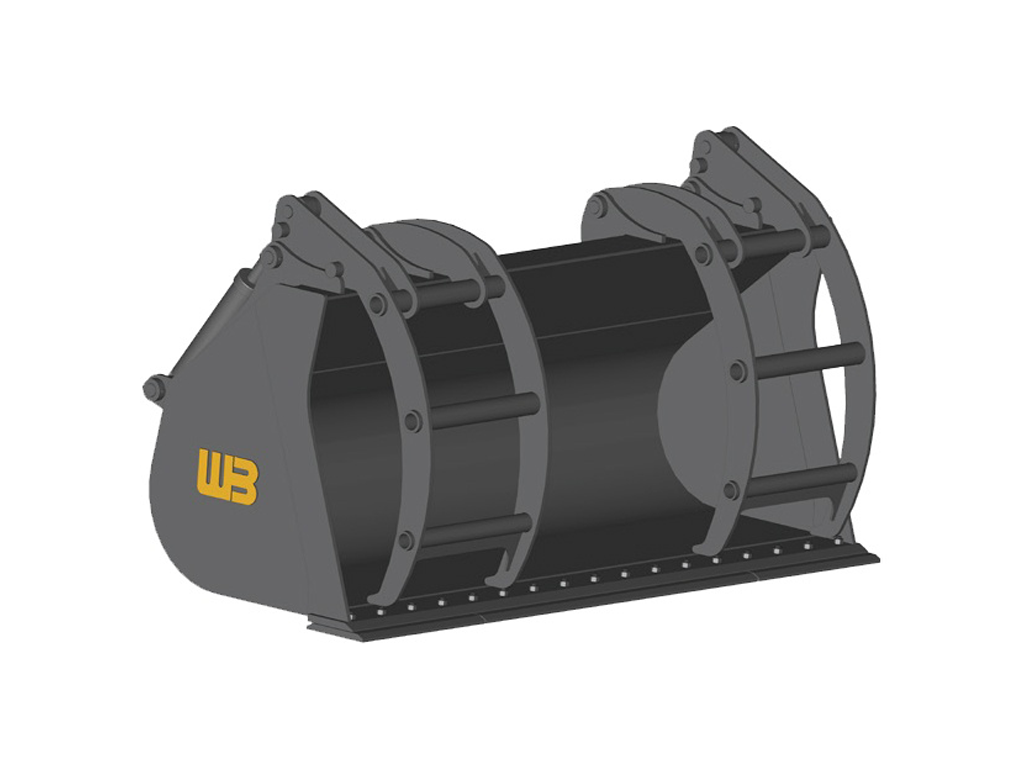

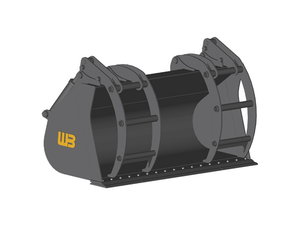

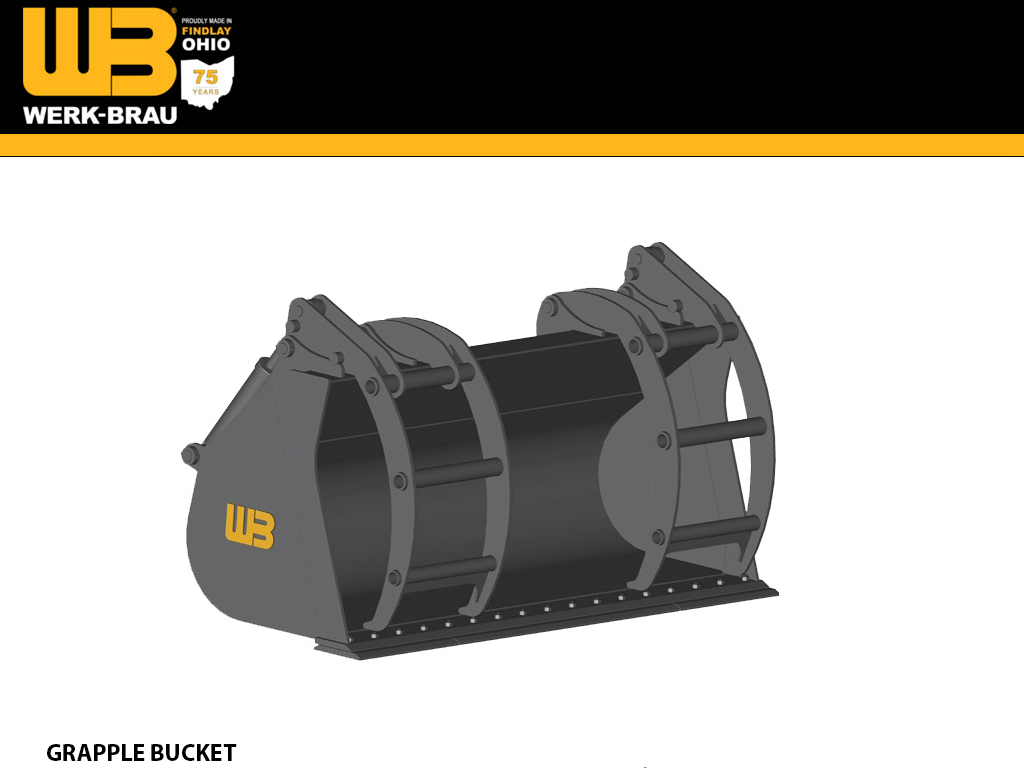

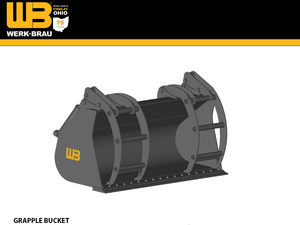

GRAPPLE BUCKET

Recommended Applications

Excellent attachment for use of metal scrap removal, brush, refuse and other light cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High-strength, abrasion resistant steel is utilized in all critical components. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.0 cu. yd. to 5.0 cu. yd. All makes and models.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Bolt on cutting edge optional. Optional tines.

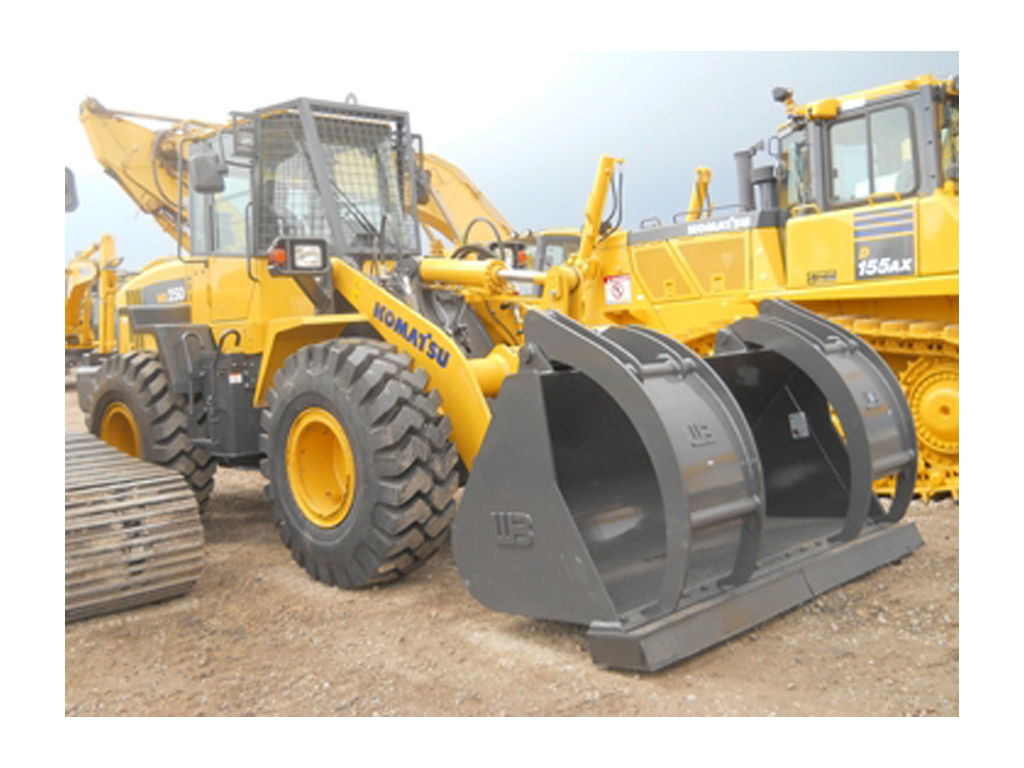

  • Dual tine grapple standard (shown), other options available at an upcharge
  • High quality cylinders used
  • includes bolt on cutting edge
  • does not include hose kit

PART # WIDTH CAPACITY WEIGHT
WL2GB100-2.50 100" 2.50 2,875
WL2GB100-3.00 100" 3.00 3,375
WL2GB100-4.00 100" 4.00 3,575

CLASS 2 (20,000 - 26,000 LBS) MODEL
CASE 521G
CAT 924, 928, 930, IT24-28
DEVELON DL200-5, DL200TC-5, DL200-7
HITACHI ZW140
HYUNDAI HL730, HL740, HL940
JCB 416
JOHN DEERE 444
KOMATSU WA150, WA200
KUBOTA
LIEBHERR L526
LINK-BELT
NEW HOLLAND LW110
SANY
TAKEUCHI
VOLVO L60
WACKER NEUSON
YANMAR
