WL1GRK-96

WERK-BRAU Grapple Rake for Wheel loaders 14,000 - 19,000 lbs. (class 1)

3/24

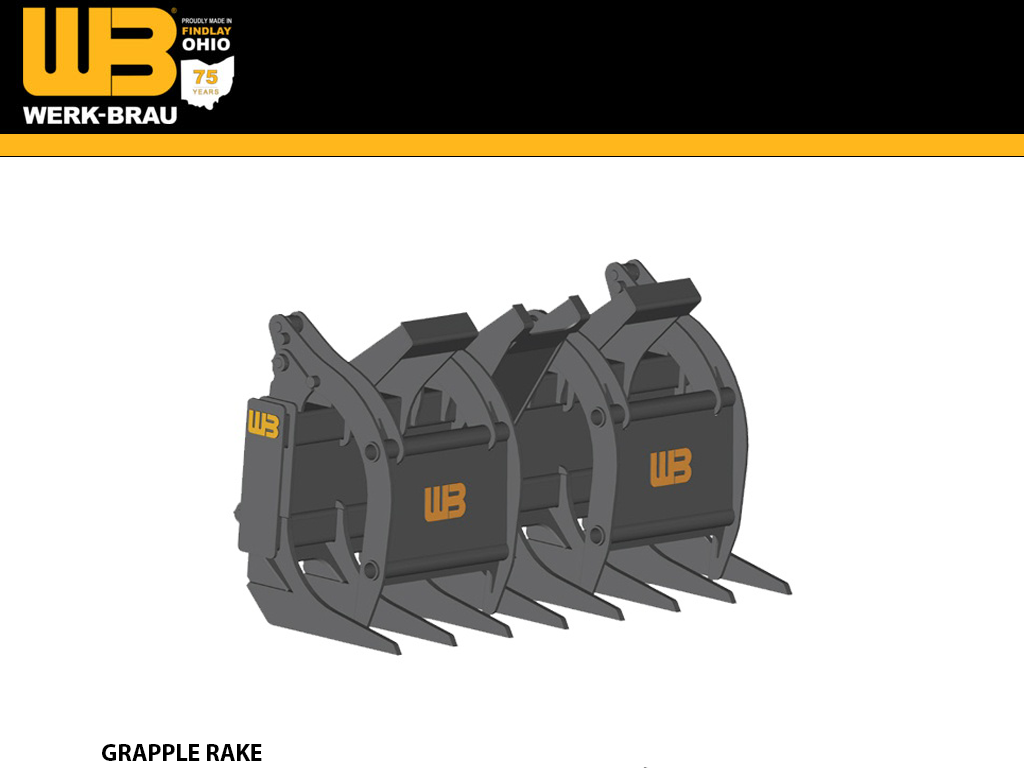

GRAPPLE RAKE

Recommended Applications

Excellent attachment for stacking and loading metal scrap, brush removal after land-clearing, refuse after clean-up, and other cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High quality cylinders are used and various tine styles are available. High strength, abrasion resistant steel is utilized throughout the entire weldment in all critical areas for added wear. Side guards are standard reducing wear and protecting tines.

Standard Sizes

Widths range from 96" - 132". Other widths are available upon request for quotation.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available

  • Wide mouth opening
  • Side guards
  • High Quality cylinders used
  • Dual paddle design standard
  • Does not include jumper hose kit
    PART # WIDTH # OF TINES WEIGHT
    WL1GRK-96 96" 8 2,600

     CLASS 1 (14,000-19,000 LBS) MODEL
    CASE 321G
    CAT 914
    DEVELON 160
    HITACHI ZW120
    HYUNDAI HL720
    JCB 217-3//S-3, 408, 409B ZX, 411
    JOHN DEERE 710, 244, 304, 324, 344
    KOMATSU WA70, WA80, WA100
    KUBOTA R430, R530, R630
    LIEBHERR L509, L514, L518
    LINK-BELT L125
    NEW HOLLAND
    SANY
    TAKEUCHI TW80
    VOLVO L45G, L50G
    WACKER NEUSON
    YANMAR
