WL4GRK-120

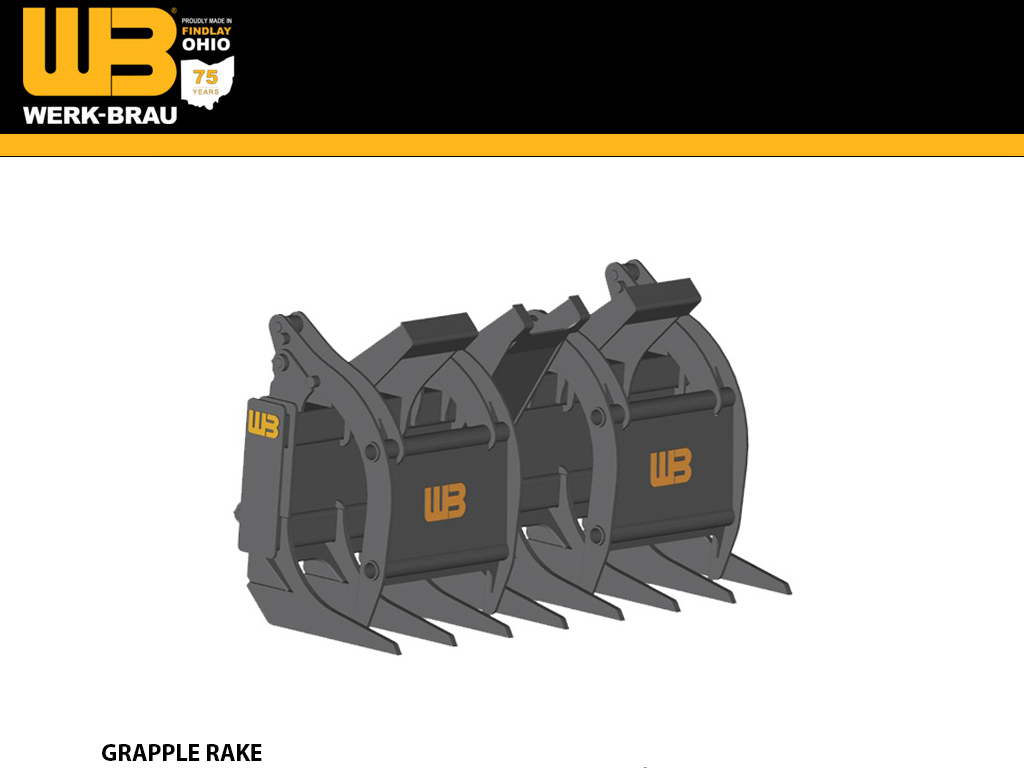

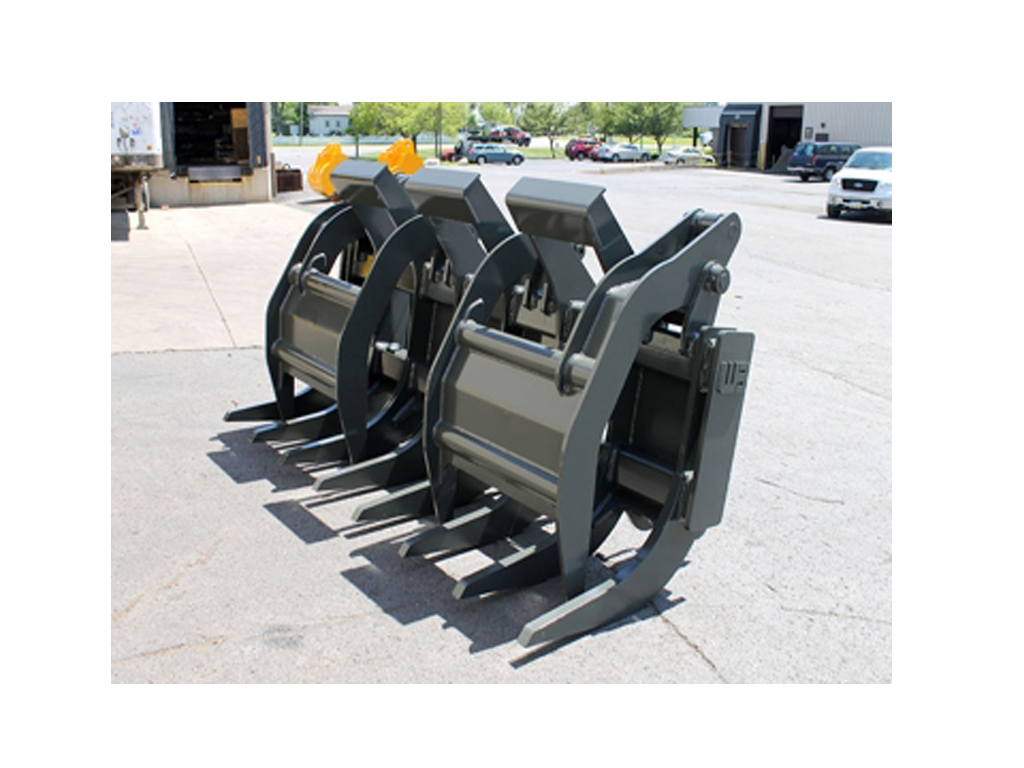

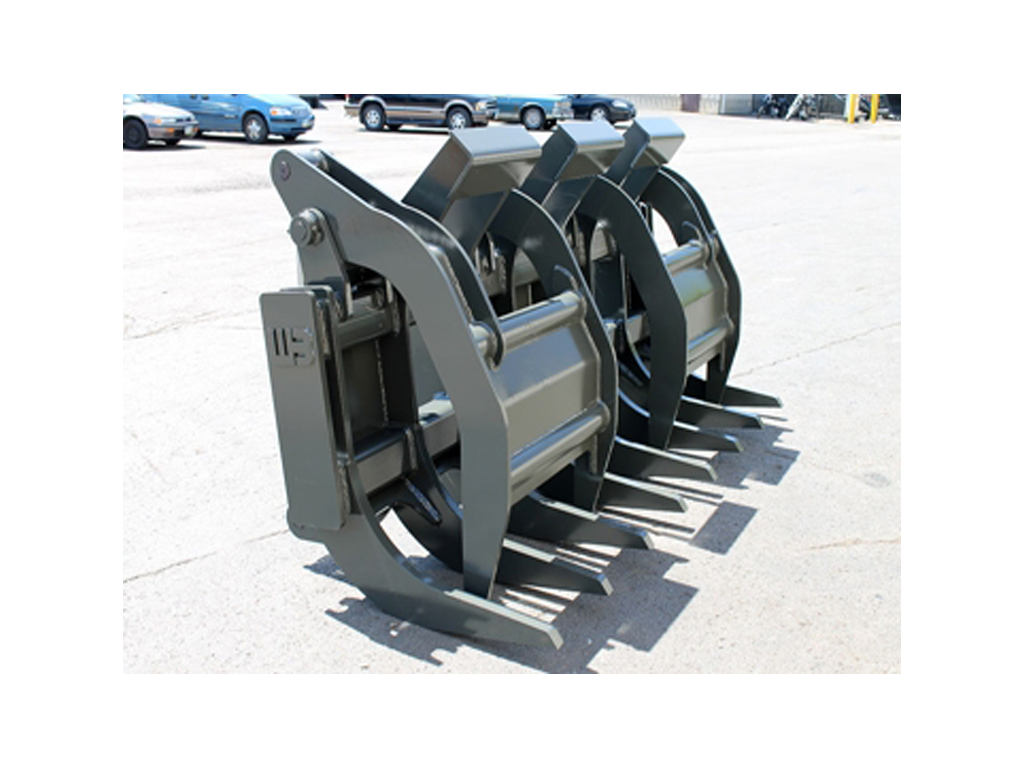

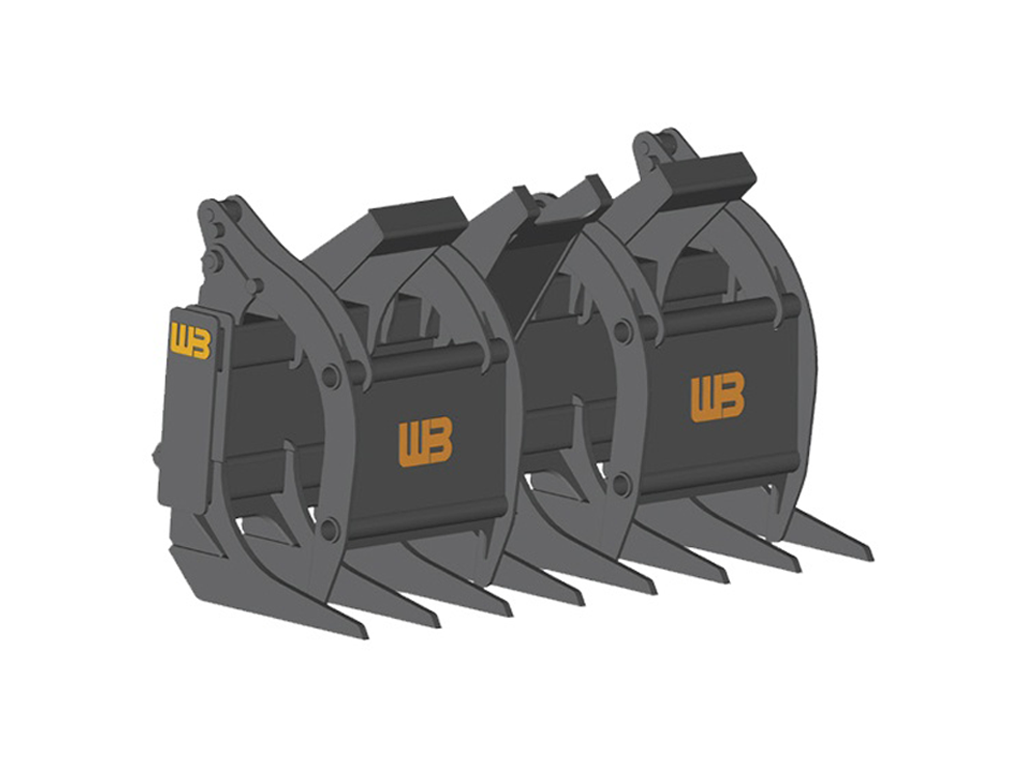

WERK-BRAU Grapple Rake for Wheel loaders 33,000 - 43,000 lbs. (class 4)

3/24

GRAPPLE RAKE

Recommended Applications

Excellent attachment for stacking and loading metal scrap, brush removal after land-clearing, refuse after clean-up, and other cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High quality cylinders are used and various tine styles are available. High strength, abrasion resistant steel is utilized throughout the entire weldment in all critical areas for added wear. Side guards are standard reducing wear and protecting tines.

Standard Sizes

Widths range from 96" - 132". Other widths are available upon request for quotation.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available

  • Wide mouth opening
  • Side guards
  • High Quality cylinders used
  • Dual paddle design standard
  • Does not include jumper hose kit
    PART # WIDTH # OF TINES WEIGHT
    WL4GRK-120 120" 10 7,400


    CLASS 4 (33,000 - 43,000 LBS) MODEL
    CASE 821G, 921G
    CAT 950, 960, 962, IT62
    DEVELON DL300-5, DL320-7, DL350-5, DL380-7
    HITACHI ZW220, ZW250
    HYUNDAI HL960, HL760
    JCB 456, 457
    JOHN DEERE 644, 724
    KOMATSU WA380, WA430
    KUBOTA
    LIEBHERR L556X
    LINK-BELT L150
    NEW HOLLAND LW190
    SANY SW405
    TAKEUCHI
    VOLVO L110, L120
    WACKER NEUSON
    YANMAR
