WL5GRK-132

WERK-BRAU Grapple Rake for Wheel loaders 43,000 - 51,000 lbs. (class 5)

3/24

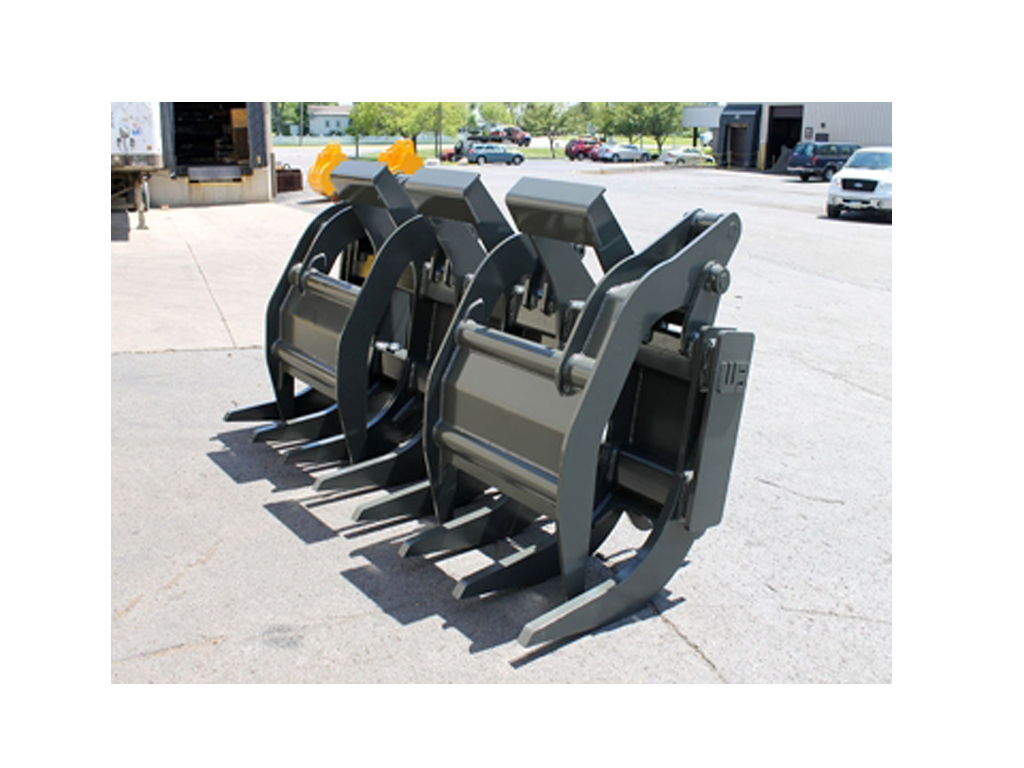

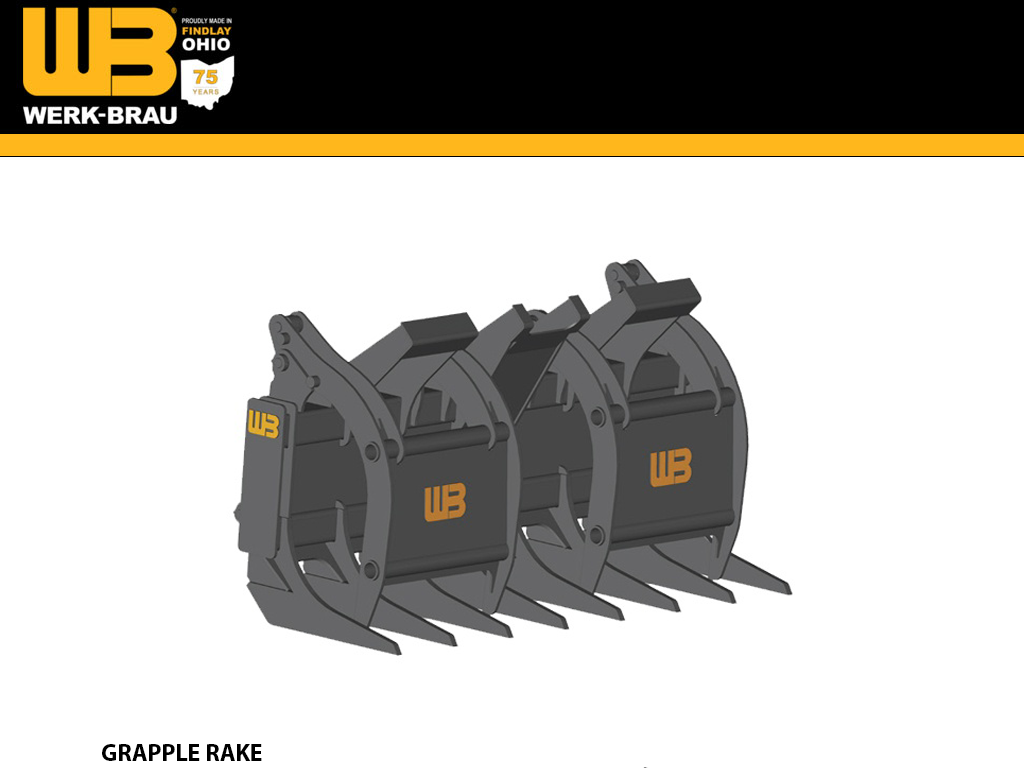

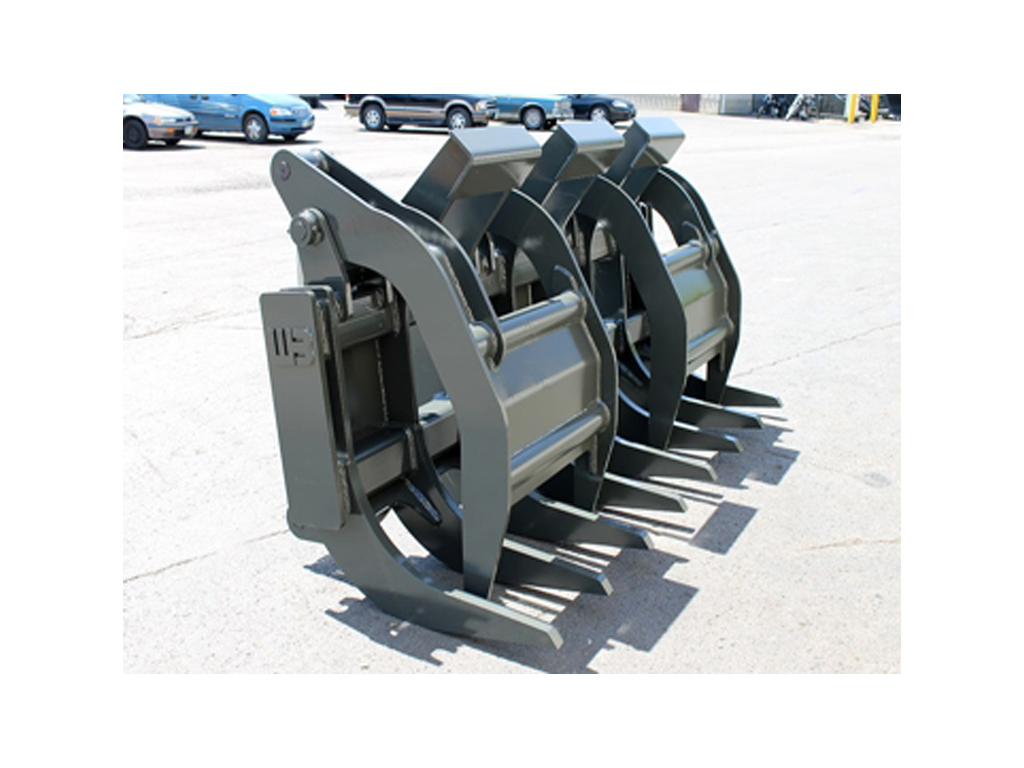

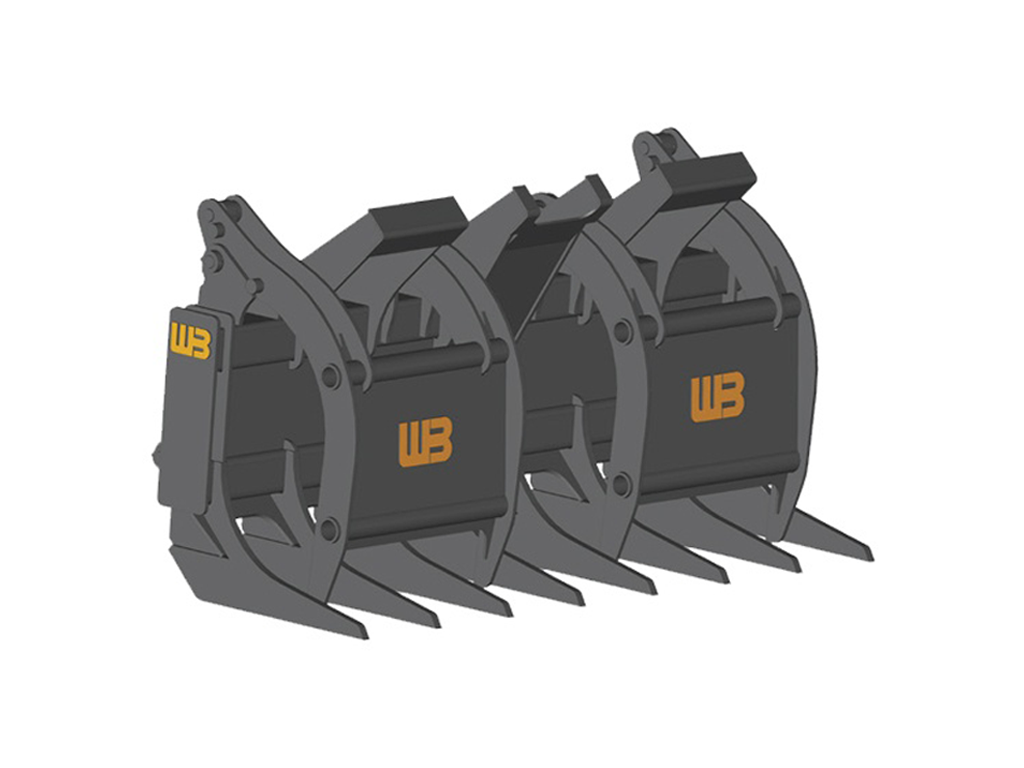

GRAPPLE RAKE

Recommended Applications

Excellent attachment for stacking and loading metal scrap, brush removal after land-clearing, refuse after clean-up, and other cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High quality cylinders are used and various tine styles are available. High strength, abrasion resistant steel is utilized throughout the entire weldment in all critical areas for added wear. Side guards are standard reducing wear and protecting tines.

Standard Sizes

Widths range from 96" - 132". Other widths are available upon request for quotation.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available

  • Wide mouth opening
  • Side guards
  • High Quality cylinders used
  • Dual paddle design standard
  • Does not include jumper hose kit
    PART # WIDTH # OF TINES WEIGHT
    WL5GRK-132 132" 10 7,600


    CLASS 5 (43,000 - 51,000 LBS) MODEL
    CASE 1021G, 1121G
    CAT 966, 970
    DEVELON DL420-5, DL420-7, DL450-5, DL450-7
    HITACHI ZW310, ZX330
    HYUNDAI HL970, HL770
    JCB
    JOHN DEERE 744, 824
    KOMATSU WA470, WA480
    KUBOTA
    LIEBHERR L566X
    LINK-BELT
    NEW HOLLAND LW230
    SANY
    TAKEUCHI
    VOLVO L150
    WACKER NEUSON
    YANMAR
