EX1-HGS
WERK BRAU Hangers / top mounts for Excavators
$2,067.00 - $5,973.00
1/24

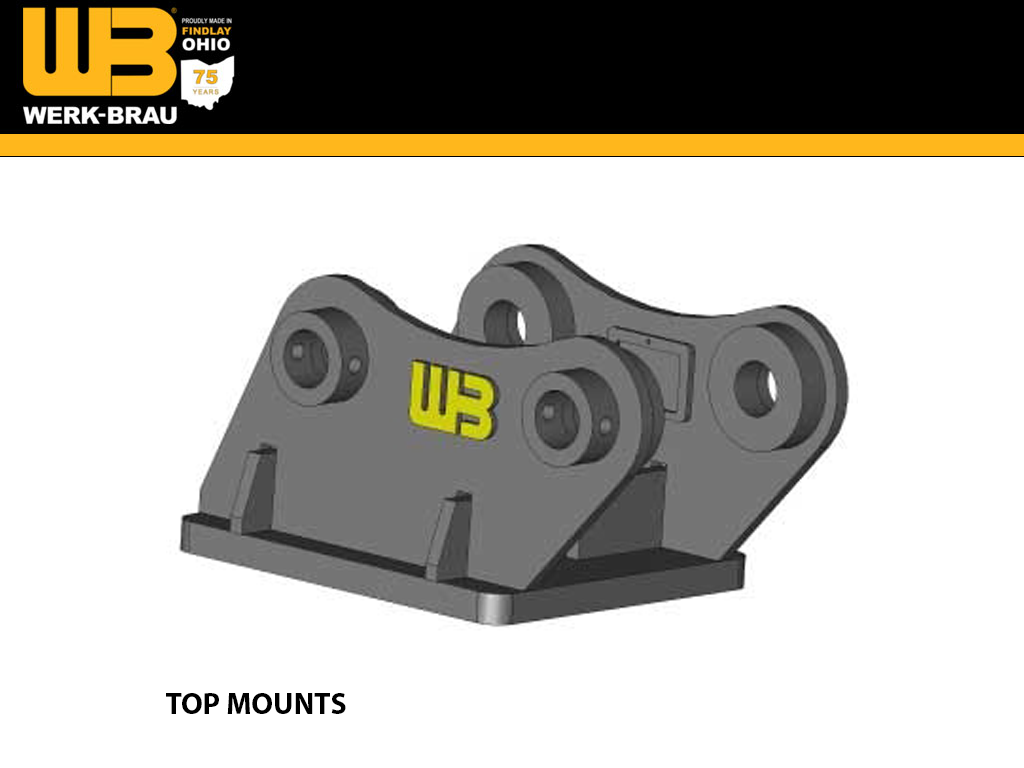

Hangers / top mounts for excavators.
Recommended Applications

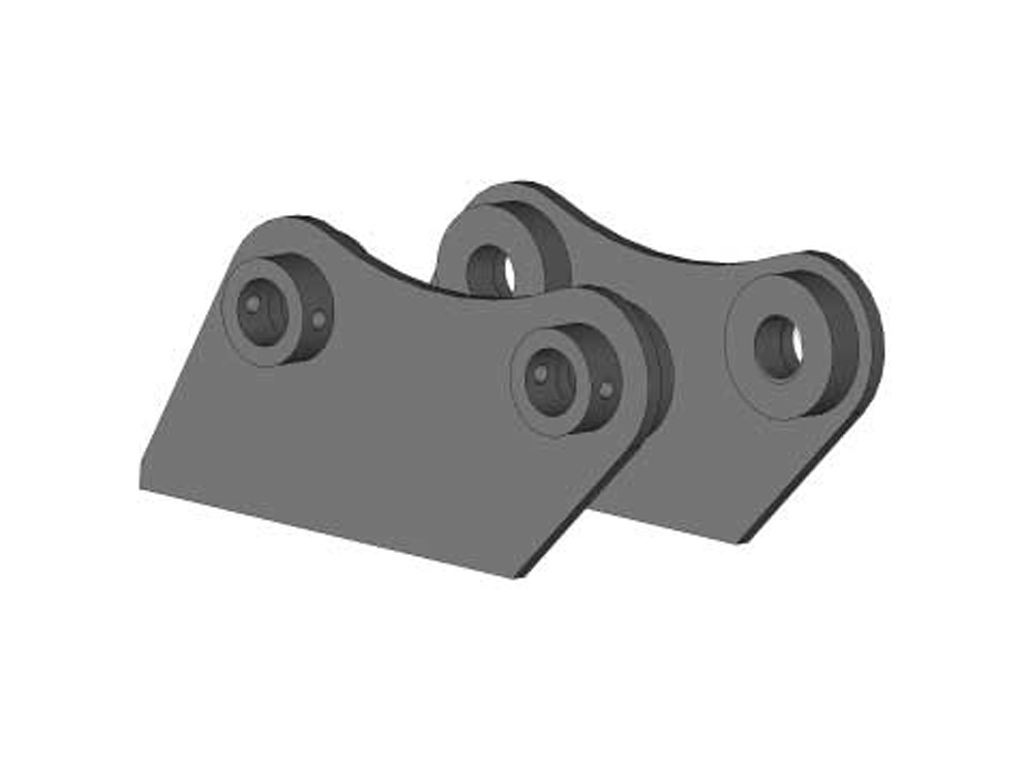

Werk-Brau's Hangers, Flat Plates, and Hammers are all standard OEM set up. Hanger blanks arrive as a loose set of ears. Hangers on a flat plate arrive as ears welded onto a plate. Hangers can be specifically drilled for a hammer, auger, compactor, etc.
***REFER TO MACHINE CLASS / FITS TAB TO DETERMINE YOUR MACHINE CLASS
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| 12 & 15 MT | EX1-HGS |
Hangers blanks |
350 |

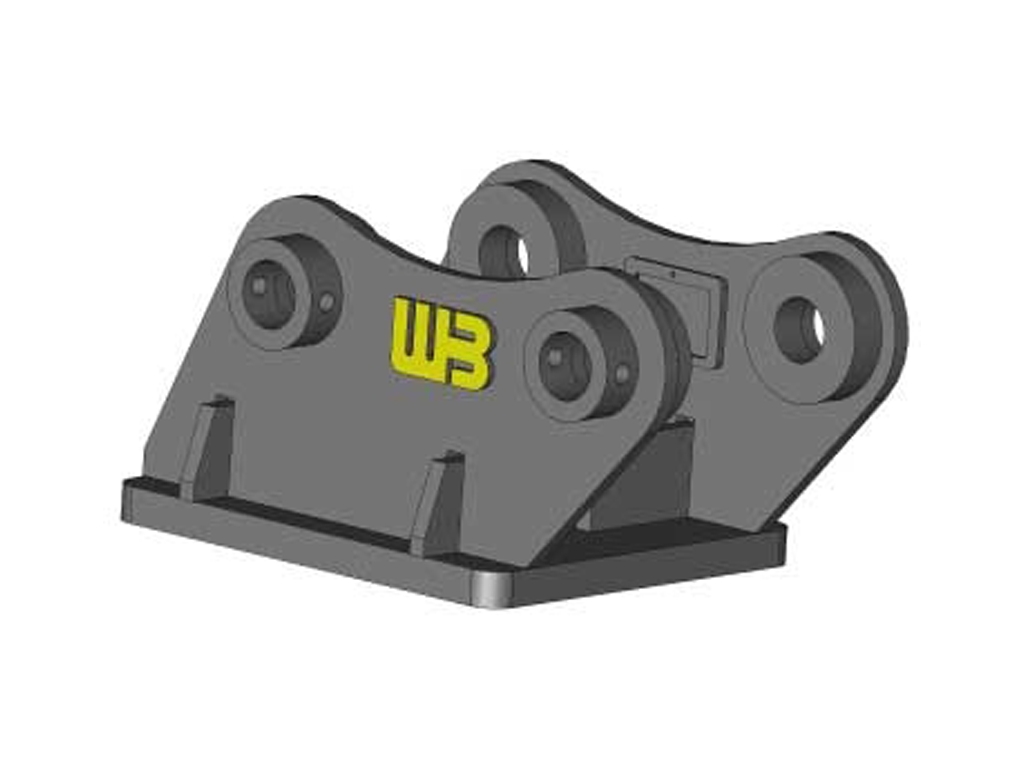

| 12 & 15 MT | EX1-HFP | Hangers on a flat plate 20" x 19.5" |
500 |
| 12 & 15 MT | EX1-HHM |
Hangers driller for hammer |
500 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| 20 & 25 MT | EX2-HGS |
Hangers blanks |
450 |
| 20 & 25 MT | EX2-HFP |
Hangers on flat plate 20" x 19.5" |
600 |
| 20 & 25 MT | EX2-HHM |
Hangers driller for hammer |
600 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| 30 & 35 MT | EX3-HGS |
Hangers blanks |
550 |
| 30 & 35 MT | EX3-HFP |
Hangers on flat plate 24" x 22" |
700 |
| 30 & 35 MT | EX3-HHM |
Hangers driller for hammer |
700 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| 40 & 50 MT | EX4-HGS |
Hangers blanks |
600 |
| 40 & 50 MT | EX4-HFP |
Hangers on flat plate 36" x 30" |
850 |
| 40 & 50 MT | EX4-HHM |
Hangers driller for hammer |
850 |
| CLASS | WEIGHT RANGE |
| 12MT | 24,000 - 33,000 lbs. |
| 15MT | 33,000 - 42,000 lbs. |
| 20MT | 42,000 - 50,000 lbs. |
| 25MT | 50,000 - 59,000 lbs. |
| 30MT | 59,000 - 68,000 lbs. |
| 35MT | 68,000 - 82,000 lbs. |
| 40MT | 82,000 - 105,000 lbs. |
| 50MT | 105,000 - 125,000 lbs. |
12 METRIC TONS
| MAKE / WEIGHT CLASS | 12MT (24,000 - 33,000 LBS.) |
| CASE | CX130, CX145D, CX140E |
| CAT | 311, 313, 314F, 315F (A-Linkage) |
| DOOSAN | DX140LC-5, DX140LCR-5, DX140W-5 |
| HITACHI | ZX130 |
| HYUNDAI | HX140, HX145, HX220 LR |
| JOHN DEERE | 130G, 135G, 130P |
| KOBELCO | SK140, ED160 |
| KOMATSU | PC138 |
| LIEBHERR | |
| LINK BELT | 130X4, 145X4, 210X4 LR |
| SANY | SY135, SY235 LR, SY265 LR |
| TAKEUCHI | TB1140, TB2150 |
| VOLVO | EW140, EC140, ECR145 |
15 METRIC TONS
| MAKE / WEIGHT CLASS | 15MT (33,000 - 42,000 LBS.) |
| CASE | CX160, CX170E, CX190E |
| CAT | 315D, 316F, 318F, M318F |
| DOOSAN | DX180LC-5, DX190W-5 |
| HITACHI | ZX160 |
| HYUNDAI | HX160, HX180 |
| JOHN DEERE | 160G, 160P |
| KOBELCO | ED195, SK170 |
| KOMATSU | PC170 |
| LIEBHERR | |
| LINK BELT | 160X4 |
| SANY | |
| TAKEUCHI | |
| VOLVO | EW160, EW180, EC160, EC180 |
20 METRIC TONS
| MAKE / WEIGHT CLASS | 20MT (42,000 - 50,000 LBS.) |
| CASE | CX210, CX220E, CX235, CX245 |
| CAT | 320, 321, M322F, 323 (B-Linkage) |
| DOOSAN | DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5 |
| HITACHI | ZX180, ZX200, ZX210, ZX245 |
| HYUNDAI | HX220, HX235 |
| JOHN DEERE | 210G, 245G, 180P, 210P, 190GW, 230GW |
| KOBELCO | SK210, SK230SR, SK260, SK270SR |
| KOMATSU | PC210-11, PC228, PC238 |
| LIEBHERR | R 920 L, 922 L |
| LINK BELT | 210X4, 234X4, 245X4 |
| SANY | SY215 |
| TAKEUCHI | |
| VOLVO | EC200, EW210, EC210, EC220, ECR235 |
25 METRIC TONS
| MAKE / WEIGHT CLASS | 25MT (50,000 - 59,000 LBS.) |
| CASE | CX250, CX260E |
| CAT | 325, 326F |
| DOOSAN | DX255LC-5 |
| HITACHI | ZX240, ZX250 |
| HYUNDAI | HX260 |
| JOHN DEERE | 250G, 250P |
| KOBELCO | SK260LC |
| KOMATSU | PC240 |
| LIEBHERR | R 916 L, R 924 L, R 934 CD |
| LINK BELT | 250X3, 250X4 |
| SANY | SY235, SY265 |
| TAKEUCHI | |
| VOLVO | EC240, EC250 |
30 METRIC TONS
| MAKE / WEIGHT CLASS | 30MT (59,500 - 68,000 LBS.) |
| CASE | CX300, CX365E |
| CAT | 326, 328, 329, 335F, CB-LINKAGE |
| DOOSAN | DX300LC-5, DX300LC-5SLR |
| HITACHI | ZX300, ZX345 |
| HYUNDAI | HX300 |
| JOHN DEERE | 300G, 345G, 300P |
| KOBELCO | SK300 |
| KOMATSU | PC270, PC290, PC308 |
| LIEBHERR | |
| LINK BELT | 300X3, 300X4, 355X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
35 METRIC TONS
| MAKE / WEIGHT CLASS | 35MT (68,500 - 82,000 LBS.) |
| CASE | CX350 |
| CAT | 330, 335, 336F DB-LINKAGE |
| DOOSAN | DX350LC-5, DX420LC-5 |
| HITACHI | ZX350, ZX380 |
| HYUNDAI | HX330, HX350, HX380 |
| JOHN DEERE | 350G, 380G, 350P |
| KOBELCO | SK350 |
| KOMATSU | PC300, PC350, PC360, PC390 |
| LIEBHERR | R 934 CL, R 924 C, R936 |
| LINK BELT | 350X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
40 METRIC TONS
| MAKE / WEIGHT CLASS | 40MT (82,500 - 105,000 LBS.) |
| CASE | CX470, CX490 |
| CAT | 349F |
| DOOSAN | DX480, DX490LC-5 |
| HITACHI | ZX450, ZX470, ZX490 |
| HYUNDAI | HX480 |
| JOHN DEERE | 470G, 470P |
| KOBELCO | SK480, SK485, SK500 |
| KOMATSU | PC400, PC450, PC490 |
| LIEBHERR | R 944 |
| LINK BELT | 460, 470, 490X4 |
| SANY | SY500 |
| TAKEUCHI | |
| VOLVO | EC460, EC480 |
50 METRIC TONS
| MAKE / WEIGHT CLASS | 50MT (105,000 - 125,000 LBS.) |
| CASE | |
| CAT | 352F |
| DOOSAN | DX490, DX530LC-5, DX530LC-5SLR |
| HITACHI | |
| HYUNDAI | HX520 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | |
| LIEBHERR | R 954 C, R956 C |
| LINK BELT | |
| SANY | |
| TAKEUCHI | |
| VOLVO | . |
