WL2HT100-4.00

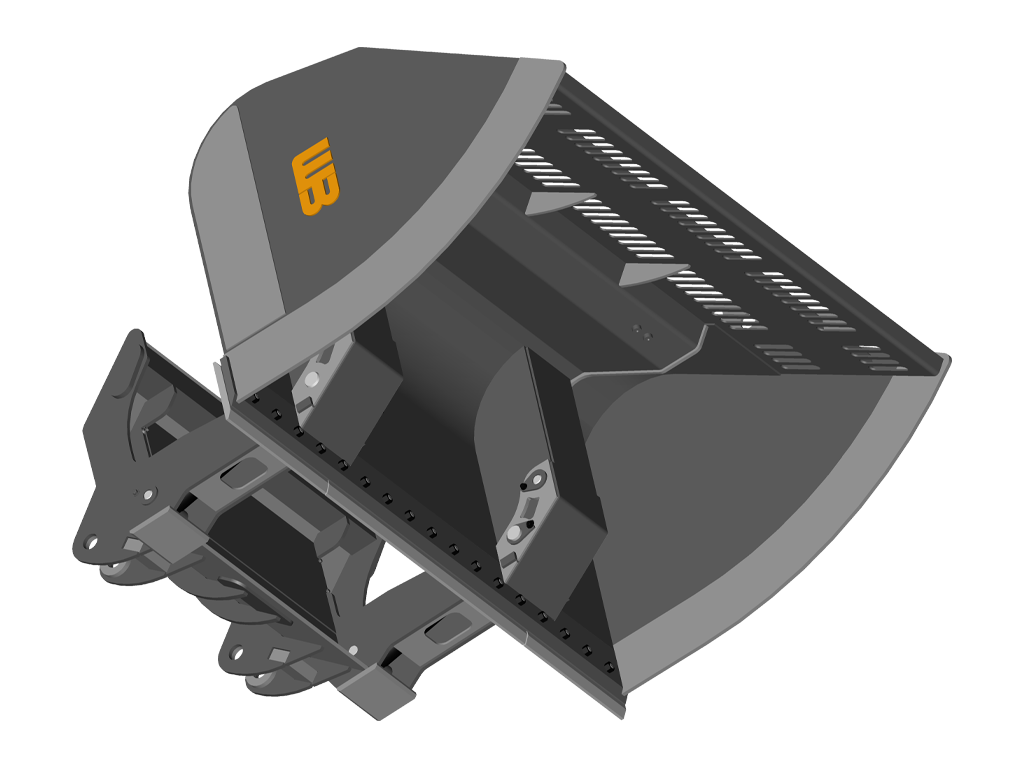

WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 20,000 - 26,000 lbs. (class 2)

Capacity

2/24

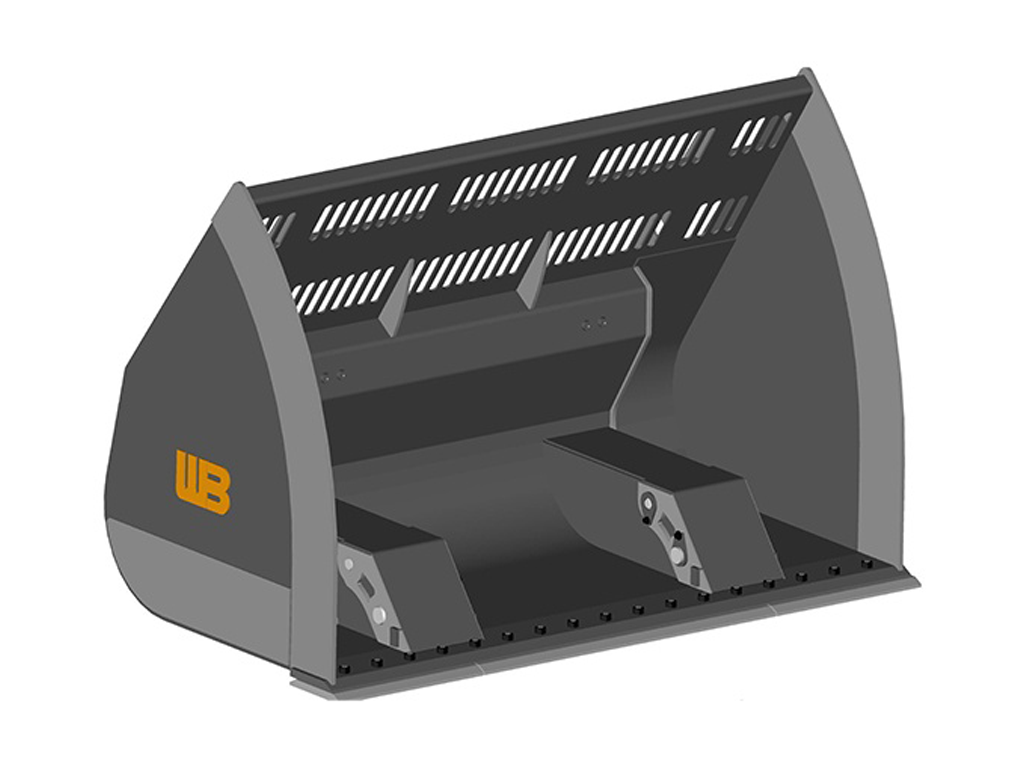

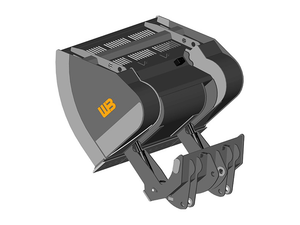

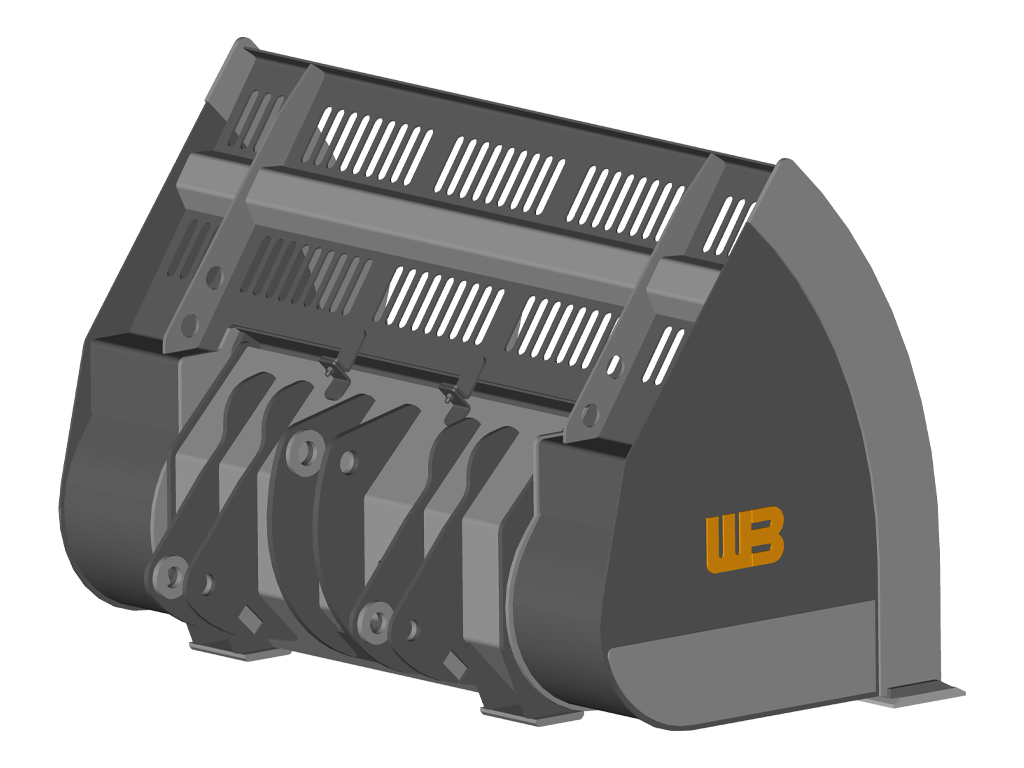

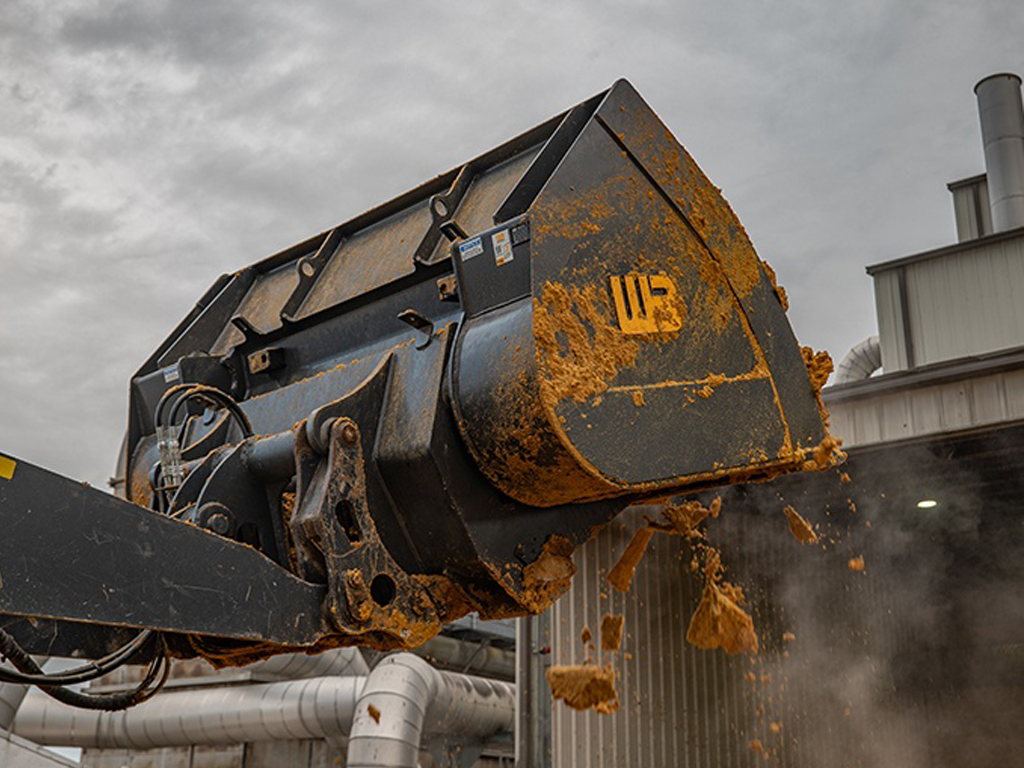

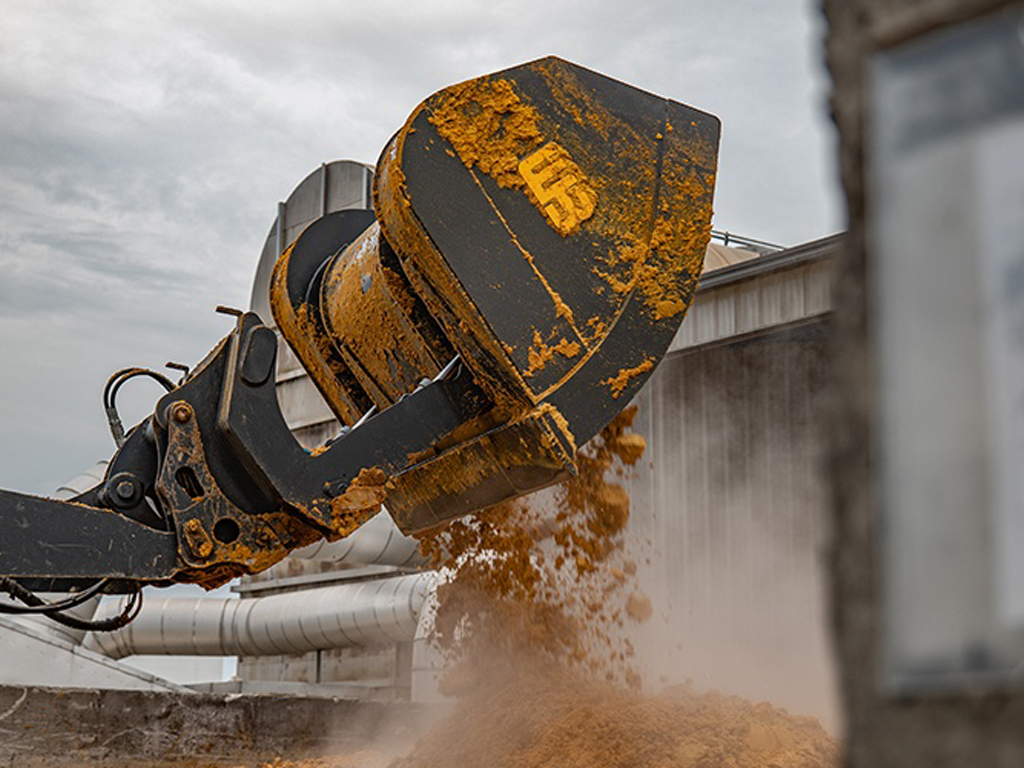

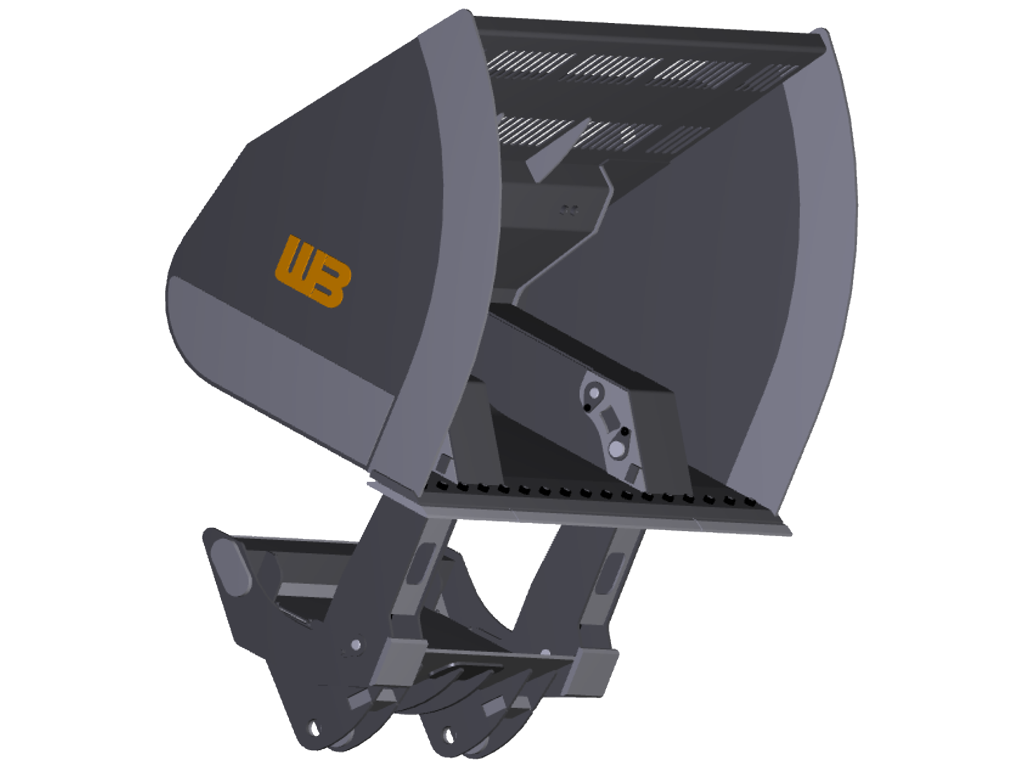

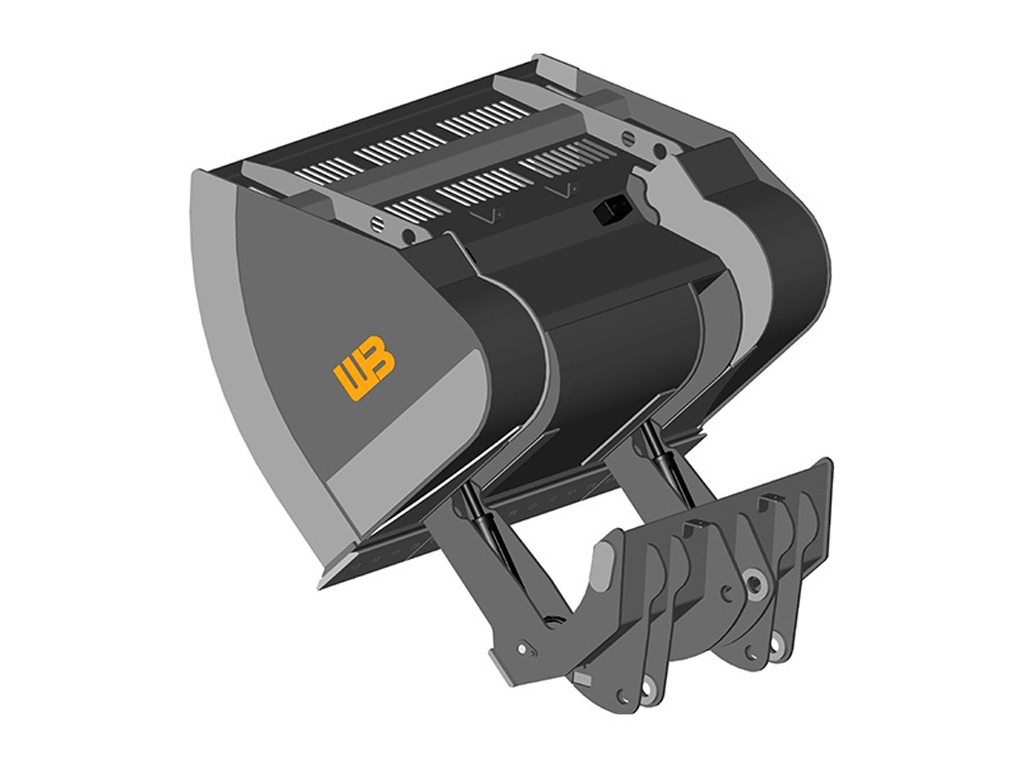

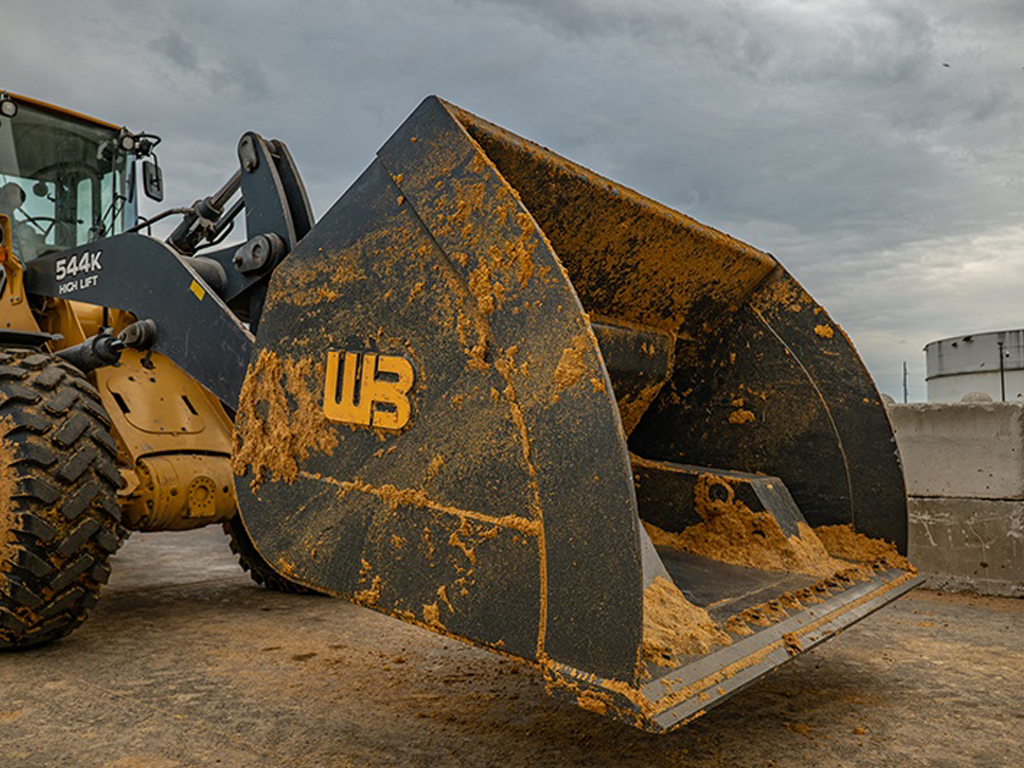

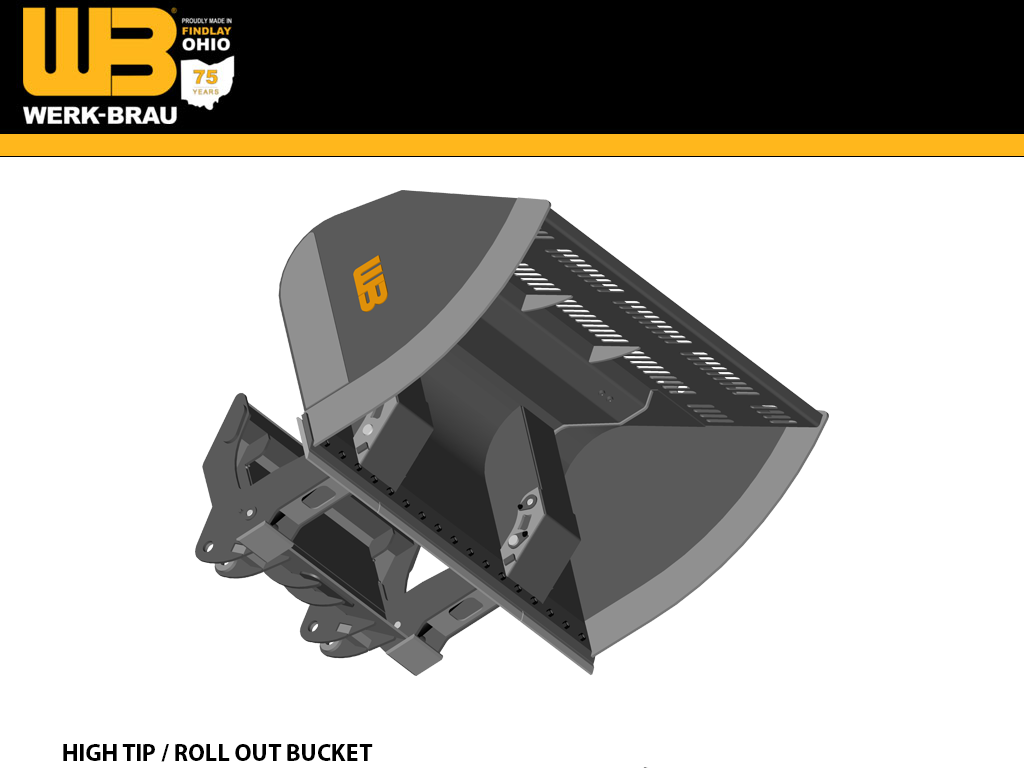

HIGH TIP / ROLL OUT BUCKET

Recommended Applications

Specifically designed for increased dump height 24"+ which is perfect for backfilling or loading trucks and re-handling light materials up to 2,000 lbs.

Additional Features

Bucket design incorporates a recessed carriage design to improve center of gravity. This mean less tippyness and less stress on the loader and bucket. Visibility slots come standard along with dual cushioned cylinders and performance side plates for increased material retention.

  • Dual cylinders
  • Over 93° of dump action
  • versatile design
  • designed for overhead loading,vertical piling, & back filling
  • High performance light material profile loader bucket
  • includes bolt on cutting edge
  • does not include hose kit
  • designed for materials up to 2,000 lbs.

PART # WIDTH CAPACITY WEIGHT
WL2HT100-4.00 100" 4.00 4,275
WL2HT100-5.00 100" 5.00 4,775

CLASS 2 (20,000 - 26,000 LBS) MODEL
CASE 521G
CAT 924, 928, 930, IT24-28
DEVELON DL200-5, DL200TC-5, DL200-7
HITACHI ZW140
HYUNDAI HL730, HL740, HL940
JCB 416
JOHN DEERE 444
KOMATSU WA150, WA200
KUBOTA
LIEBHERR L526
LINK-BELT
NEW HOLLAND LW110
SANY
TAKEUCHI
VOLVO L60
WACKER NEUSON
YANMAR
