WL3HT100-5.00

WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 26,000 - 30,000 lbs. (class 3)

Capacity

2/24

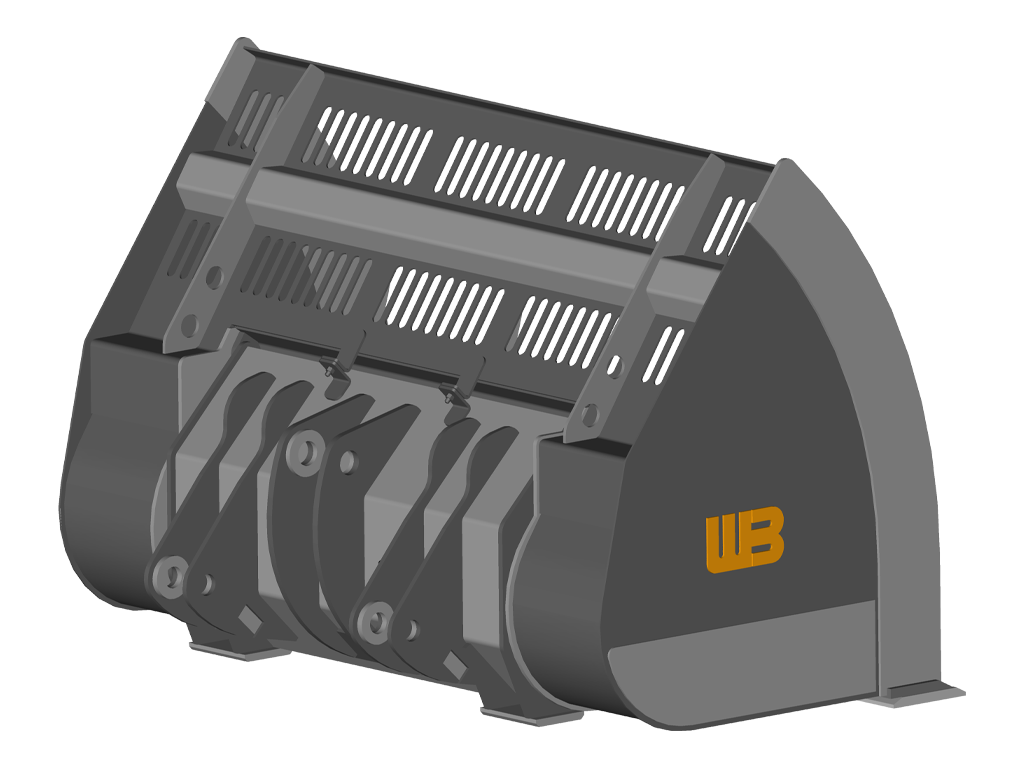

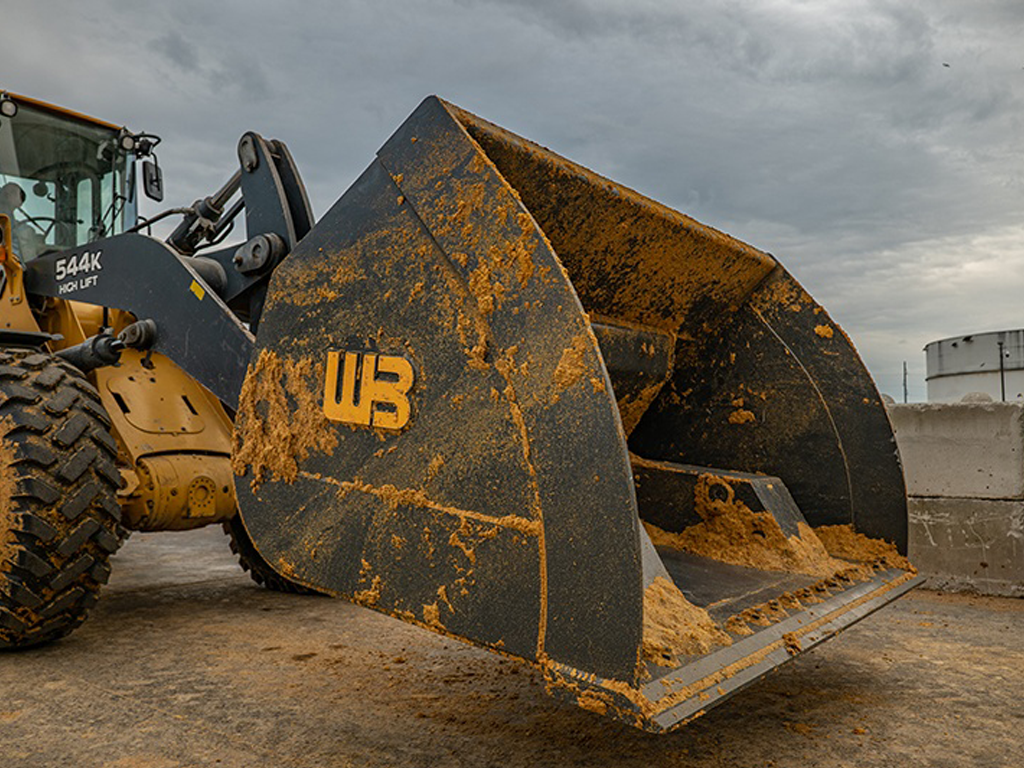

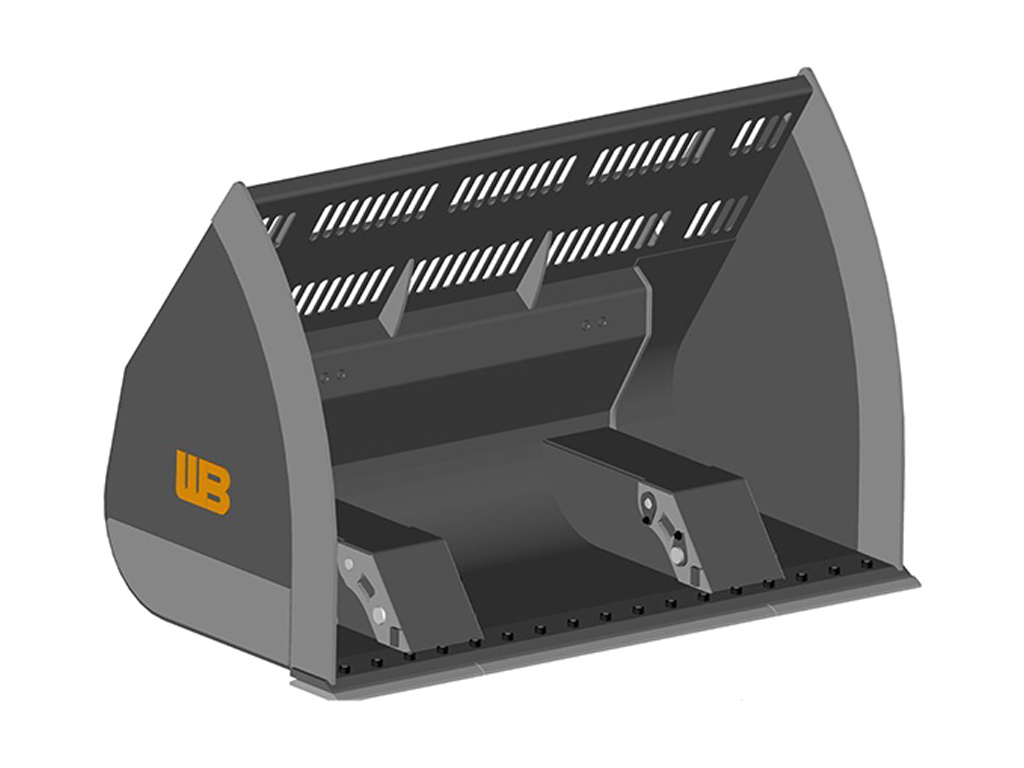

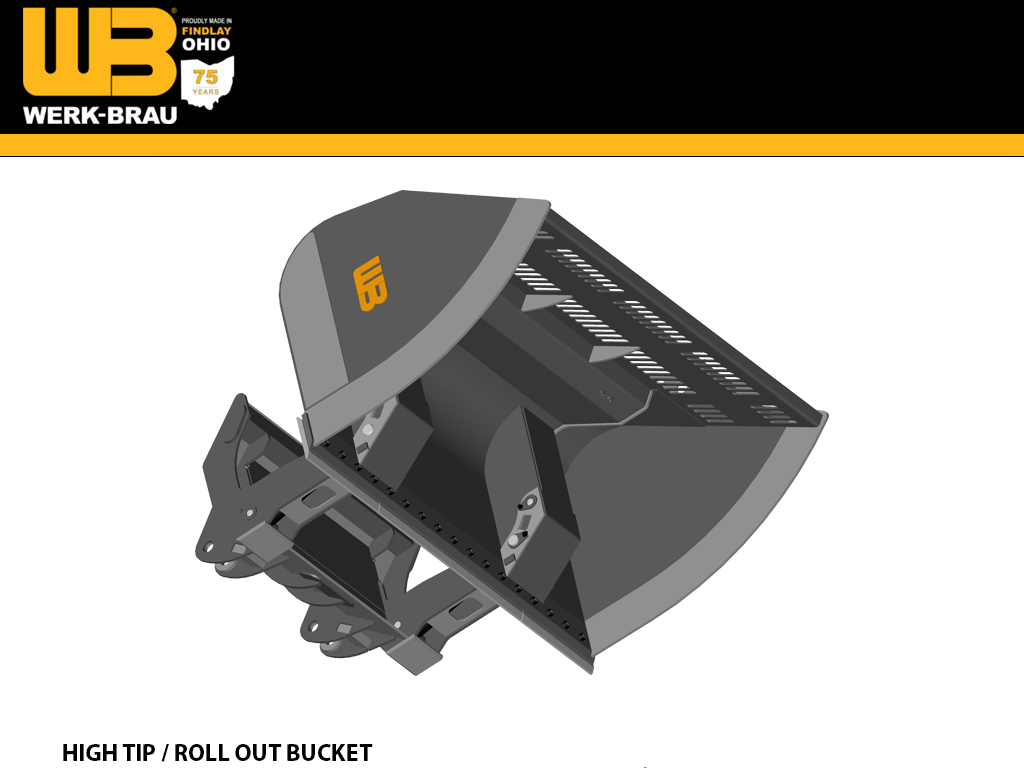

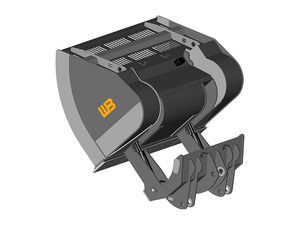

HIGH TIP / ROLL OUT BUCKET

Recommended Applications

Specifically designed for increased dump height 24"+ which is perfect for backfilling or loading trucks and re-handling light materials up to 2,000 lbs.

Additional Features

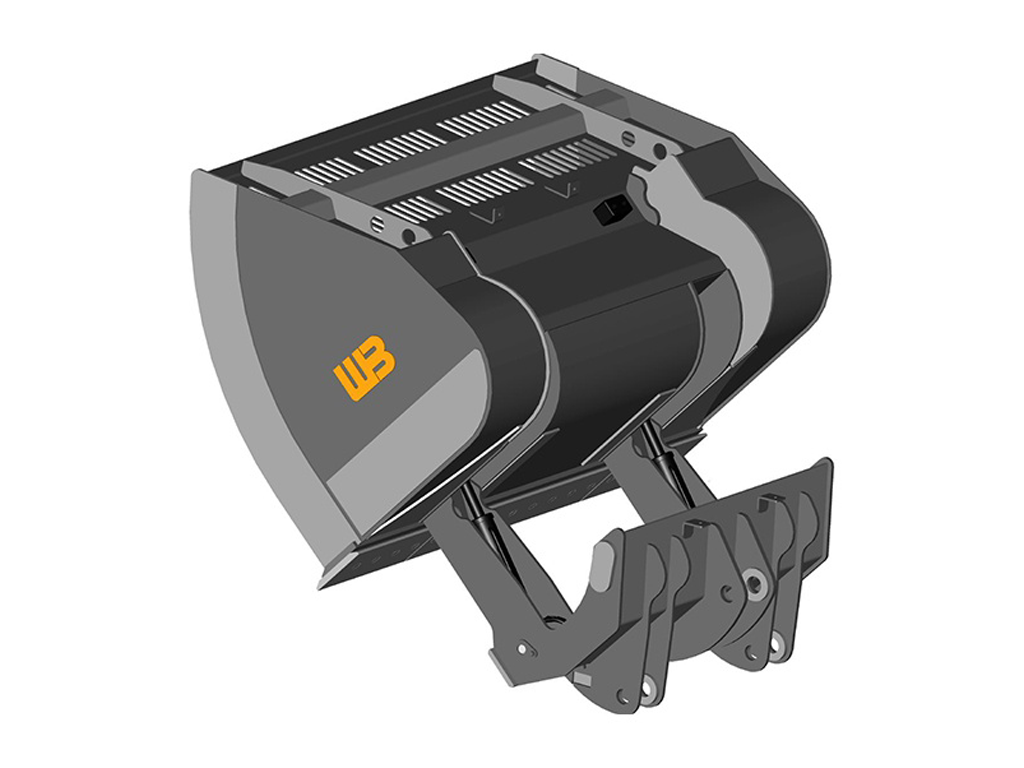

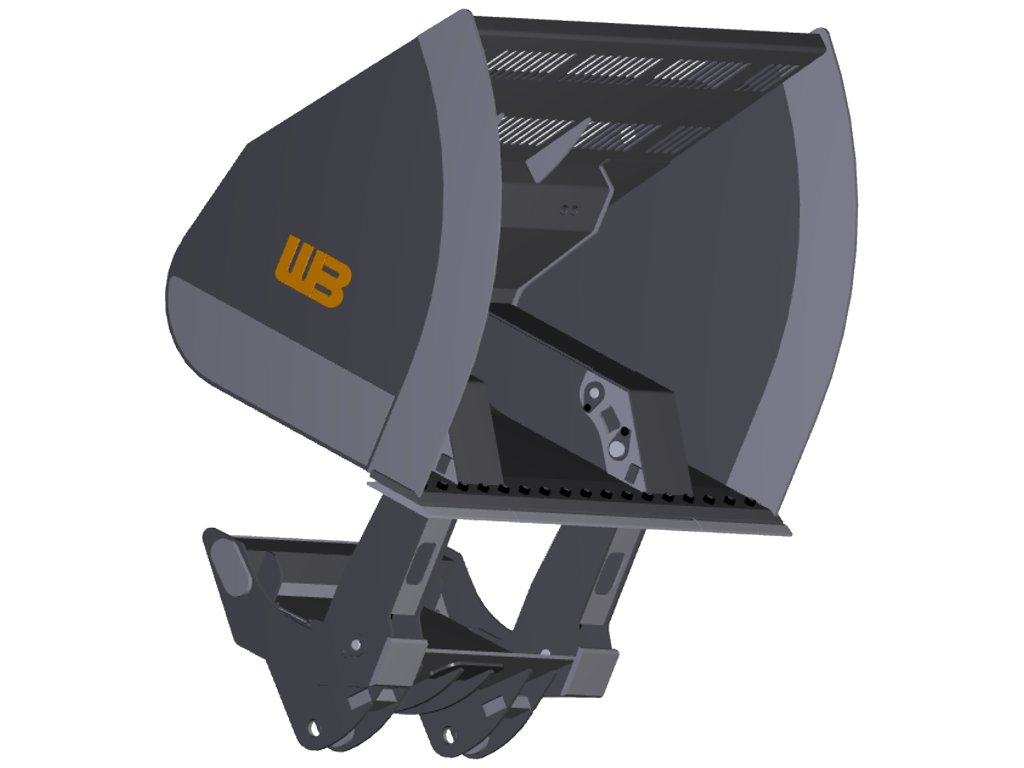

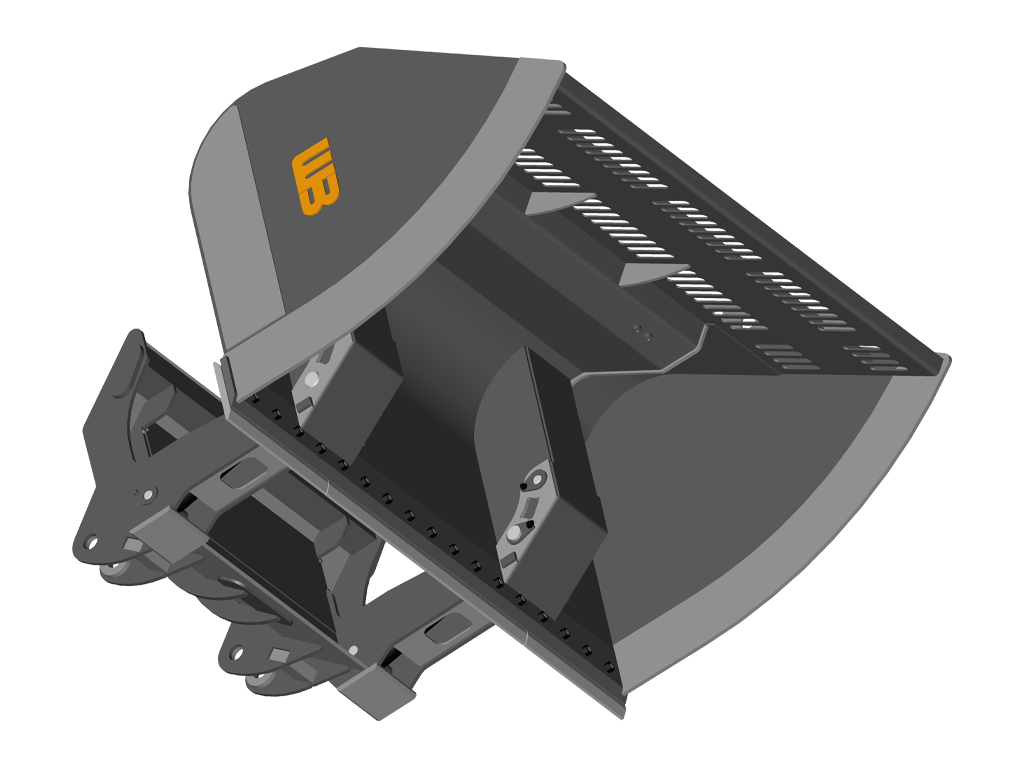

Bucket design incorporates a recessed carriage design to improve center of gravity. This mean less tippyness and less stress on the loader and bucket. Visibility slots come standard along with dual cushioned cylinders and performance side plates for increased material retention.

  • Dual cylinders

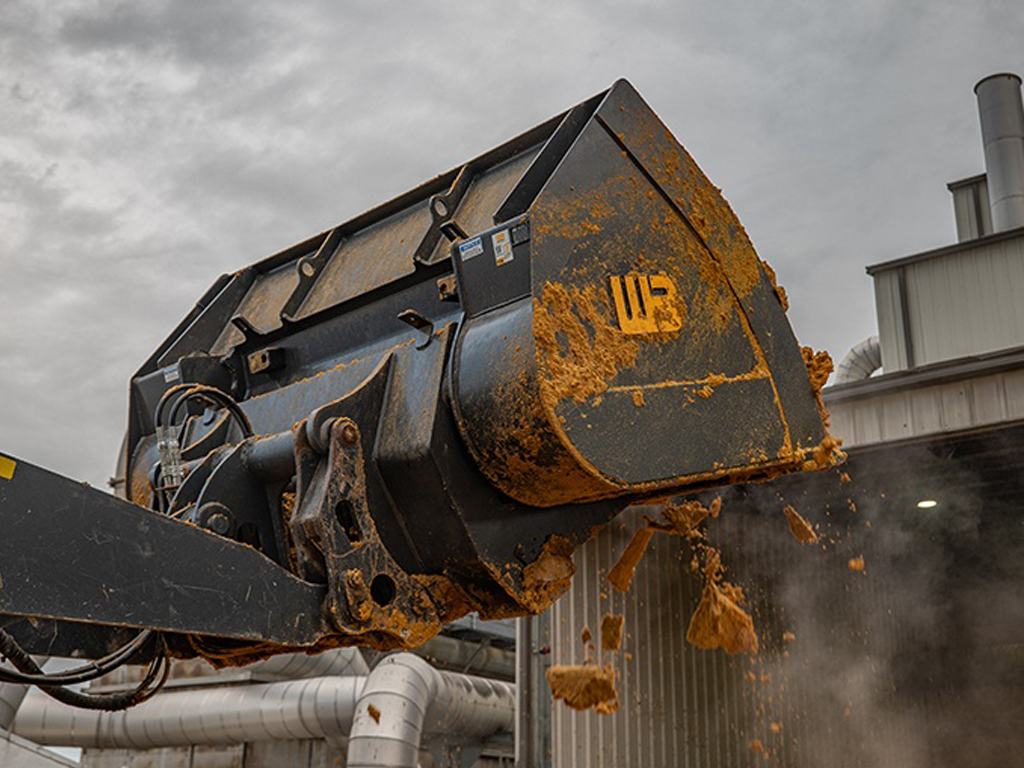

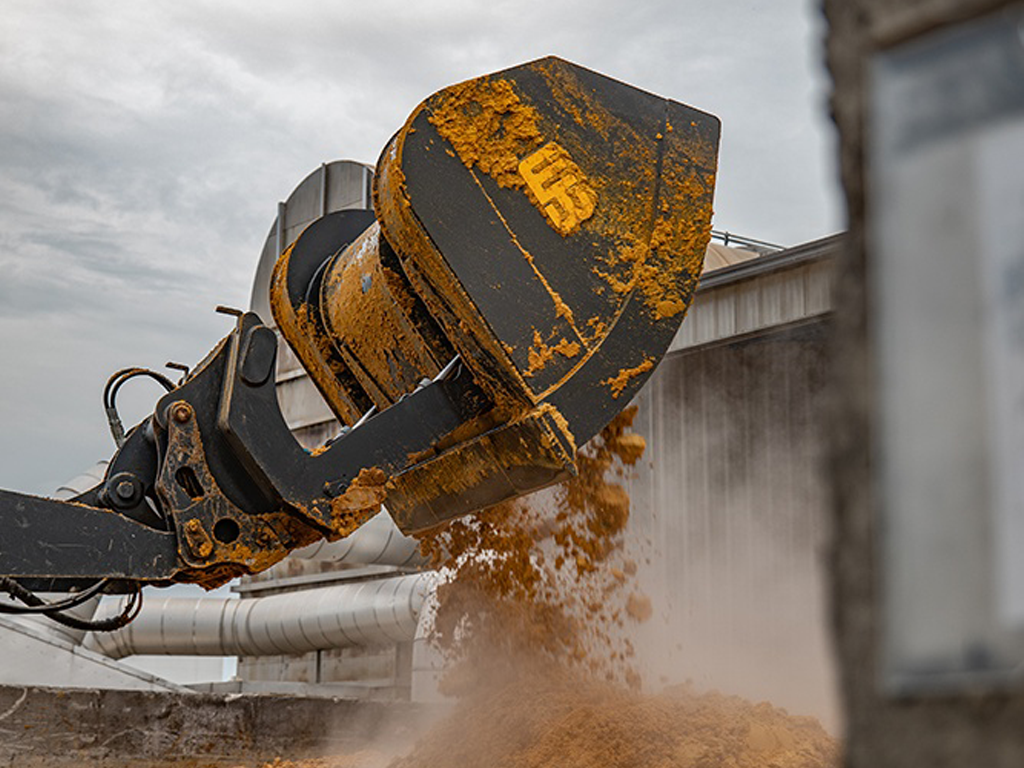

  • Over 93° of dump action
  • versatile design
  • designed for overhead loading,vertical piling, & back filling
  • High performance light material profile loader bucket
  • includes bolt on cutting edge
  • does not include hose kit
  • designed for materials up to 2,000 lbs.

PART # WIDTH CAPACITY WEIGHT
WL3HT100-5.00 100" 5.00 5,150
WL3HT100-6.00 100" 6.00 5,650

CLASS 3 (26,000 - 30,000 LBS) MODEL
CASE 621G
CAT 935, 936
DEVELON DL220-5, DL220-7
HITACHI ZW150
HYUNDAI HL750
JCB 426, 427
JOHN DEERE 524, 544
KOMATSU WA250, WA270
KUBOTA
LIEBHERR L538
LINK-BELT L140
NEW HOLLAND LW130
SANY SW305
TAKEUCHI
VOLVO L70
WACKER NEUSON
YANMAR
