M4HC3B24

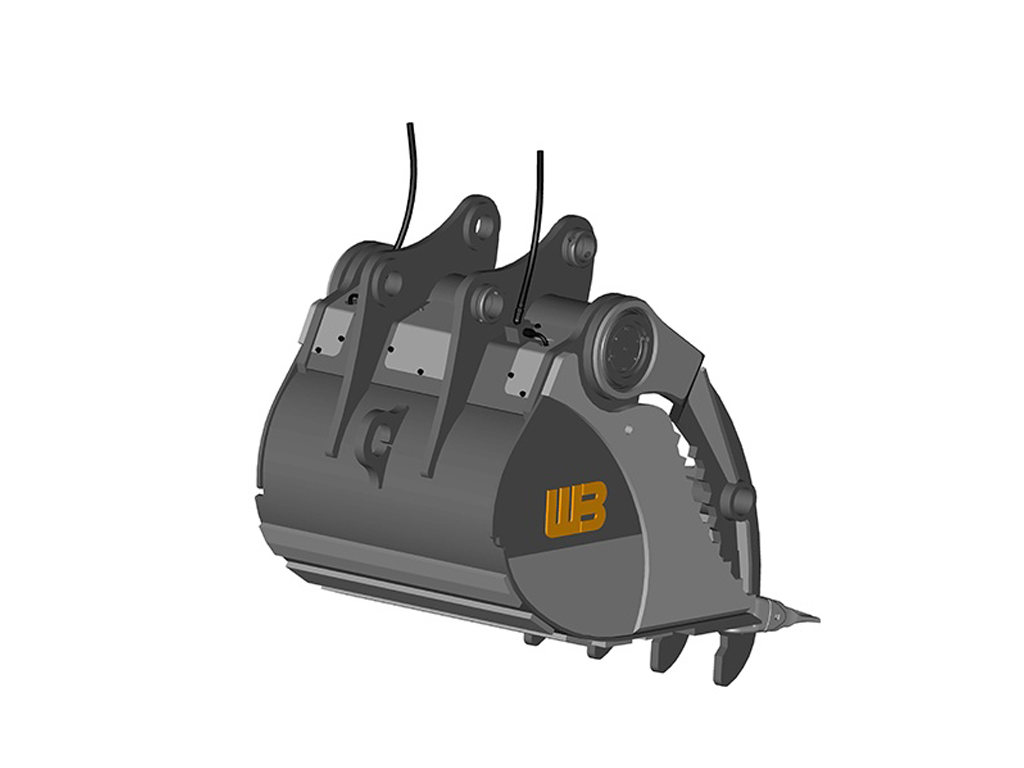

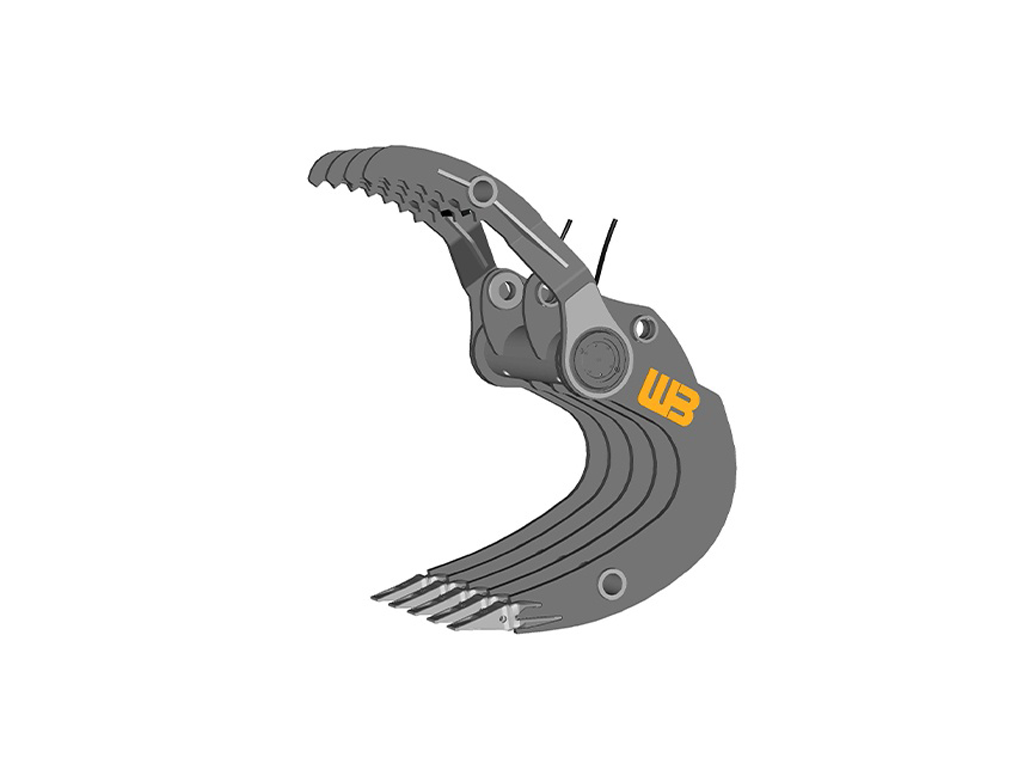

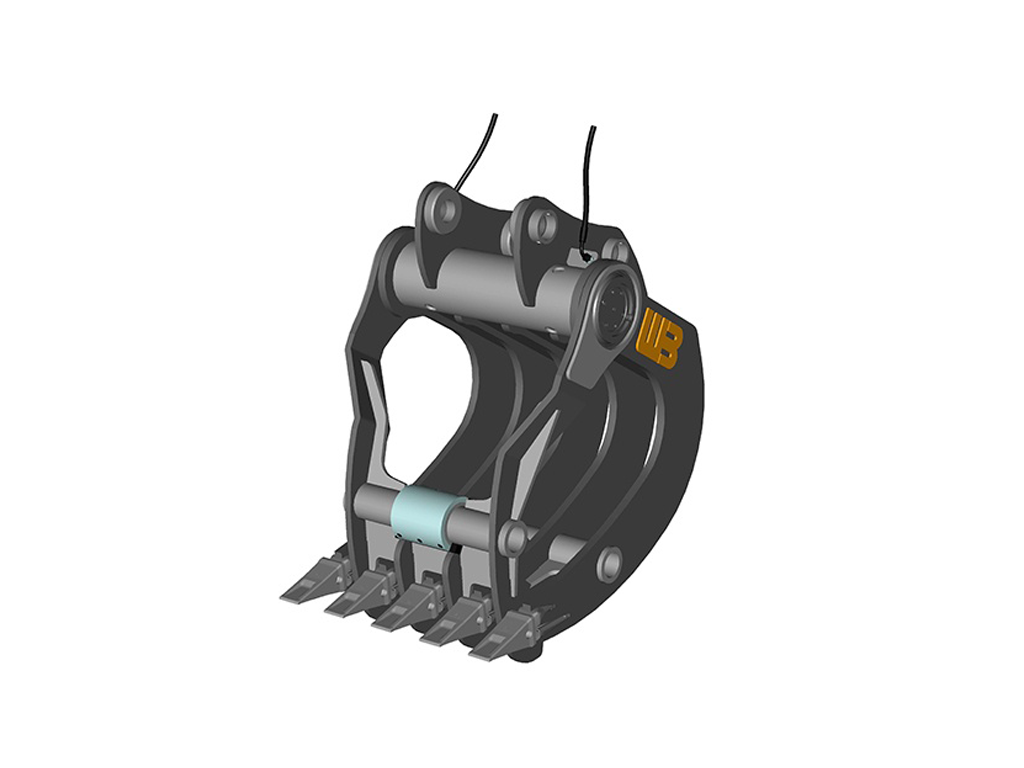

WERK BRAU Hydra-Clamp Bucket & rake for 14,000 - 25,000 lbs. Backhoes

WIDTH
STYLE

1/24

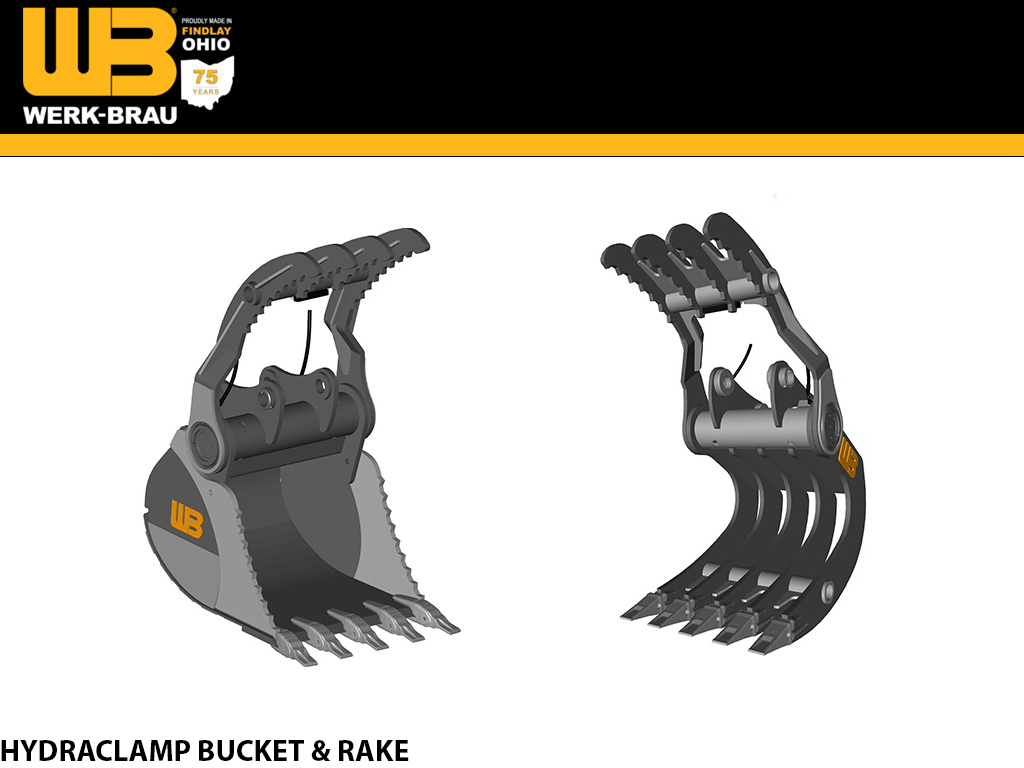

Hydra-Clamp bucket & rake

Recommended Applications

Confidently handle heavy, awkward loads, grab buckets of debris and clear away brush with the Hydra-clamp Bucket and Rake. The built-on rotary actuated thumb provides improved flexibility and precision by maintaining consistent clamping force on the load throughout the entire bucket rotation. The heavy duty design makes it perfect for demolition, picking/sorting applications and land clearing.

Quality Construction

Made of high quality T-1 and AR400 materials in all high stress & wear areas. Includes a plastic covering on thumb to protect the stick.

Additional Features

Easy, low cost installation. Nothing needs welded to the stick. Easily transferrable from machine to machine making it the perfect attachment for a rental fleet. It is powered by a fully enclosed rotary actuator. It has increased holding strength maintaining strong grip on material throughout rotation, versus the standard thumb and bucket. Operator can use 100% of excavator reach making it easier than ever to load trucks. The attachment requires very little maintenance requiring just two auxiliary maintenance lines.

Features

  • incorporated actuator; no exposed cylinders
  • more clamping force than any bucket-thumb combo
  • reduced overall weight compared to bucket-thumb combo
  • consistent clamping force throughout full rotation
  • Abrasion & wear resistant steel used throughout
  • severe duty set up
PART # TYPE WIDTH # OF TEETH WEIGHT
M4HC3B24
BUCKET 24"
5 1,035
M4HC3R24
RAKE 24"
5
1,035
M4HC3B30 BUCKET 30"
5
1,130
M4HC3R30
RAKE 30"
5
1,130


11,000-14,000 lbs.

 MAKE MODEL
CASE 480, 570MXT, 580, 590, 680
CAT 416B, 416C, 426B, 426C. 428B, 428C, 428D, 436B, 436C, 438
FORD 455, 555, 575, 655, 675
JCB 1400, 1500, 217-3/S-3
JOHN DEERE 310A/B, 310C/D, 310SE/410E, 310SG-SL, 410G-L, 320P
NEW HOLLAND LB75/ .B, 555E, 575E, LB90, LB110, 655E, 675E, 115, 115B, B95, LV80
TEREX TX750, TX760, TX860
VOLVO BL70, BL71, BL60



14,000-25,000 lbs.

 MAKE MODEL
CASE 780 C, 780 CK, 780 D
CAT 446B
FORD 755TLB
FIAT ALLIS FT110
JOHN DEERE 710B-D, 710G-L
