E12HC3B36

WERK BRAU Hydra-Clamp Bucket & rake for excavators 24,000 - 42,000 lbs (12 & 15MT)

WIDTH
Style

1/24

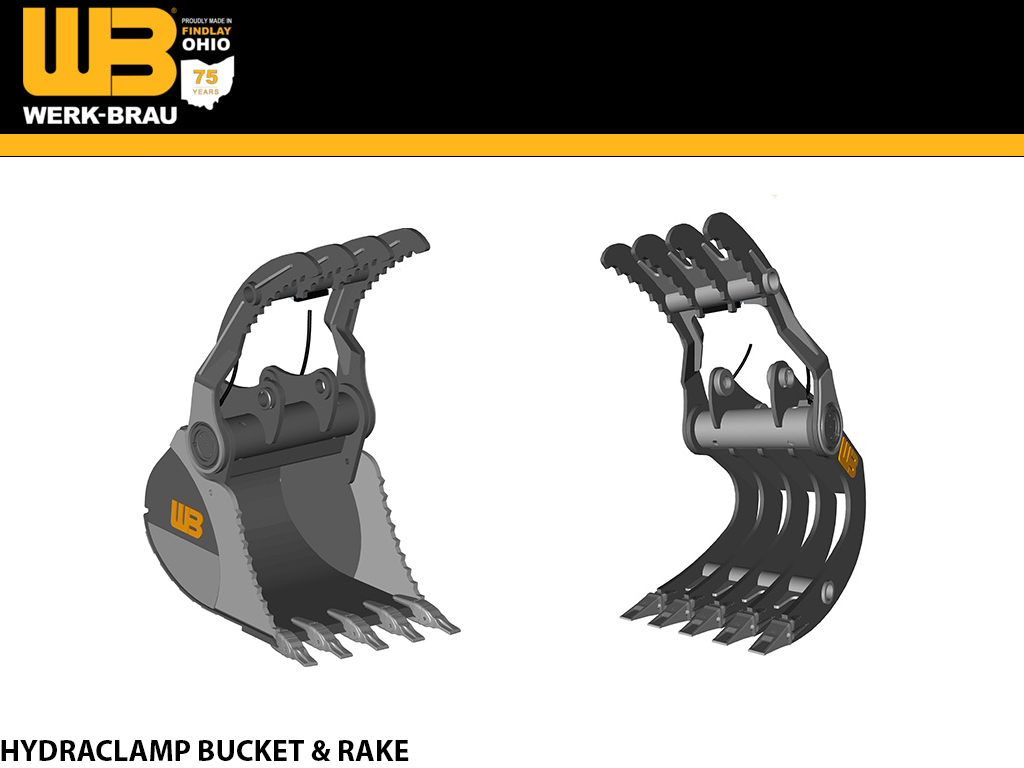

Hydra-Clamp bucket & rake

Recommended Applications

Confidently handle heavy, awkward loads, grab buckets of debris and clear away brush with the Hydra-clamp Bucket and Rake. The built-on rotary actuated thumb provides improved flexibility and precision by maintaining consistent clamping force on the load throughout the entire bucket rotation. The heavy duty design makes it perfect for demolition, picking/sorting applications and land clearing.

Quality Construction

Made of high quality T-1 and AR400 materials in all high stress & wear areas. Includes a plastic covering on thumb to protect the stick.

Additional Features

Easy, low cost installation. Nothing needs welded to the stick. Easily transferrable from machine to machine making it the perfect attachment for a rental fleet. It is powered by a fully enclosed rotary actuator. It has increased holding strength maintaining strong grip on material throughout rotation, versus the standard thumb and bucket. Operator can use 100% of excavator reach making it easier than ever to load trucks. The attachment requires very little maintenance requiring just two auxiliary maintenance lines.

Features

  • incorporated actuator; no exposed cylinders
  • more clamping force than any bucket-thumb combo
  • reduced overall weight compared to bucket-thumb combo
  • consistent clamping force throughout full rotation
  • Abrasion & wear resistant steel used throughout
  • severe duty set up
  • does not include jumper hose kit
PART # TYPE WIDTH # OF TEETH WEIGHT
E12HC3B36 BUCKET 36"
5 1,800
E12HC3R36 RAKE 36"
5
1,800
E12HC3B42 BUCKET 42"
5
1,950
E12HC3R42 RAKE 42"
5
1,950


12 METRIC TONS

MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145



 15 METRIC TONS

MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
